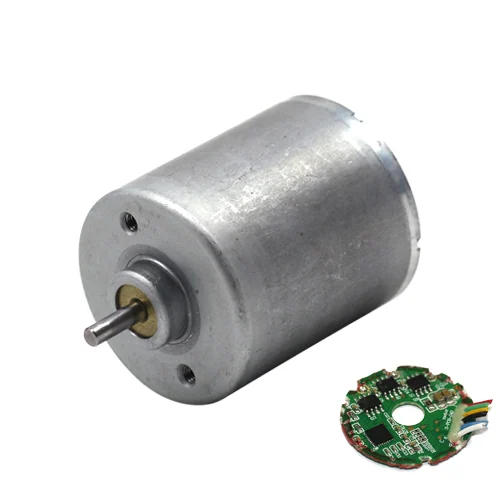

Nidec 22H series equivalent brushless DC Motor with integrated electronics

| - Model Number: Nidec 22H series equivalent
| - Shell Stator Size : Φ36* L 40 mm(Φ 1.42 inch * 1.57 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 2W - 30W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 320 gf-cm(31.36 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

Nidec 22H series equivalent brushless dc motor with integrated speed control

Key features:

► Model:BL3640I, BL3640, B3640M, FABL3640
► Size: Φ36* L 40 mm(Φ 1.42 inch * 1.57 inch)
► Built-in driver (built-in driver controller with hall sensor)
► PWM pulse wide speed range
► Clockwise/counter-clockwise rotation
► FG speed feedback signal
► Low EMC ► Low noise
► Long lifespan: up to 20000hrs
► Over-current protection ► Over-voltage protection ► Under-voltage protection

Nidec 22H series equivalent brushless DC Motor with integrated speed control

6 wires built-in driver interface instruction.webp

BL3640-datasheet.pdf

Model	Voltage(V)		No Load		Rated Load				Stall
	Range	Rated	Speed	Current	Torque	Speed	Current	P.out	Torque	Current
	Range	Rated	R/min	A	g-cm	R/min	A	W	g-cm	A
BL3640i-S01	8~16V	12	4769	0.16	146.7	4006	0.818	6.028	917	4.271
BL3640i-S02	8~26V	18	7068	0.19	211.93	6008	1.071	13.055	1412.4	6.066
BL3640i-S03	8~26V	24	8235	0.247	288.2	6835	1.186	20.205	1695.4	5.769
BL3640i-S04	8~26V	24	5700	0.13	221.35	4500	0.54	10.27	1144	2.25

BL3640i

Output Power: 5W~30W

Weight: 150g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

BL3640 Data
