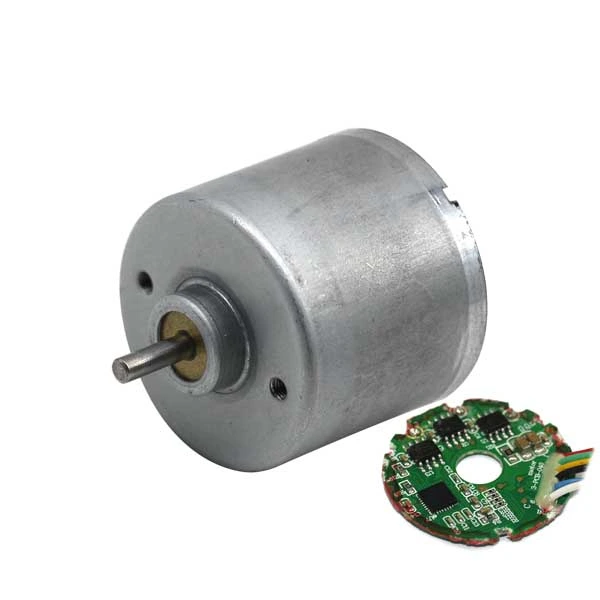

| - Model Number: BL3630I
| - Shell Stator Size : Φ36* L 30 mm(Φ 1.42 inch * 1.18 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 2W - 18W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 200 gf-cm(19.6 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - Model Number: BL3630I B3630M
| - Shell Stator Size : Φ36* L 30 mm(Φ 1.42 inch * 1.18 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 2W - 18W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 200 gf-cm(19.6 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation
|- FG speed feedback signal
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hrs
|- Over-current protection |- Over-voltage protection |- Under-voltage protection

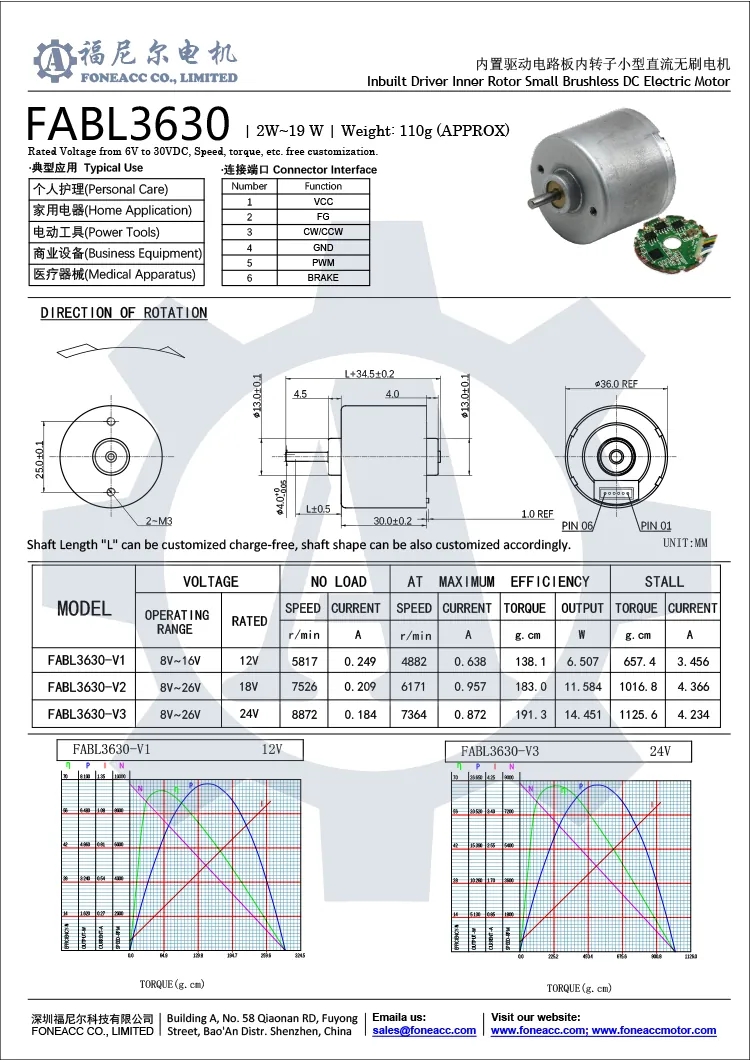

Model | Voltage | No load | At maximum efficiency | Stall | |||||||
Range | Nominal | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
BL3630i-S01 | 8~16V | 12 | 5,817 | 0.249 | 4,882 | 0.88 | 138.1 | 6.92 | 65.5 | 657 | 3.46 |
BL3630i-S02 | 8~26V | 18 | 7,526 | 0.209 | 6,171 | 0.957 | 183 | 11.59 | 67.3 | 1,017 | 4.37 |
BL3630i-S03 | 8~26V | 24 | 8,872 | 0.184 | 7,364 | 0.872 | 191.3 | 14.46 | 69.1 | 1,126 | 4.23 |
B3630M-S01 | 5.8-12 | 6 | 2,940 | 0.39 | 2,127 | 1.021 | 123.73 | 2.70 | 44.1 | 449 | 2.67 |
B3630M-S02 | 8~26V | 12 | 5,200 | 0.27 | 4,260 | 0.9 | 150.1 | 6.56 | 60.8 | 829 | 2.50 |
B3630M-S03 | 8~26V | 24 | 6,970 | 0.2 | 5,640 | 0.76 | 200.1 | 11.59 | 63.5 | 1,046 | 2.50 |
B3630M-S04 | 8~26V | 24 | 15,755 | 0.39 | 13,213 | 1.59 | 204 | 27.67 | 72.5 | 1,264 | 3.50 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
