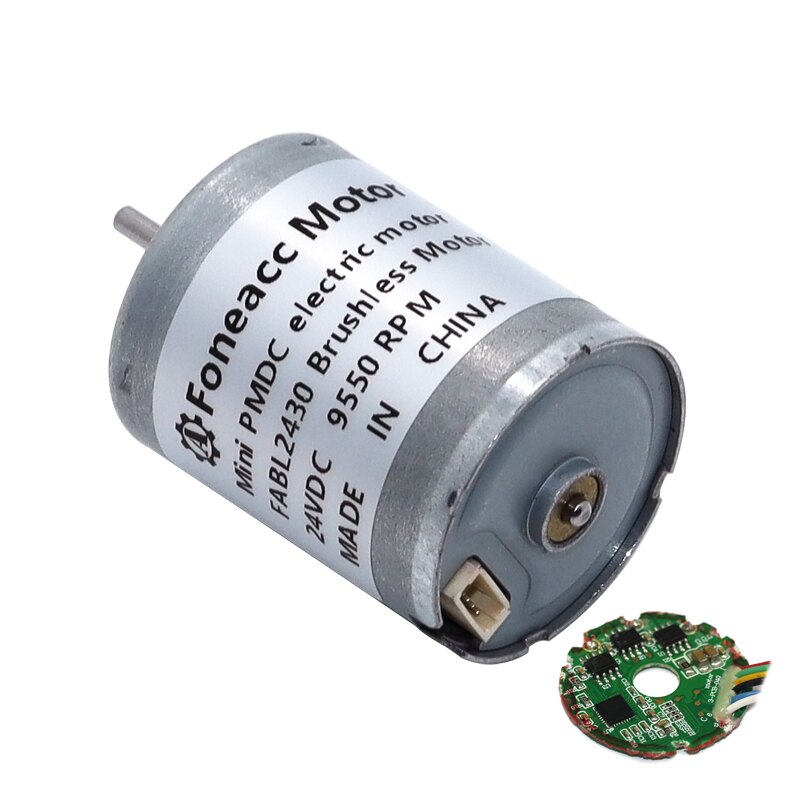

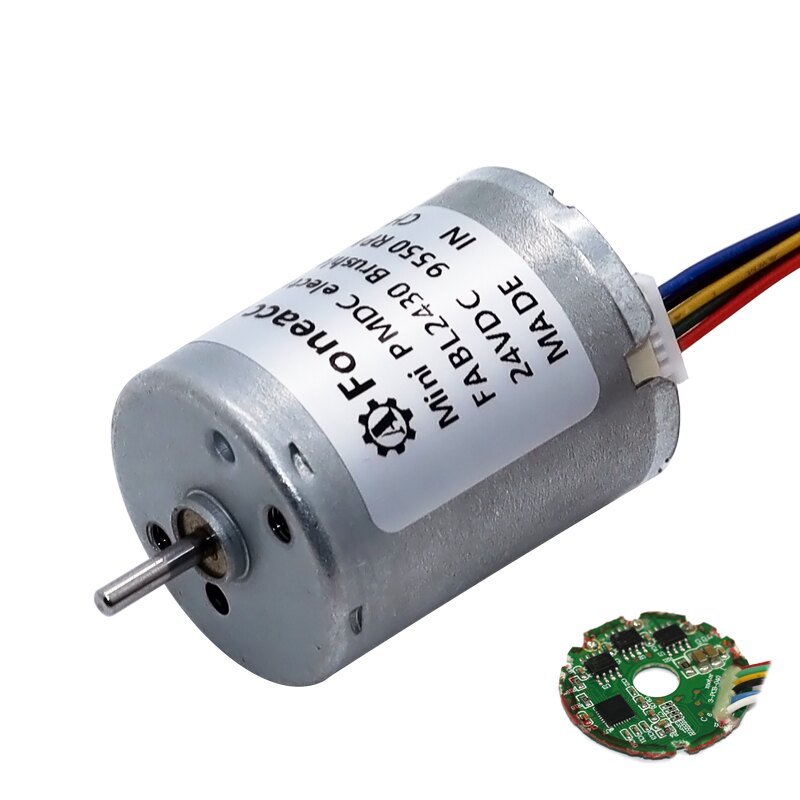

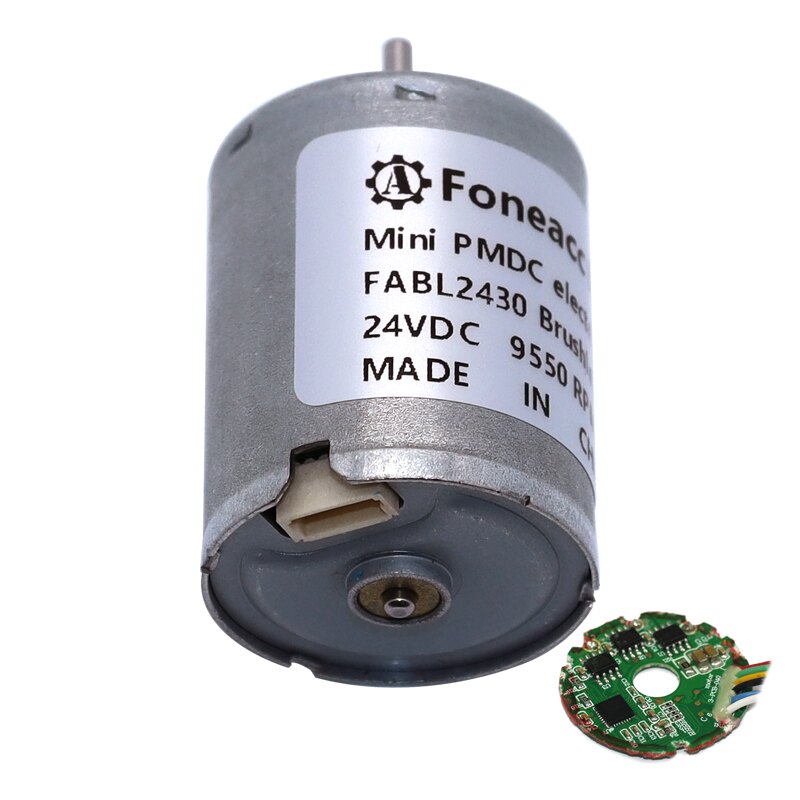

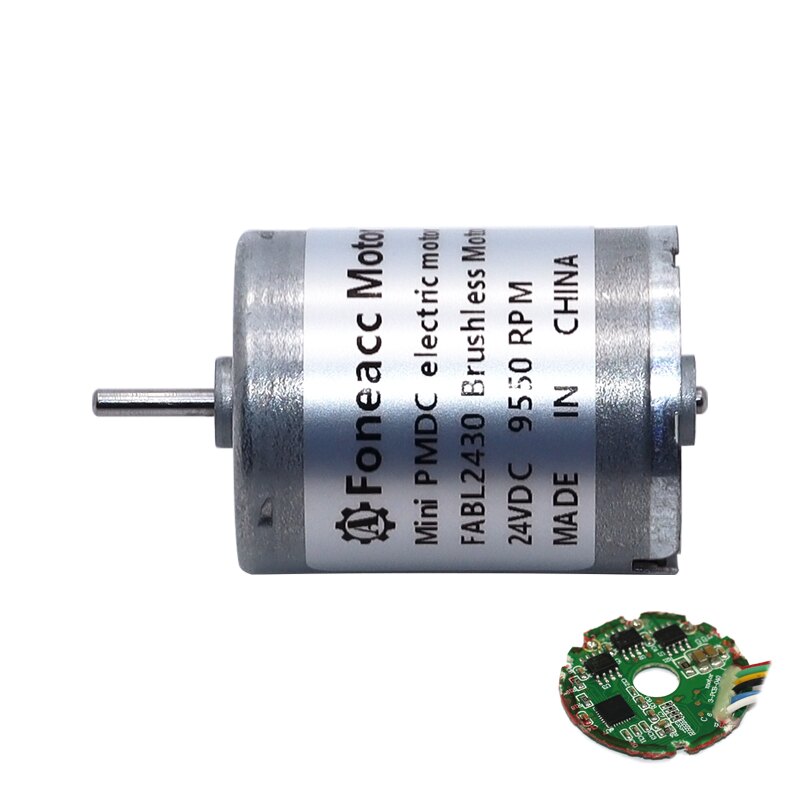

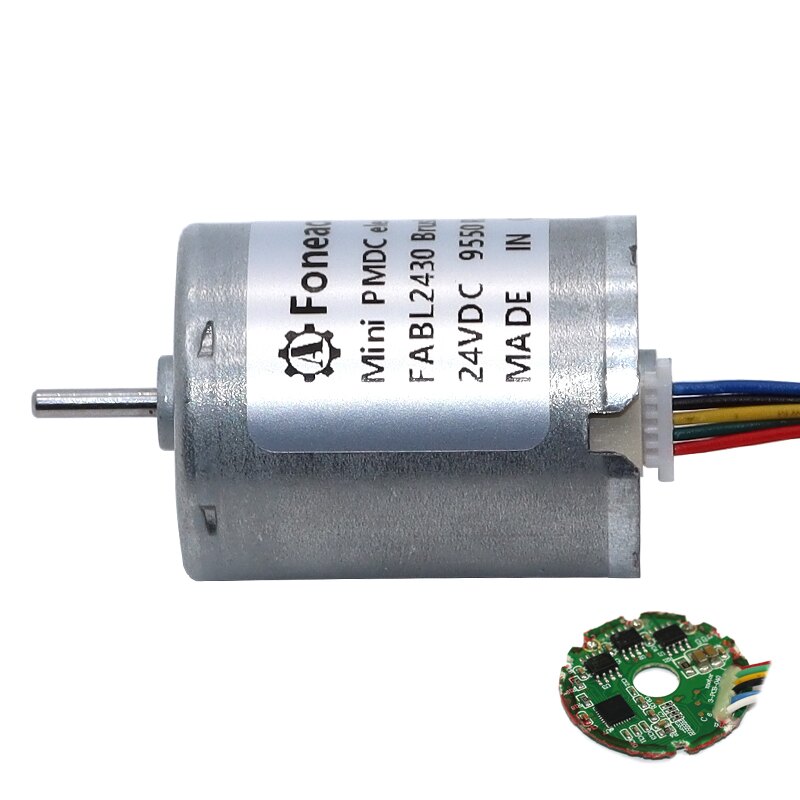

BL2430i B2430M 24mm inner rotor bldc brushless dc motor

| - Model Number: BL2430I
| - Shell Stator Size : Φ24* L 30 mm(Φ 0.945 inch * 1.18 inch)
| - Shaft : Φ2.0mm[0.079 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 1W - 9W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 75 gf-cm(7.35 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

BL2430i B2430M 24mm inner rotor bldc brushless dc motorInbuilt controller with hall-effect sensor


Main features:

|- Size: Φ24* L 30 mm(Φ0.945 inch * 1.18 inch)
|- Built-in driver (built-in driver controller with hall sensor)
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation
|- FG speed feedback signal
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hrs
|- Over-current protection |- Over-voltage protection |- Under-voltage protection


BL2430I brushless dc motor data examples:

Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current P.out Torque Current
R/min A mNm R/min A W mNm A
BL2430I-S01 5~12 6 5380 0.23 3.92 4720 0.61 1.94 13.2 1.5
BL2430I-S02 5~12 9 5390 0.11 9.81 3750 0.71 3.85 23.2 1.5
BL2430I-S03 8~26 12 8010 0.17 9.32 6150 0.74 6.01 23.5 1.5
BL2430I-S04 8~26 24 4570 0.05 6.87 3510 0.18 2.53 29.59 0.64

BL2430I Dimensions and performance curves of BL2832I brushless dc motor for reference:

bl2430 <a href=/micro-brushless-dc-motor-foneacc-motion.html target='_blank'>BLDC motor</a> Dimensions and performance curves of BL2832I brushless dc motor for reference:



5 wires built-in driver interface instruction.webp

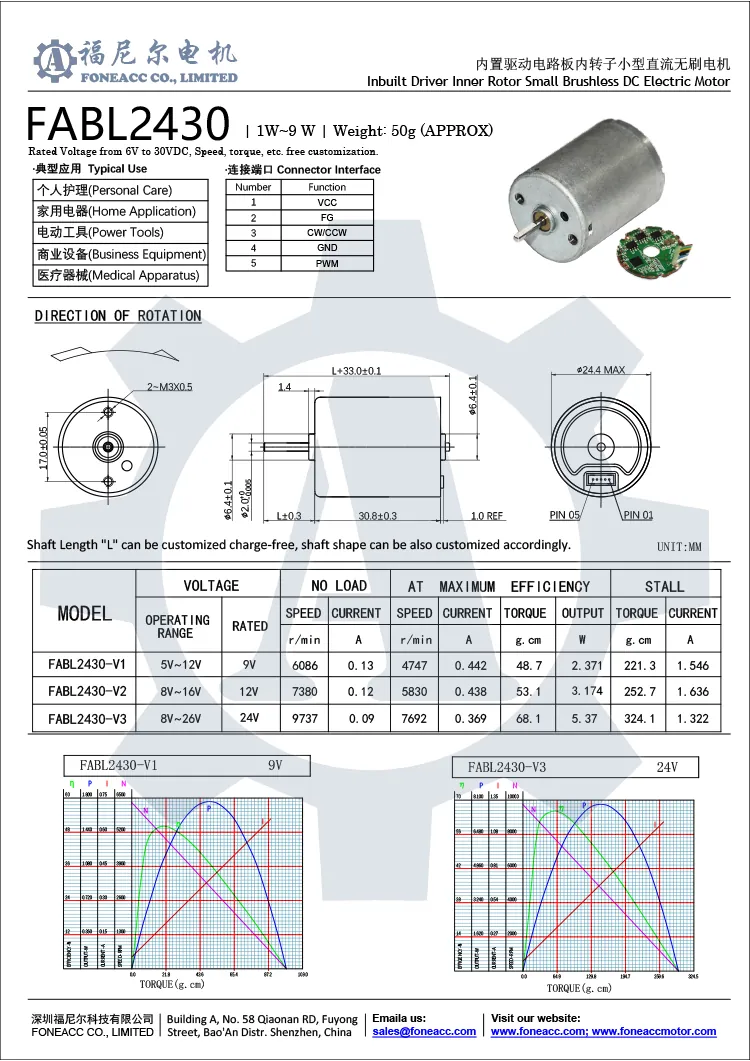

Download BL2430I brushless DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
