| - Model Number: BL2418I
| - Shell Stator Size : Φ24* L 18 mm(Φ 0.945 inch * 0.7 inch)
| - Shaft : Φ2.0mm[0.079 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 1W - 7W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 35 gf-cm(3.43 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
Main features:
|- Size: Φ24* L 18 mm(Φ0.945 inch * 0.7 inch)
|- Built-in driver (built-in driver controller with hall sensor)
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation
|- FG speed feedback signal
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hrs
|- Over-current protection |- Over-voltage protection |- Under-voltage protection
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Range | Rated | Speed | Current | Torque | Speed | Current | P.out | Torque | Current | |
R/min | A | mNm | R/min | A | W | mNm | A | |||
BL2418i-S01 | 4~9 | 6 | 9260 | 0.21 | 2.45 | 7490 | 0.61 | 1.93 | 6.2 | 1.2 |
BL2418i-S02 | 8~16 | 12 | 6520 | 0.08 | 2.45 | 4660 | 0.24 | 1.2 | 8.4 | 0.65 |
BL2418i-S03 | 8~26 | 12 | 12420 | 0.127 | 2.94 | 9580 | 0.43 | 2.96 | 12.8 | 1.47 |
BL2418i-S04 | 8~26 | 24 | 12770 | 0.065 | 5.89 | 9280 | 0.41 | 5.72 | 21.5 | 1.32 |
BL2418i-S05 | 8~26 | 24 | 8660 | 0.055 | 2.94 | 6690 | 0.169 | 2.06 | 12.8 | 0.55 |

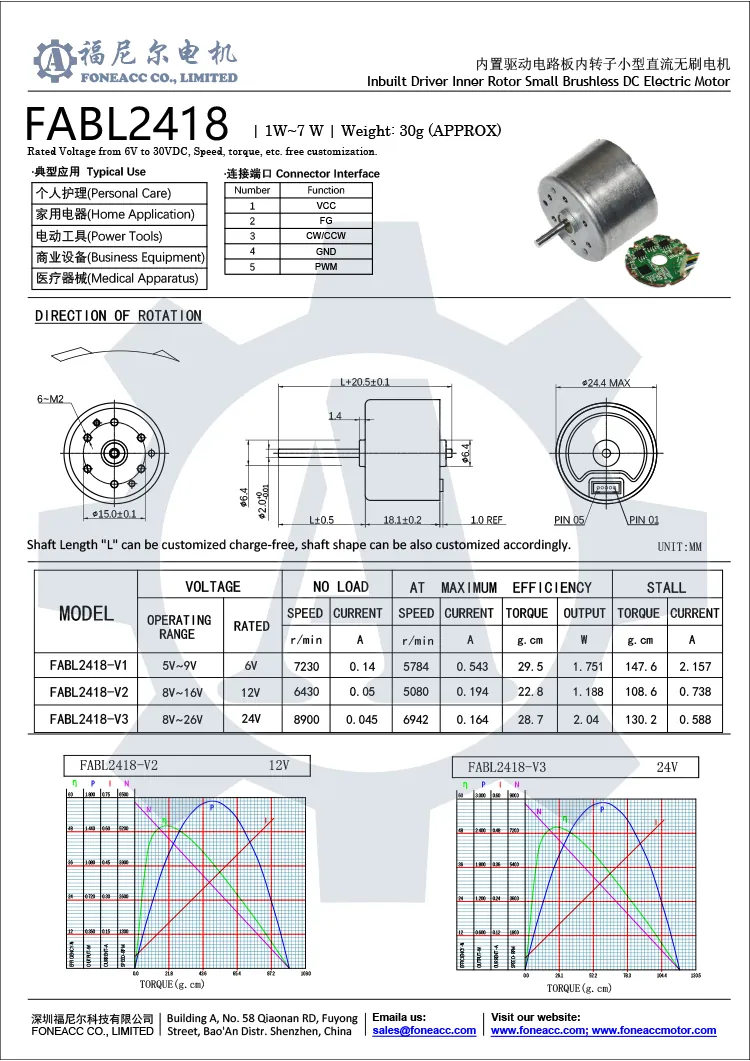

Dimensions and performance curves of BL2418I brushless dc motor for reference:
Download BL2418I brushless DC motor datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
