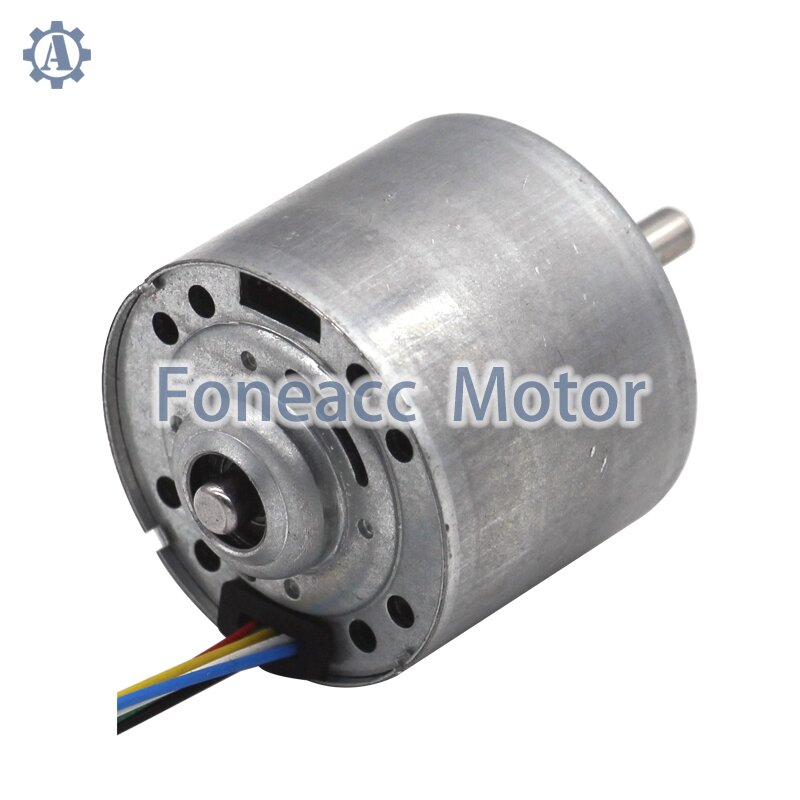

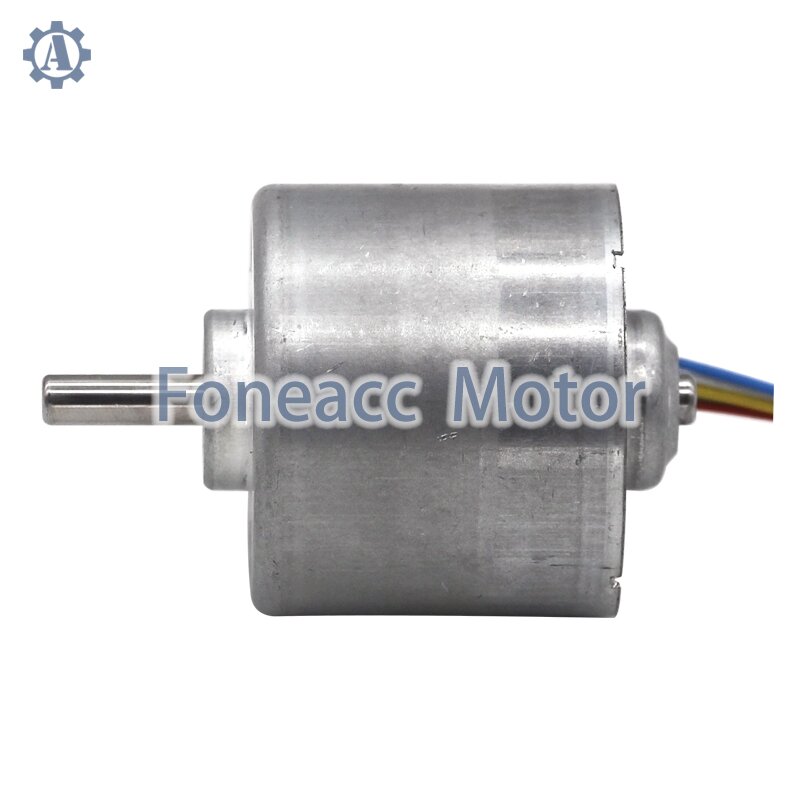

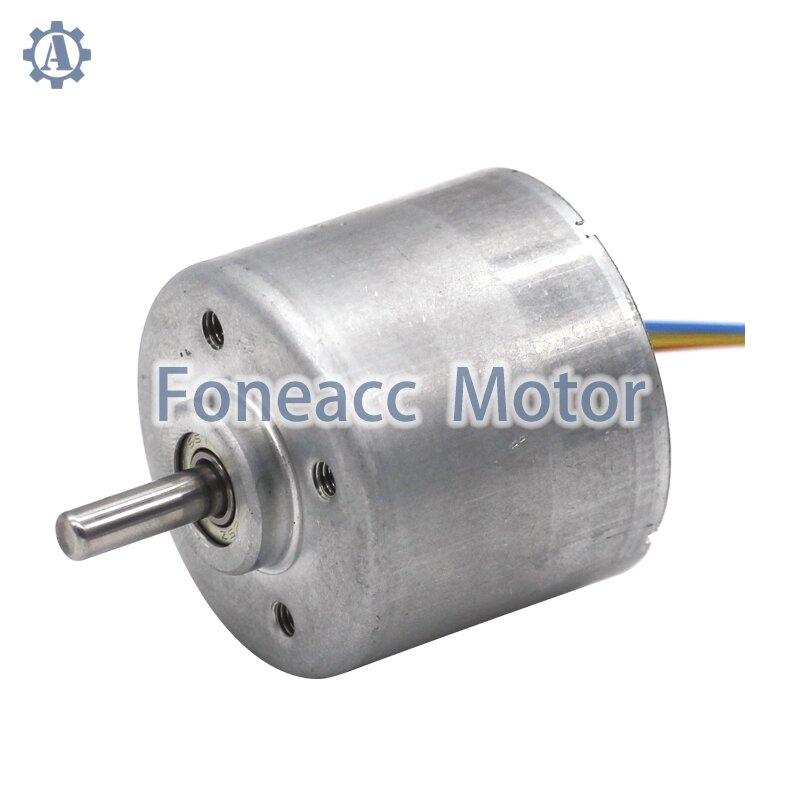

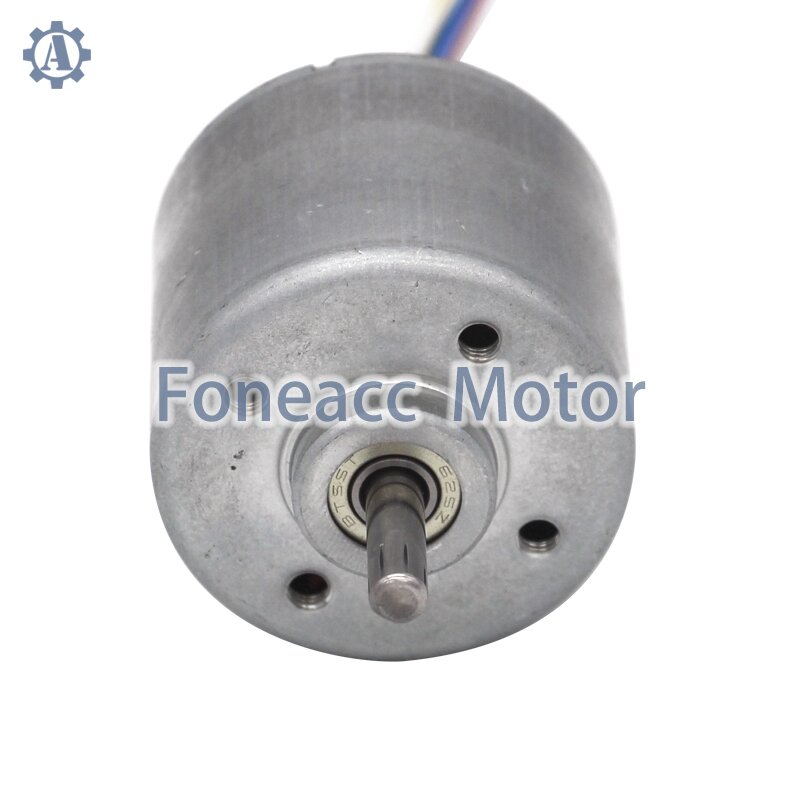

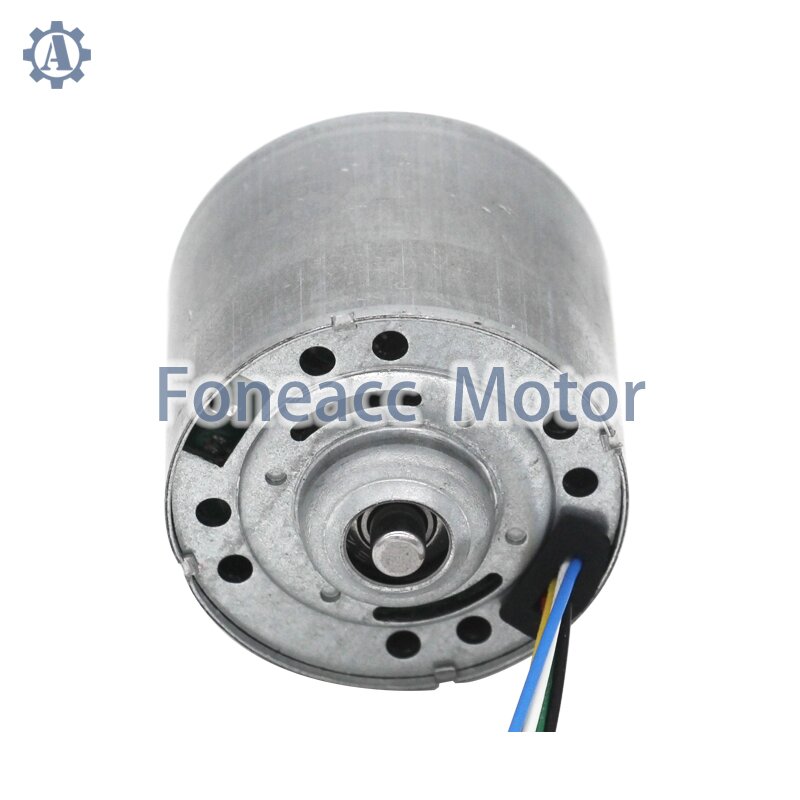

BL4235i B4235M 42mm bldc brushless dc motor with controller with hall sensor

| - Model Number: BL4235I
| - Shell Stator Size : Φ42* L 35 mm(Φ 1.65 inch * 1.38 inch)
| - Shaft : Φ5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 5W - 30W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 480 gf-cm(47 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

BL4235i B4235M OD Diameter 42mm Small inner rotor Brushless DC BLDC motor built-in driver controller with hall sensor


Key features:

| - Model Number: BL4235I
| - Shell Stator Size : Φ42* L 35 mm(Φ 1.65 inch * 1.38 inch)
| - Shaft : Φ5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 5W - 30W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 480 gf-cm(47 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| -  PWM pulse wide speed range
| -  Clockwise/counter-clockwise rotation
| -  FG speed feedback signal
| -  Low EMC | -  Low noise
| -  Long lifespan: up to 20000hrs
| -  Over-current protection | -  Over-voltage protection | -  Under-voltage protection


BL4235I dc motor data examples:

Model Voltage No load At maximum efficiency Stall
Range Nominal Speed Current Speed Current Torque P.out Eff. Torque Current
V R/min A R/min A gf-cm W % gf-cm A
BL4235I-V1 8~26 12 2,860 0.21 2,050 1.16 410.2 8.63 62.0 1,439 2.50
BL4235I-V2 8~26 24 6,370 0.3 5,100 1.17 357.1 18.70 66.6 1,794 2.50
BL4235I-V3 8~26 24 9,400 0.53 8,530 1.16 184.2 16.13 57.9 1,989 2.50
BL4235I-V4 8~26 24 5,539 0.25 4,393 1.41 561.5 25.33 74.8 2,697 2.50
BL4235I-V5 8~26 24 8,455 0.33 7,580 1.64 408.2 31.76 80.7 3,947 2.50
BL4235I-V6 8~16 12 2,860 0.21 2,288 0.874 282.5 6.64 63.3 14,122 3.53
BL4235I-V7 8~26 18 4,290 0.25 3,518 1.127 381.3 13.77 67.9 2,119 5.12
BL4235I-V8 8~26 24 5,200 0.3 4,160 1.214 457.1 19.52 67.0 2,286 4.87

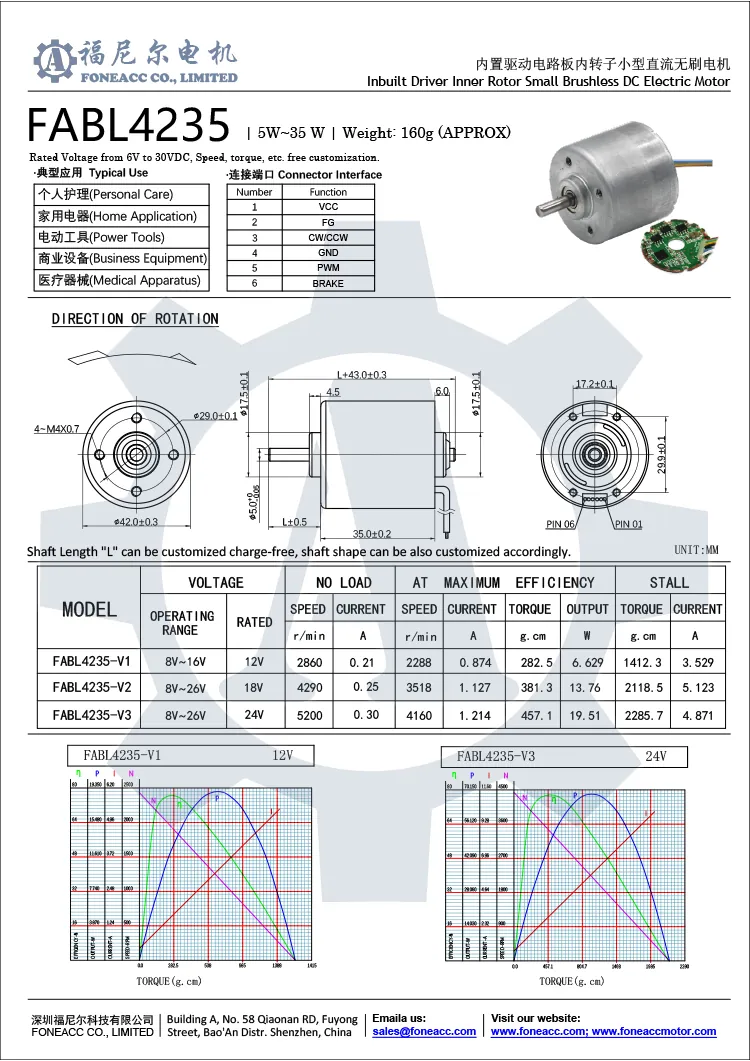

Dimensions and performance curves of BL4235I dc motor for reference:

bl4235 bldc motor

6 wires built-in driver interface instruction.webp


Download BL4235I DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
