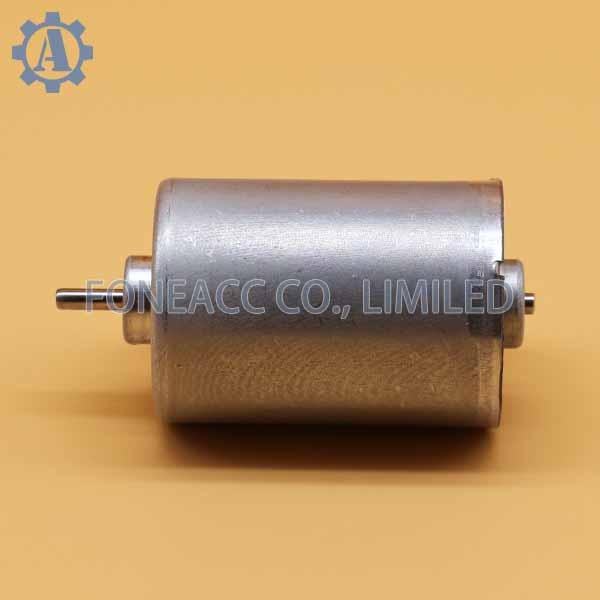

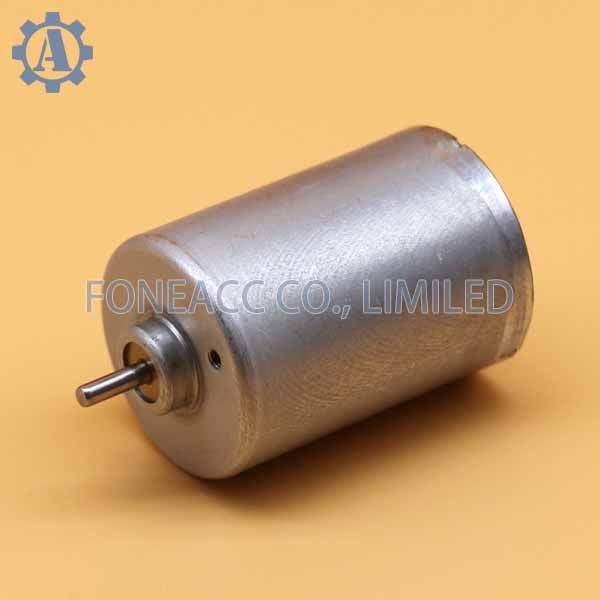

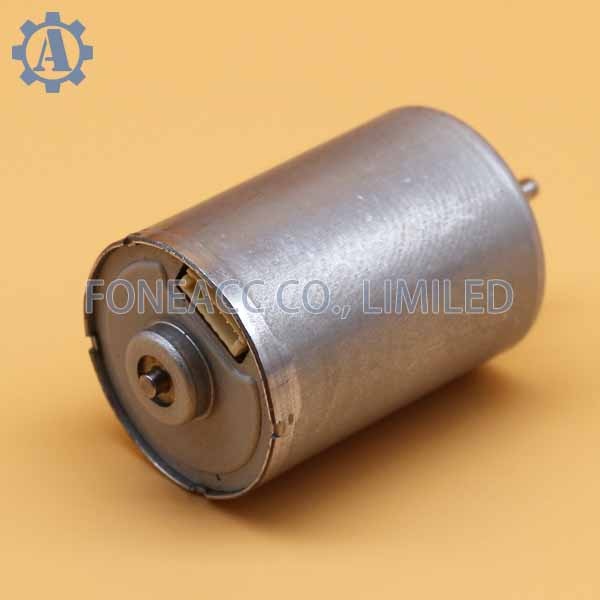

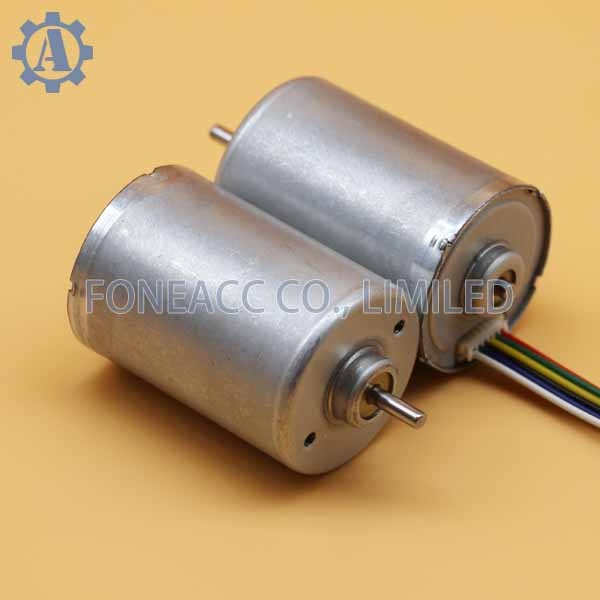

BL3650i B3650M 36mm Small BLDC Brushless DC Motor

| - Model Number: BL3650I
| - Shell Stator Size : Φ36* L 50 mm(Φ 1.42 inch * 1.97 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 5W - 40W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 500 gf-cm(49 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

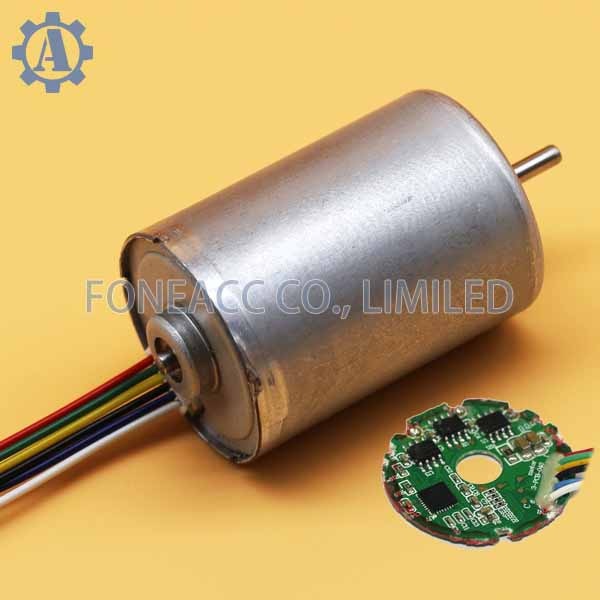

BL3650i B3650M 36mm Small BLDC brushless dc motor with controller with hall sensor


Main features:

| - Model Number: BL3650I
| - Shell Stator Size : Φ36* L 50 mm(Φ 1.42 inch * 1.97 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 5W - 40W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 500 gf-cm(49 mNm)
| - Rotor: inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| -  PWM pulse wide speed range
| -  Clockwise/counter-clockwise rotation
| -  FG speed feedback signal
| -  Low EMC | -  Low noise
| -  Long lifespan: up to 20000hrs
| -  Over-current protection | -  Over-voltage protection | -  Under-voltage protection


BL3650I dc motor data examples:

Model Voltage No load At maximum efficiency Stall
Range Nominal Speed Current Speed Current Torque P.out Eff. Torque Current
V R/min A R/min A gf-cm W % gf-cm A
BL3650I-V1 8~16V 12 4,304 0.28 3,486 1.2 211.2 7.56 52.5 1,117 5.10
BL3650I-V2 8~26V 18 6,693 0.3 5,555 1.552 305.9 17.45 62.4 1,800 7.54
BL3650I-V3 8~26V 24 8,458 0.4 6,851 1.794 395.2 27.80 64.6 2,080 7.63
B3650M-S01 8~26V 12 5,300 0.46 4,600 1.53 239.794 11.32 61.7 794 2.50
B3650M-S02 8~26V 24 4,327 0.18 3,714 1.01 459.18 17.51 72.2 3,233 2.50
FABL3650-V01 8~26V 24 8589 0.251 7207 1.309 338.9 25.08 79.84 2106.5 6.83

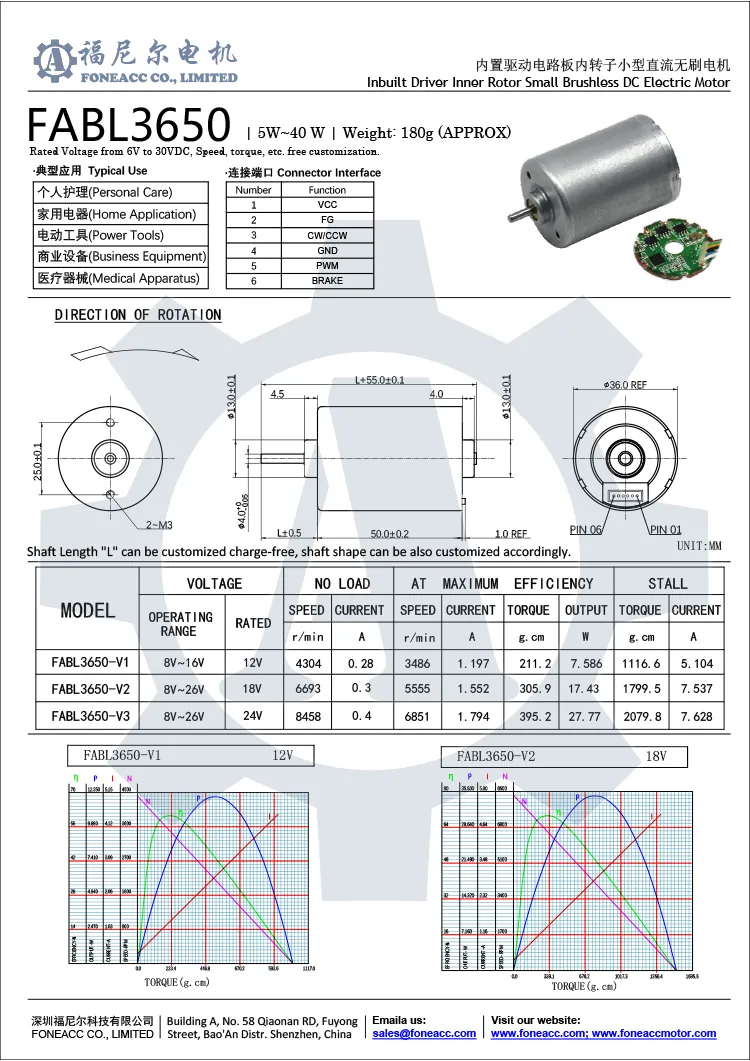

Dimensions and performance curves of BL3650I dc motor for reference:

bl3650 <a href=/micro-brushless-dc-motor-foneacc-motion.html target='_blank'>BLDC motor</a>



6 wires built-in driver interface instruction.webp


Download DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
