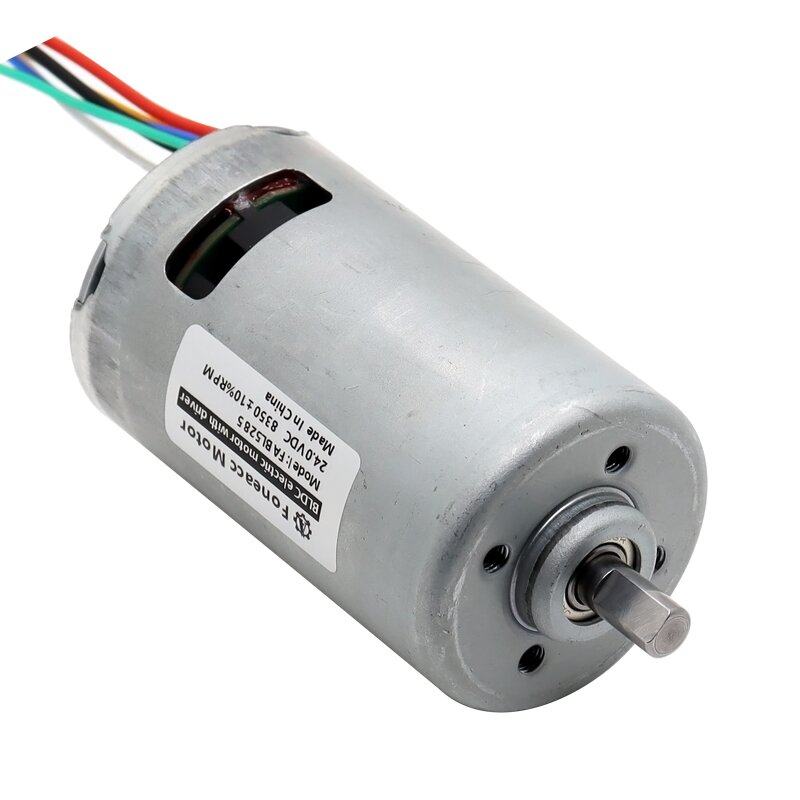

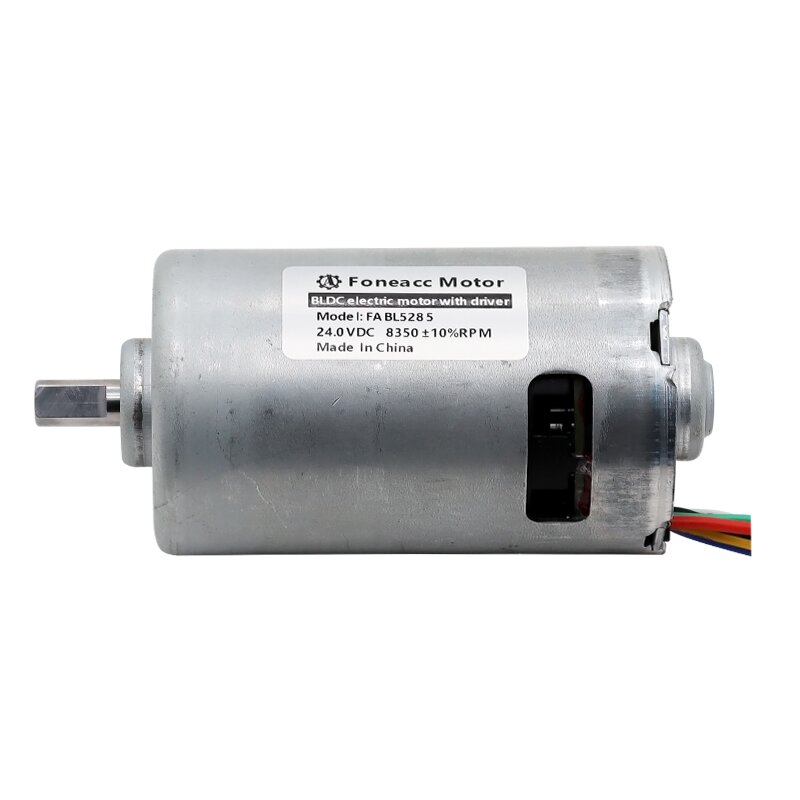

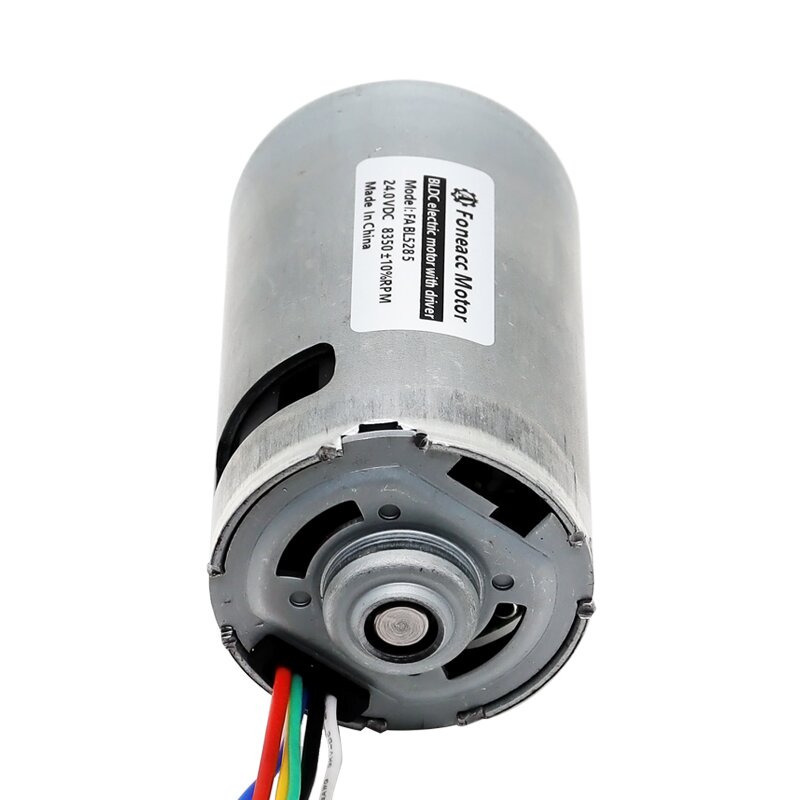

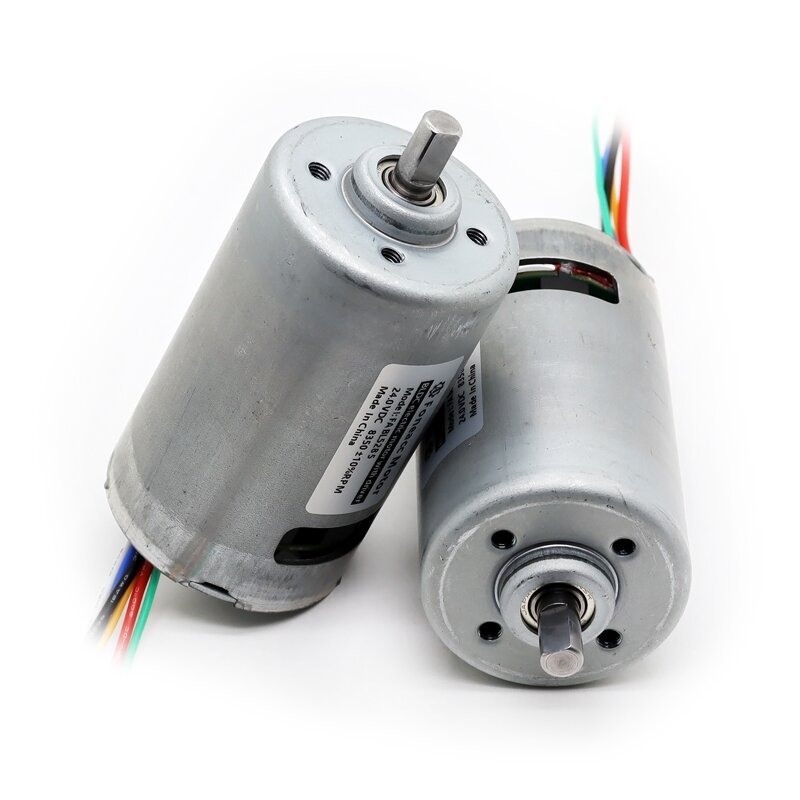

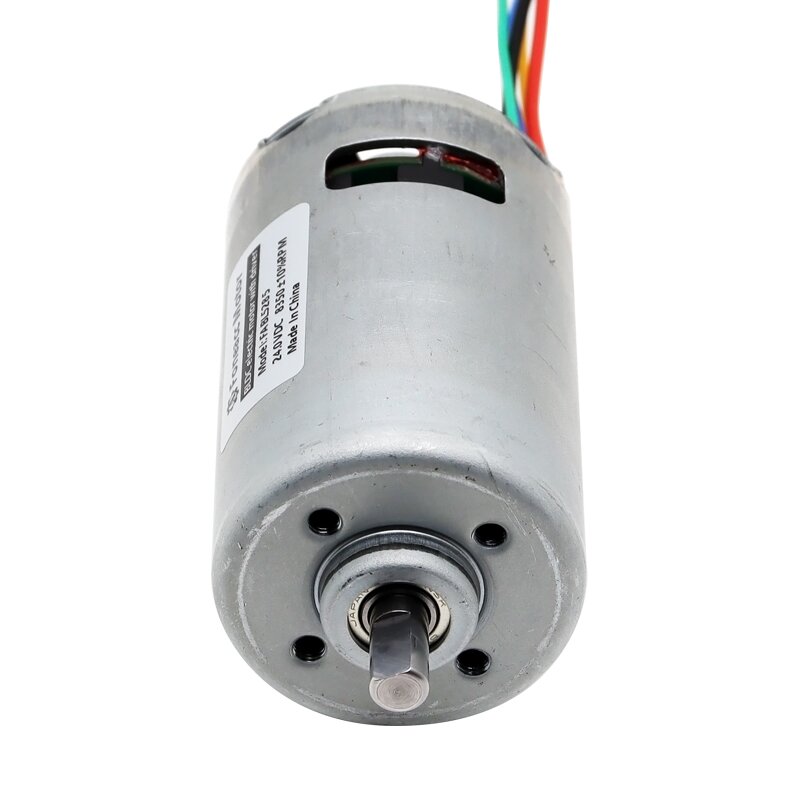

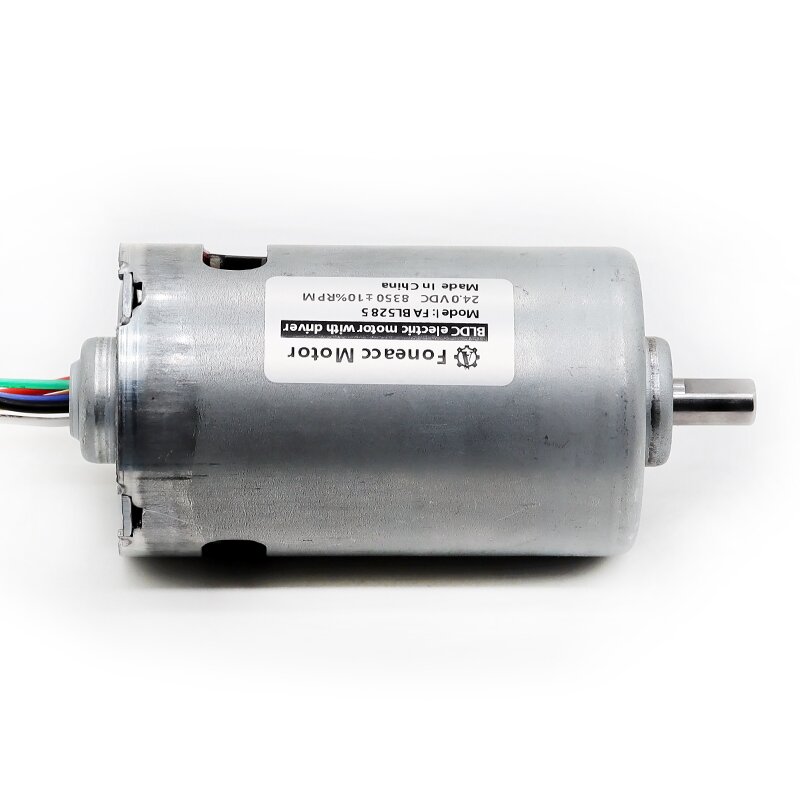

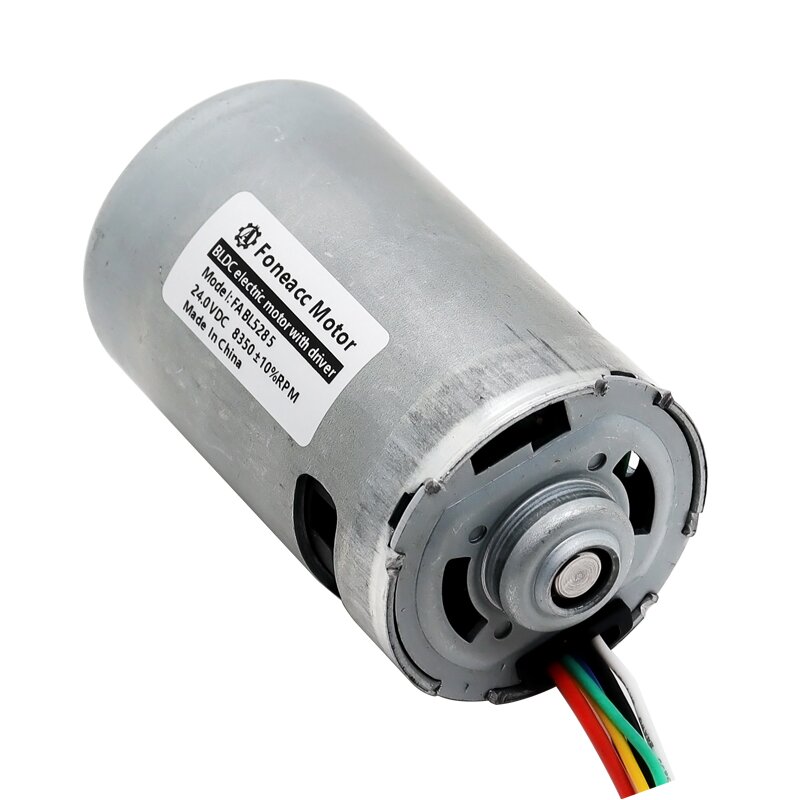

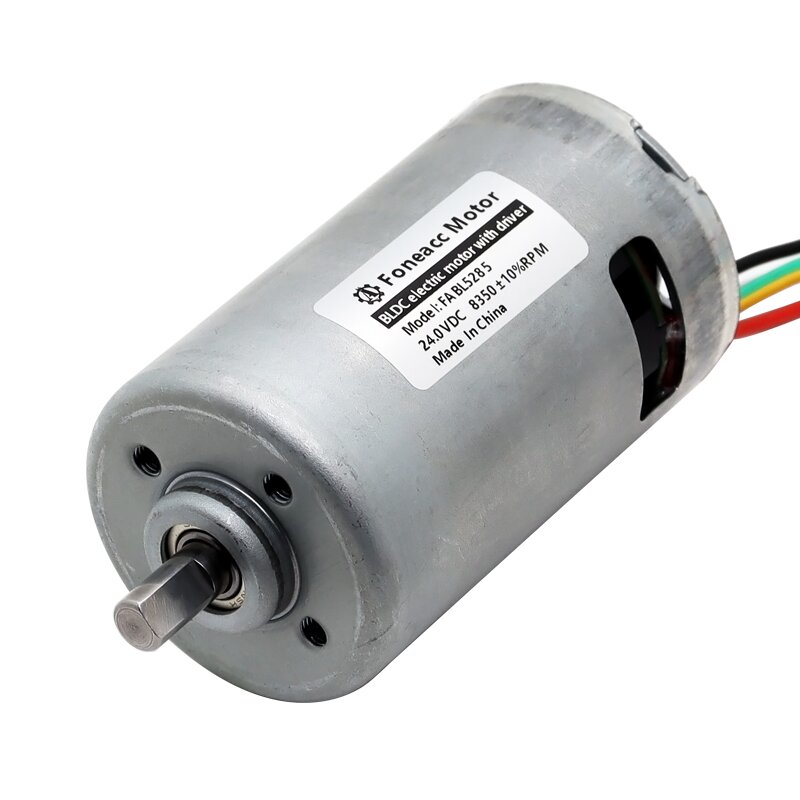

| - Model Number: BL5285 BL5285I B5285M
| - Shell Stator Size : Φ52* L 85 mm(Φ 2.05 inch * 3.35 inch)
| - Shaft : Φ8.0mm[0.315 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 25W - 160W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1800 gf-cm(176.4 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - Model Number: BL5285 BL5285I B5285M
| - Shell Stator Size : Φ52* L 85 mm(Φ 2.05 inch * 3.35 inch)
| - Shaft : Φ8.0mm[0.315 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 25W - 160W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1800 gf-cm(176.4 mNm)
| - Rotor: inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - PWM pulse wide speed range | - Clockwise/counter-clockwise rotation
| - FG speed feedback signal
| - Low EMC | - Low noise
| - Long lifespan: up to 20000hrs
| - Over-current protection | - Over-voltage protection | - Under-voltage protection

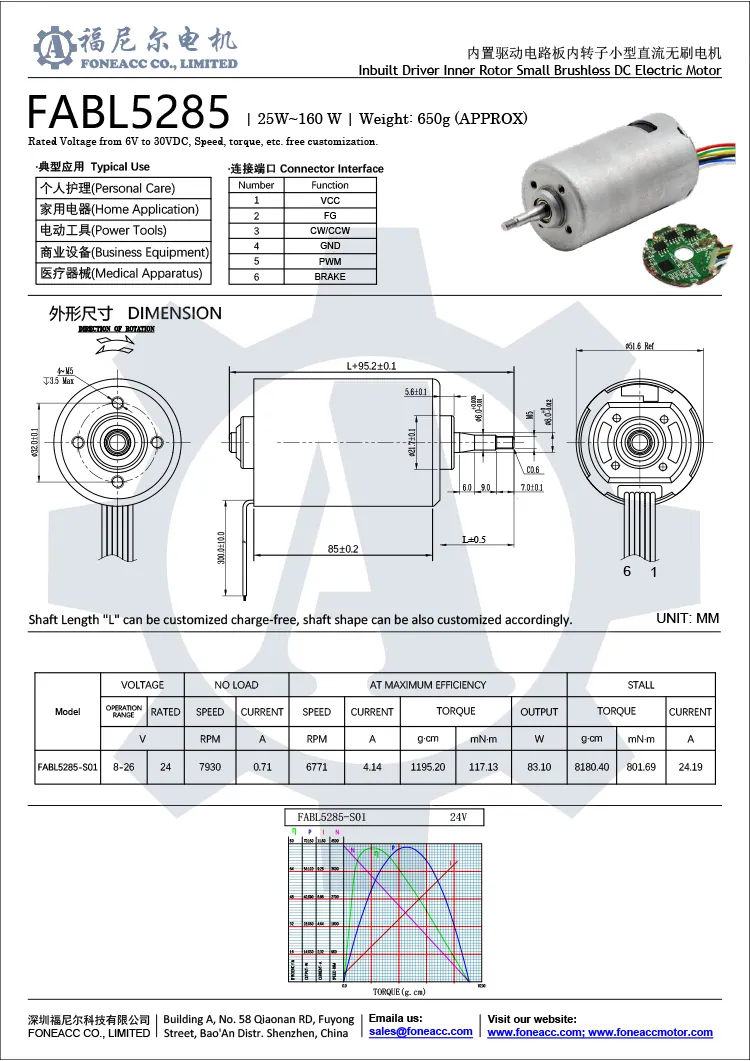

Model | Voltage | No load | At maximum efficiency | Stall | |||||||
Range | Nominal | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
BL5285I-V1 | 8~18 | 12 | 3,000 | 0.29 | 2,629 | 2.056 | 756.5 | 20.42 | 82.8 | 6,120 | 14.58 |
BL5285I-V2 | 8~26 | 18 | 4,500 | 0.35 | 3,927 | 2.4 | 921.0 | 37.13 | 86.0 | 7,228 | 16.40 |
BL5285I-V3 | 8~26 | 24 | 6,000 | 0.42 | 5,299 | 3.173 | 1186.5 | 64.55 | 84.8 | 10,150 | 23.97 |
BL5285I-V4 | 8~26 | 24 | 7,000 | 0.65 | 6,107 | 4.445 | 1339.5 | 83.98 | 78.7 | 10,500 | 30.40 |
BL5285I-V5 | 8~26 | 24 | 8,000 | 0.74 | 6,830 | 4.32 | 1171.5 | 82.15 | 79.2 | 8,000 | 25.14 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
