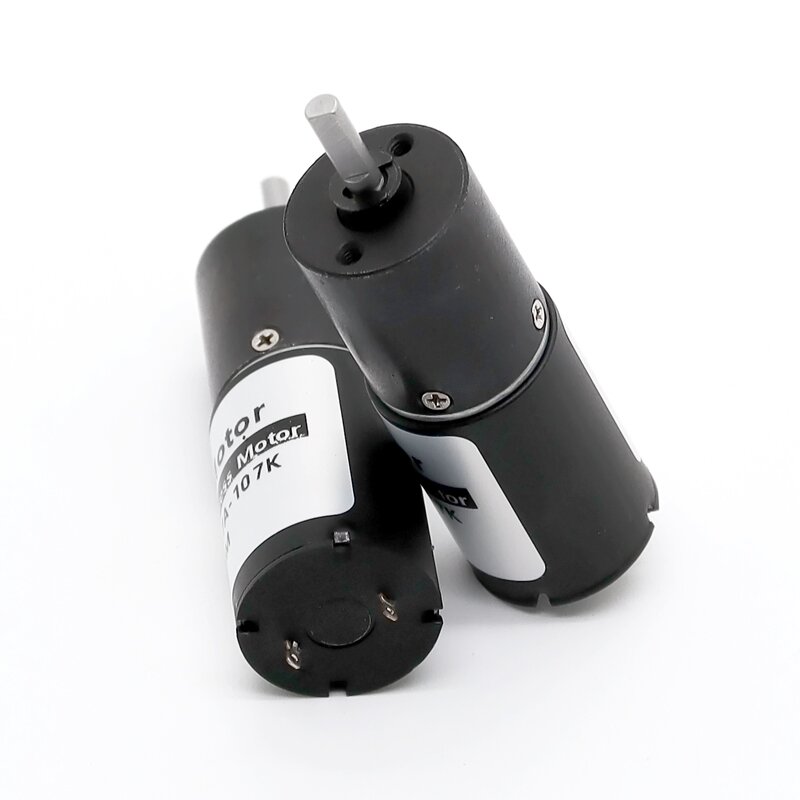

|- Model: PG16-1725R;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 4.5 Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Metal brush/Graphite brush;
|- Construction: Permanent Magnet coreless motor;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
|- Model: PG16-1725R;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 4.5 Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Metal brush/Graphite brush;
|- Construction: Permanent Magnet coreless motor;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

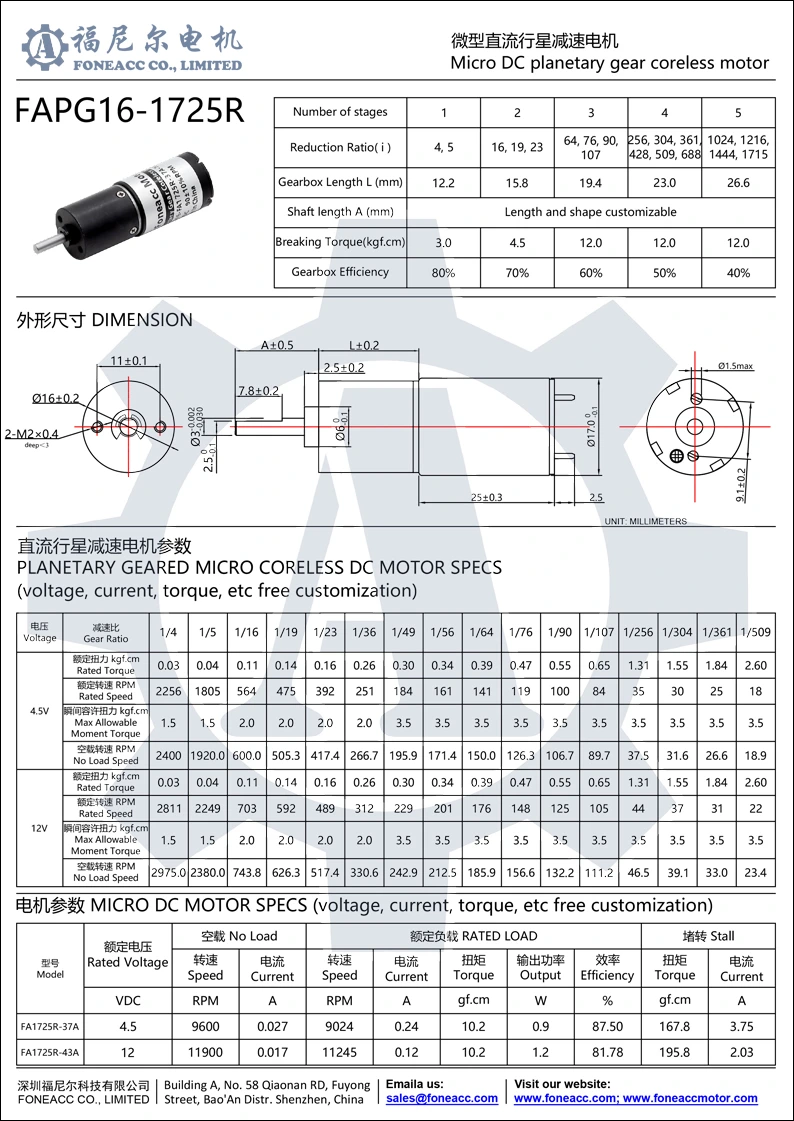

| Model | No Load | Rated Load | Breaking Torque | |
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG16-1725R-4.5V4K | 2400.0 | 0.0 | 2256.0 | 1.5 |
| PG16-1725R-4.5V5K | 1920.0 | 0.0 | 1804.8 | 1.5 |
| PG16-1725R-4.5V16K | 600.0 | 0.1 | 564.0 | 2 |
| PG16-1725R-4.5V19K | 505.3 | 0.1 | 474.9 | 2 |
| PG16-1725R-4.5V23K | 417.4 | 0.2 | 392.3 | 2 |
| PG16-1725R-4.5V36K | 266.7 | 0.3 | 250.7 | 2 |
| PG16-1725R-4.5V49K | 195.9 | 0.3 | 184.2 | 3.5 |
| PG16-1725R-4.5V56K | 171.4 | 0.3 | 161.1 | 3.5 |
| PG16-1725R-4.5V64K | 150.0 | 0.4 | 141.0 | 3.5 |
| PG16-1725R-4.5V76K | 126.3 | 0.5 | 118.7 | 3.5 |
| PG16-1725R-4.5V90K | 106.7 | 0.6 | 100.3 | 3.5 |
| PG16-1725R-4.5V107K | 89.7 | 0.7 | 84.3 | 3.5 |
| PG16-1725R-4.5V256K | 37.5 | 1.3 | 35.3 | 3.5 |
| PG16-1725R-4.5V304K | 31.6 | 1.6 | 29.7 | 3.5 |
| PG16-1725R-4.5V361K | 26.6 | 1.8 | 25.0 | 3.5 |
| PG16-1725R-4.5V509K | 18.9 | 2.6 | 17.7 | 3.5 |
| PG16-1725R-12V4K | 2975.0 | 0.0 | 2811.3 | 1.5 |
| PG16-1725R-12V5K | 2380.0 | 0.0 | 2249.0 | 1.5 |
| PG16-1725R-12V16K | 743.8 | 0.1 | 702.8 | 2 |
| PG16-1725R-12V19K | 626.3 | 0.1 | 591.8 | 2 |
| PG16-1725R-12V23K | 517.4 | 0.2 | 488.9 | 2 |
| PG16-1725R-12V36K | 330.6 | 0.3 | 312.4 | 2 |
| PG16-1725R-12V49K | 242.9 | 0.3 | 229.5 | 3.5 |
| PG16-1725R-12V56K | 212.5 | 0.3 | 200.8 | 3.5 |
| PG16-1725R-12V64K | 185.9 | 0.4 | 175.7 | 3.5 |
| PG16-1725R-12V76K | 156.6 | 0.5 | 148.0 | 3.5 |
| PG16-1725R-12V90K | 132.2 | 0.6 | 124.9 | 3.5 |
| PG16-1725R-12V107K | 111.2 | 0.7 | 105.1 | 3.5 |
| PG16-1725R-12V256K | 46.5 | 1.3 | 43.9 | 3.5 |
| PG16-1725R-12V304K | 39.1 | 1.6 | 37.0 | 3.5 |
| PG16-1725R-12V361K | 33.0 | 1.8 | 31.1 | 3.5 |
| PG16-1725R-12V509K | 23.4 | 2.6 | 22.1 | 3.5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
