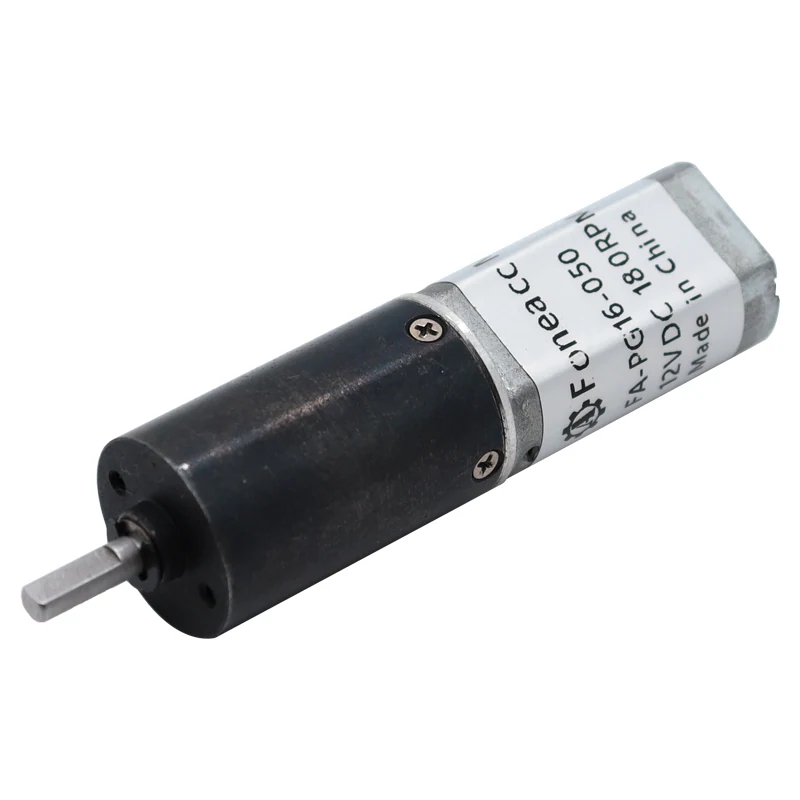

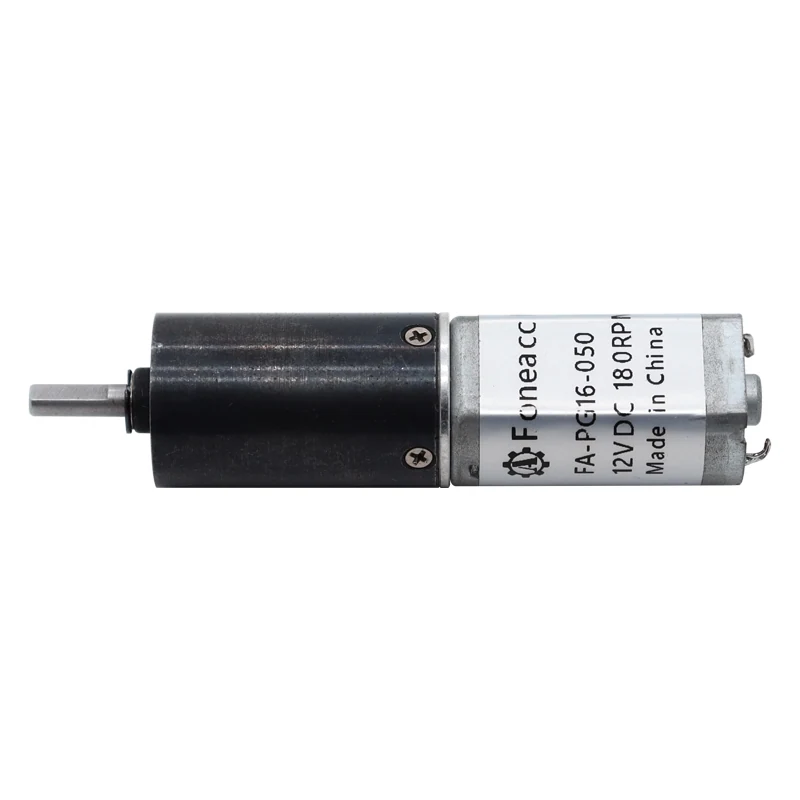

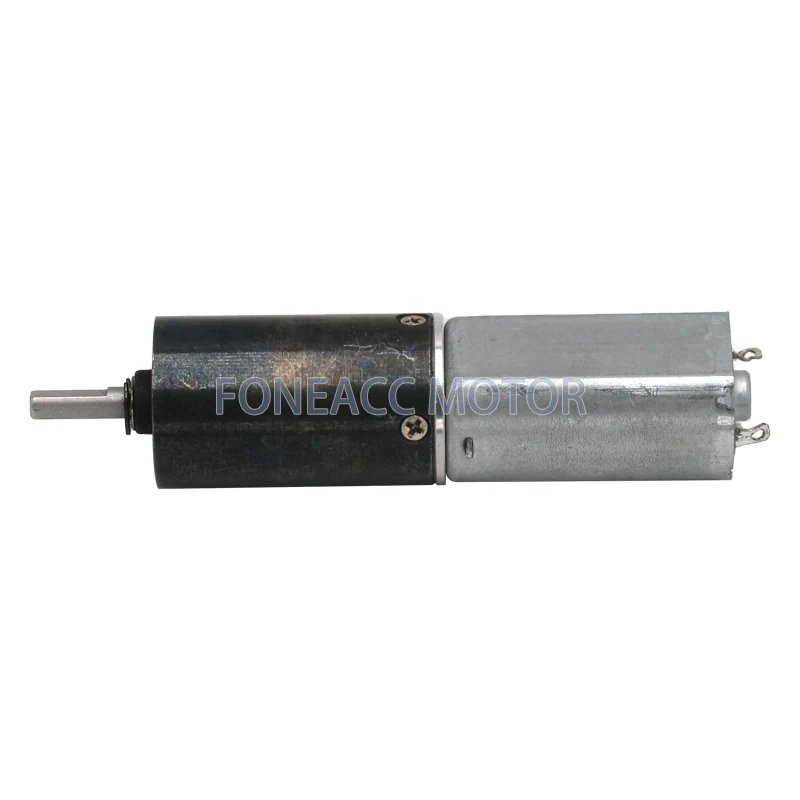

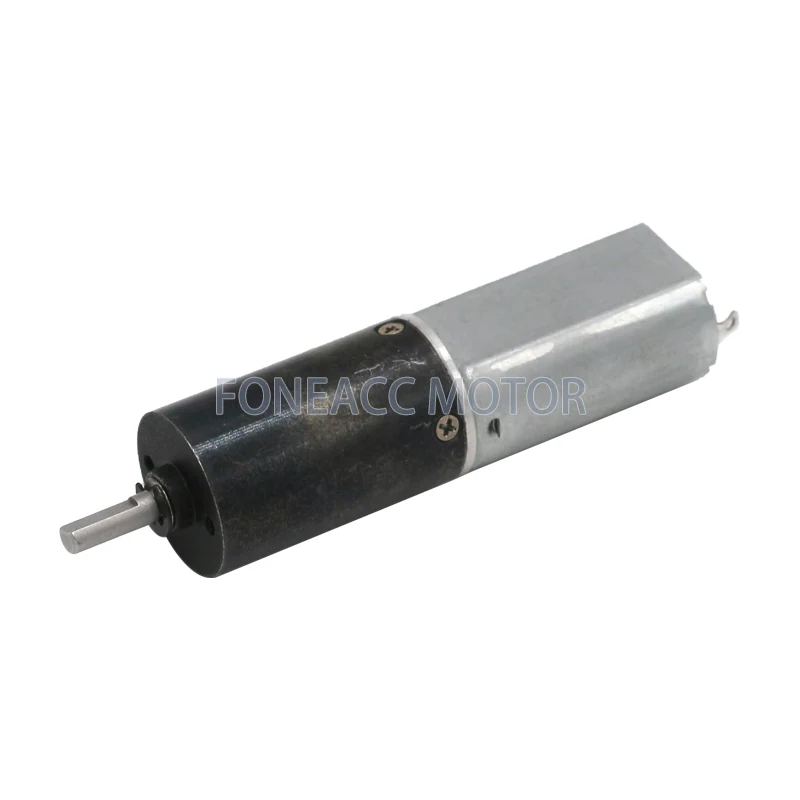

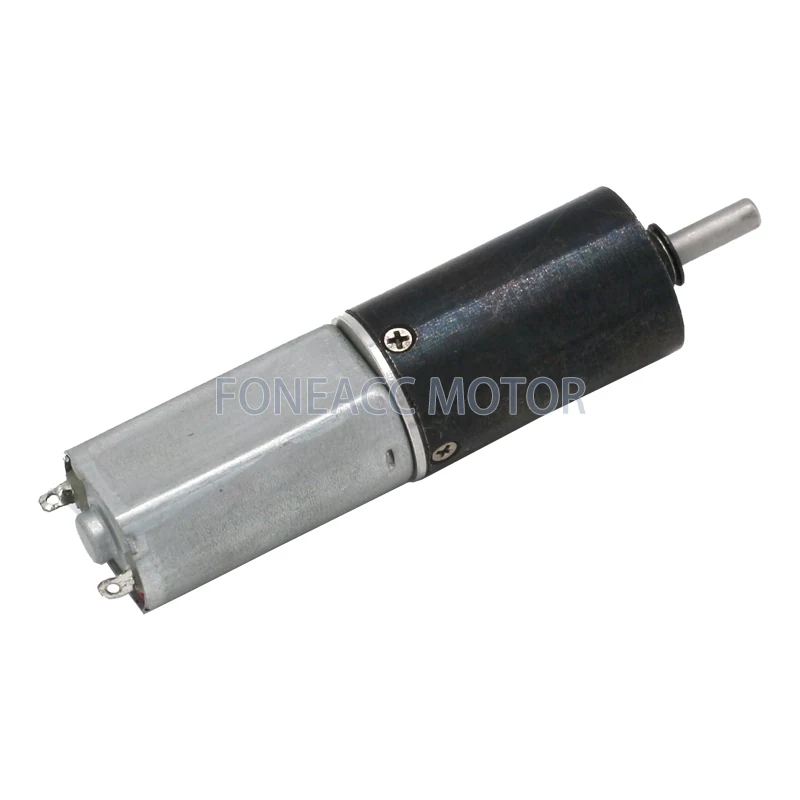

16 mm planetary dc gearmotor

  • PG16-050 dc 16mm planetary motor 16mm brush geared motor
PG16-050 dc 16mm planetary motor 16mm brush geared motor

PG16-050 dc 16mm planetary motor 16mm brush geared motor

  • Model: PG16-050
  • Gear box: metal planetary geared reducer
  • Motor: FF-050, FK-050 dc motor
  • Feature: Iron Cored Permanent Magnet Carbon/Metal brush dc electric motor
  • Product description:PG16-050 dc 16mm planetary motor FF-050 brush motor from China mini gear dc electric motor manufacturer Foneacc Motor of good quality and reasonable price.
  • INQUIRY

PG16-050 dc 16mm planetary motor 16mm brush geared motor


Main features:

|- Model: PG16-050;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5 Kgf-cm ;
|- Size : Ø16* L TBD ;
|- Shaft : concentric driveshaft, Ø3mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder:  magnetic encoder;
|- MOQ: 500 pcs;


PG16-050 metal dc geared motor data examples:

Model No Load Rated Load

Breaking
Torque

Speed Torque Speed
r/min kgf.cm r/min kgf.cm
PG16-050-6V4K 3125 0.03 2500 1.5
PG16-050-6V5K 2500 0.04 2000 1.5
PG16-050-6V16K 781.3 0.11 625 2
PG16-050-6V19K 657.9 0.13 526 2
PG16-050-6V23K 543.5 0.16 435 2
PG16-050-6V64K 195.3 0.38 156 3.5
PG16-050-6V76K 164.5 0.46 132 3.5
PG16-050-6V90K 138.9 0.54 111 3.5
PG16-050-6V107K 116.8 0.64 93 3.5
PG16-050-6V256K 48.8 1.28 39 3.5
PG16-050-6V304K 41.1 1.52 33 3.5
PG16-050-6V361K 34.6 1.81 28 3.5
PG16-050-6V509K 24.6 2.55 20 3.5
PG16-050-12V4K 3200 0.03 2425 1.5
PG16-050-12V5K 2560 0.04 1940 1.5
PG16-050-12V16K 800 0.11 606 2
PG16-050-12V19K 673.7 0.13 511 2
PG16-050-12V23K 556.5 0.16 422 2
PG16-050-12V64K 200 0.38 152 3.5
PG16-050-12V76K 168.4 0.46 128 3.5
PG16-050-12V90K 142.2 0.54 108 3.5
PG16-050-12V107K 119.6 0.64 91 3.5
PG16-050-12V256K 50 1.28 38 3.5
PG16-050-12V304K 42.1 1.52 32 3.5
PG16-050-12V361K 35.5 1.81 27 3.5
PG16-050-12V509K 25.1 2.55 19 3.5

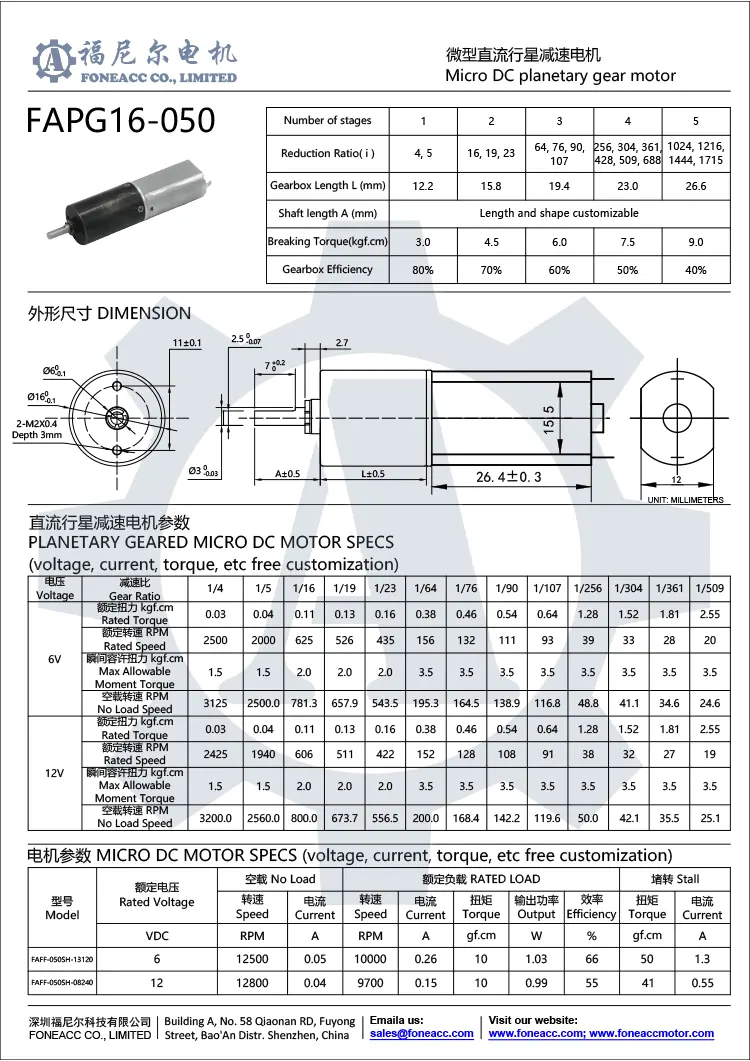

Dimensions and configurations of PG16-050 metal dc planetary gear motor for reference:

pg16-050 planetary gearbox dc electric motor


Download PG16-050 metal DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
