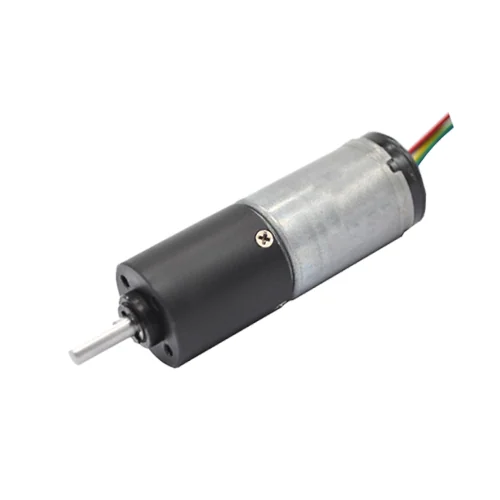

|- Model: PG16-BL1625;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;
|- Model: PG16-BL1625;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

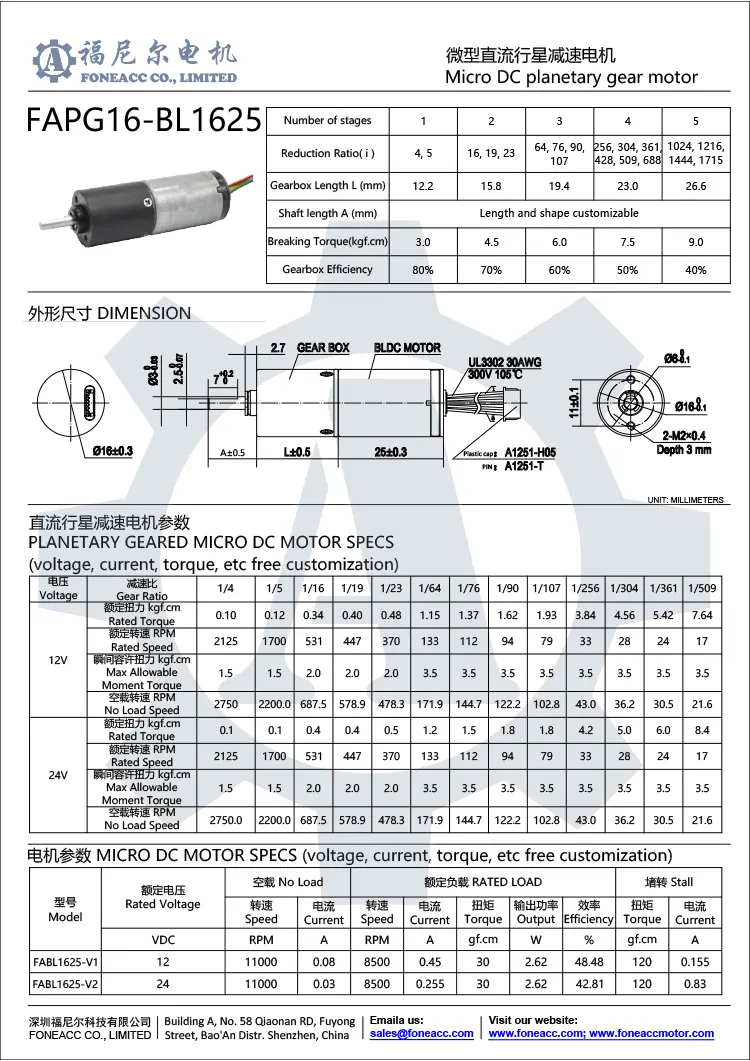

Model | No Load | Rated Load |
Breaking
Torque
|
|
Speed | Torque | Speed | ||
r/min | kgf-cm | r/min | kgf-cm | |
PG16-BL1625-12V4K | 2750 | 0.1 | 2125 | 1.5 |
PG16-BL1625-12V5K | 2200 | 0.12 | 1700 | 1.5 |
PG16-BL1625-12V16K | 687.5 | 0.34 | 531 | 2 |
PG16-BL1625-12V19K | 578.9 | 0.4 | 447 | 2 |
PG16-BL1625-12V23K | 478.3 | 0.48 | 370 | 2 |
PG16-BL1625-12V64K | 171.9 | 1.15 | 133 | 3.5 |
PG16-BL1625-12V76K | 144.7 | 1.37 | 112 | 3.5 |
PG16-BL1625-12V90K | 122.2 | 1.62 | 94 | 3.5 |
PG16-BL1625-12V107K | 102.8 | 1.93 | 79 | 3.5 |
PG16-BL1625-12V256K | 43 | 3.84 | 33 | 3.5 |
PG16-BL1625-12V304K | 36.2 | 4.56 | 28 | 3.5 |
PG16-BL1625-12V361K | 30.5 | 5.42 | 24 | 3.5 |
PG16-BL1625-12V509K | 21.6 | 7.64 | 17 | 3.5 |
PG16-BL1625-24V4K | 2750 | 0.1 | 2125 | 1.5 |
PG16-BL1625-24V5K | 2200 | 0.1 | 1700 | 1.5 |
PG16-BL1625-24V16K | 687.5 | 0.4 | 531 | 2 |
PG16-BL1625-24V19K | 578.9 | 0.4 | 447 | 2 |
PG16-BL1625-24V23K | 478.3 | 0.5 | 370 | 2 |
PG16-BL1625-24V64K | 171.9 | 1.2 | 133 | 3.5 |
PG16-BL1625-24V76K | 144.7 | 1.5 | 112 | 3.5 |
PG16-BL1625-24V90K | 122.2 | 1.8 | 94 | 3.5 |
PG16-BL1625-24V107K | 102.8 | 1.8 | 79 | 3.5 |
PG16-BL1625-24V256K | 43 | 4.2 | 33 | 3.5 |
PG16-BL1625-24V304K | 36.2 | 5 | 28 | 3.5 |
PG16-BL1625-24V361K | 30.5 | 6 | 24 | 3.5 |
PG16-BL1625-24V509K | 21.6 | 8.4 | 17 | 3.5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
