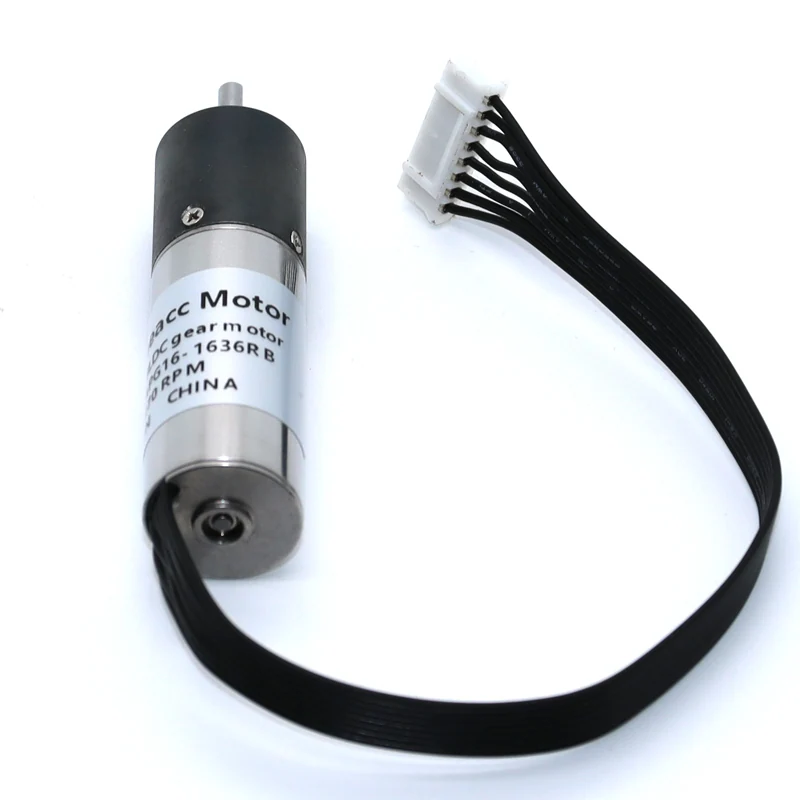

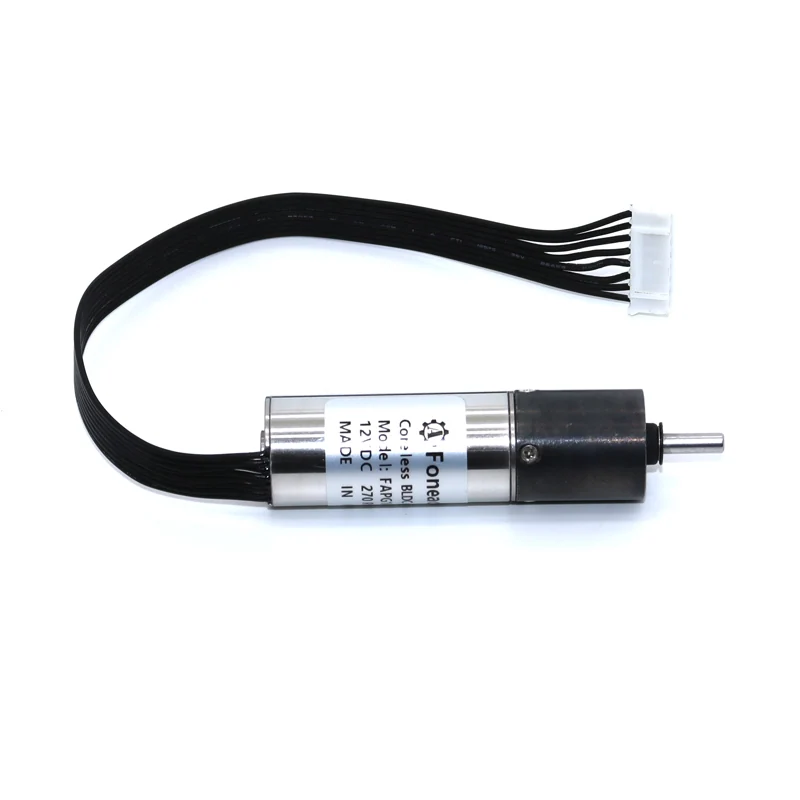

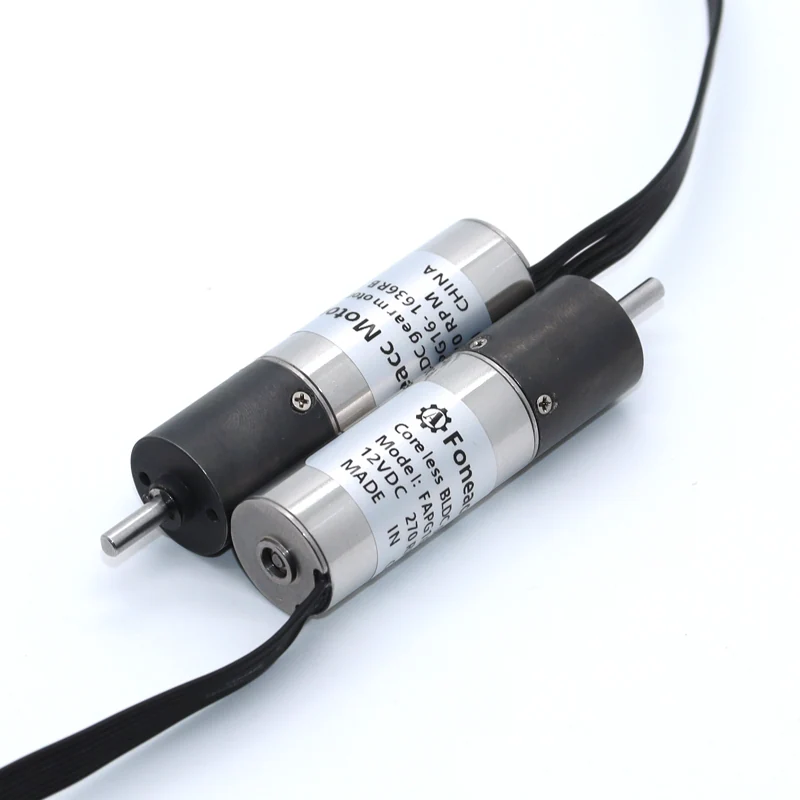

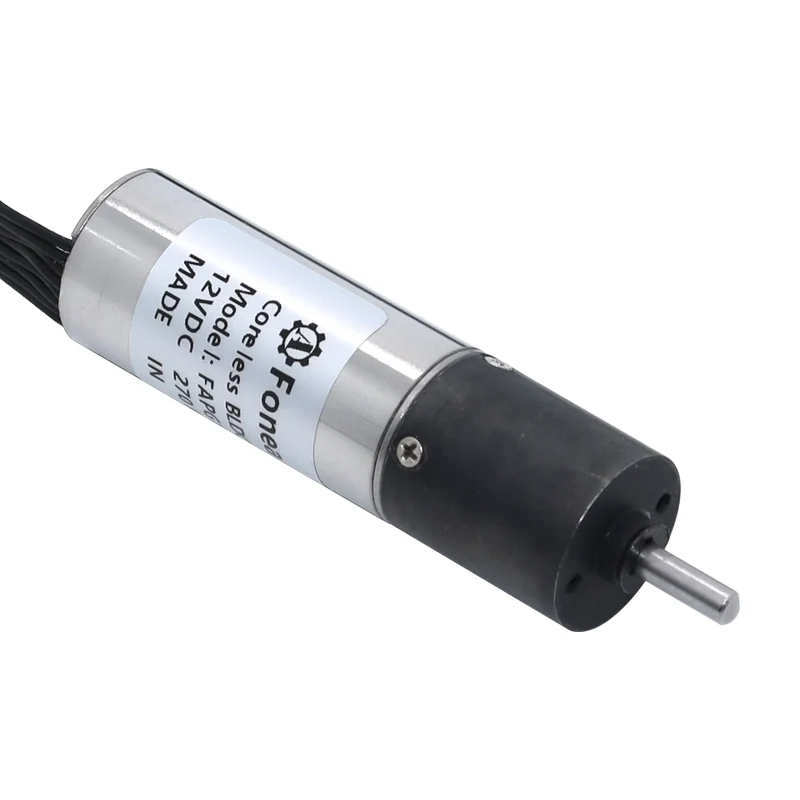

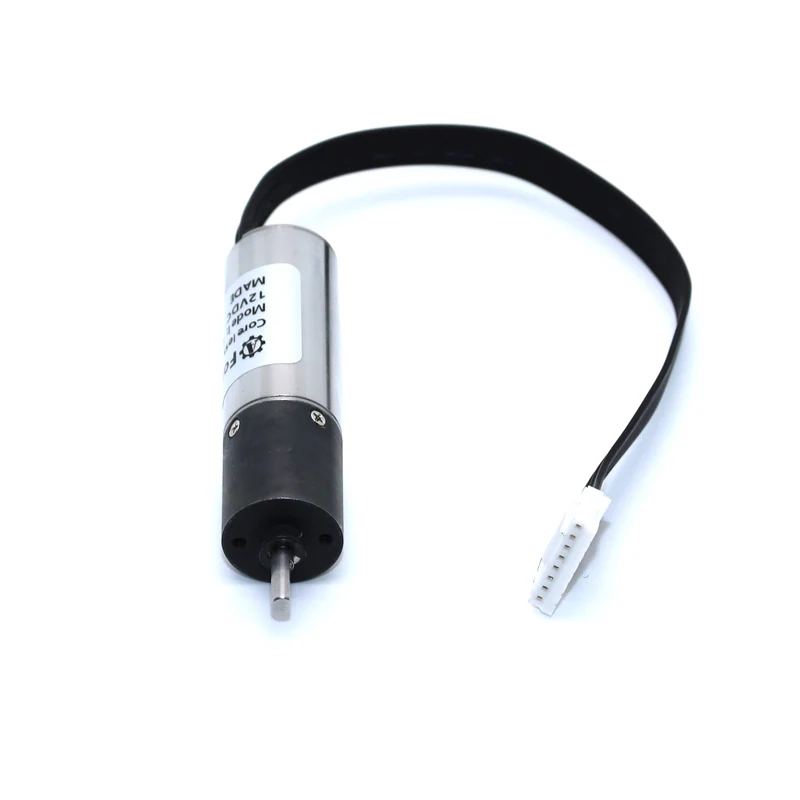

|- Model: PG16-1636RB;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5 Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet coreless motor;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
|- Model: PG16-1636RB;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5 Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet coreless motor;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

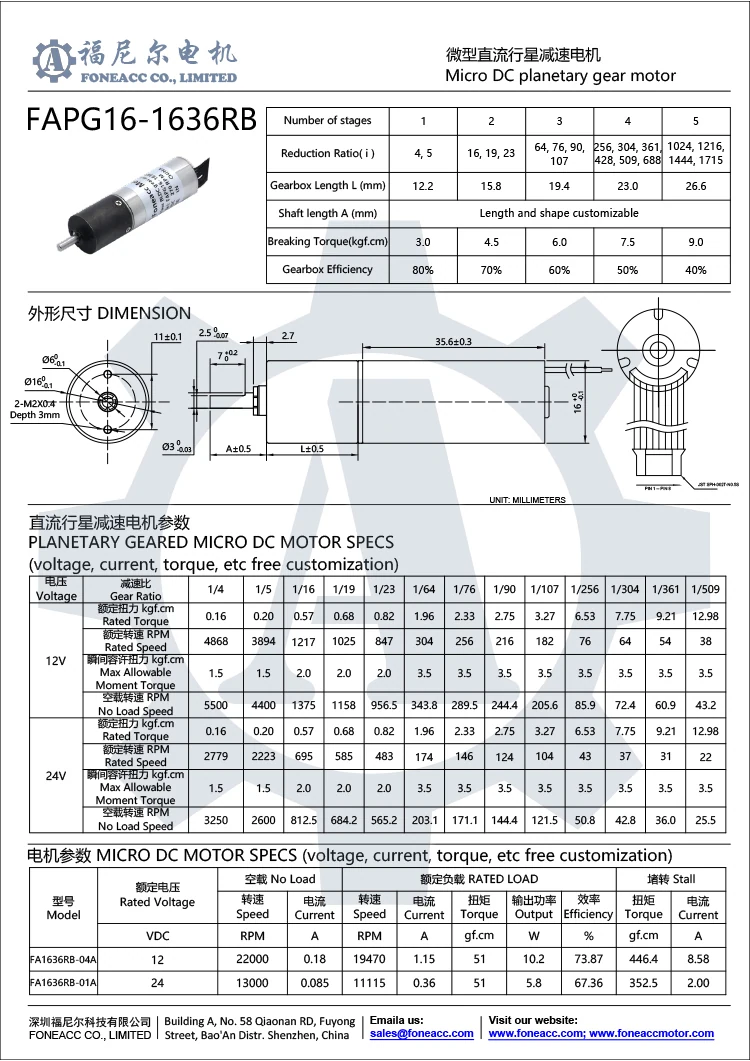

Model | No Load | Rated Load |
Breaking
Torque
|
|
Speed | Torque | Speed | ||
r/min | kgf-cm | r/min | kgf-cm | |
PG16-1636RB-12V4K | 5500 | 0.16 | 4868 | 1.5 |
PG16-1636RB-12V5K | 4400 | 0.2 | 3894 | 1.5 |
PG16-1636RB-12V16K | 1375 | 0.57 | 1217 | 2 |
PG16-1636RB-12V19K | 1157.9 | 0.68 | 1025 | 2 |
PG16-1636RB-12V23K | 956.5 | 0.82 | 847 | 2 |
PG16-1636RB-12V64K | 343.8 | 1.96 | 304 | 3.5 |
PG16-1636RB-12V76K | 289.5 | 2.33 | 256 | 3.5 |
PG16-1636RB-12V90K | 244.4 | 2.75 | 216 | 3.5 |
PG16-1636RB-12V107K | 205.6 | 3.27 | 182 | 3.5 |
PG16-1636RB-12V256K | 85.9 | 6.53 | 76 | 3.5 |
PG16-1636RB-12V304K | 72.4 | 7.75 | 64 | 3.5 |
PG16-1636RB-12V361K | 60.9 | 9.21 | 54 | 3.5 |
PG16-1636RB-12V509K | 43.2 | 12.98 | 38 | 3.5 |
PG16-1636RB-24V4K | 3250 | 0.16 | 2779 | 1.5 |
PG16-1636RB-24V5K | 2600 | 0.2 | 2223 | 1.5 |
PG16-1636RB-24V16K | 812.5 | 0.57 | 695 | 2 |
PG16-1636RB-24V19K | 684.2 | 0.68 | 585 | 2 |
PG16-1636RB-24V23K | 565.2 | 0.82 | 483 | 2 |
PG16-1636RB-24V64K | 203.1 | 1.96 | 174 | 3.5 |
PG16-1636RB-24V76K | 171.1 | 2.33 | 146 | 3.5 |
PG16-1636RB-24V90K | 144.4 | 2.75 | 124 | 3.5 |
PG16-1636RB-24V107K | 121.5 | 3.27 | 104 | 3.5 |
PG16-1636RB-24V256K | 50.8 | 6.53 | 43 | 3.5 |
PG16-1636RB-24V304K | 42.8 | 7.75 | 37 | 3.5 |
PG16-1636RB-24V361K | 36 | 9.21 | 31 | 3.5 |
PG16-1636RB-24V509K | 25.5 | 12.98 | 22 | 3.5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
