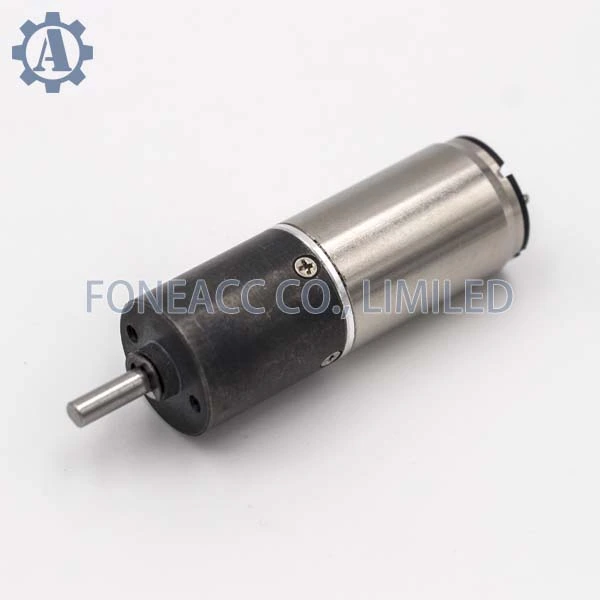

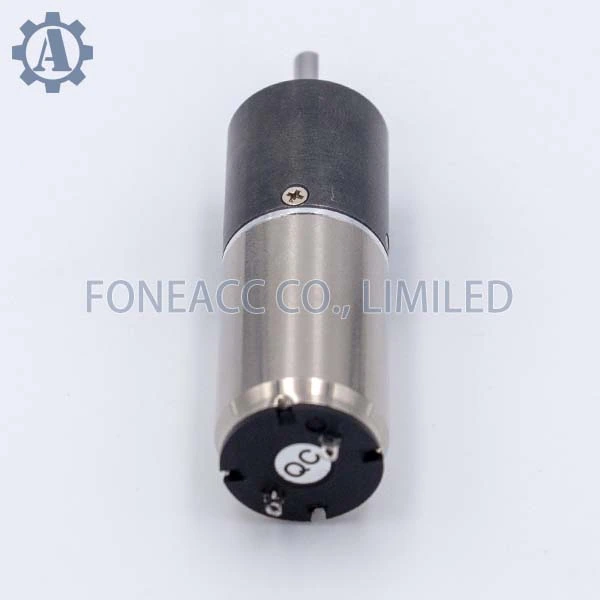

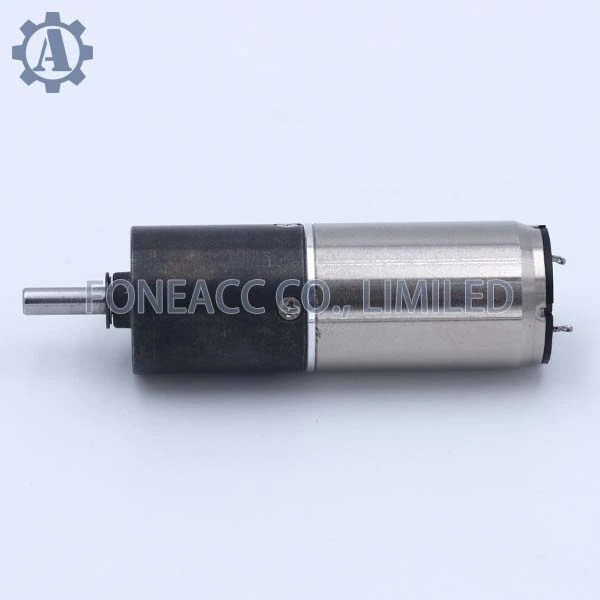

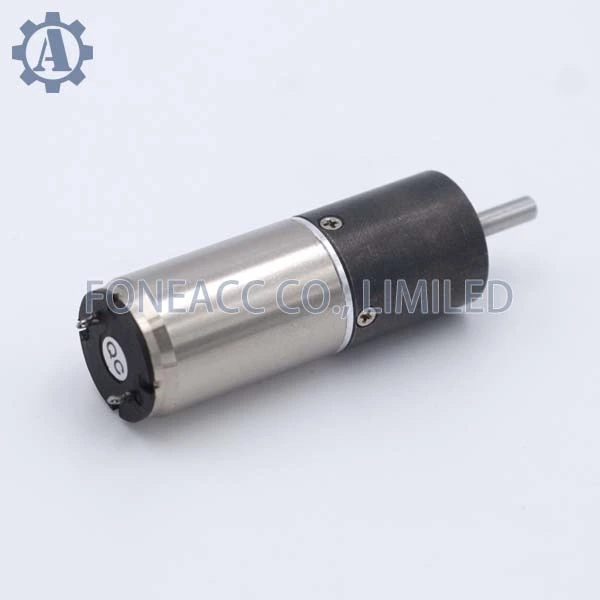

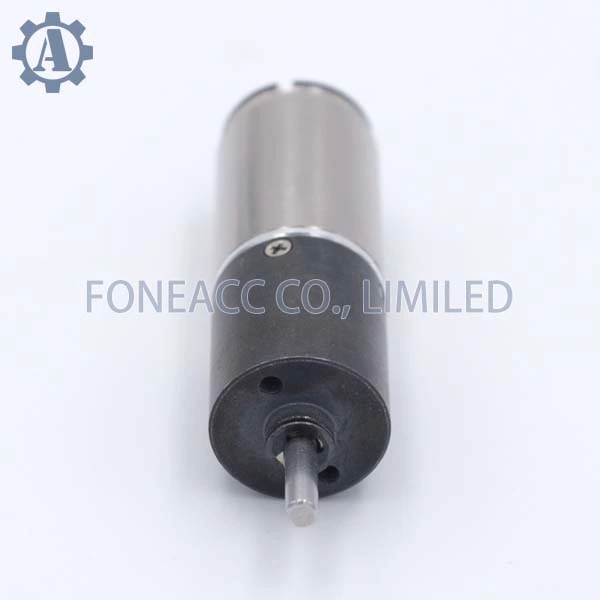

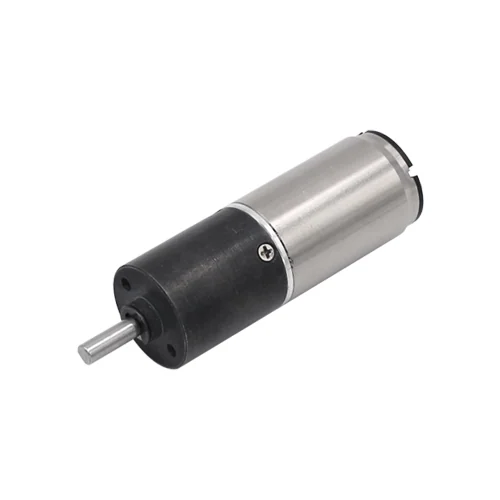

|- Model: PG16-1625R;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5 Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet coreless motor;
|- MOQ: 500 pcs;
|- Model: PG16-1625R;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3.5 Kgf-cm ;
|- Size : Φ16* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet coreless motor;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

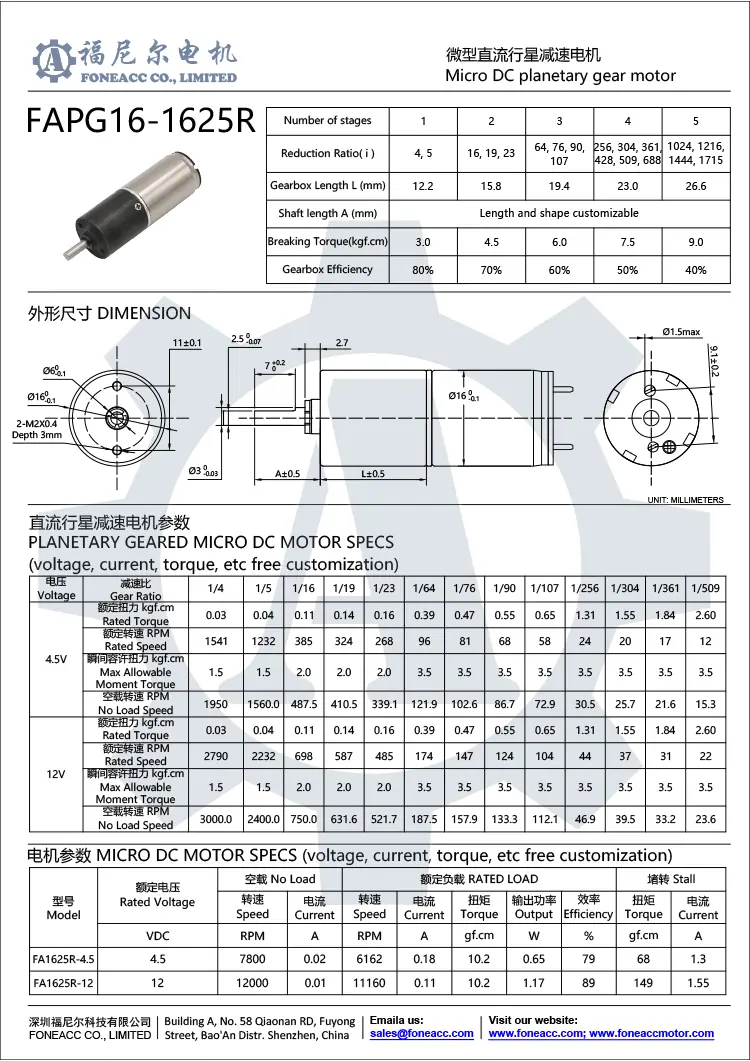

| Model | No load | Rated Load | Breaking Torque |
|
| Speed | Torque | Speed | ||
| r/min | kgf.cm | r/min | kgf.cm | |
| PG16-1625R-4.5V4K | 1950 | 0.03 | 1541 | 1.5 |
| PG16-1625R-4.5V5K | 1560 | 0.04 | 1232 | 1.5 |
| PG16-1625R-4.5V16K | 487.5 | 0.11 | 385 | 2 |
| PG16-1625R-4.5V19K | 410.5 | 0.14 | 324 | 2 |
| PG16-1625R-4.5V23K | 339.1 | 0.16 | 268 | 2 |
| PG16-1625R-4.5V64K | 121.9 | 0.39 | 96 | 3.5 |
| PG16-1625R-4.5V76K | 102.6 | 0.47 | 81 | 3.5 |
| PG16-1625R-4.5V90K | 86.7 | 0.55 | 68 | 3.5 |
| PG16-1625R-4.5V107K | 72.9 | 0.65 | 58 | 3.5 |
| PG16-1625R-4.5V256K | 30.5 | 1.31 | 24 | 3.5 |
| PG16-1625R-4.5V304K | 25.7 | 1.55 | 20 | 3.5 |
| PG16-1625R-4.5V361K | 21.6 | 1.84 | 17 | 3.5 |
| PG16-1625R-4.5V509K | 15.3 | 2.6 | 12 | 3.5 |
| PG16-1625R-12V4K | 3000 | 0.03 | 2790 | 1.5 |
| PG16-1625R-12V5K | 2400 | 0.04 | 2232 | 1.5 |
| PG16-1625R-12V16K | 750 | 0.11 | 698 | 2 |
| PG16-1625R-12V19K | 631.6 | 0.14 | 587 | 2 |
| PG16-1625R-12V23K | 521.7 | 0.16 | 485 | 2 |
| PG16-1625R-12V64K | 187.5 | 0.39 | 174 | 3.5 |
| PG16-1625R-12V76K | 157.9 | 0.47 | 147 | 3.5 |
| PG16-1625R-12V90K | 133.3 | 0.55 | 124 | 3.5 |
| PG16-1625R-12V107K | 112.1 | 0.65 | 104 | 3.5 |
| PG16-1625R-12V256K | 46.9 | 1.31 | 44 | 3.5 |
| PG16-1625R-12V304K | 39.5 | 1.55 | 37 | 3.5 |
| PG16-1625R-12V361K | 33.2 | 1.84 | 31 | 3.5 |
| PG16-1625R-12V509K | 23.6 | 2.6 | 22 | 3.5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
