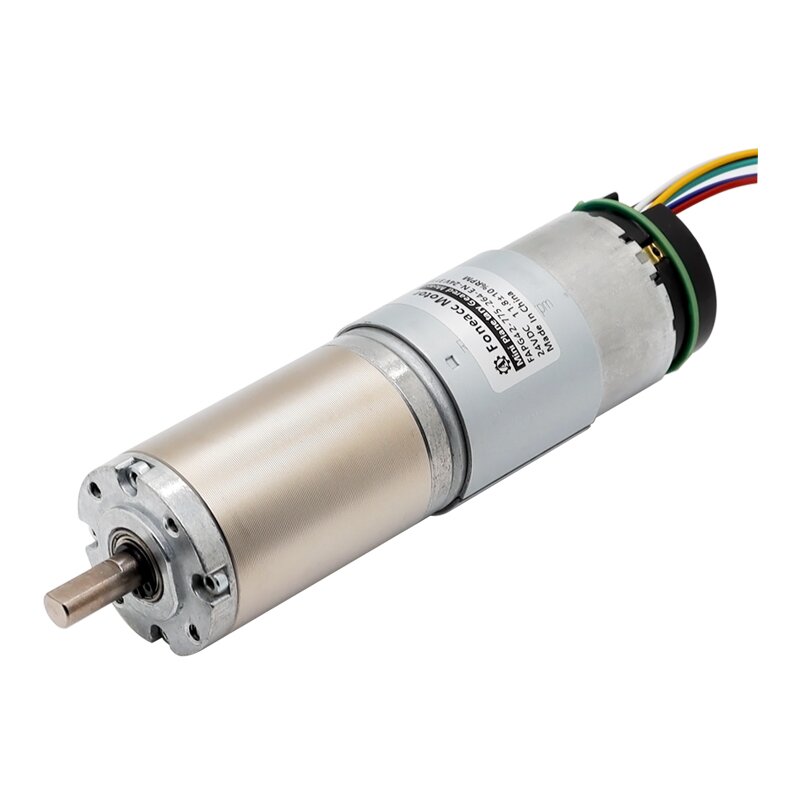

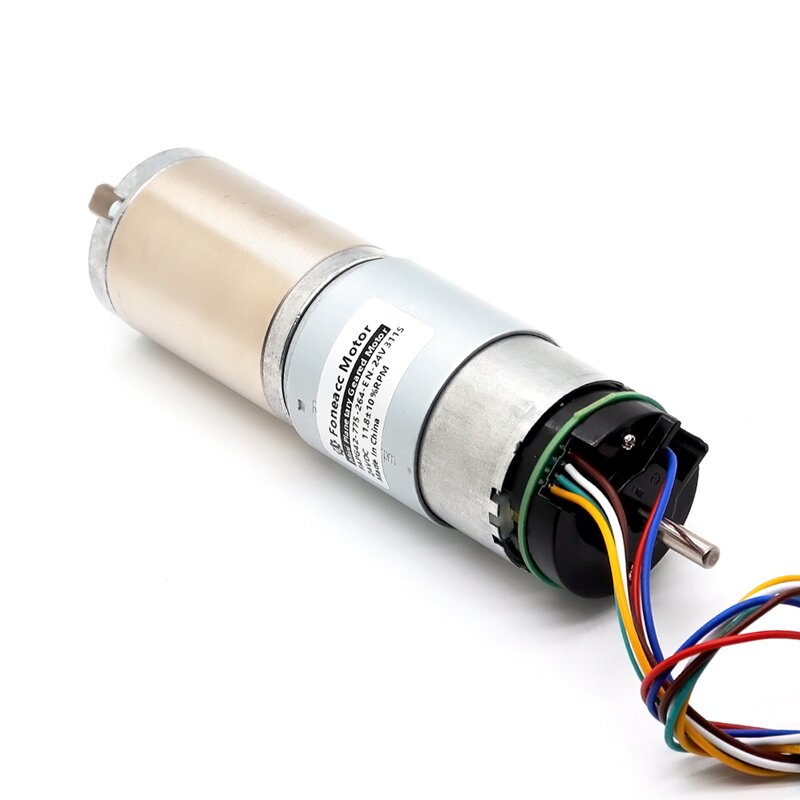

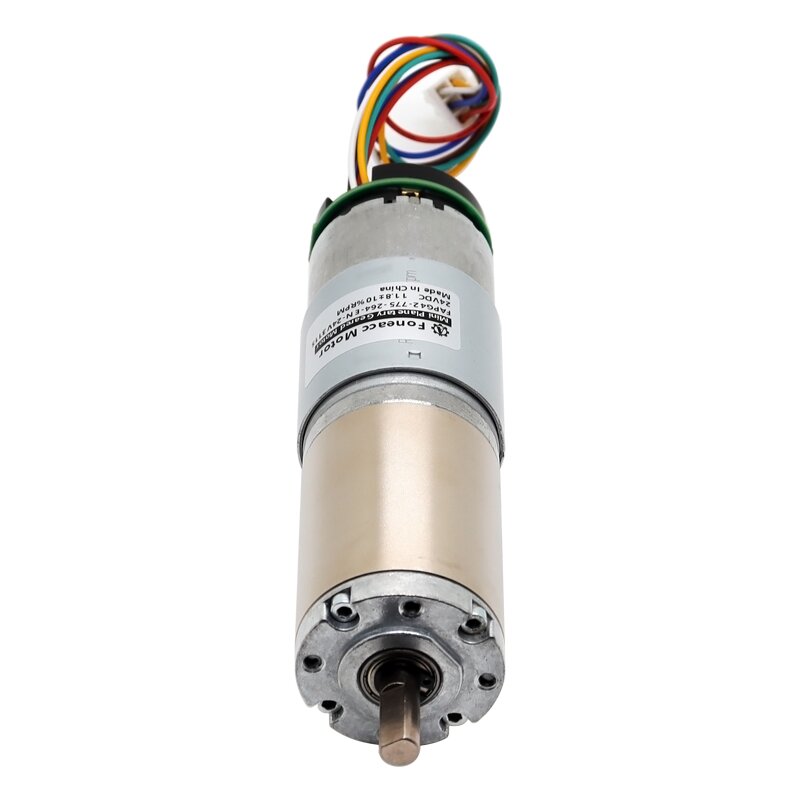

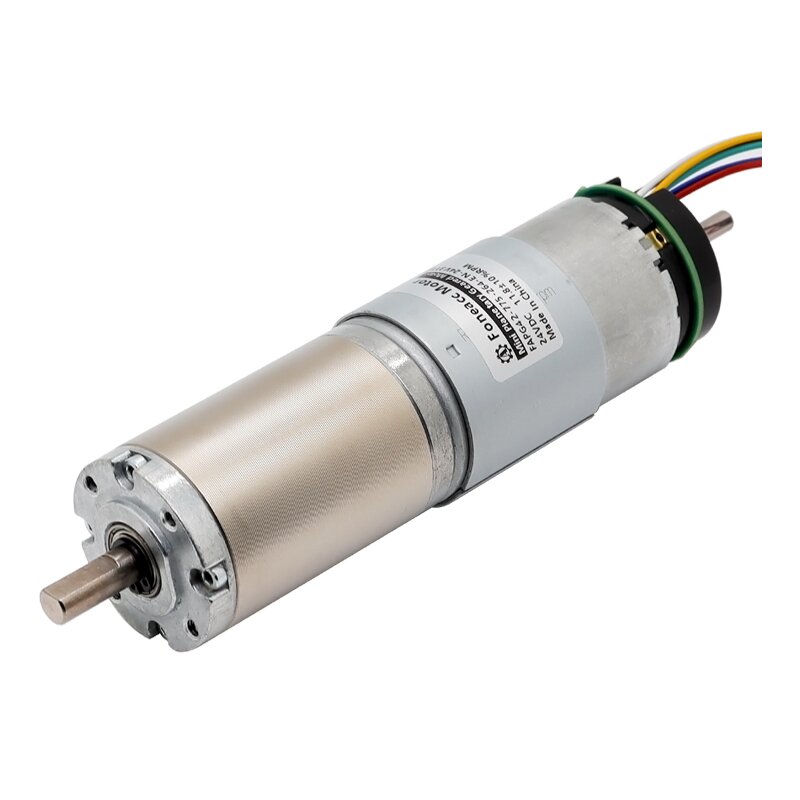

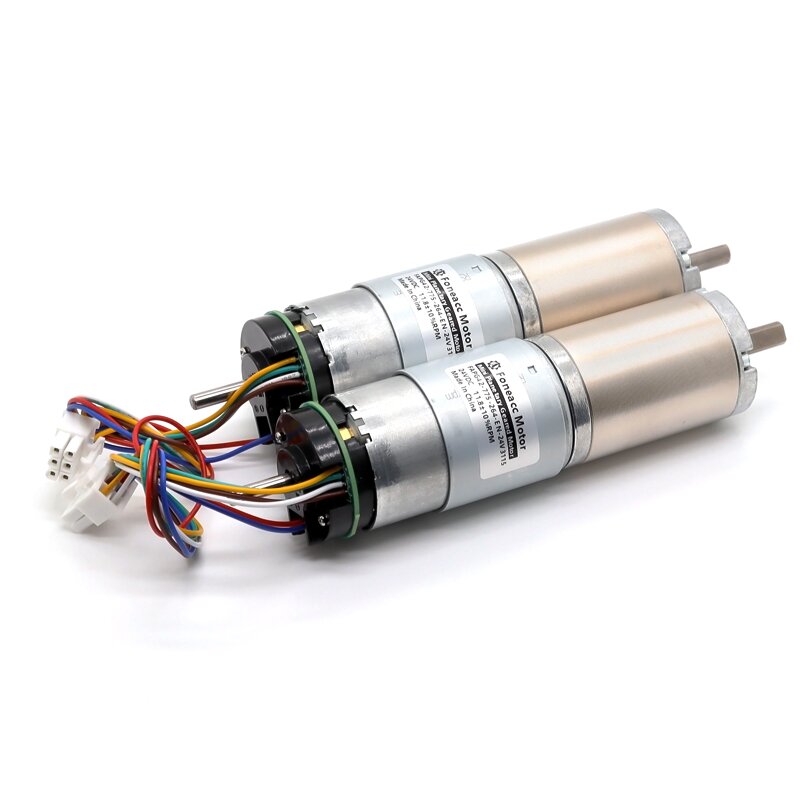

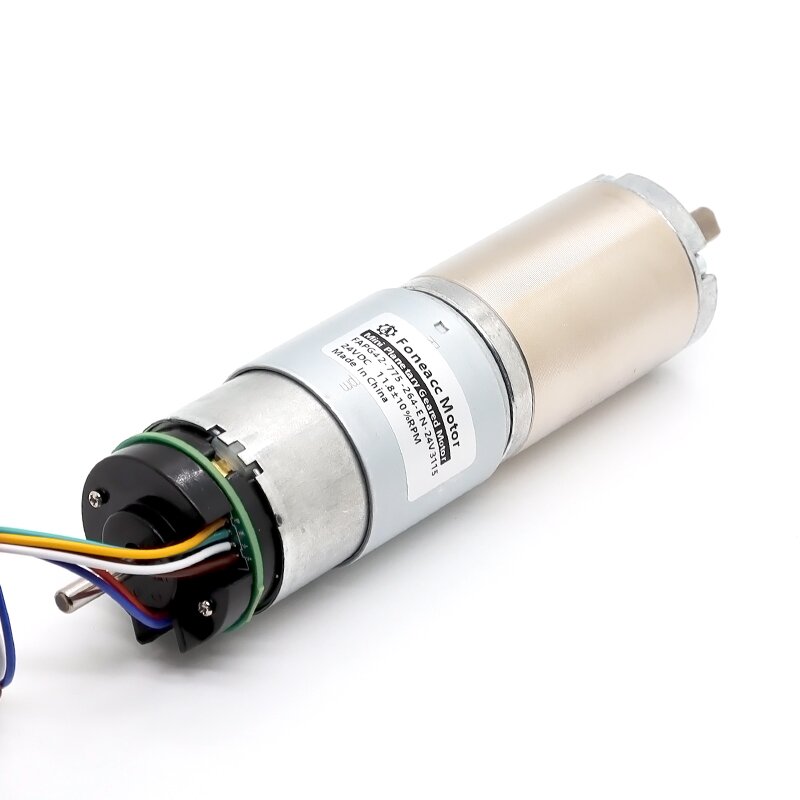

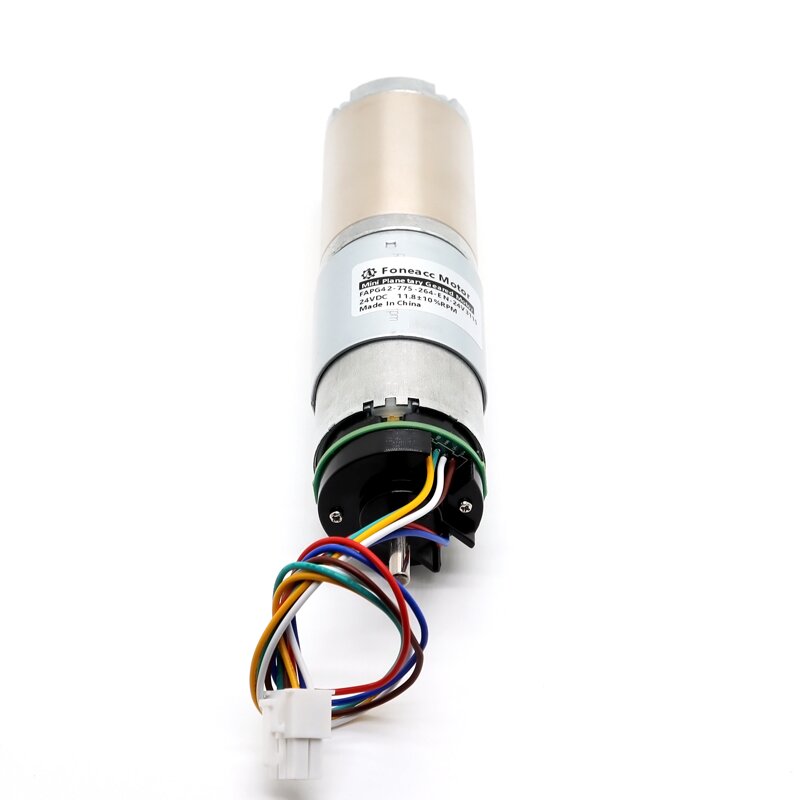

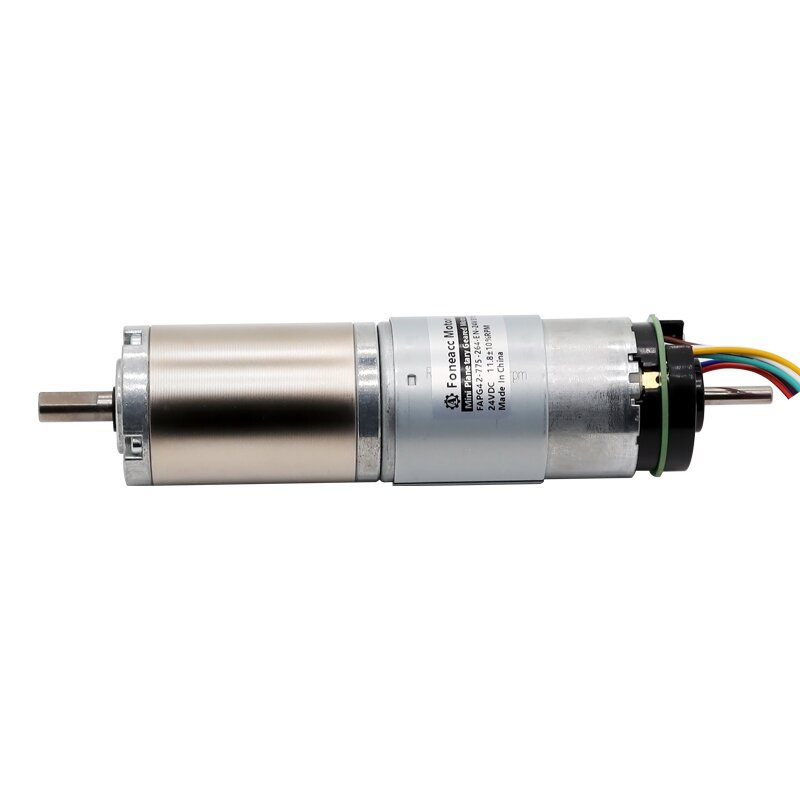

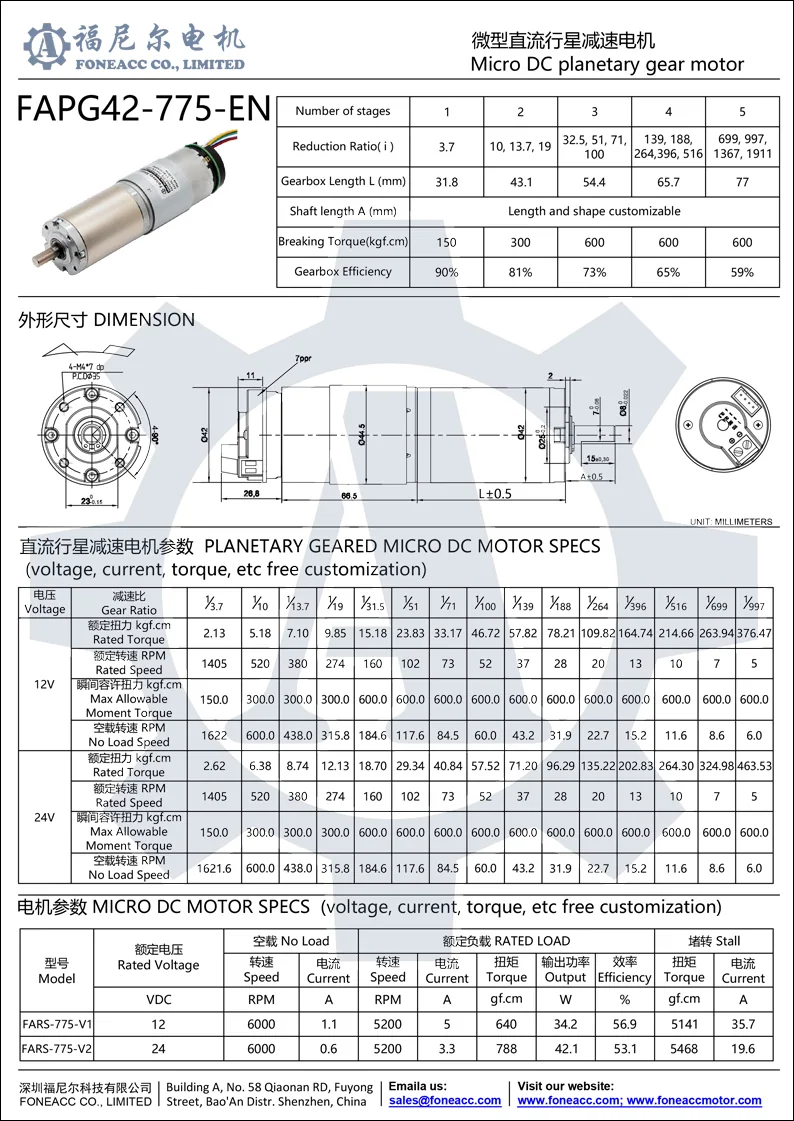

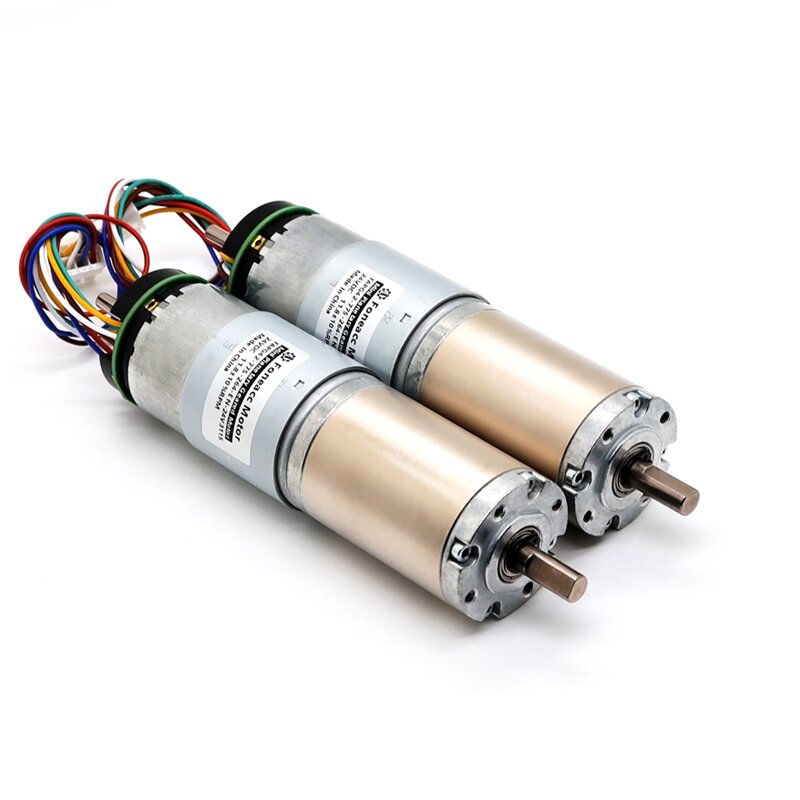

|- Model: PG42-775-EN; RS-775 geared DC motor with encoder
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 200 Kgf-cm ;
|- Size : Φ42* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm/Φ10mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/Optical encoder.
|- MOQ: 500 pcs;
|- Model: PG42-775-EN; RS-775 geared DC motor with encoder
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 200 Kgf-cm ;
|- Size : Φ42* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm/Φ10mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/optical encoder.
|- MOQ: 500 pcs;
| Model | No Load | Rated Load | Breaking Torque |
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG42-775-EN-12V3.7K | 1621.6 | 2.1 | 1405.4 | 150 |
| PG42-775-EN-12V10K | 600.0 | 5.2 | 520.0 | 300 |
| PG42-775-EN-12V13.7K | 438.0 | 7.1 | 379.6 | 300 |
| PG42-775-EN-12V19K | 315.8 | 9.8 | 273.7 | 300 |
| PG42-775-EN-12V31.5K | 184.6 | 15.2 | 160.0 | 600 |
| PG42-775-EN-12V51K | 117.6 | 23.8 | 102.0 | 600 |
| PG42-775-EN-12V71K | 84.5 | 33.2 | 73.2 | 600 |
| PG42-775-EN-12V100K | 60.0 | 46.7 | 52.0 | 600 |
| PG42-775-EN-12V139K | 43.2 | 57.8 | 37.4 | 600 |
| PG42-775-EN-12V188K | 31.9 | 78.2 | 27.7 | 600 |
| PG42-775-EN-12V264K | 22.7 | 109.8 | 19.7 | 600 |
| PG42-775-EN-12V396K | 15.2 | 164.7 | 13.1 | 600 |
| PG42-775-EN-12V516K | 11.6 | 214.7 | 10.1 | 600 |
| PG42-775-EN-12V699K | 8.6 | 263.9 | 7.4 | 600 |
| PG42-775-EN-12V997K | 6.0 | 376.5 | 5.2 | 600 |
| PG42-775-EN-24V3.7K | 1621.6 | 2.6 | 1405.4 | 150 |
| PG42-775-EN-24V10K | 600.0 | 6.4 | 520.0 | 300 |
| PG42-775-EN-24V13.7K | 438.0 | 8.7 | 379.6 | 300 |
| PG42-775-EN-24V19K | 315.8 | 12.1 | 273.7 | 300 |
| PG42-775-EN-24V31.5K | 184.6 | 18.7 | 160.0 | 600 |
| PG42-775-EN-24V51K | 117.6 | 29.3 | 102.0 | 600 |
| PG42-775-EN-24V71K | 84.5 | 40.8 | 73.2 | 600 |
| PG42-775-EN-24V100K | 60.0 | 57.5 | 52.0 | 600 |
| PG42-775-EN-24V139K | 43.2 | 71.2 | 37.4 | 600 |
| PG42-775-EN-24V188K | 31.9 | 96.3 | 27.7 | 600 |
| PG42-775-EN-24V264K | 22.7 | 135.2 | 19.7 | 600 |
| PG42-775-EN-24V396K | 15.2 | 202.8 | 13.1 | 600 |
| PG42-775-EN-24V516K | 11.6 | 264.3 | 10.1 | 600 |
| PG42-775-EN-24V699K | 8.6 | 325.0 | 7.4 | 600 |
| PG42-775-EN-24V997K | 6.0 | 463.5 | 5.2 | 600 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
