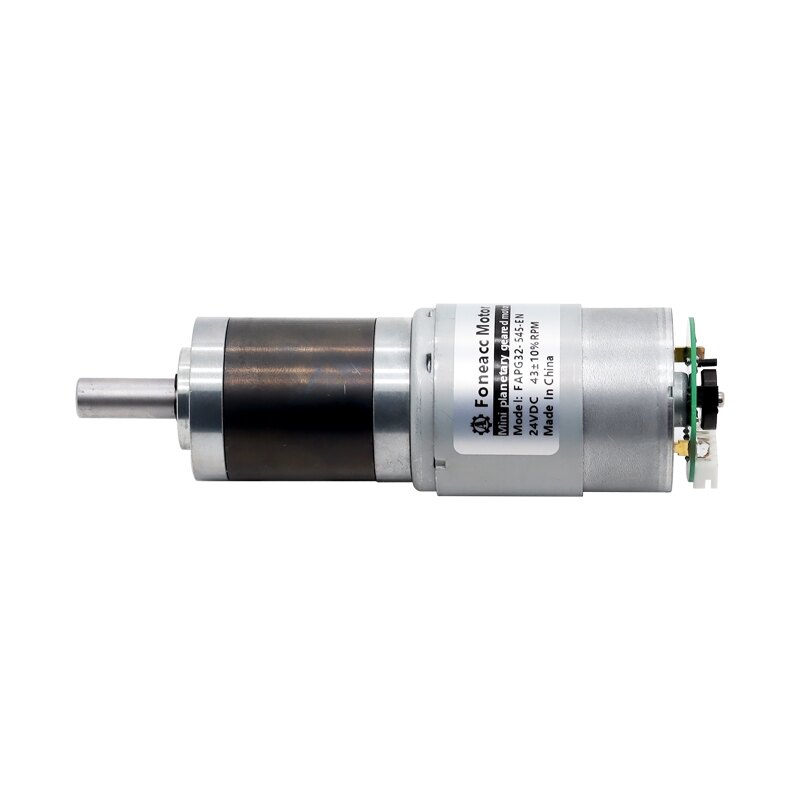

PG32-545-EN diameter Φ32mm planetary reducer gearmotor with encoder

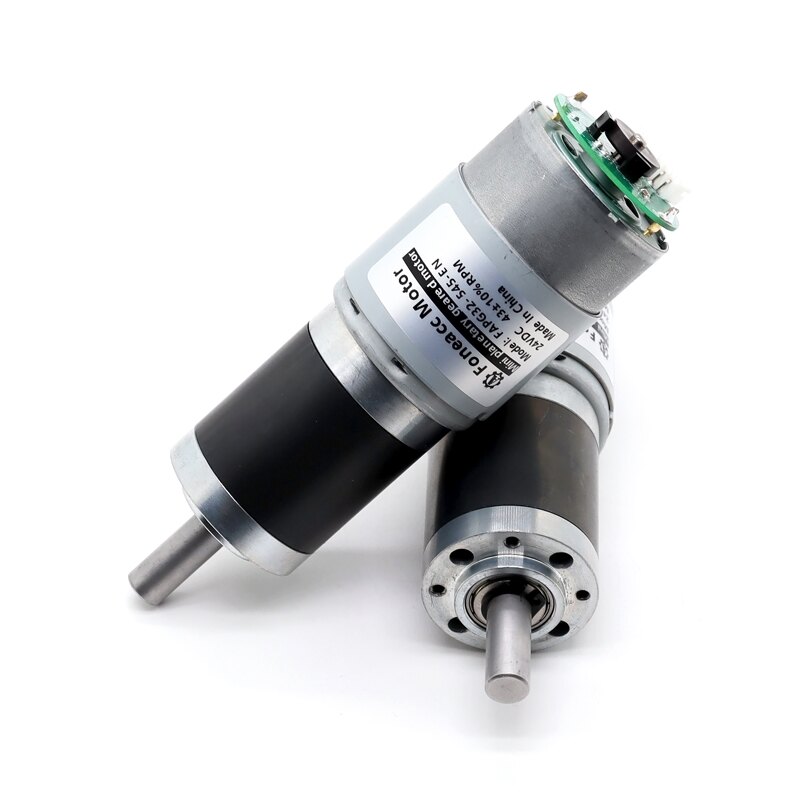

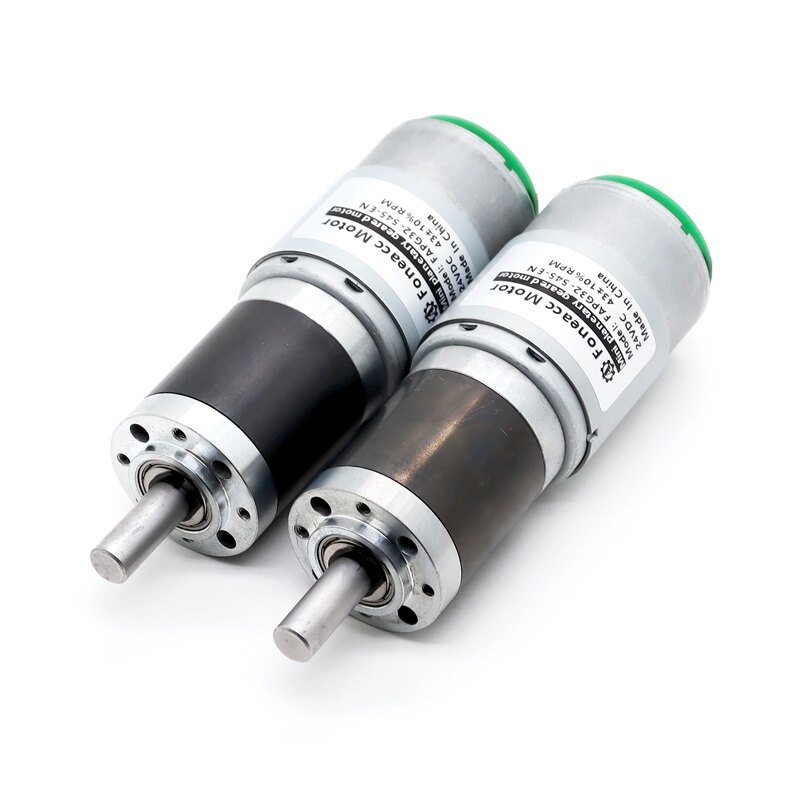

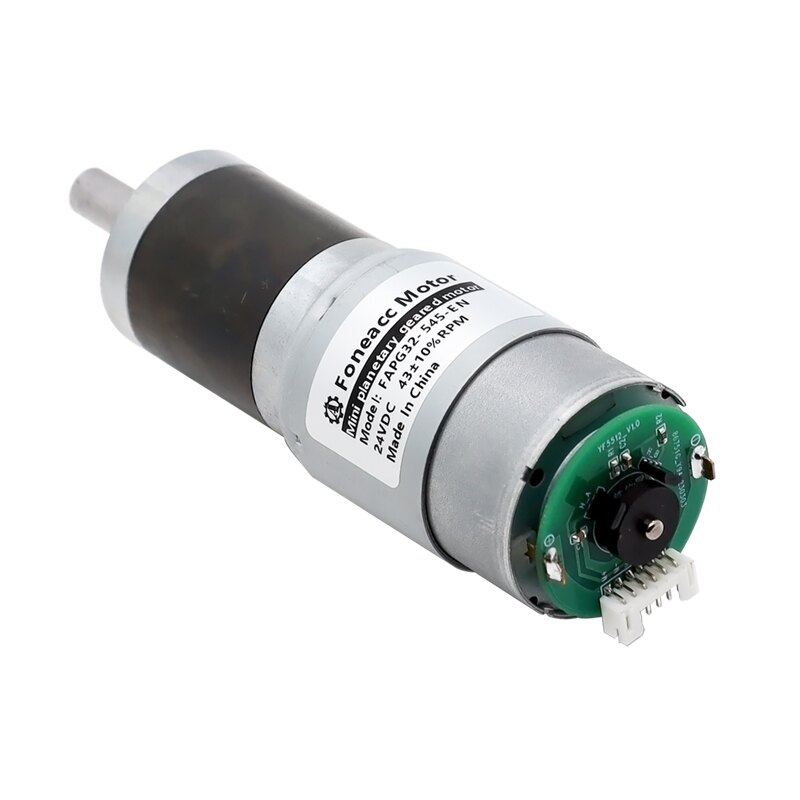

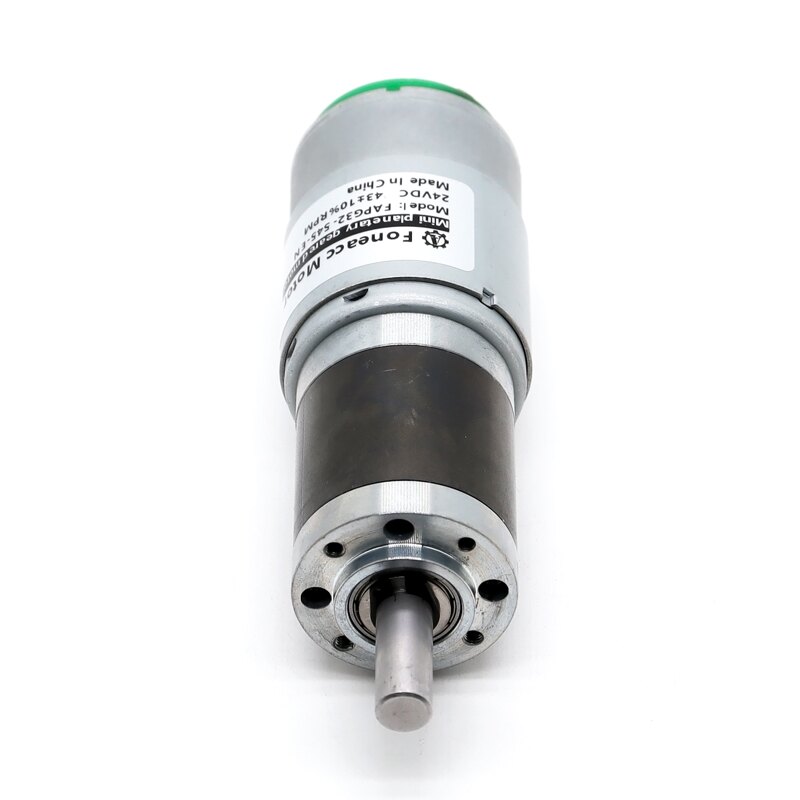

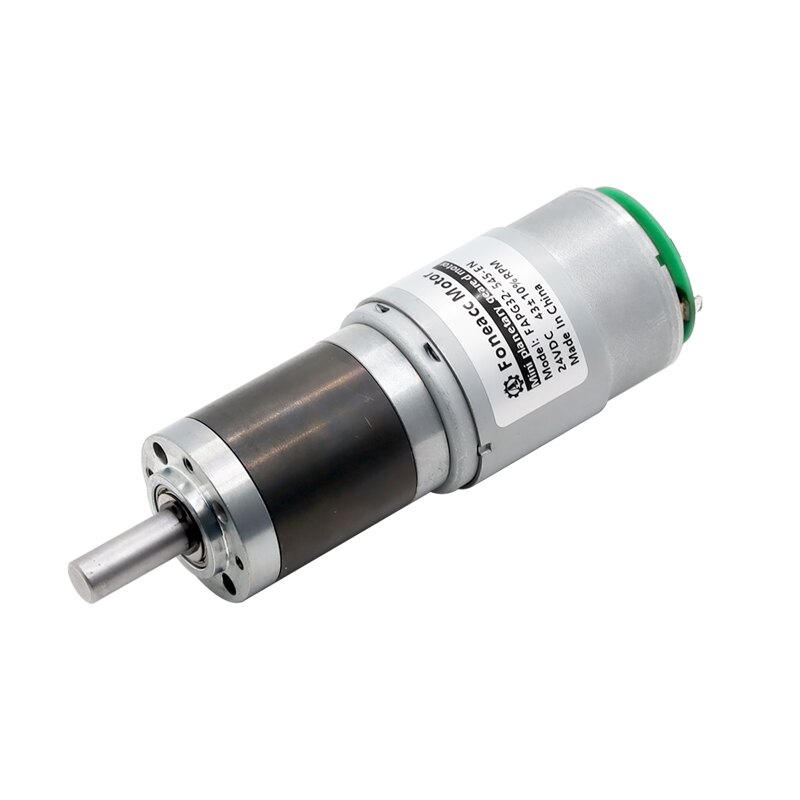

PG32-545-EN Φ 32mm small planetary reducer gearmotor with magnetic encoder

---

Main features:

|- Model: PG32-545-EN; RS-545 dc motor with planetary gearbox reducer with encoder.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 65 Kgf-cm ;
|- Size : Φ32* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm/Φ8mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder:  Magnetic encoder 2ppr, 12ppr.
|- MOQ: 500 pcs;

---

PG32-545-EN mini dc geared motor with encoder data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed
	r/min	kgf-cm	r/min	kgf-cm
PG32-545-EN-12V3K	2000	0.66	1700	6.5
PG32-545-EN-12V5K	1200	1.11	1020	6.5
PG32-545-EN-12V11K	545.5	2.13	464	15.5
PG32-545-EN-12V16K	375	3.1	319	15.5
PG32-545-EN-12V21K	285.7	4.07	243	15.5
PG32-545-EN-12V38K	157.9	6.32	134	50
PG32-545-EN-12V52K	115.4	8.64	98	50
PG32-545-EN-12V72K	83.3	11.97	71	50
PG32-545-EN-12V100K	60	16.62	51	50
PG32-545-EN-12V126K	47.6	17.45	40	75
PG32-545-EN-12V175K	34.3	24.24	29	75
PG32-545-EN-12V334K	18	46.26	15	75
PG32-545-EN-12V462K	13	63.99	11	75
PG32-545-EN-24V3K	2000	0.68	1700	6.5
PG32-545-EN-24V5K	1200	1.14	1020	6.5
PG32-545-EN-24V11K	545.5	2.19	464	15.5
PG32-545-EN-24V16K	375	3.18	319	15.5
PG32-545-EN-24V21K	285.7	4.17	243	15.5
PG32-545-EN-24V38K	157.9	6.48	134	50
PG32-545-EN-24V52K	115.4	8.86	98	50
PG32-545-EN-24V72K	83.3	12.27	71	50
PG32-545-EN-24V100K	60	17.04	51	50
PG32-545-EN-24V126K	47.6	17.89	40	75
PG32-545-EN-24V175K	34.3	24.85	29	75
PG32-545-EN-24V334K	18	47.43	15	75
PG32-545-EN-24V462K	13	65.6	11	75

---

Dimensions and configurations of PG32-545-EN mini dc planetary gear motor for reference:

---

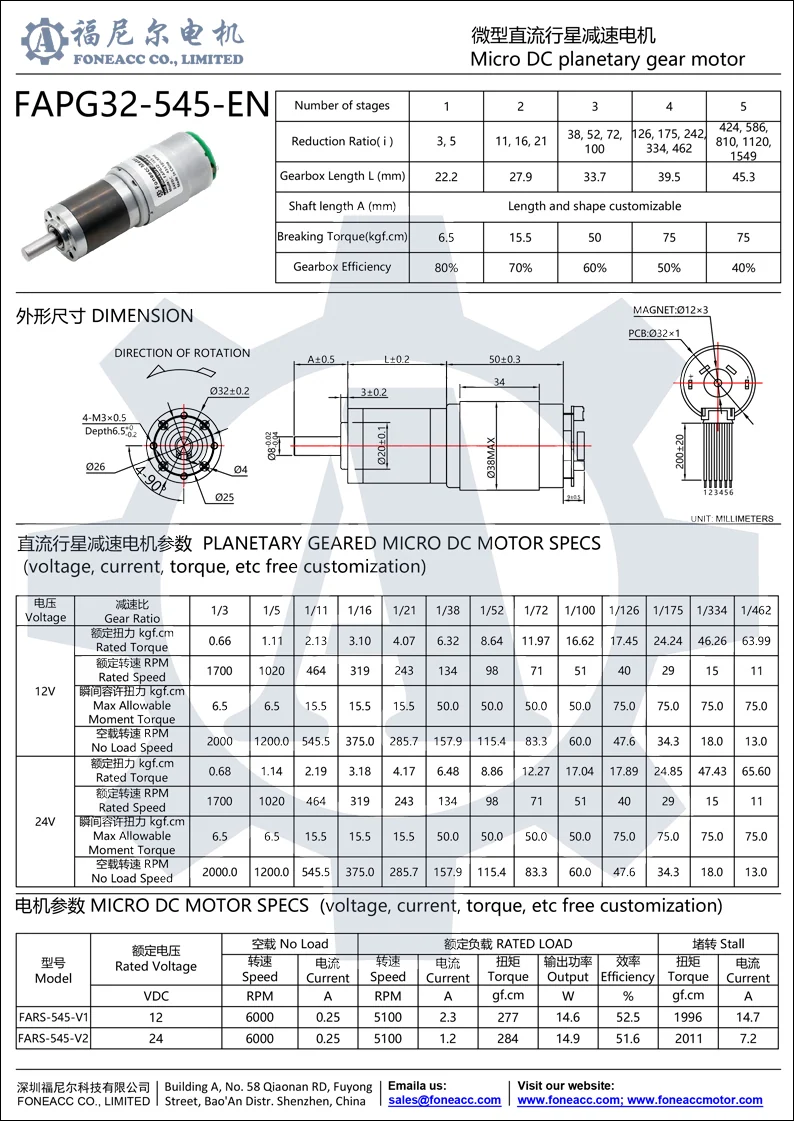

Download PG32-545-EN mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

--------------

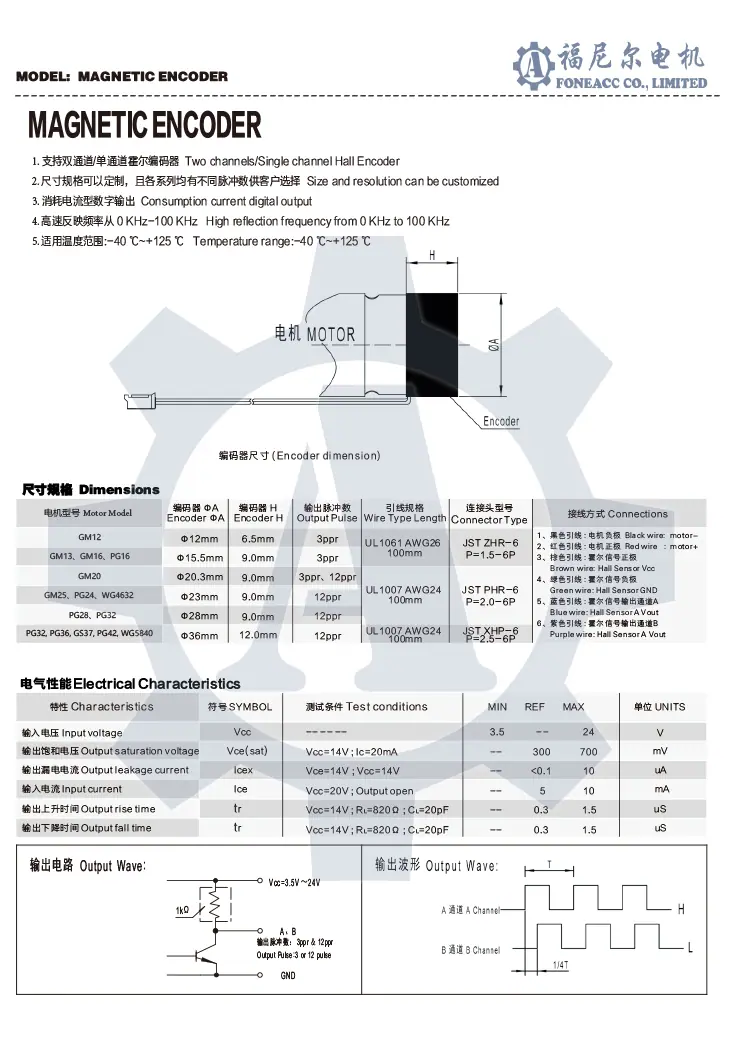

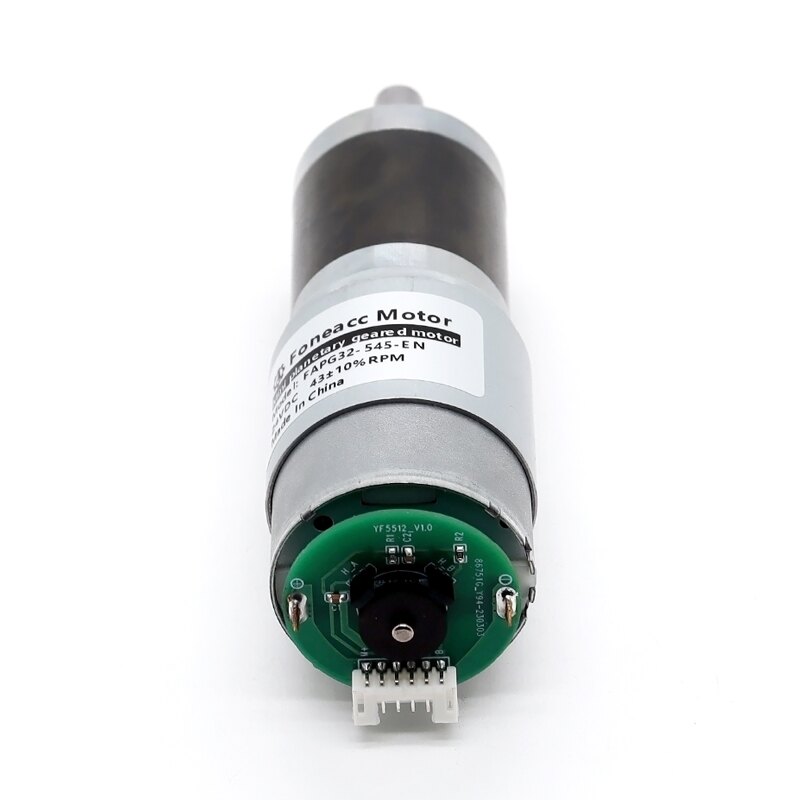

Magnetic encoder specs:

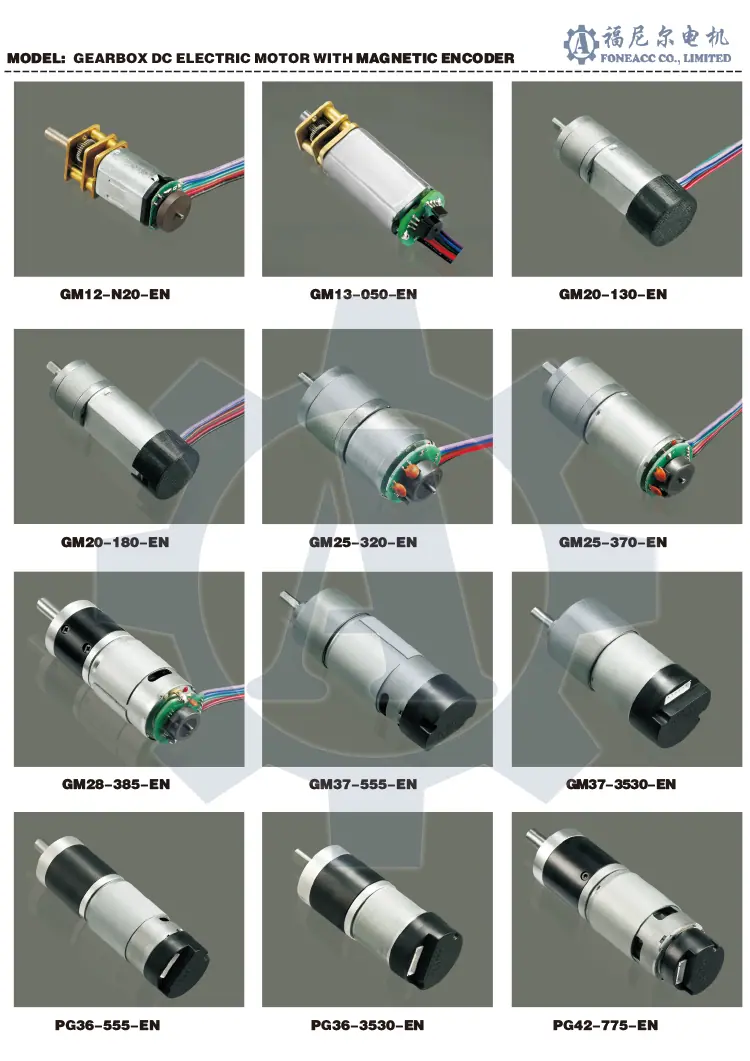

Some examples of small gear motors with magnetic encoder, all of our brush dc gear motors are compatible with encoders.
