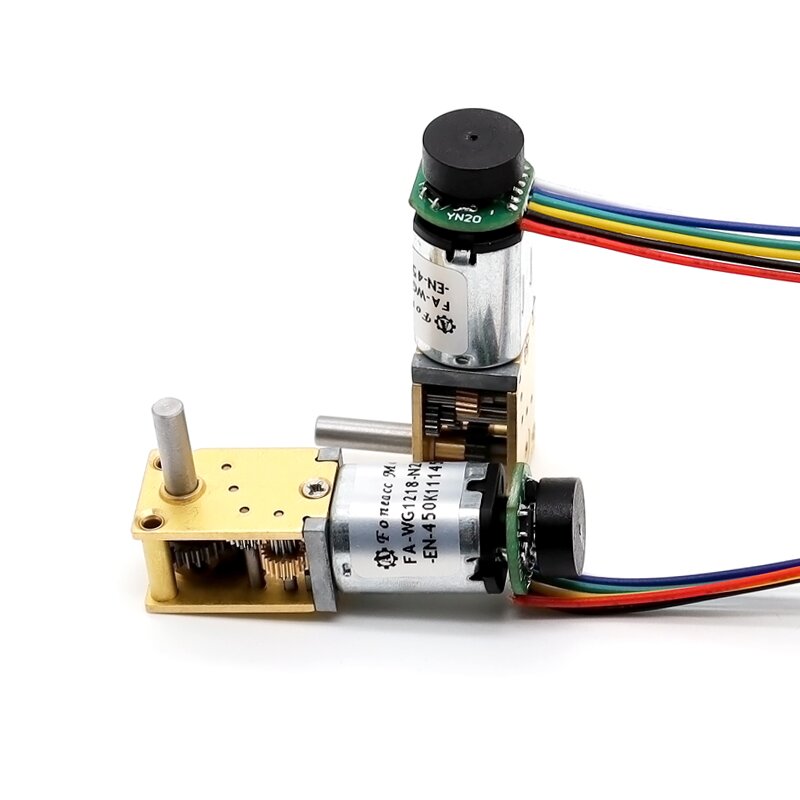

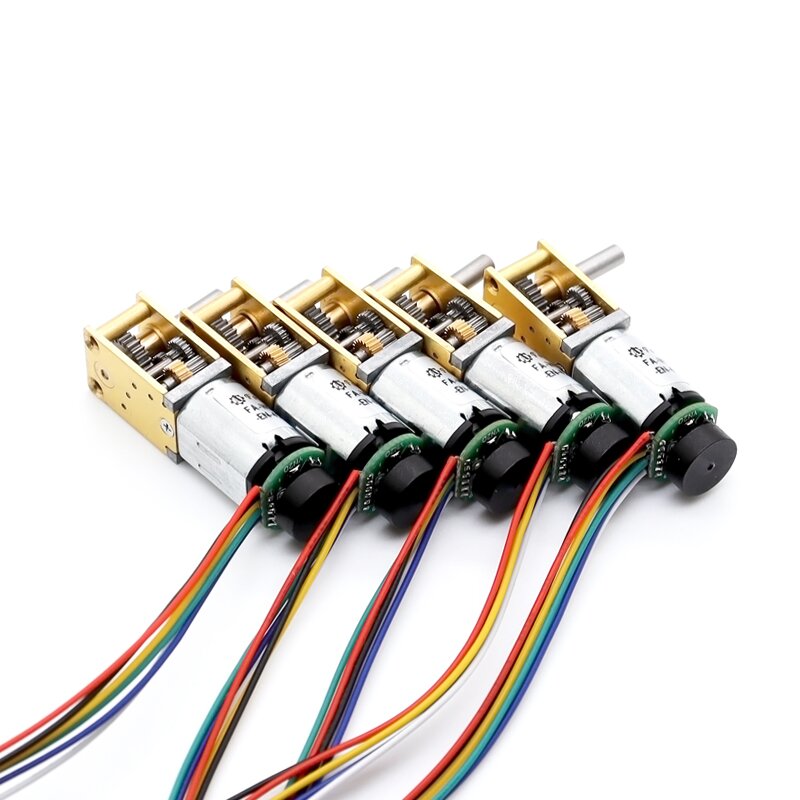

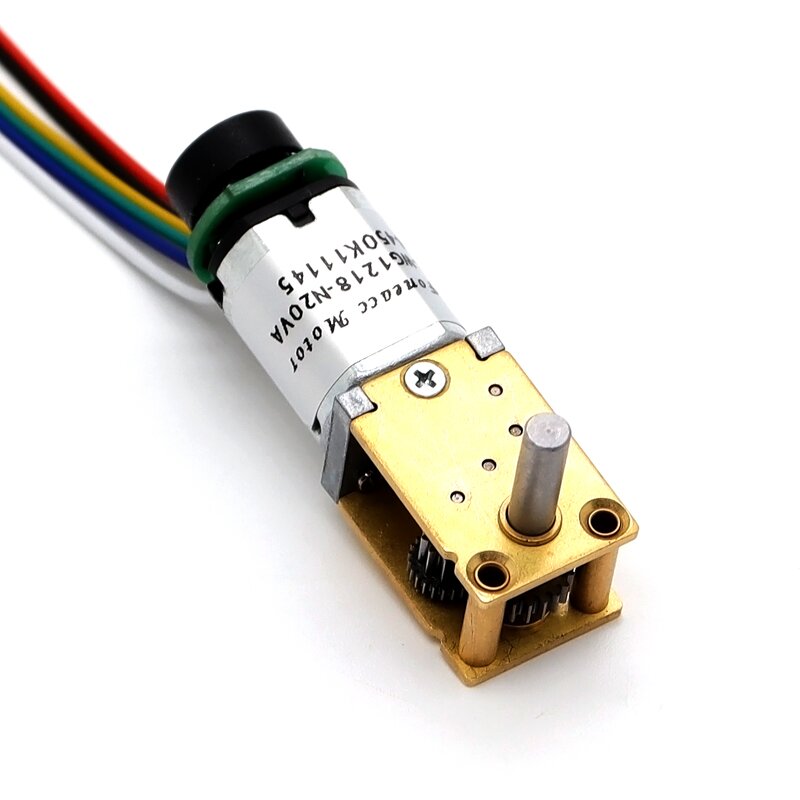

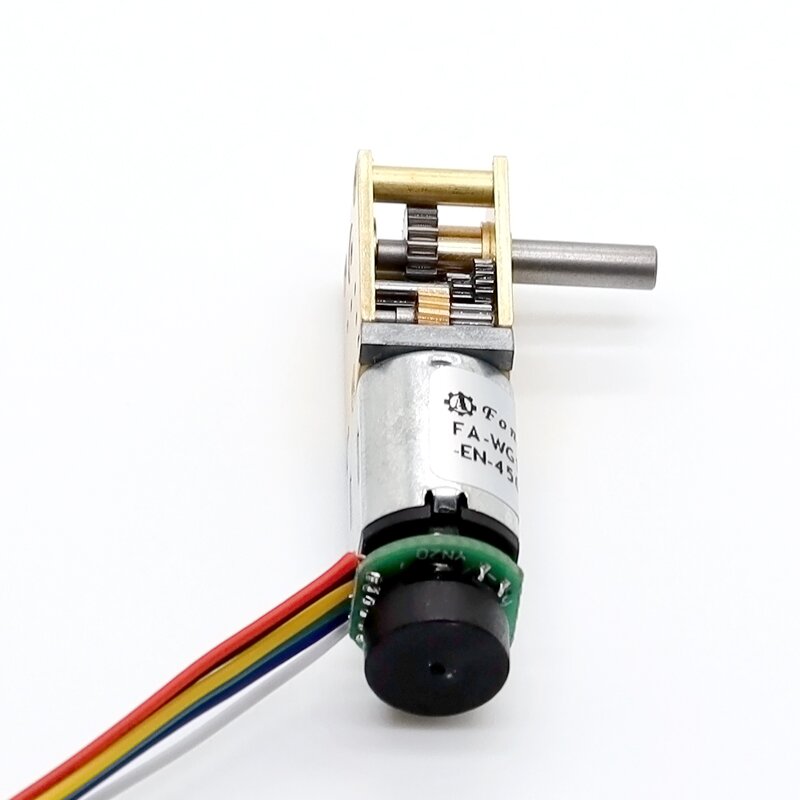

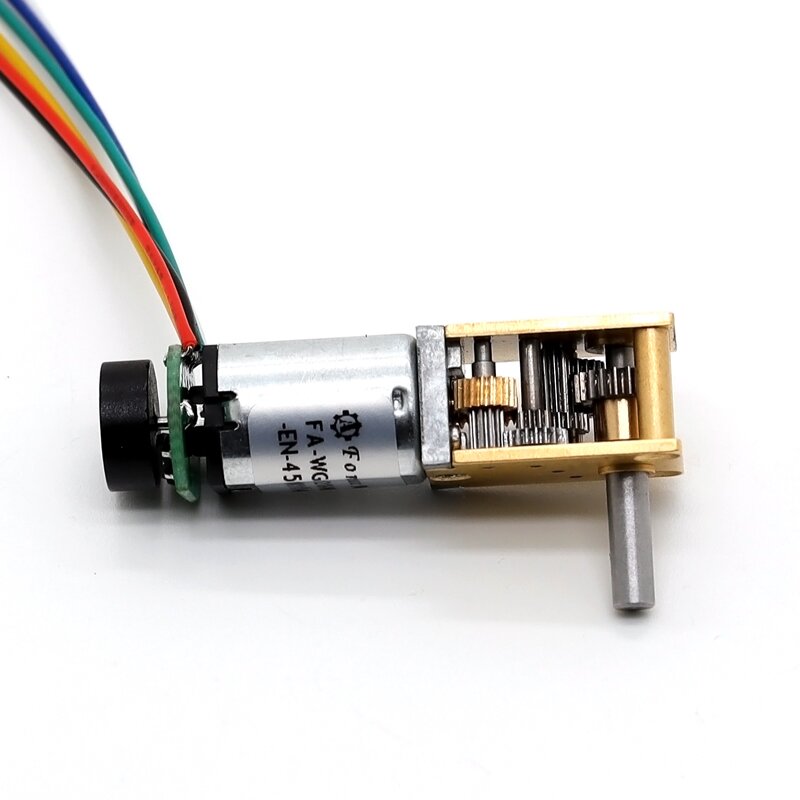

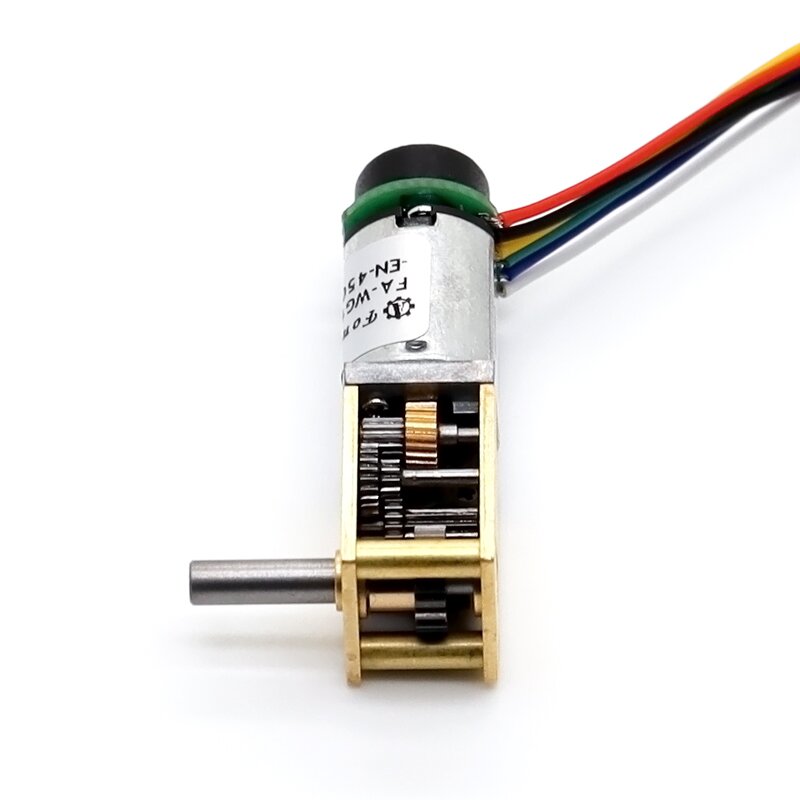

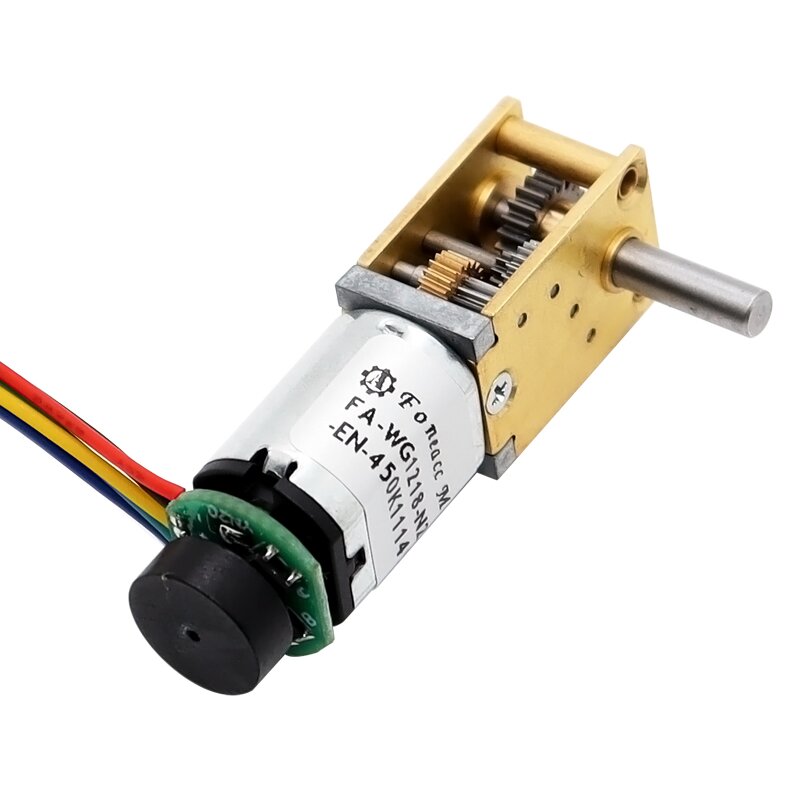

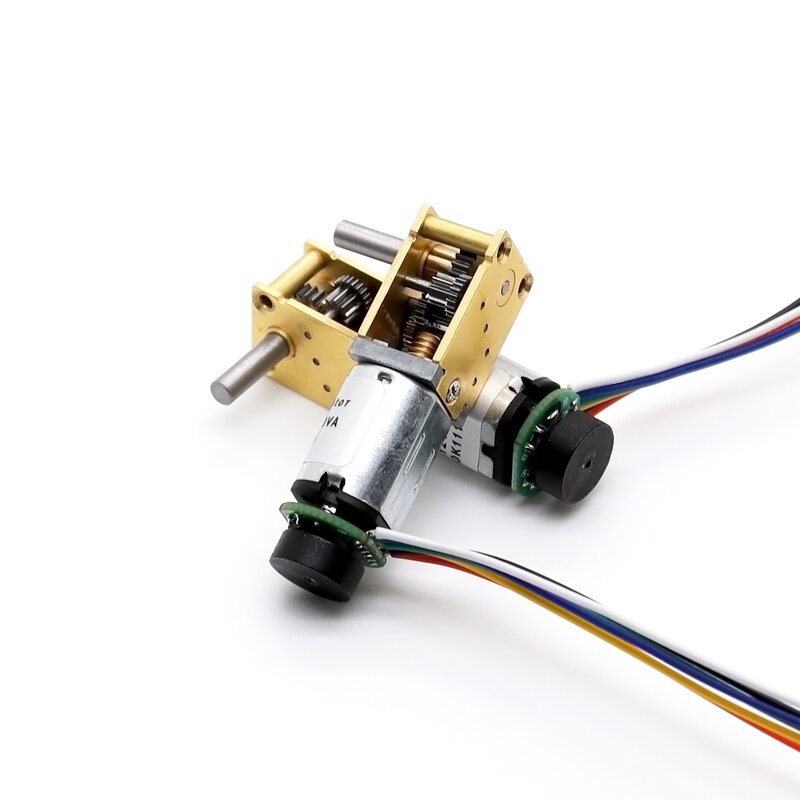

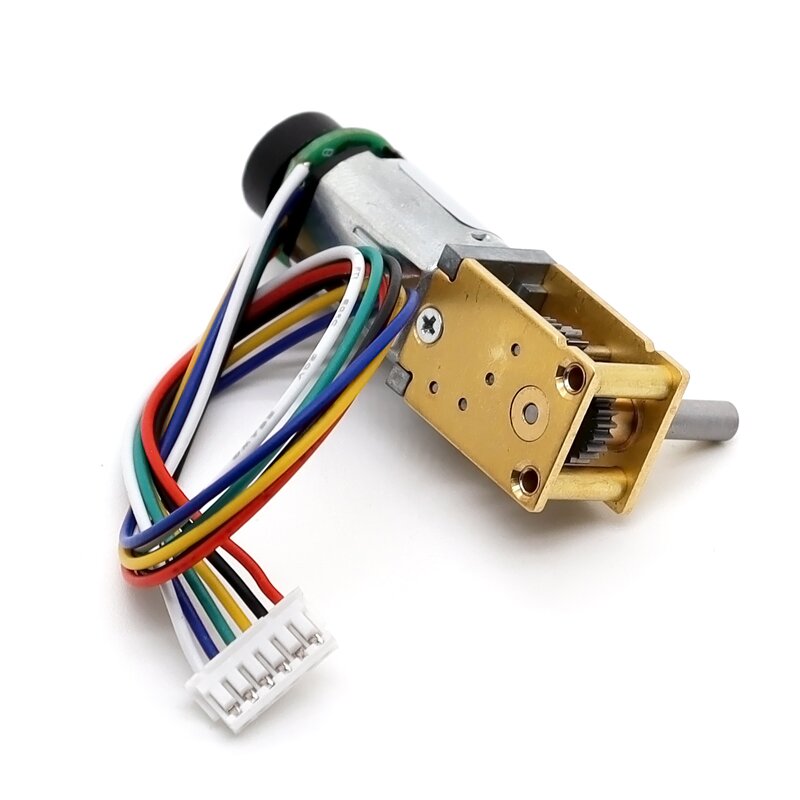

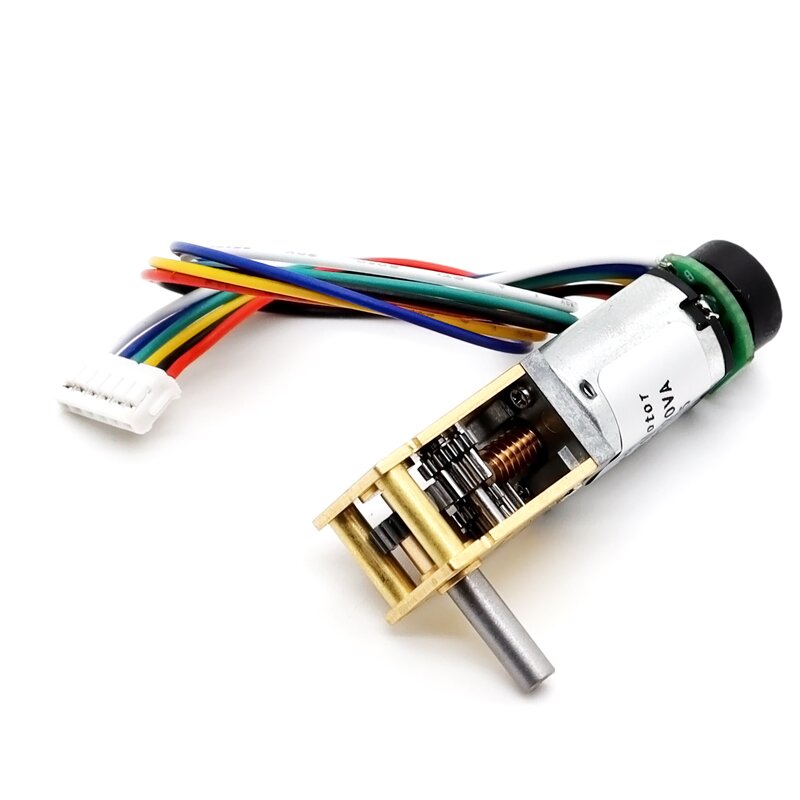

WG1218-N20-EN N20 motor with metal worm gearbox & encoder assembly

WG1218-N20-EN N20 motor with metal worm gearbox & encoder assembly

|- Model: WG12T-N20-EN, WG1218-N20-EN
|- Structure: N20 motor integrated with compact metal worm gearbox;
|- Gearbox: metal worm gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3 kgf-cm ;
|- Size : Φ12mm* L 33mm ;
|- Shaft : right angle 90° driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom;
|- Commutation: Carbon brush/precious metal brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: Magnetic encoder 3ppr, 7ppr, 12ppr;
|- MOQ: 500 pcs

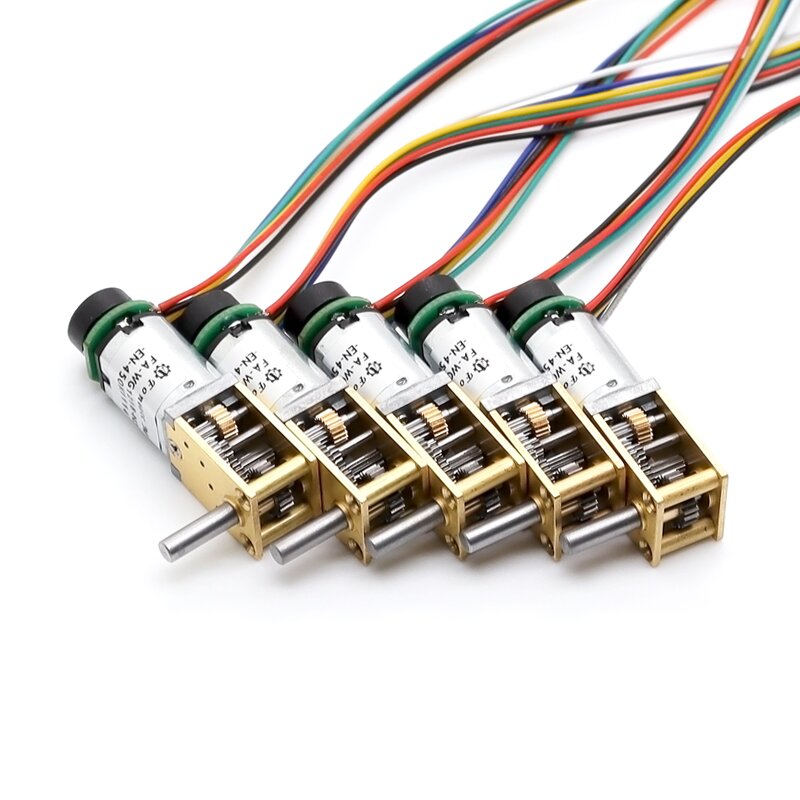

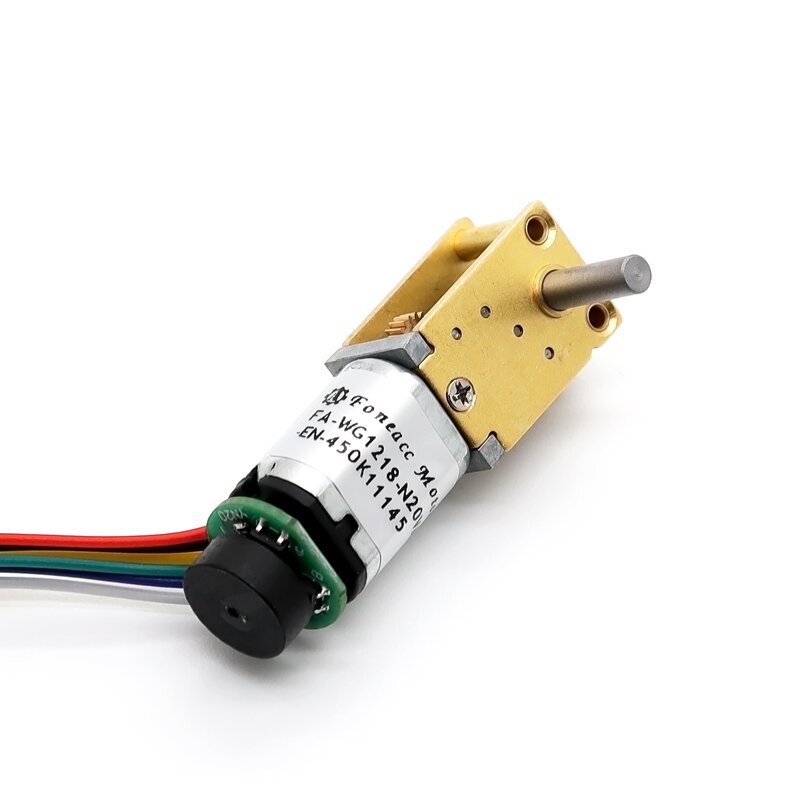

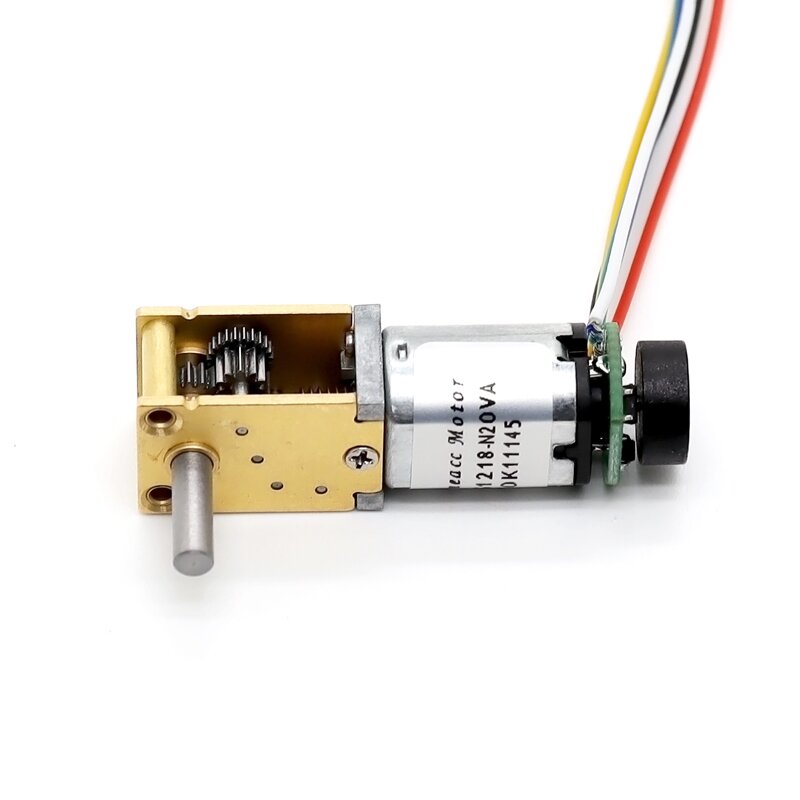

WG1218-N20-EN N20 motor with metal worm gearbox & encoder assembly

Main features:

|- Model: WG12T-N20-EN, WG1218-N20-EN
|- Structure: N20 motor integrated with compact metal worm gearbox;
|- Gearbox: metal worm gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3 kgf-cm ;
|- Size : Φ12mm* L 33mm ;
|- Shaft : right angle 90° driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom;
|- Commutation: Carbon brush/precious metal brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: magnetic encoder 3ppr, 7ppr, 12ppr;
|- MOQ: 500 pcs

WG12T-N20-EN dc spur geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed	Breaking Torque
	r/min	kgf.cm	r/min	kgf.cm
WG12T-N20-EN-118K-5V	169.5	0.3	139.7	5
WG12T-N20-EN-236K-5V	84.7	0.5	69.9	5
WG12T-N20-EN-305K-5V	65.6	0.6	54.1	5
WG12T-N20-EN-450K-5V	44.4	0.9	36.6	5
WG12T-N20-EN-520K-5V	38.5	1.0	31.7	5
WG12T-N20-EN-603K-5V	33.2	1.1	27.3	5
WG12T-N20-EN-780K-5V	25.6	1.4	21.1	5
WG12T-N20-EN-1030K-5V	19.4	1.9	16.0	5
WG12T-N20-EN-118K-12V	248.3	0.3	193.6	5
WG12T-N20-EN-236K-12V	124.2	0.6	96.8	5
WG12T-N20-EN-305K-12V	96.1	0.7	74.9	5
WG12T-N20-EN-450K-12V	65.1	1.0	50.8	5
WG12T-N20-EN-520K-12V	56.3	1.2	43.9	5
WG12T-N20-EN-603K-12V	48.6	1.2	37.9	5
WG12T-N20-EN-780K-12V	37.6	1.6	29.3	5
WG12T-N20-EN-1030K-12V	28.4	2.1	22.2	5

Dimensions and configurations of WG12T-N20-EN dc gear motor for reference:

WG12T-N20-EN small worm geared brush dc electric motor datasheet

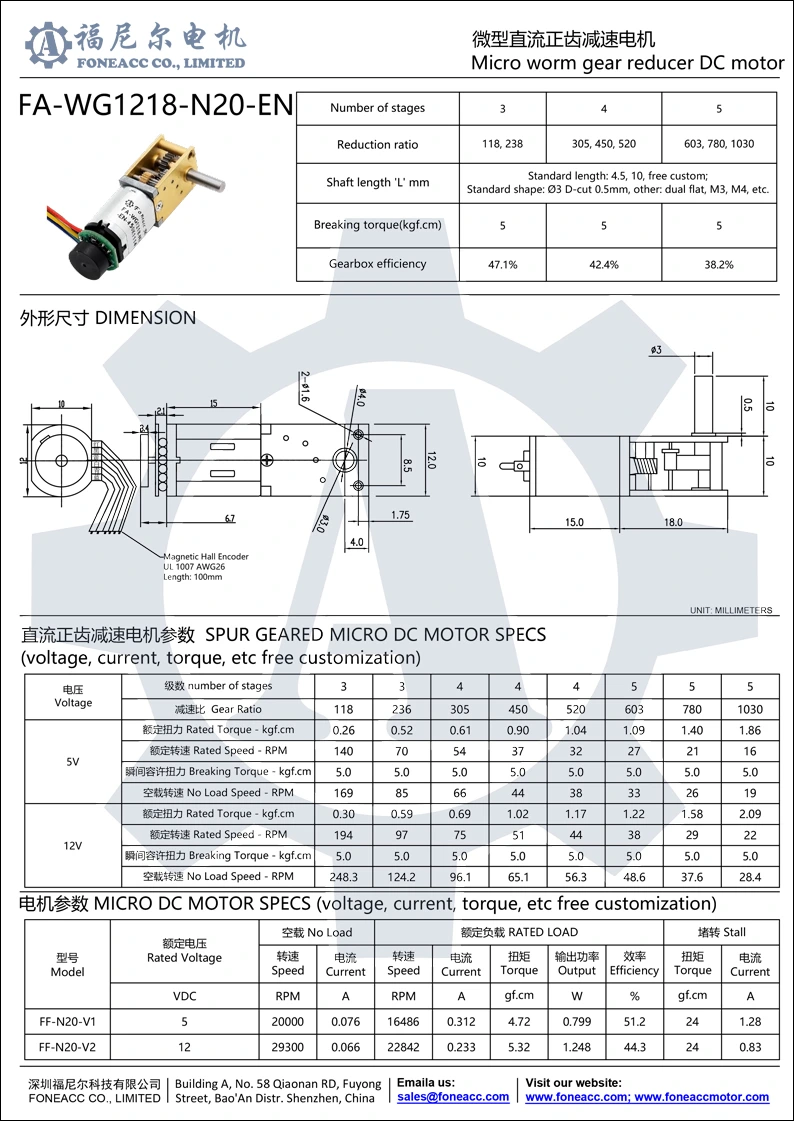

Download WG1218-N20-EN DC gearmotor datasheet for clear view:

WG12T-N20-EN-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer'srequests,
such as voltage, speed,shaft extension length and shape...

Welcome OEM/ODM projects

Magnetic encoder specs:

magnetic encoder.webp
