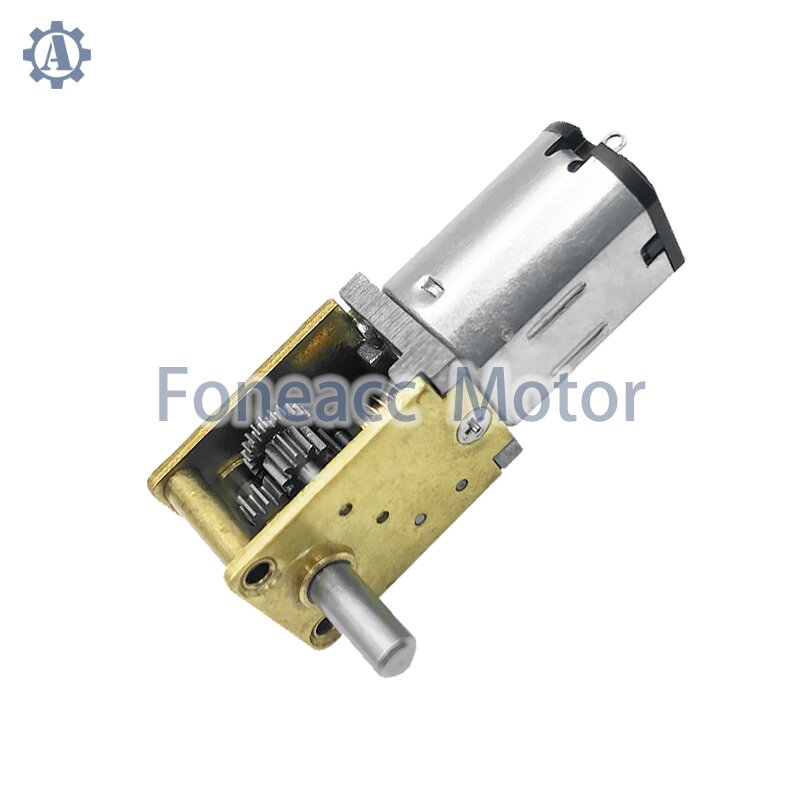

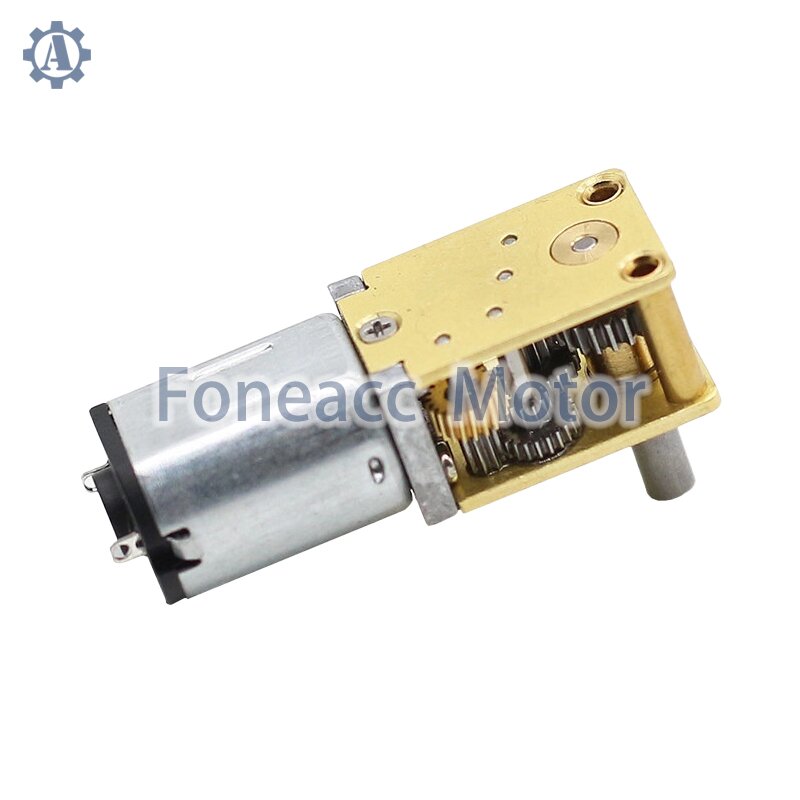

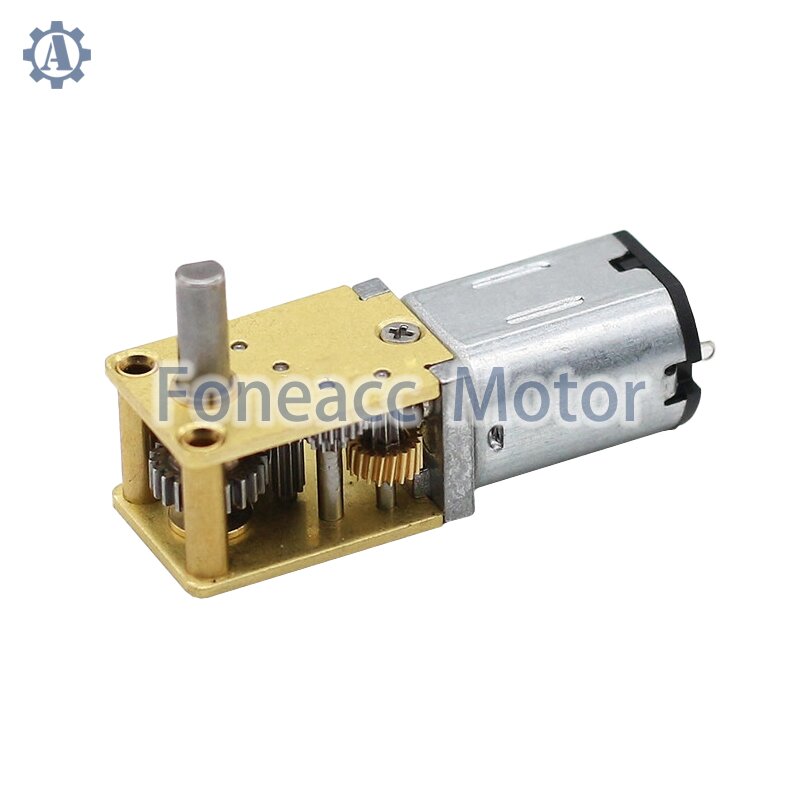

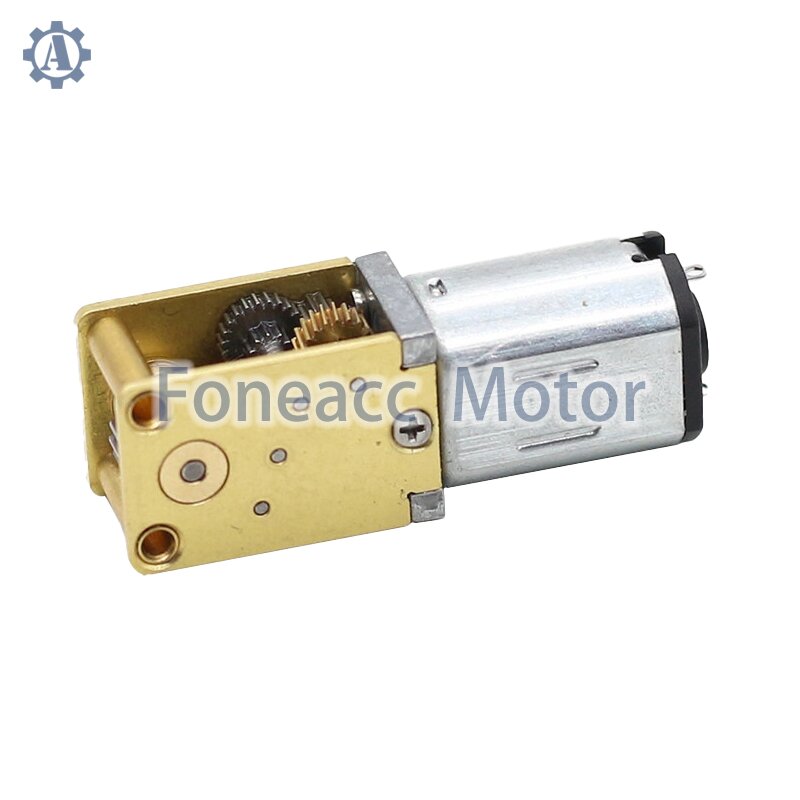

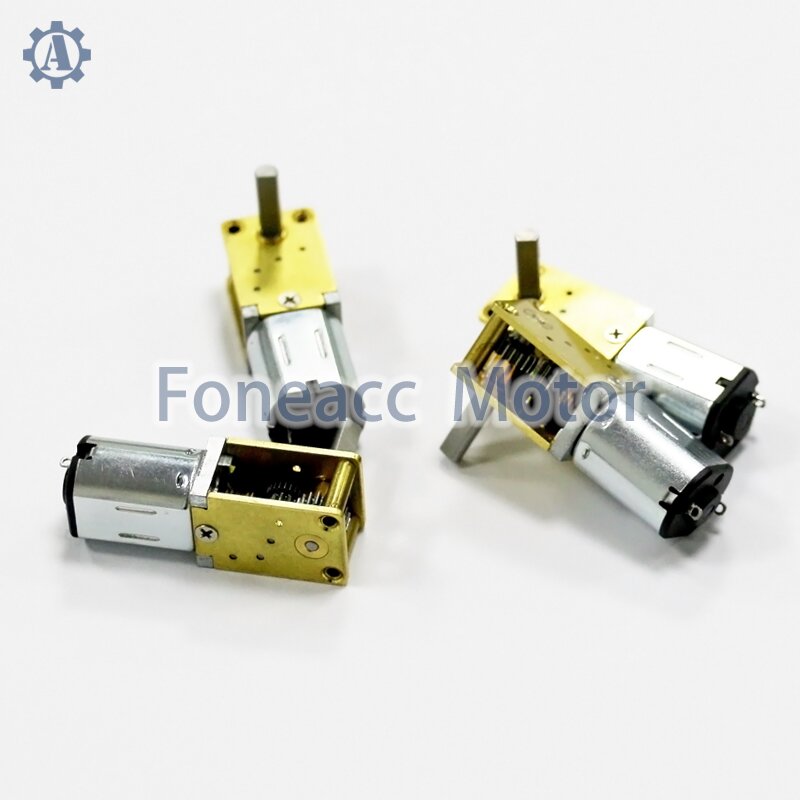

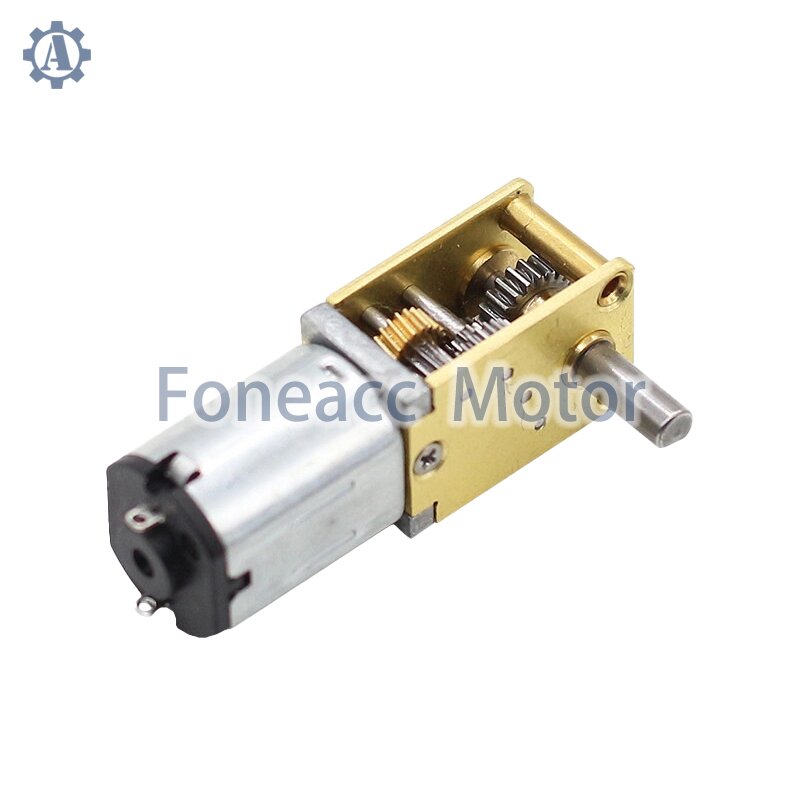

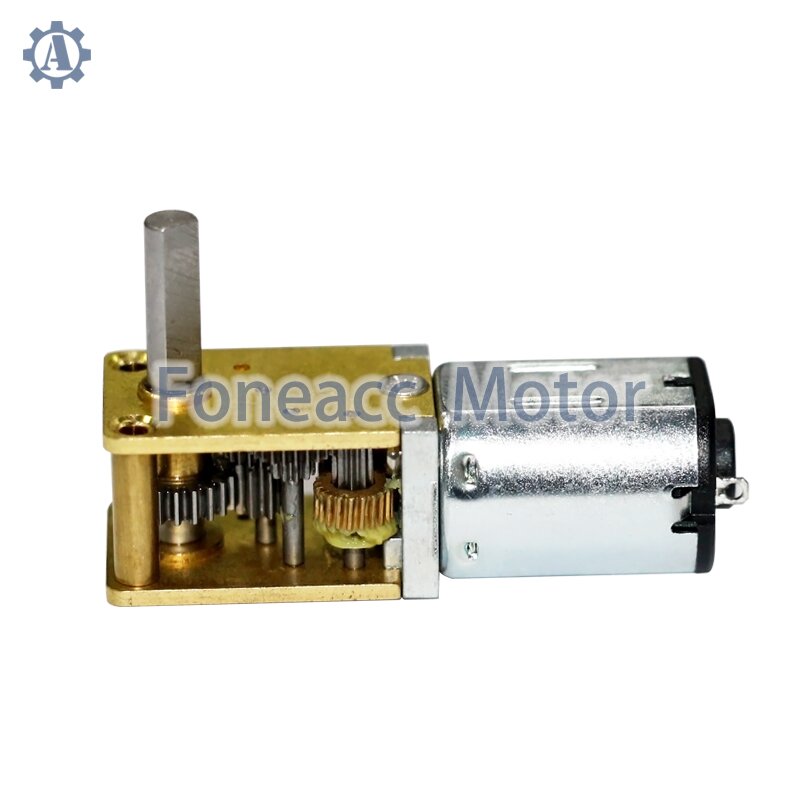

|- Model: WG12T-N20, WG1218-N20
|- Structure: N20 motor integrated with compact metal worm gearbox;
|- Gearbox: metal worm gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3 kgf-cm ;
|- Size : Φ12mm* L 33mm ;
|- Shaft : right angle 90° driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom;
|- Commutation: Carbon brush/precious metal brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: Magnetic encoder 3ppr, 7ppr, 12ppr;
|- MOQ: 500 pcs
|- Model: WG12T-N20, WG1218-N20
|- Structure: N20 motor integrated with compact metal worm gearbox;
|- Gearbox: metal worm gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 3 kgf-cm ;
|- Size : Φ12mm* L 33mm ;
|- Shaft : right angle 90°driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom;
|- Commutation: Carbon brush/precious metal brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: magnetic encoder 3ppr, 7ppr, 12ppr;
|- MOQ: 500 pcs

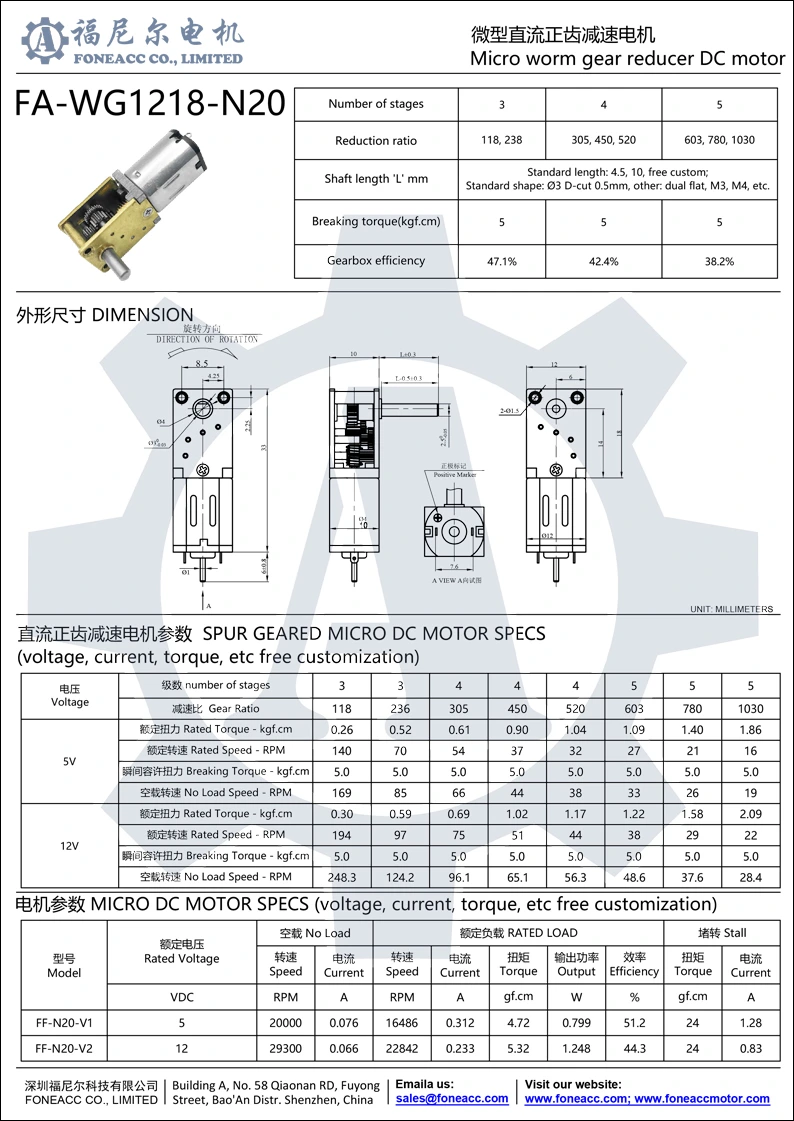

Model | No Load | Rated Load | Breaking Torque | |
Speed | Torque | Speed | ||
r/min | kgf.cm | r/min | kgf.cm | |
WG12T-N20-118K-5V | 169.5 | 0.3 | 139.7 | 5 |
WG12T-N20-236K-5V | 84.7 | 0.5 | 69.9 | 5 |
WG12T-N20-305K-5V | 65.6 | 0.6 | 54.1 | 5 |
WG12T-N20-450K-5V | 44.4 | 0.9 | 36.6 | 5 |
WG12T-N20-520K-5V | 38.5 | 1.0 | 31.7 | 5 |
WG12T-N20-603K-5V | 33.2 | 1.1 | 27.3 | 5 |
WG12T-N20-780K-5V | 25.6 | 1.4 | 21.1 | 5 |
WG12T-N20-1030K-5V | 19.4 | 1.9 | 16.0 | 5 |
WG12T-N20-118K-12V | 248.3 | 0.3 | 193.6 | 5 |
WG12T-N20-236K-12V | 124.2 | 0.6 | 96.8 | 5 |
WG12T-N20-305K-12V | 96.1 | 0.7 | 74.9 | 5 |
WG12T-N20-450K-12V | 65.1 | 1.0 | 50.8 | 5 |
WG12T-N20-520K-12V | 56.3 | 1.2 | 43.9 | 5 |
WG12T-N20-603K-12V | 48.6 | 1.2 | 37.9 | 5 |
WG12T-N20-780K-12V | 37.6 | 1.6 | 29.3 | 5 |
WG12T-N20-1030K-12V | 28.4 | 2.1 | 22.2 | 5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer'srequests,
such as voltage, speed,shaft extension length and shape...
Welcome OEM/ODM projects
Contact: Foneacc Motor Sales Team
Phone: +86-13923860676
E-mail: sales@foneacc.com
Add: Building A, No. 58 Qiaonan RD, Fuyong Street, Bao An District. Shenzhen, China
