24 mm planetary dc gearmotor

  • PG24-BL2430 24mm mini epicyclic(planetary) gear motor

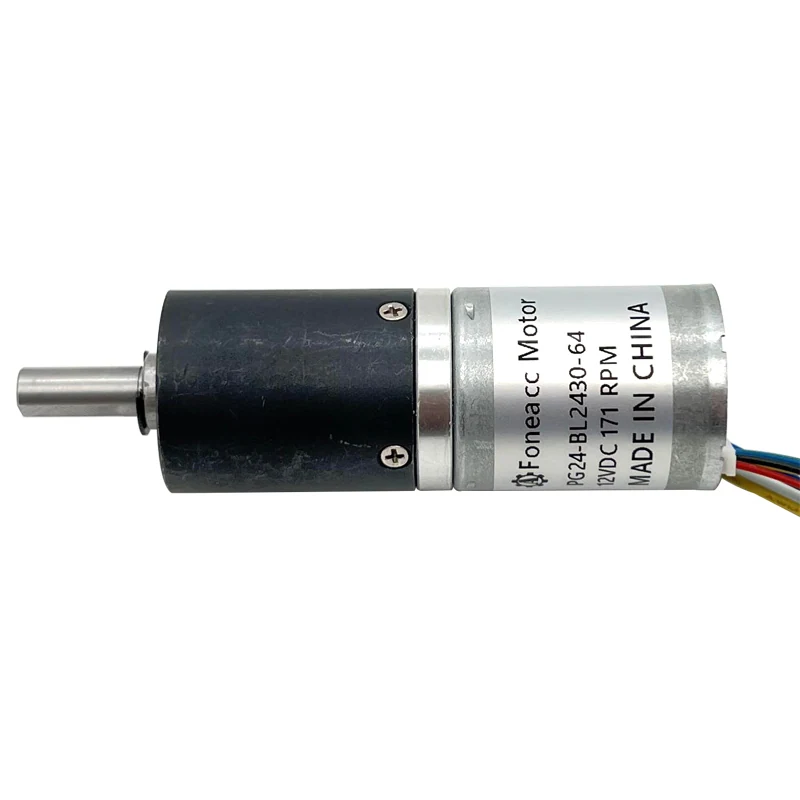

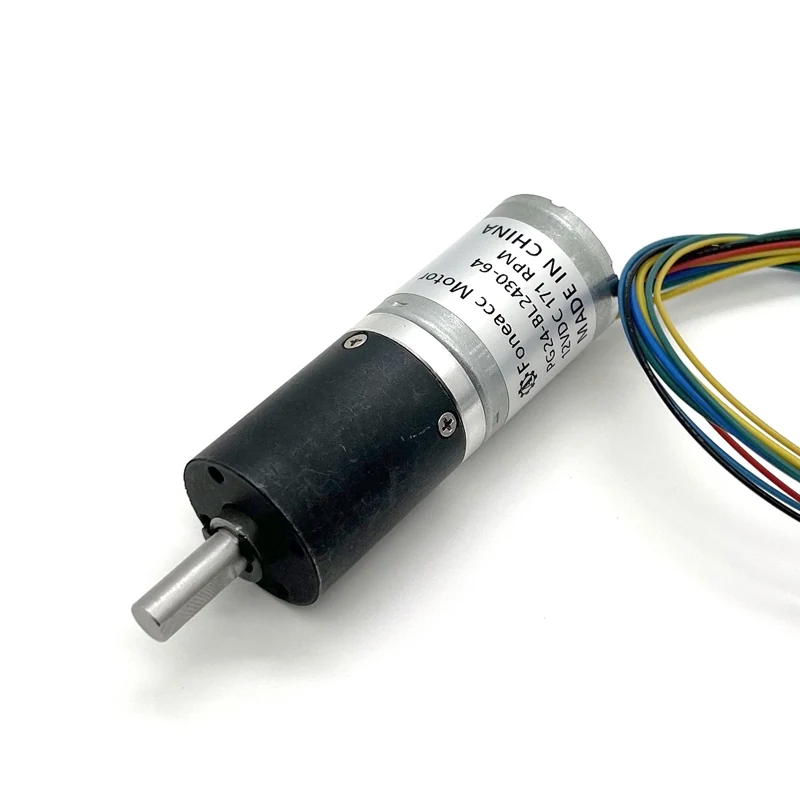

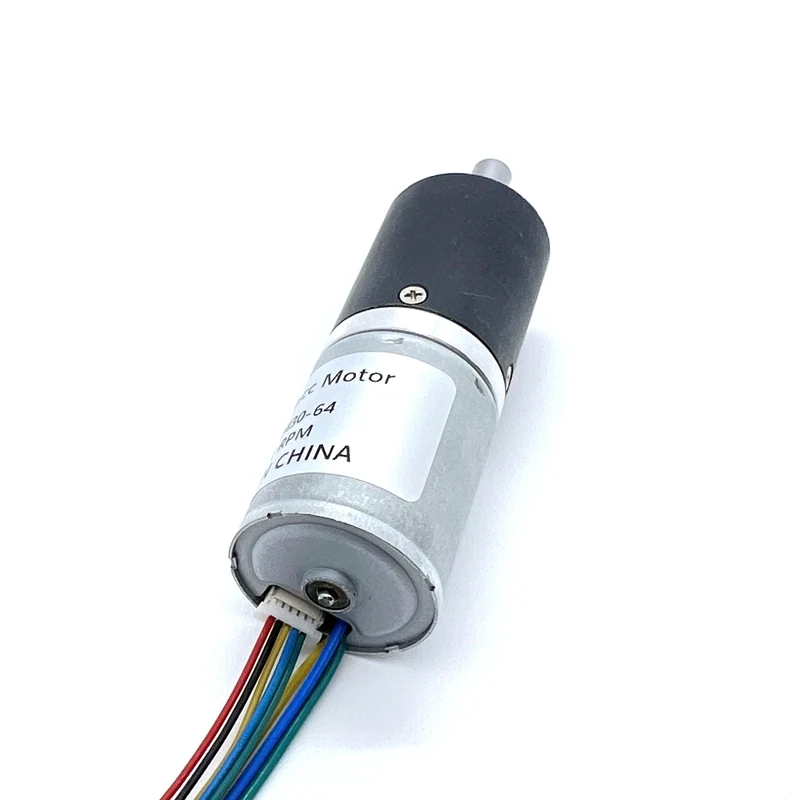

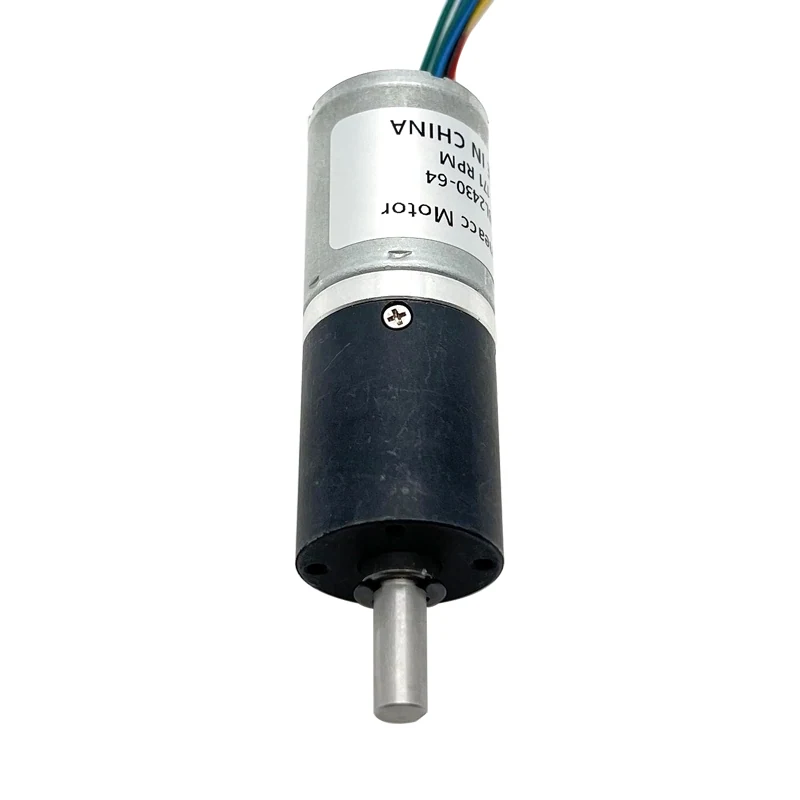

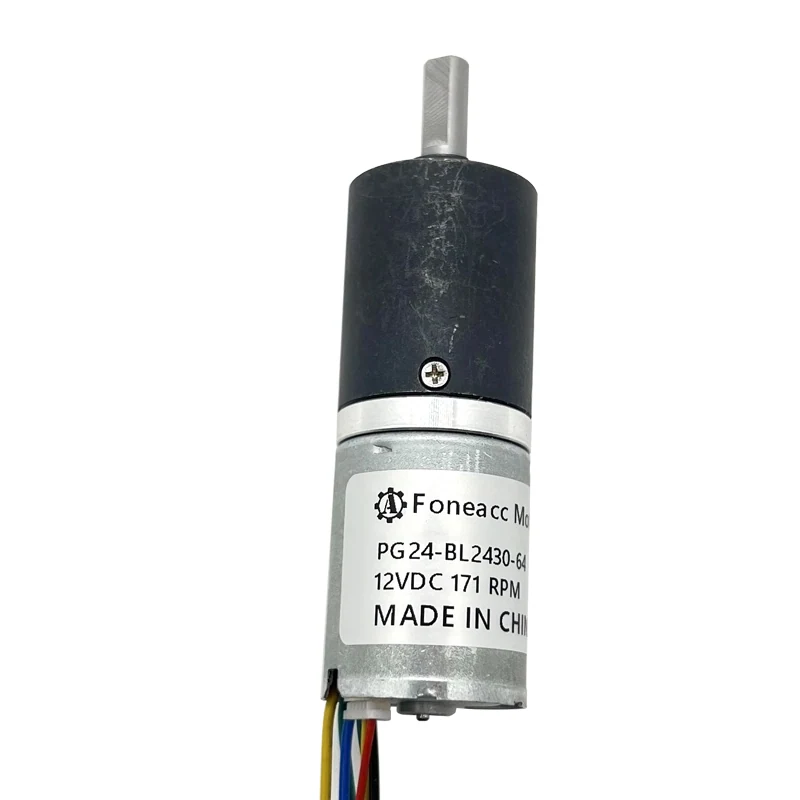

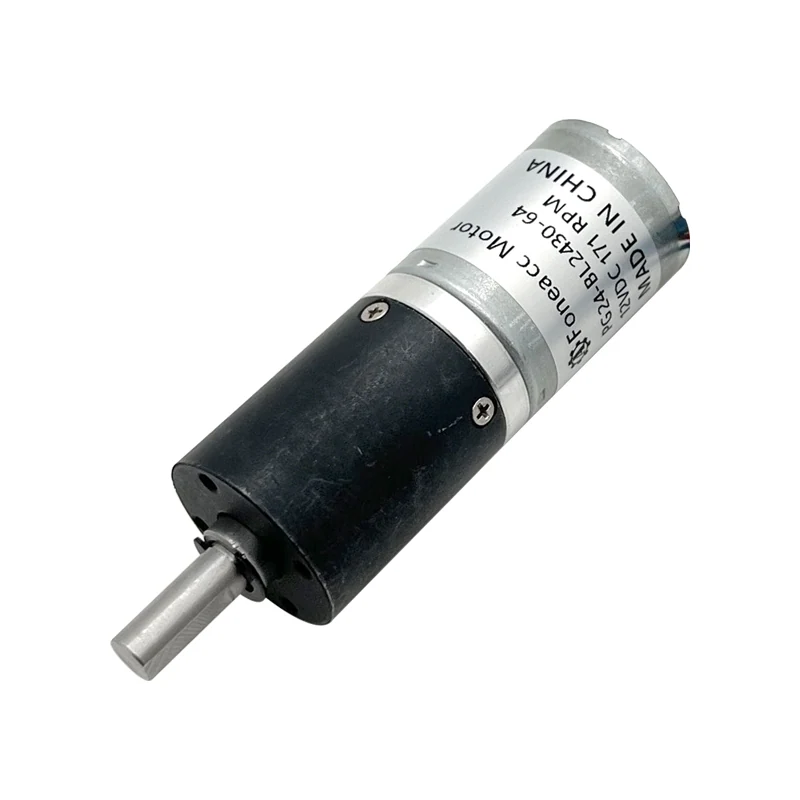

PG24-BL2430 24mm mini epicyclic(planetary) gear motor

PG24-BL2430 24mm mini epicyclic(planetary) gear motor

  • Model: PG24-BL2430I mini metal planetary geared bldc electric motor
  • Gear box: metal planetary geared reducer
  • Motor: BL2430I B2430M brushless bldc electric motor
  • Feature: Iron Cored Permanent Magnet brushless dc electric motor
  • Product description:PG24-BL2430 BL2430I B2430M 24mm micro planetary gear motor from China mini dc electric motor manufacturer Foneacc Motor of good quality & reasonable price.
  • INQUIRY

PG24-BL2430 24mm mini epicyclic(planetary) gear motor


Main features:

|- Model: PG24-BL2430;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 15Kgf-cm ;
|- Size : Ø24* L TBD ;
|- Shaft : concentric driveshaft, Ø6mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;


PG24-BL2430 mini bldc planetary geared motor data examples:

Model No Load Rated Load
Breaking
Torque
Speed Torque Speed
r/min kgf·cm r/min kgf·cm
PG24-370-12V4K 2720 0.22 2207 2.0
PG24-370-12V5K 2176 0.28 1766 2.0
PG24-370-12V15K 725.3 0.73 589 3.5
PG24-370-12V18K 604.4 0.88 491 3.5
PG24-370-12V22K 494.5 1.07 401 3.5
PG24-370-12V57K 190.9 2.38 155 12.5
PG24-370-12V69K 157.7 2.88 128 12.5
PG24-370-12V83K 131.1 3.46 106 12.5
PG24-370-12V100K 108.8 4.17 88 12.5
PG24-370-12V211K 49.2 7.68 40 35.0
PG24-370-12V266K 40.9 9.24 33 35.0
PG24-370-12V334K 32.6 11.60 26 35.0
PG24-370-12V462K 23.5 16.05 19 35.0
PG24-370-24V4K 2432 0.21 1938 2.0
PG24-370-24V5K 1945.6 0.26 1550 2.0
PG24-370-24V15K 648.5 0.69 517 3.5
PG24-370-24V18K 540.4 0.83 431 3.5
PG24-370-24V22K 442.2 1.01 352 3.5
PG24-370-24V57K 170.7 2.25 136 12.5
PG24-370-24V69K 141 2.72 112 12.5
PG24-370-24V83K 117.2 3.27 93 12.5
PG24-370-24V100K 97.3 3.94 78 12.5
PG24-370-24V211K 44.0 7.26 35 35.0
PG24-370-24V266K 36.6 8.74 29 35.0
PG24-370-24V334K 29.1 10.97 23 35.0
PG24-370-24V462K 21.1 15.18 17 35.0

Dimensions and configurations of PG24-BL2430 mini bldc planetary gear motor for reference:

PG24-BL2430 planetary gearbox dc electric motor


Download PG24-BL2430 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
