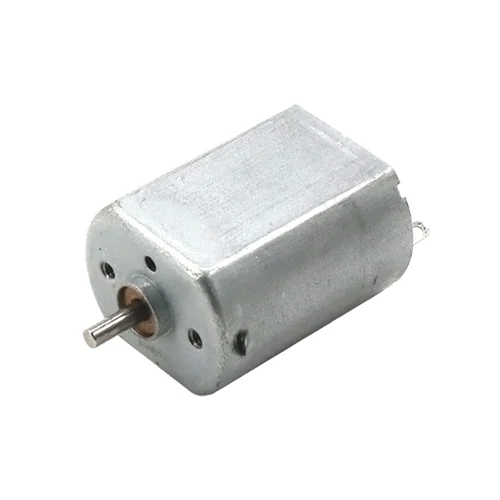

|- Model Number: FK-130SH, FK-130RH
|- Shell Stator Size : Φ20.4* L 25.1 mm(Φ 0.803 inch * 0.988 inch)
|- Shaft : Φ2.0mm(0.0787 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 10W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 24gf·cm(1.17 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: FK-130SH, FK-130RH
|- Shell Stator Size : Φ20.4* L 25.1 mm(Φ 0.803 inch * 0.988 inch)
|- Shaft : Φ2.0mm(0.0787 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 10W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 24gf-cm(1.17 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||
| range | rated | speed | current | speed | current | torque | p.out | eff. | torque | current | |
| v | r/min | a | r/min | a | gf-cm | w | % | gf-cm | a | ||
| FK-130RH-09490 | 6~18 | 12 | 9,000 | 0.034 | 6,990 | 0.12 | 8.9 | 0.64 | 68.7 | 40 | 0.41 |
| FK-130RH-15210 | 4.5~6 | 4.8 | 8,300 | 0.075 | 6,540 | 0.28 | 9 | 0.60 | 45.0 | 43 | 1.03 |
| FK-130SH-09450 | 6~24 | 12 | 7,200 | 0.03 | 5,680 | 0.11 | 11.4 | 0.66 | 50.4 | 54 | 0.42 |
| FK-130SH-16180 | 4~12 | 12 | 18,000 | 0.13 | 14,900 | 0.62 | 24.1 | 3.69 | 69.4 | 140 | 3 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
