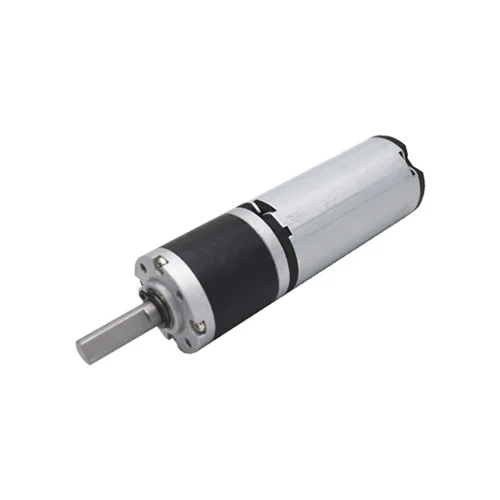

|- Model: PG24-290;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 20 Kgf-cm ;
|- Size : Φ24* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
|- Model: PG24-290;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 20 Kgf-cm ;
|- Size : Φ24* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

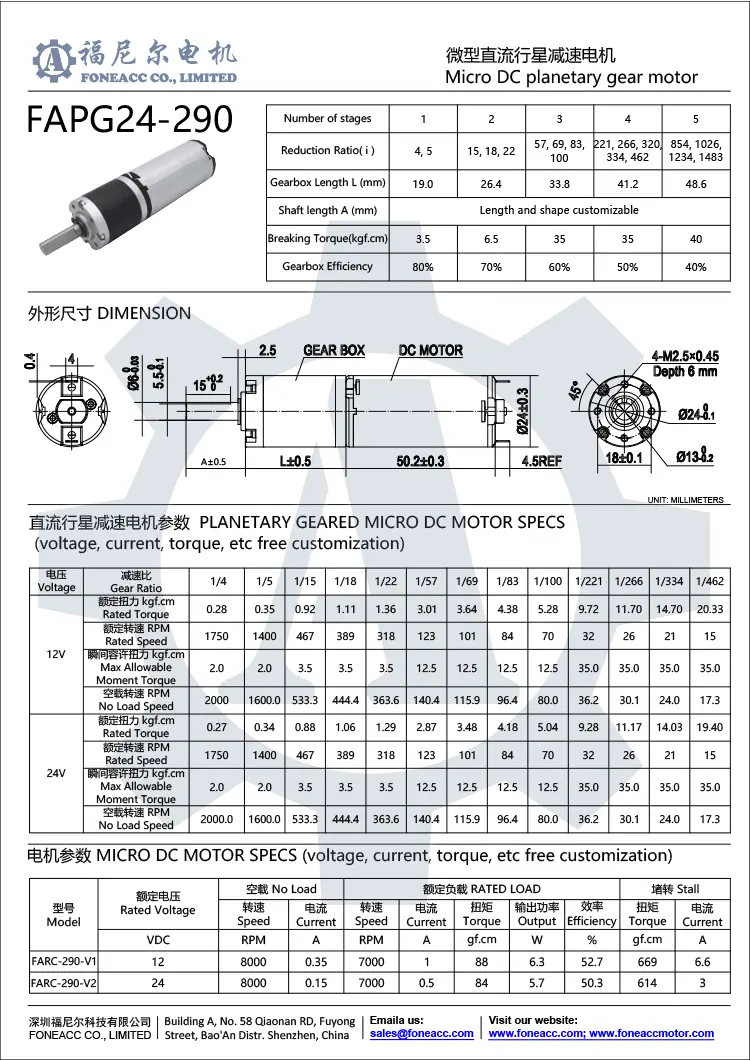

| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG24-290-12V4K | 2000 | 0.28 | 1750 | 2 |
| PG24-290-12V5K | 1600 | 0.35 | 1400 | 2 |
| PG24-290-12V15K | 533.3 | 0.92 | 467 | 3.5 |
| PG24-290-12V18K | 444.4 | 1.11 | 389 | 3.5 |
| PG24-290-12V22K | 363.6 | 1.36 | 318 | 3.5 |
| PG24-290-12V57K | 140.4 | 3.01 | 123 | 12.5 |
| PG24-290-12V69K | 115.9 | 3.64 | 101 | 12.5 |
| PG24-290-12V83K | 96.4 | 4.38 | 84 | 12.5 |
| PG24-290-12V100K | 80 | 5.28 | 70 | 12.5 |
| PG24-290-12V211K | 36.2 | 9.72 | 32 | 35 |
| PG24-290-12V266K | 30.1 | 11.7 | 26 | 35 |
| PG24-290-12V334K | 24 | 14.7 | 21 | 35 |
| PG24-290-12V462K | 17.3 | 20.33 | 15 | 35 |
| PG24-290-24V4K | 2000 | 0.27 | 1750 | 2 |
| PG24-290-24V5K | 1600 | 0.34 | 1400 | 2 |
| PG24-290-24V15K | 533.3 | 0.88 | 467 | 3.5 |
| PG24-290-24V18K | 444.4 | 1.06 | 389 | 3.5 |
| PG24-290-24V22K | 363.6 | 1.29 | 318 | 3.5 |
| PG24-290-24V57K | 140.4 | 2.87 | 123 | 12.5 |
| PG24-290-24V69K | 115.9 | 3.48 | 101 | 12.5 |
| PG24-290-24V83K | 96.4 | 4.18 | 84 | 12.5 |
| PG24-290-24V100K | 80 | 5.04 | 70 | 12.5 |
| PG24-290-24V211K | 36.2 | 9.28 | 32 | 35 |
| PG24-290-24V266K | 30.1 | 11.17 | 26 | 35 |
| PG24-290-24V334K | 24 | 14.03 | 21 | 35 |
| PG24-290-24V462K | 17.3 | 19.4 | 15 | 35 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
