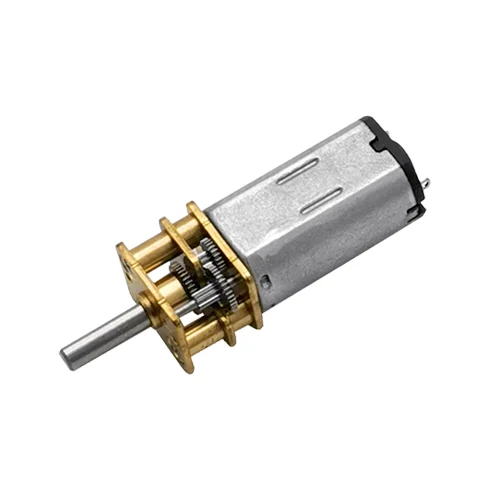

GM12-N30VA Micro DC Motor N30 dc motor 12mm DC Gear Motor

|- Model: GM12-N30VA P​ololu micro metal gearmotor equivalent;
|- Gearbox: metal spur gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 1.8kgf-cm ;
|- Size : Φ12mm* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: Magnetic encoder 3ppr available;
|- MOQ: 500 pcs;

GM12-N30VA micro dc motor N30 dc motor 12mm dc gear motor


Main features:

|- Model: GM12-N30VA;
|- Gearbox: metal spur gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 1.8kgf-cm ;
|- Size : Φ12mm* L TBD ;
|- Shaft : concentric driveshaft, Φ3mm D-cut 0.5mm, O, M3, M4, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: magnetic encoder 3ppr available;
|- MOQ: 500 pcs;


GM12-N30VA dc motor data examples:

Data table of gm12-n30 spur gearhead dc electric motor
Voltage number of stages 2 3 4 5 7
Gear Ratio 10 23 30 50 63 70 100 110 150 210 250 298 380 1000
6V kgf.cm
Rated Torque
0.02 0.05 0.07 0.10 0.13 0.14 0.21 0.21 0.28 0.39 0.47 0.56 0.71 1.55
RPM
Rated Speed
1060 461 353 212 168 151 106 96 71 50 42 36 28 11
kgf.cm
Max Allowable
Moment Torque
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
RPM
No Load Speed
1250 543 417 250 198 179 125 114 83 60 50 42 33 13
12V kgf.cm
Rated Torque
0.02 0.05 0.07 0.10 0.13 0.14 0.21 0.21 0.28 0.39 0.47 0.56 0.71 1.55
RPM
Rated Speed
1040 452 347 208 165 149 104 95 69 50 42 35 27 10
kgf.cm
Max Allowable
Moment Torque
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
RPM
No Load Speed
1250.0 543.5 416.7 250.0 198.4 178.6 125.0 113.6 83.3 59.5 50.0 41.9 32.9 12.5

Single motor N30 dc electric motor specs

Model Rated Voltage No Load RATED LOAD Stall
Speed Current Speed Current Torque Output Efficiency Torque Current
VDC RPM A RPM A gf.cm W % gf.cm A
FF-N30-V1 6 12500 0.025 10600 0.098 3 0.326 55.5 20 0.5
FF-N30-V2 12 12500 0.012 10400 0.05 3 0.320 53.4 18 0.25

This micro dc gear motor GM12-N30VA is assembled by FF-N30VA and 12.0*10.0*9.0mm (12.0*12.0*9.0mm for the 1000:1 ratio) metal spur gearbox.

If you don't need so much torque, you can check our GM12-N20VA gear motor, which is assembled by FF-N20VA and 12.0*10.0*9.0mm (12.0*12.0*9.0mm for the 1000:1 ratio) metal spur gearbox.

*******************************************************

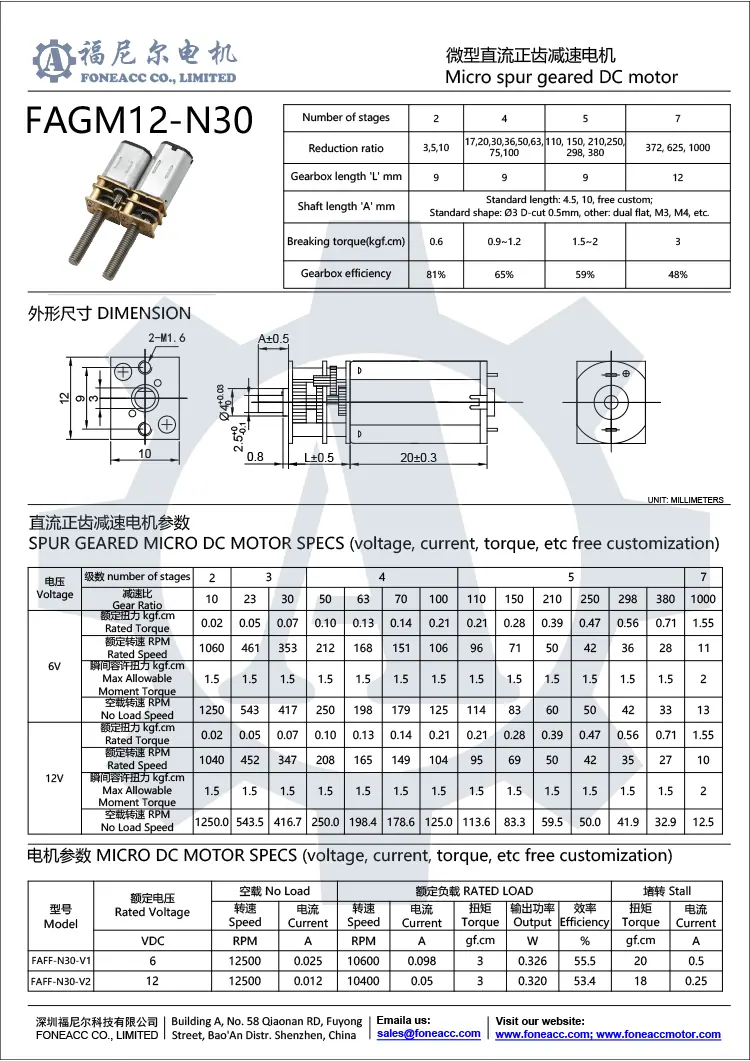

Dimensions and configurations of GM12-N30VA dc gear motor for reference:

gm12-n30 small spur geared brush dc electric motor datasheet


Download GM12-N30VA DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
