OD Ø 12 mm spur geared DC motor

  • GA12-N20-EN 12mm micro spur gear N20 dc motor with encoder

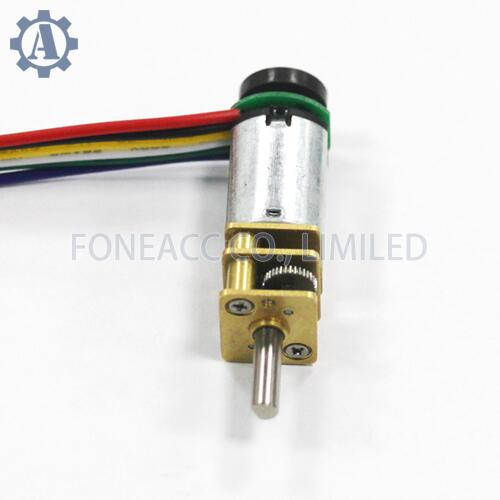

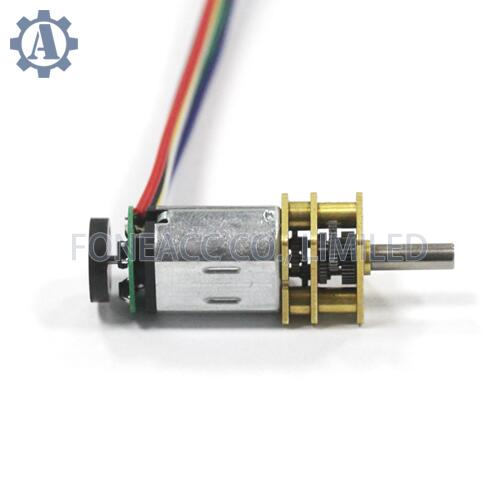

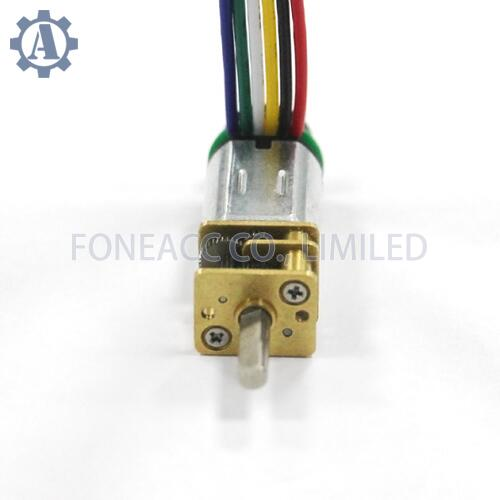

GA12-N20-EN 12mm micro spur gear N20 dc motor with encoder

GA12-N20-EN 12mm micro spur gear N20 dc motor with encoder

  • Model: GA12-N20-EN
  • MOTOR: N20 dc motor
  • Gear: metal spur gear
  • Diameter: 12mm
  • Product description:GA12-N20-EN 12mm micro spur gear dc motor with encoder from China high quality mini dc electric motor manufacturer Foneacc motor of competitive price.
  • INQUIRY

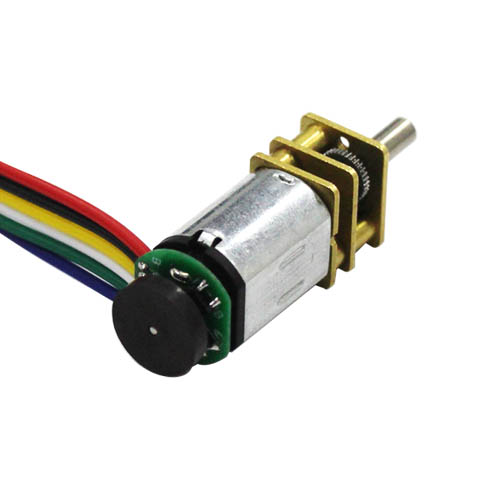

GA12-N20-EN 12mm N20 dc motor geared micromotor with magnetic encoder


Main features:

micro dc motor FF-N20VA N20 dc motor assembled with 12mm metal spur gearbox, GM12-N20 gear motor with magnetic encoder.
|- Model: GA12-N20-EN;
|- MOTOR: N20 DC Motor;
|- Gear: Metal spur gearbox;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V, 12V, 24V;
|- Rated Torque: 300gf.cm~3000gf.cm.;
|- Direction:CW,CCW (reversible).
|- Size : Ø12* L TBD;
|- Shaft : concentric driveshaft, Ø3mm D-cut 0.5mm M3 M4 custom;
|- Square gearbox size: 12.0*10.0*9.0mm[0.473*0.394*0.355 in], (12.0*10.0*12.0mm[0.473*0.394*0.473 in] for the 1000:1 ratio) metal spur gearbox,total N20 gear motor [N20 dc motor with gearhead assembly] size:24.0*10.0*12.0mm[0.945*0.394*0.473 in] ( 27.0*10.0*12.0mm[1.063*0.394*0.473 in]for the 1:1000 ratio).
|- Encoder: Magnetic encoder 3ppr;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet iron cored motor;
|- MOQ: 500 pcs;
|- Typical applications: Automatic door-lock,projector,hairdressing equipment, robotics, hobby toy, RC car toy, share bike lock, smart lock, intelligent apparatus, etc.


GA12-N20-EN dc geared motor data examples:

Gearbox Data:

Number of stages

2

4

5

7

Reduction ratio

3,5,10

17,20,30,36

50,63,75,100

110,150,210

250,298,380

372,625,1000

Gearbox length “L”mm

9

9

9

12

Breaking torque(kgf.cm)

0.6

0.9

1.2

2

Gearbox efficiency

81%

65%

59%

48%

The Ø12 mm spur geared dc electric motor with gearbox data(For reference only, not corresponding data):

Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
GA12-N20-EN-S1 3 0.07 110.7 0.27 87.3 0.28 0.25 1.30 1.01
GA12-N20-EN-S2 3 0.03 10.7 0.15 7.30 1.20 0.10 3.90 0.33
GA12-N20-EN-S3 5 0.04 135.5 0.13 104.1 0.17 0.19 0.75 0.44
GA12-N20-EN-S4 5 0.04 61.5 0.15 47.3 0.50 0.24 2.00 0.53
GA12-N20-EN-S5 5 0.03 48.8 0.12 38.6 0.50 0.20 2.40 0.46

The Ø12 mm single small dc electric motor without gearbox data(For reference only, not corresponding data):

Motor model

Rated

Volt.

No load

At Max Eff Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

FF-N20VA-S1

3

≤50

10000

≤185

8000

2

0.2

≥8

≥350

FF-N20VA-S2

3

≤80

15000

≤280

12400

3

0.4

≥12

≥520

FF-N20VA-S3

3

≤110

20000

≤370

15500

4

0.6

≥16

≥700

FF-N20VA-S4

6

≤25

10000

≤95

8000

2

0.2

≥8

≥160

FF-N20VA-S5

6

≤40

15000

≤145

12400

3

0.4

≥12

≥250

FF-N20VA-S6

6

≤60

20000

≤190

15500

4

0.6

≥16

≥320

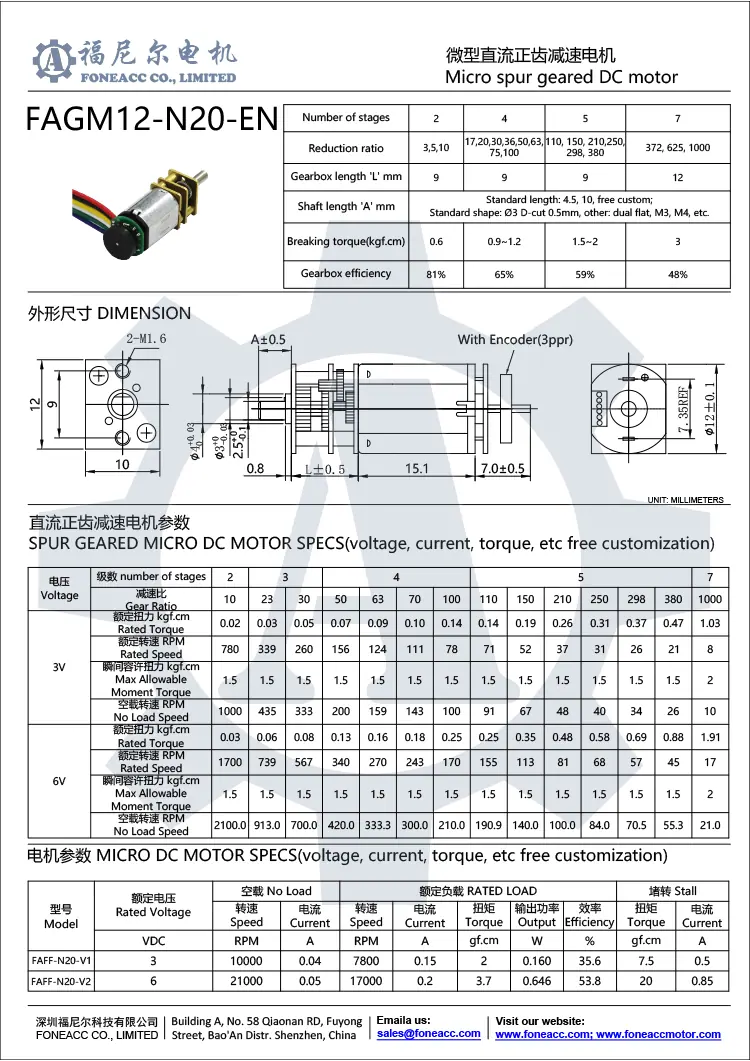

Dimensions and configurations of GA12-N20-EN dc gear motor for reference:

<a href=/product/GA12-N20-EN.html target='_blank'>GM12-N20-EN</a> N20 dc gear motor N20 dc electric motor with magnetic encoder datasheet


Download GA12-N20-EN DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage, speed, as well as shaft length and shape...

Welcome OEM or ODMprojects

--------------

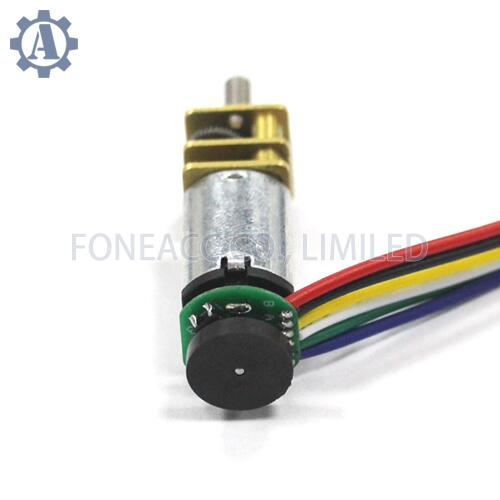

Magnetic encoder specs:

magnetic encoder.webp

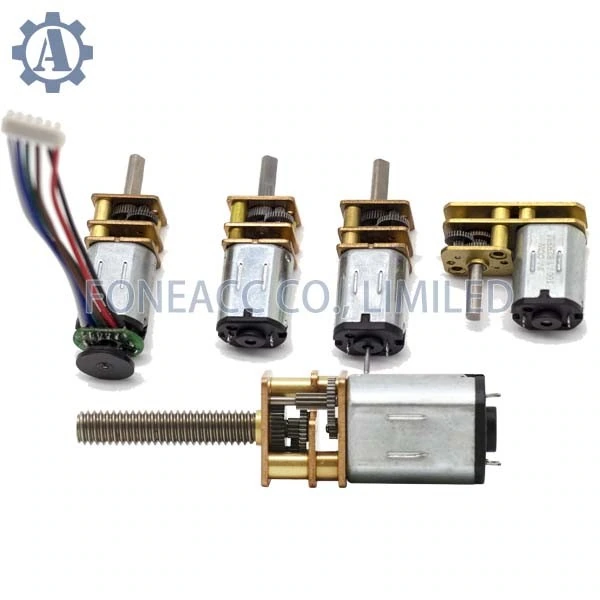

Some examples of small gear motors with magnetic encoder, all of our brush dc gear motors are compatible with encoders.

small gear motors taht with magnetic encoder.webp
