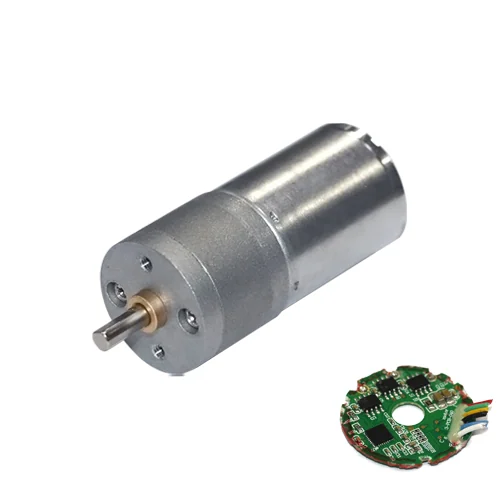

GM25-BL2430 25mm micro dc gear motor | Foneacc Motor

|- Model: GM25-BL2430, BL2430I micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 6v,9v,12v,24v;
|- Rated Torque: Max. 6Kgf-cm ;
|- Size : Φ25 * L TBD mm ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;
|- Control: Built-in driver board with hall sensors;
|- Commutation: Brushless, PWM drive;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

GM25-BL2430 25mm micro dc gear motor


Main features:

|- Model: GM25-BL2430, BL2430I micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 6v,9v,12v,24v;
|- Rated Torque: Max. 6Kgf-cm ;
|- Size : Φ25 * L TBD mm ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;
|- Control: Built-in driver board with hall sensors;
|- Commutation: Brushless, PWM drive;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
Our products is widelyUsed for treatment apparatus, automatic window curtain, safe box, robot, optic equipment, electronic game machine, coin refund devices, etc.


GM25-BL2430 dc geared motor data examples:

Gear box specs:

Number of stages 3 4 5 6 7 8
Gear ratio 4.4 16 35.5 59 130 286
10 21 46.9 78 172 378
      103 226 500
Length of gearbox L(mm) 19 19 21 23 25 27

Gear Motor specs:

MODEL Rated
Voltage
NO LOAD RATED LOAD STALL
Speed Current Speed Current Torque P.out Torque Current
V rpm A rpm A Nm W Nm A
GM25-BL2430I-10 12 565 0.1 450 0.3 0.034 1.65 0.15 1
GM25-BL2430I-21 12 560 0.2 450 1 0.098 4.7 0.49 4
GM25-BL2430I-35.5 12 250 0.08 210 1.2 0.09 2.2 0.58 2.9
GM25-BL2430I-46.9 6 130 0.08 105 0.34 0.074 0.81 0.39 1.46

Dimensions and configurations of GM25-BL2430 dc gear motor for reference:

gm25-bl2430 small spur geared brush dc electric motor datasheet

5 wires built-in driver interface instruction.webp


Download GM25-BL2430 DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
