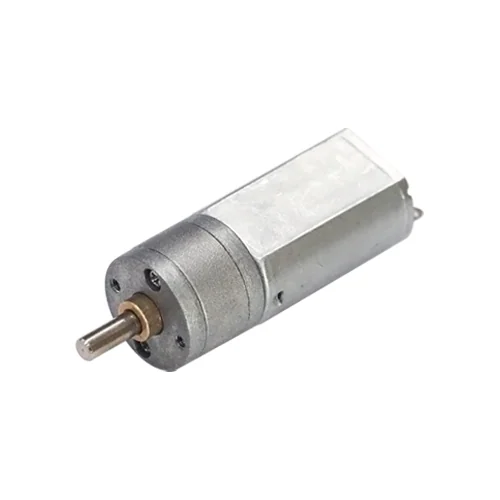

GM20-180 FF180 20mm DC Spur Gear Motor | Foneacc Motor

|- Model: GM20-180 micro metal gearmotor;
|- Gearbox: 20 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 3.5Kgf-cm ;
|- Size : Φ20 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, M4, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

GM20-180 FF-180 20mm DC Spur Gear Motor


Main features:

|- Model: GM20-180 micro metal gearmotor;
|- Gearbox: 20 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 3.5Kgf-cm ;
|- Size : Φ20 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, M4, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs


GM20-180 dc geared motor data examples:

Gear Box Data:

Gearbox Length (mm) Stages Reduction Ratio Rated Torque Breaking Torque
kg.cm
14.7 3 8.2/1 12/1       0.6 1.5
16.2 4 20.4/1 25/1 28/1 31/1 35/1 1 2.5
17.7 5 50/1 67/1 70/1 75/1 87/1 1.5 3
19.2 6 128/1 173/1 187/1 217/1   2 5
20.7 7 266/1 319/1 438/1 467/1 542/1 2.5 6
22.2 8 798/1 898/1 1085/1 1220/1   2.5 6

Spur Geared Motor Data:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
Range Rated Speed Current Speed Current Torque P.out Torque Current
V rpm A rpm A kg.cm W kg.cm A
GM20-180-31K06250 3.0~7.0 6 250 0.1 197 0.38 0.5 1.01 2.4 1.4
GM20-180-67K06255 3.0~7.0 6 255 0.28 216 1.2 1 2.22 6.7 6.36
GM20-180-217K0342 2.0~4.0 3 42 0.15 35.3 0.3 2.3 0.83 14.8 4.8
GM20-180-542K1208 5.0~13.0 12 8 0.03 6.5 0.14 3.5 0.23 6.4 0.32
GM20-180-266K1216 5.0~13.0 12 16 0.03 12.9 0.15 2 0.26 10.4 0.38

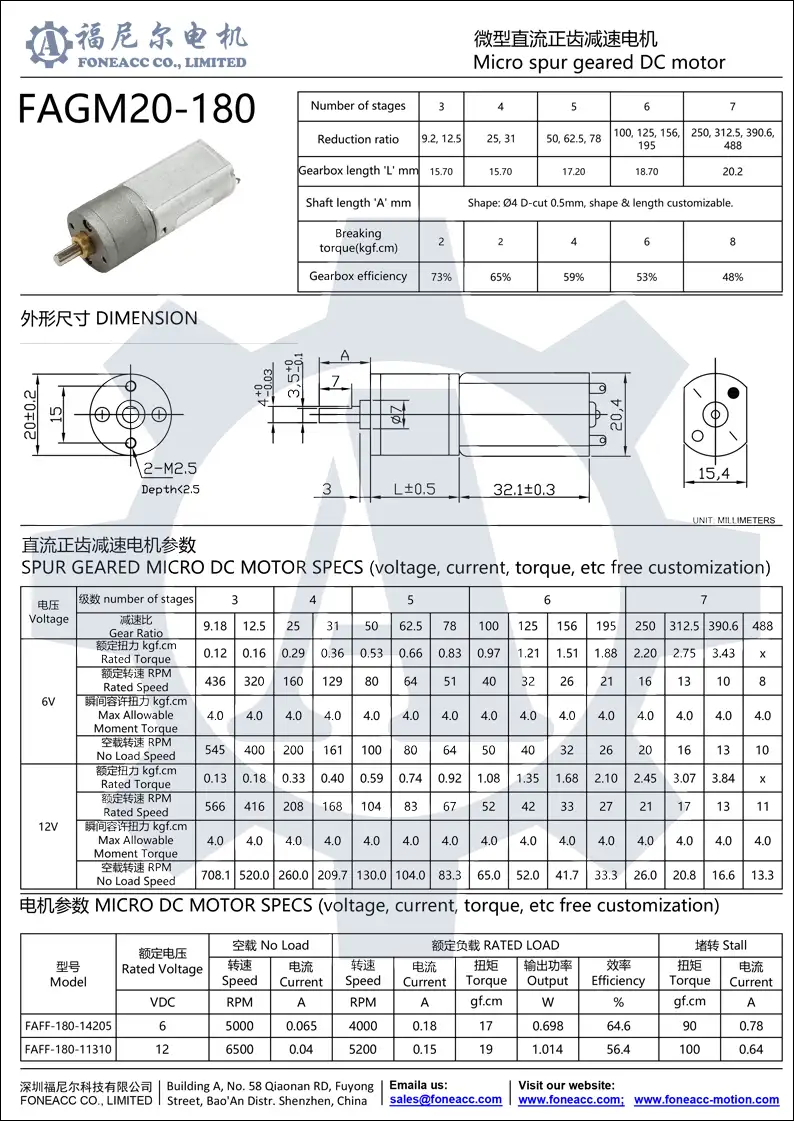

Dimensions and configurations of GM20-180 dc gear motor for reference:

gm20-180 small spur geared brush dc electric motor datasheet


Download GM20-180 DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
