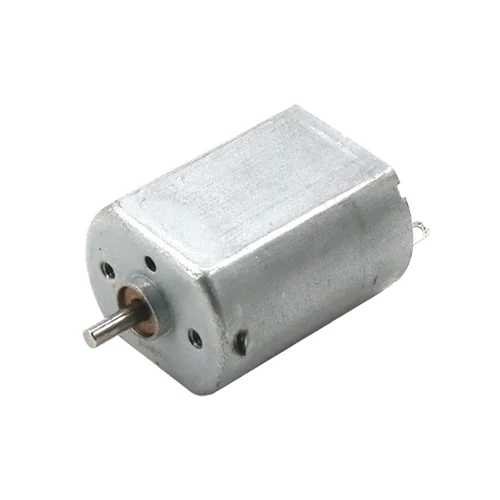

|- Model Number: FF-130SH, FF-130RH
|- Shell Stator Size : Φ20.4* L 25.1 mm(Φ 0.803 inch * 0.988 inch)
|- Shaft : Φ2.0mm(0.0787 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 4W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 12gf·cm(1.17 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: FF-130SH, FF-130RH
|- Shell Stator Size : Φ20.4* L 25.1 mm(Φ 0.803 inch * 0.988 inch)
|- Shaft : Φ2.0mm(0.0787 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 4W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 12gf-cm(1.17 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
| V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
| FF-130RH-15210 | 1~4 | 3 | 5,400 | 0.045 | 4,280 | 0.17 | 5.8 | 0.25 | 69.4 | 28 | 0.65 |
| FF-130SH-11340 | 3~12 | 7.5 | 6,100 | 0.033 | 4,920 | 0.14 | 10.9 | 0.55 | 75.6 | 56 | 0.57 |
| FF-130SH-14230 | 2.5~10 | 3 | 3,600 | 0.037 | 2,850 | 0.14 | 7.5 | 0.22 | 67.0 | 36 | 0.53 |
| FK-130RH-09490 | 6~18 | 12 | 9,000 | 0.034 | 6,990 | 0.12 | 8.9 | 0.64 | 68.7 | 40 | 0.41 |
| FK-130RH-15210 | 4.5~6 | 4.8 | 8,300 | 0.075 | 6,540 | 0.28 | 9 | 0.60 | 45.0 | 43 | 1.03 |
| FK-130SH-09450 | 6~24 | 12 | 7,200 | 0.03 | 5,680 | 0.11 | 11.4 | 0.66 | 50.4 | 54 | 0.42 |
| FK-130SH-16180 | 4~12 | 12 | 18,000 | 0.13 | 14,900 | 0.62 | 24.1 | 3.69 | 69.4 | 140 | 3 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
