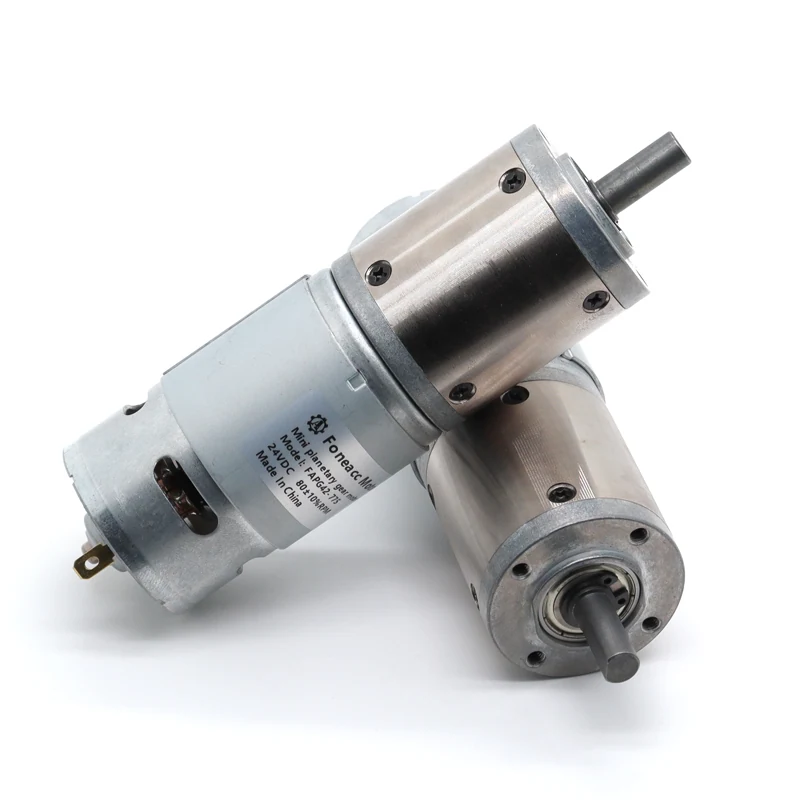

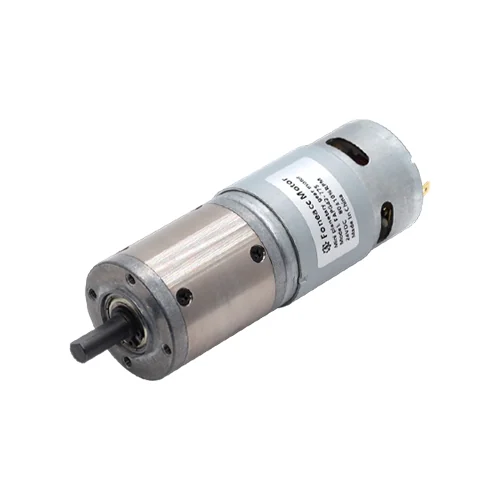

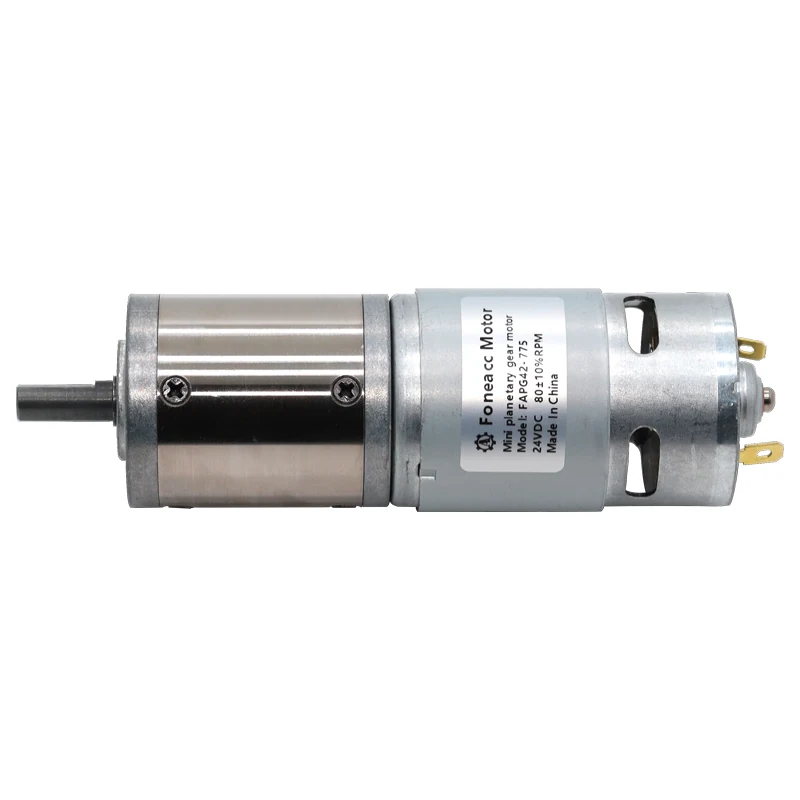

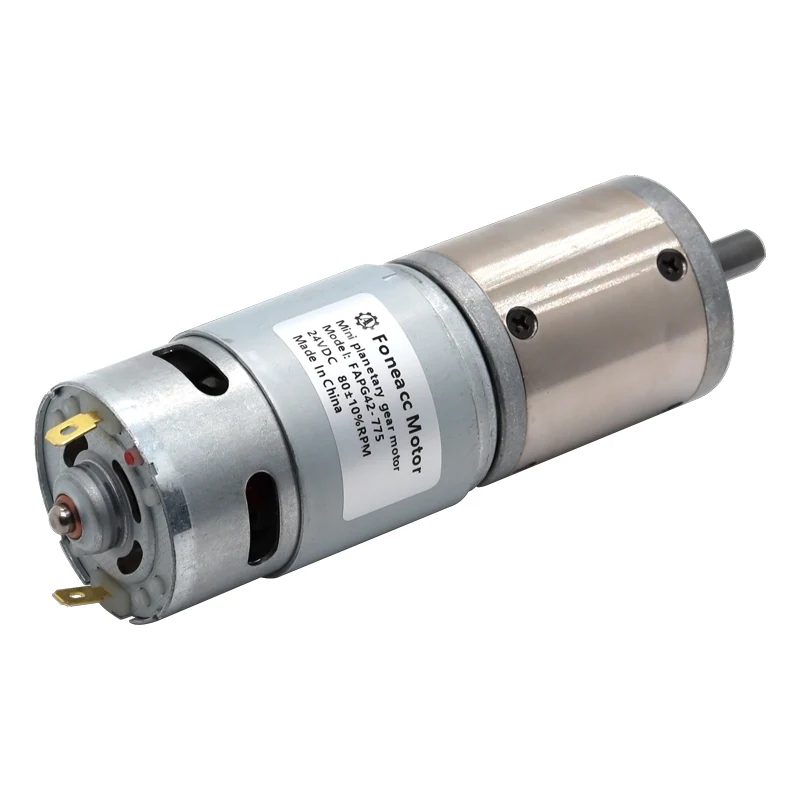

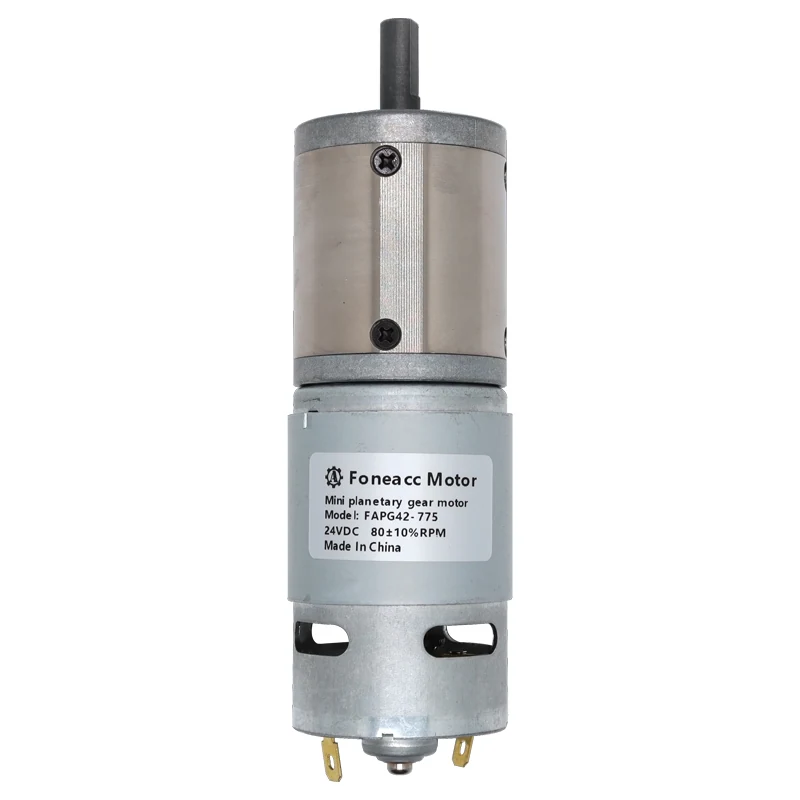

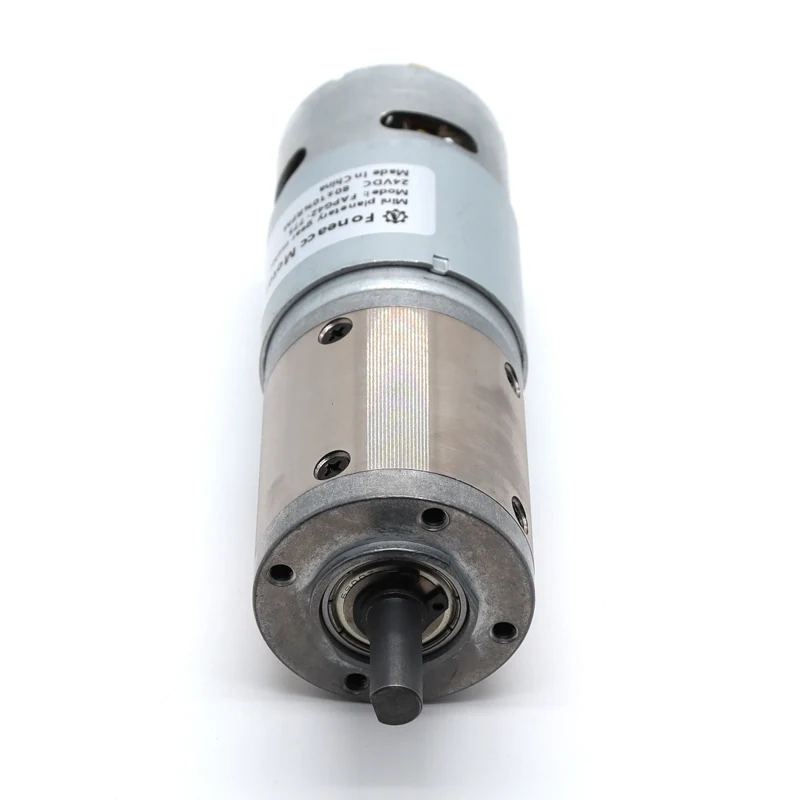

PG42-775 42mm mini epicyclic(planetary) gear motor

|- Model: PG42-775; RS-775 geared DC motor
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 200 Kgf-cm ;
|- Size : Φ42* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/Optical encoder.
|- MOQ: 500 pcs;

PG42-775 42mm mini epicyclic(planetary) gear motor


Main features:

|- Model: PG42-775; RS-775 DC motor with gearbox reducer.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 200 Kgf-cm ;
|- Size : Φ42 mm* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder:  Magnetic/optical encoder.
|- MOQ: 500 pcs;


PG42-775 mini dc geared motor data examples:

Model No Load Rated Load
Breaking
Torque
Speed Torque Speed
r/min kgf-cm r/min kgf-cm
PG42-775-12V4K 1500 2.05 1300 35
PG42-775-12V6K 1000 3.07 867 35
PG42-775-12V17K 352.9 7.62 306 95
PG42-775-12V24K 250 10.75 217 95
PG42-775-12V36K 166.7 16.13 144 95
PG42-775-12V75K 80 28.8 69 180
PG42-775-12V104K 57.7 39.94 50 180
PG42-775-12V144K 41.7 55.3 36 180
PG42-775-12V216K 27.8 69.12 24 360
PG42-775-12V325K 18.5 104 16 360
PG42-775-12V451K 13.3 144.32 12 360
PG42-775-12V624K 9.6 199.68 8 360
PG42-775-12V864K 6.9 276.48 6 360
PG42-775-24V4K 1500 2.52 1300 35
PG42-775-24V6K 1000 3.78 867 35
PG42-775-24V17K 352.9 9.38 306 95
PG42-775-24V24K 250 13.24 217 95
PG42-775-24V36K 166.7 19.86 144 95
PG42-775-24V75K 80 35.46 69 180
PG42-775-24V104K 57.7 49.17 50 180
PG42-775-24V144K 41.7 68.08 36 180
PG42-775-24V216K 27.8 85.1 24 360
PG42-775-24V325K 18.5 128.05 16 360
PG42-775-24V451K 13.3 177.69 12 360
PG42-775-24V624K 9.6 245.86 8 360
PG42-775-24V864K 6.9 340.42 6 360

Dimensions and configurations of PG42-775 mini dc planetary gear motor for reference:

PG42-775 planetary gearbox dc electric motor

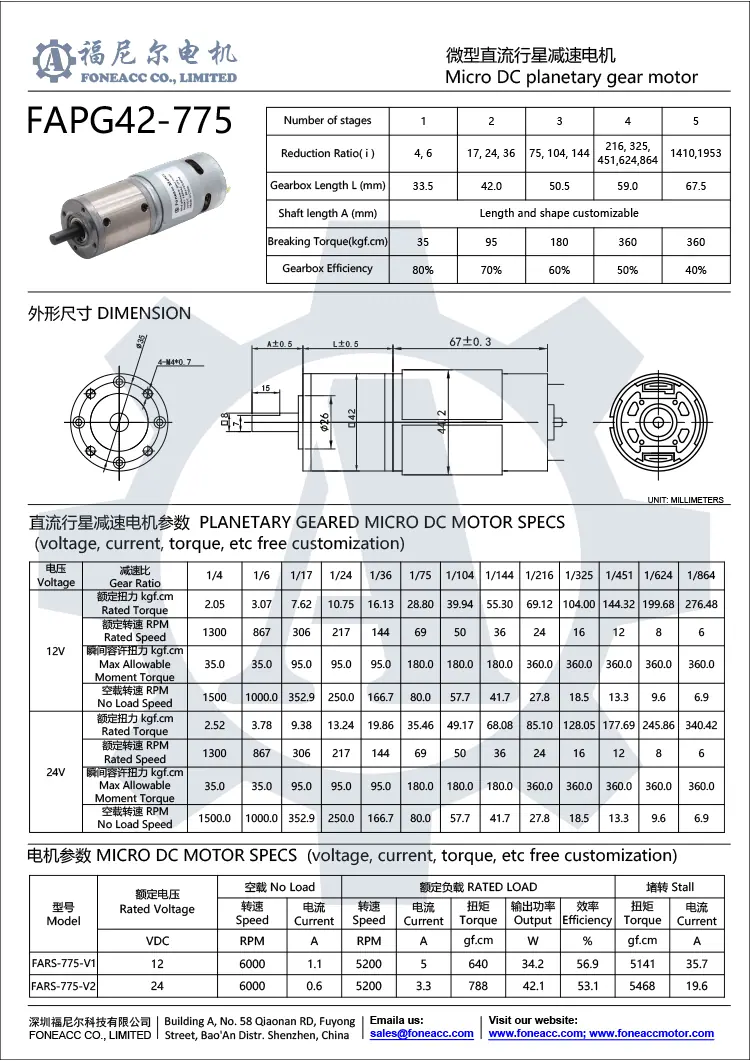

Download PG42-775 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
