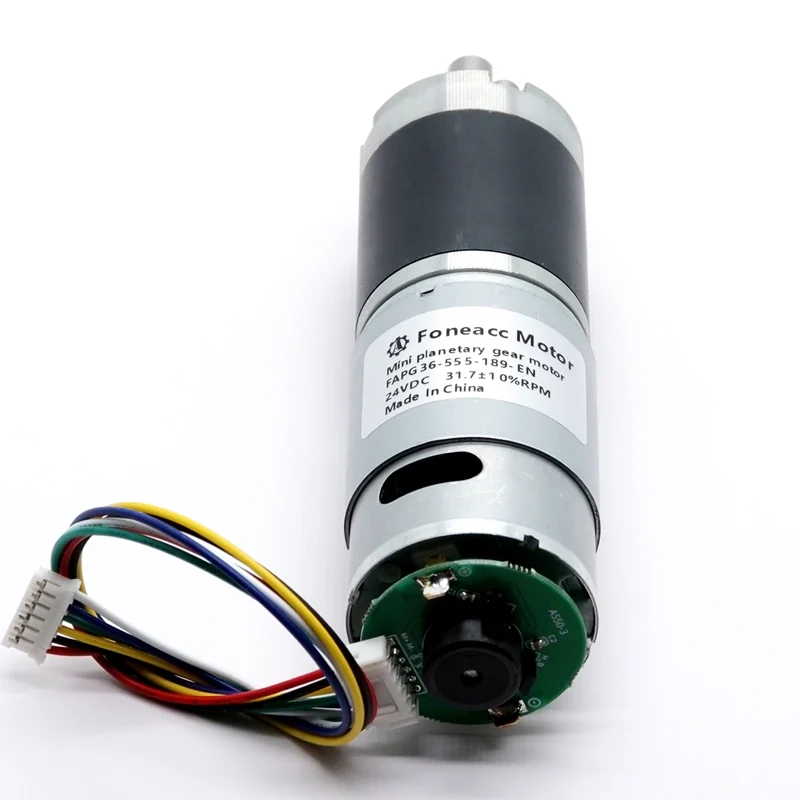

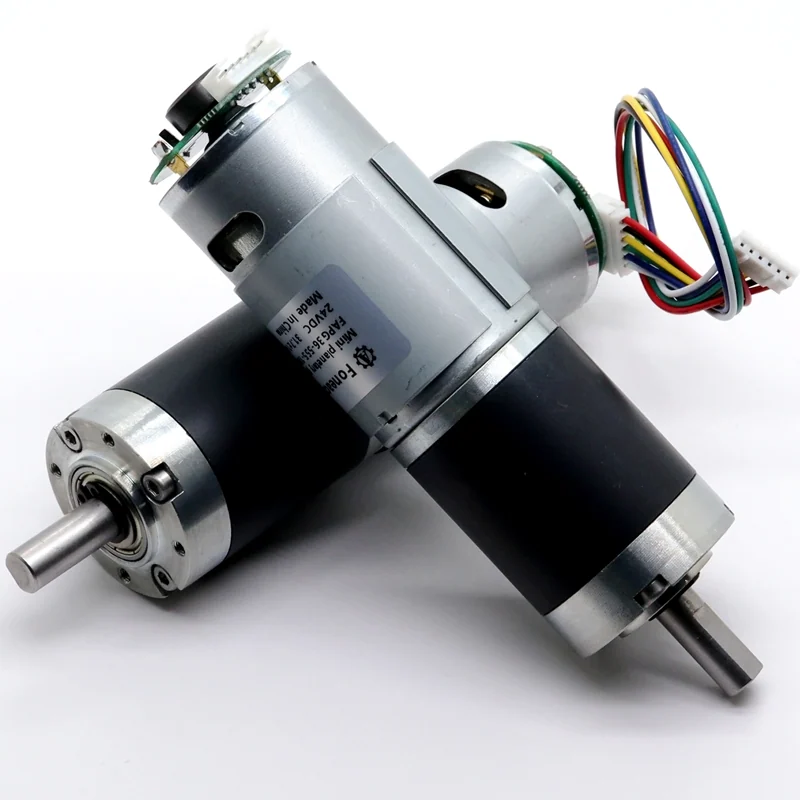

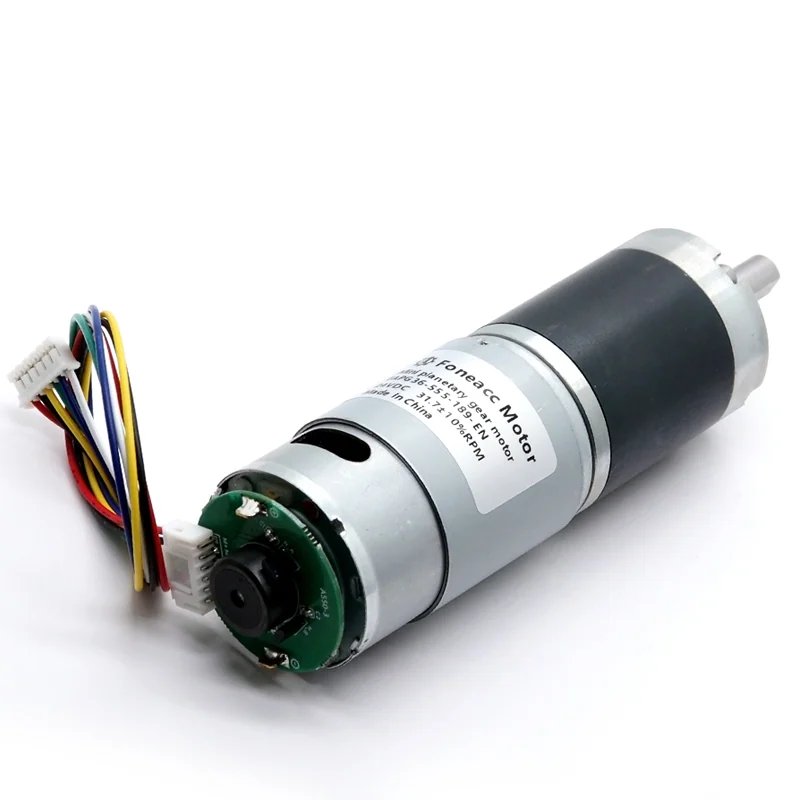

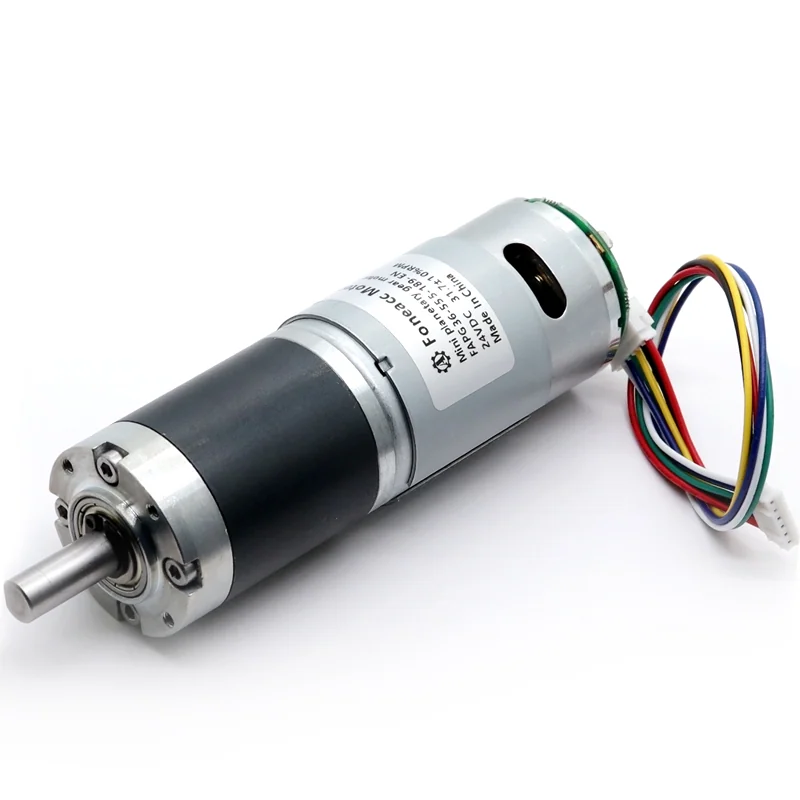

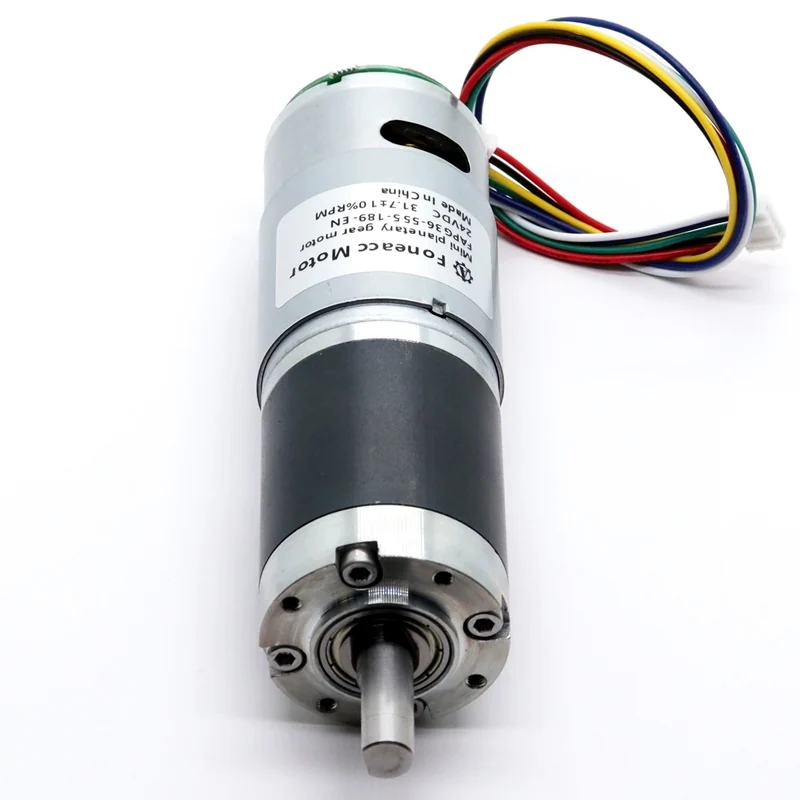

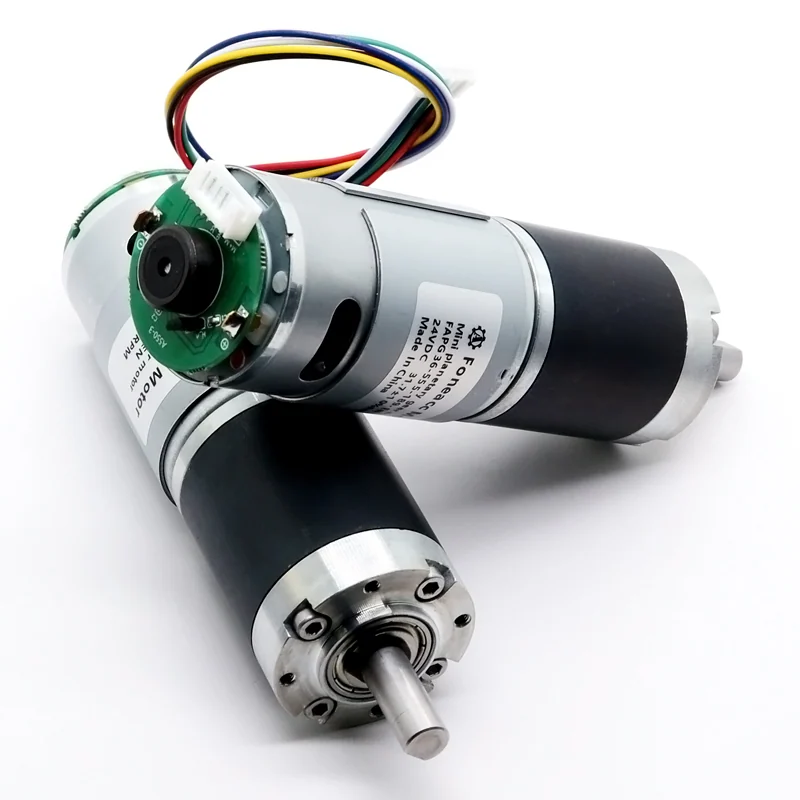

PG36-555-EN 36mm mini epicyclic(planetary) gear motor with magnetic encoder

|- Model: PG36-555-EN;
|- Gearbox: metal planetary gearhead;
|- Gear ratio: 3.7-3736;
|- Speed:10-1500 RPM;
|- Voltage: 3V, 5V, 9V,12V, 18V, 24V DC;
|- Output torque: from 5kg.cm~150kg.cm;
|- Dimension: Φ36mm * TBD;
|- Shaft : Φ8mm D shape/O shaft/custom shaft;
|- Commutation: Carbon Brush/Graphite Brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic Encoder 12 PPR;
|- MOQ: 500 pcs;
|- Planetary gear structure with concentric shaft driveshaft;
|- Other matched single dc electric motor: RS- 550/RS- 555/BL3650/BL3657

PG36-555-EN 36mm mini epicyclic(planetary) gear motor with magnetic encoder


Main features:

|- Model: PG36-555-EN; RS-555 dc motor with planetary gearbox reducer.
|- Gearbox: metal planetary gearhead;
|- Gear ratio: 3.7-3736;
|- Speed:10-1500 RPM;
|- Voltage: 3V, 5V, 9V,12V, 18V, 24V DC;
|- Output torque: from 5kg.cm~150kg.cm;
|- Dimension: Φ36mm * TBD;
|- Shaft : Φ8mm D shape/O shaft/custom shaft;
|- Commutation: Carbon Brush/Graphite Brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic Encoder 12 PPR;
|- MOQ: 500 pcs;
|- Planetary gear structure with concentric shaft driveshaft;
|- Other matched single dc electric motor: RS-550/RS-555/BL3650/BL3657
|- MOQ: 500 pcs;


PG36-555-EN mini dc geared motor data examples:

Model No Load Rated Load
Breaking
Torque
Speed Torque Speed
r/min kgf-cm r/min kgf-cm
PG36-555-EN-12V4K 1500 1.02 1250 15.5
PG36-555-EN-12V5K 1200 1.28 1000 15.5
PG36-555-EN-12V14K 428.6 3.14 357 50
PG36-555-EN-12V19K 315.8 4.26 263 50
PG36-555-EN-12V27K 222.2 6.05 185 50
PG36-555-EN-12V51K 117.6 9.79 98 150
PG36-555-EN-12V71K 84.5 13.63 70 150
PG36-555-EN-12V100K 60 19.2 50 150
PG36-555-EN-12V139K 43.2 26.69 36 150
PG36-555-EN-12V189K 31.7 30.24 26 150
PG36-555-EN-12V369K 16.3 59.04 14 150
PG36-555-EN-12V516K 11.6 82.56 10 150
PG36-555-EN-12V721K 8.3 115.36 7 150
PG36-555-EN-24V4K 1500 0.91 1250 15.5
PG36-555-EN-24V5K 1200 1.14 1000 15.5
PG36-555-EN-24V14K 428.6 2.79 357 50
PG36-555-EN-24V19K 315.8 3.79 263 50
PG36-555-EN-24V27K 222.2 5.39 185 50
PG36-555-EN-24V51K 117.6 8.72 98 150
PG36-555-EN-24V71K 84.5 12.14 70 150
PG36-555-EN-24V100K 60 17.1 50 150
PG36-555-EN-24V139K 43.2 23.77 36 150
PG36-555-EN-24V189K 31.7 26.93 26 150
PG36-555-EN-24V369K 16.3 52.58 14 150
PG36-555-EN-24V516K 11.6 73.53 10 150
PG36-555-EN-24V721K 8.3 102.74 7 150

Dimensions and configurations of PG36-555-EN mini dc planetary gear motor for reference:

PG36-555-EN planetary gearbox dc electric motor

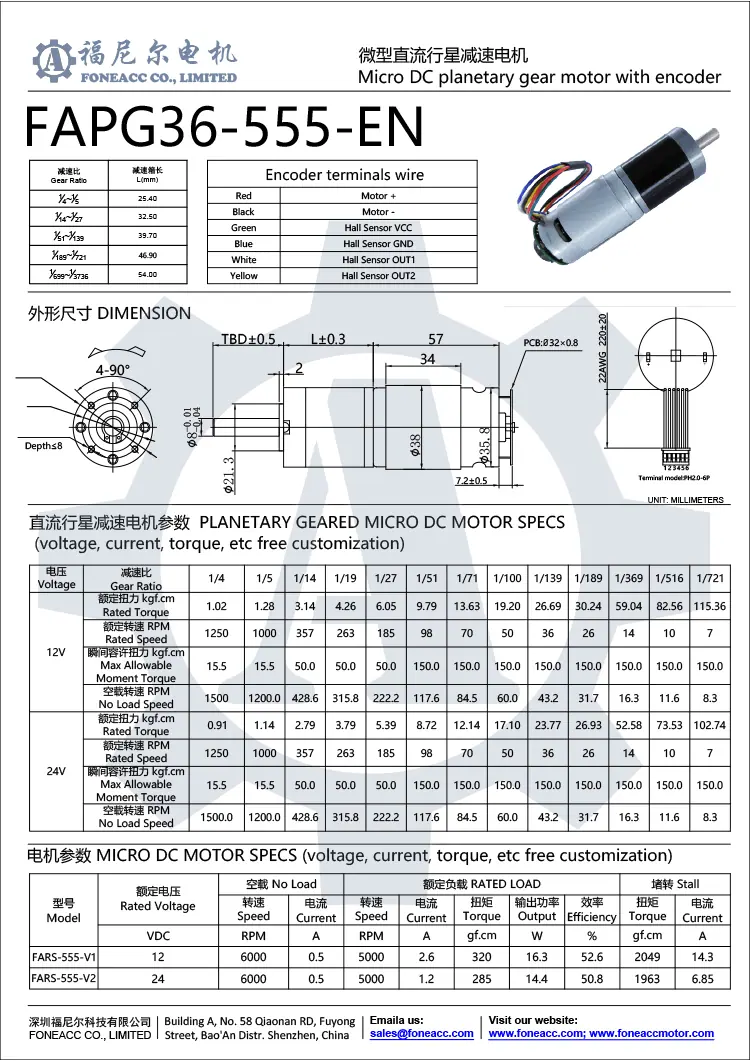

Download PG36-555-EN mini dc gearmotor with encoder datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

--------------

Magnetic encoder specs:

magnetic encoder.webp

Some examples of small gear motors with magnetic encoder, all of our brush dc gear motors are compatible with encoders.

small gear motors taht with magnetic encoder.webp
