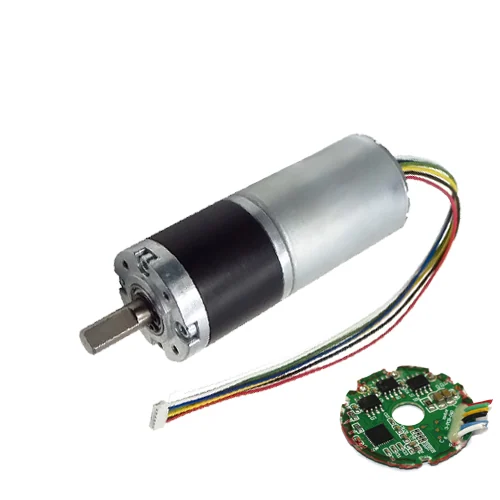

|- Model: PG36-BL3650;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 140Kgf-cm ;
|- Size : Φ36* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Brushless, PWM-driven;

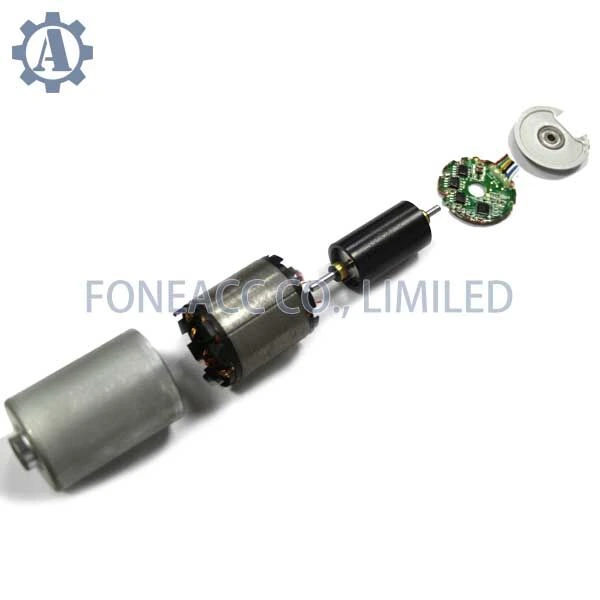

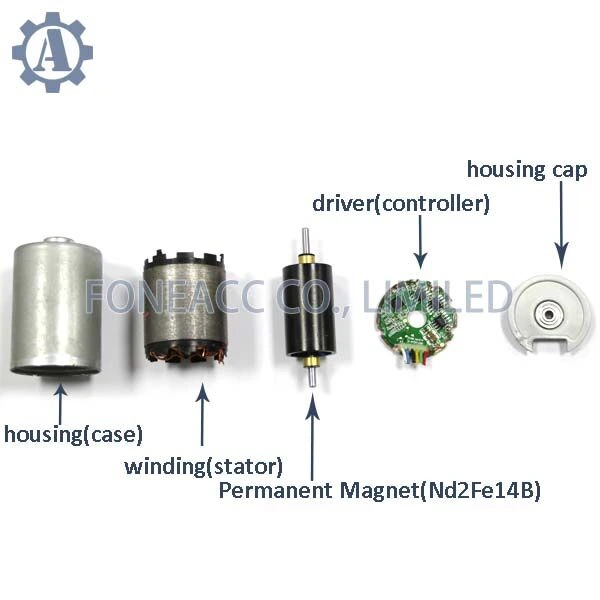

|- Construction: Permanent Magnet;

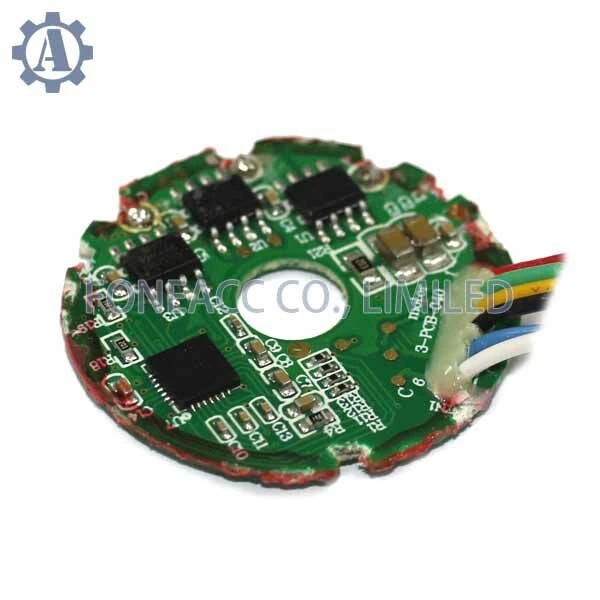

|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;
|- Model: PG36-BL3650; BL3650 BLDC motor with gearbox.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 140Kgf-cm ;
|- Size : Φ36* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

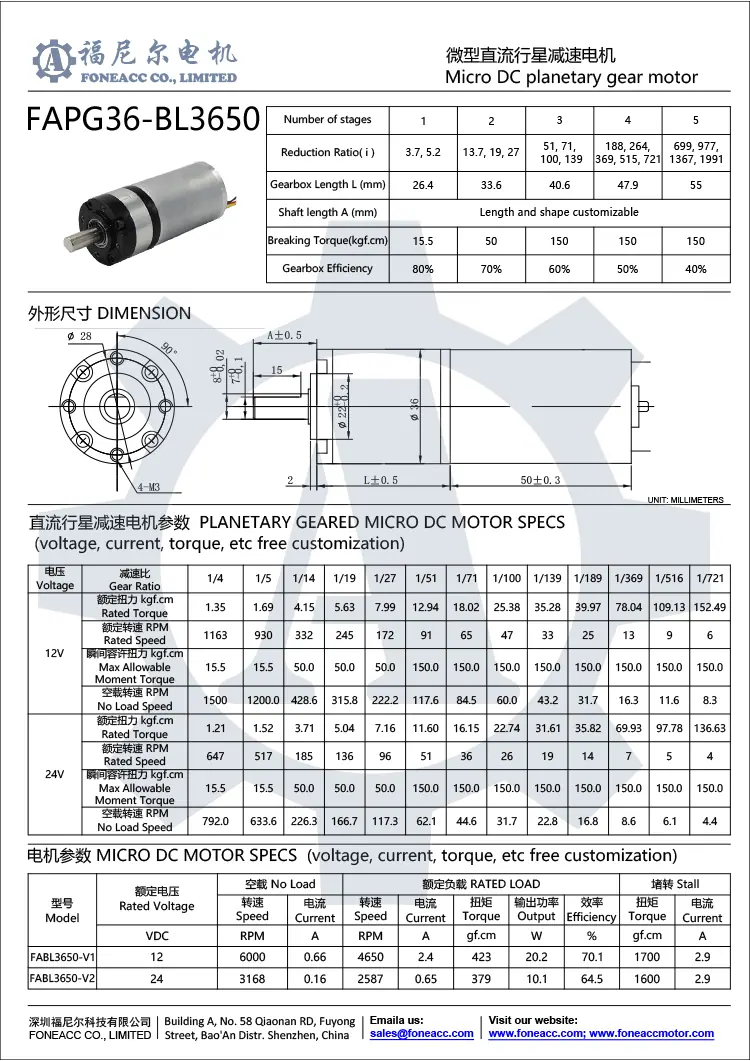

Model | No Load | Rated Load |
Breaking
Torque
|
|
Speed | Torque | Speed | ||
r/min | kgf-cm | r/min | kgf-cm | |
PG36-BL3650-12V4K | 1500 | 1.35 | 1163 | 15.5 |
PG36-BL3650-12V5K | 1200 | 1.69 | 930 | 15.5 |
PG36-BL3650-12V14K | 428.6 | 4.15 | 332 | 50 |
PG36-BL3650-12V19K | 315.8 | 5.63 | 245 | 50 |
PG36-BL3650-12V27K | 222.2 | 7.99 | 172 | 50 |
PG36-BL3650-12V51K | 117.6 | 12.94 | 91 | 150 |
PG36-BL3650-12V71K | 84.5 | 18.02 | 65 | 150 |
PG36-BL3650-12V100K | 60 | 25.38 | 47 | 150 |
PG36-BL3650-12V139K | 43.2 | 35.28 | 33 | 150 |
PG36-BL3650-12V189K | 31.7 | 39.97 | 25 | 150 |
PG36-BL3650-12V369K | 16.3 | 78.04 | 13 | 150 |
PG36-BL3650-12V516K | 11.6 | 109.13 | 9 | 150 |
PG36-BL3650-12V721K | 8.3 | 152.49 | 6 | 150 |
PG36-BL3650-24V4K | 792 | 1.21 | 647 | 15.5 |
PG36-BL3650-24V5K | 633.6 | 1.52 | 517 | 15.5 |
PG36-BL3650-24V14K | 226.3 | 3.71 | 185 | 50 |
PG36-BL3650-24V19K | 166.7 | 5.04 | 136 | 50 |
PG36-BL3650-24V27K | 117.3 | 7.16 | 96 | 50 |
PG36-BL3650-24V51K | 62.1 | 11.6 | 51 | 150 |
PG36-BL3650-24V71K | 44.6 | 16.15 | 36 | 150 |
PG36-BL3650-24V100K | 31.7 | 22.74 | 26 | 150 |
PG36-BL3650-24V139K | 22.8 | 31.61 | 19 | 150 |
PG36-BL3650-24V189K | 16.8 | 35.82 | 14 | 150 |
PG36-BL3650-24V369K | 8.6 | 69.93 | 7 | 150 |
PG36-BL3650-24V516K | 6.1 | 97.78 | 5 | 150 |
PG36-BL3650-24V721K | 4.4 | 136.63 | 4 | 150 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
