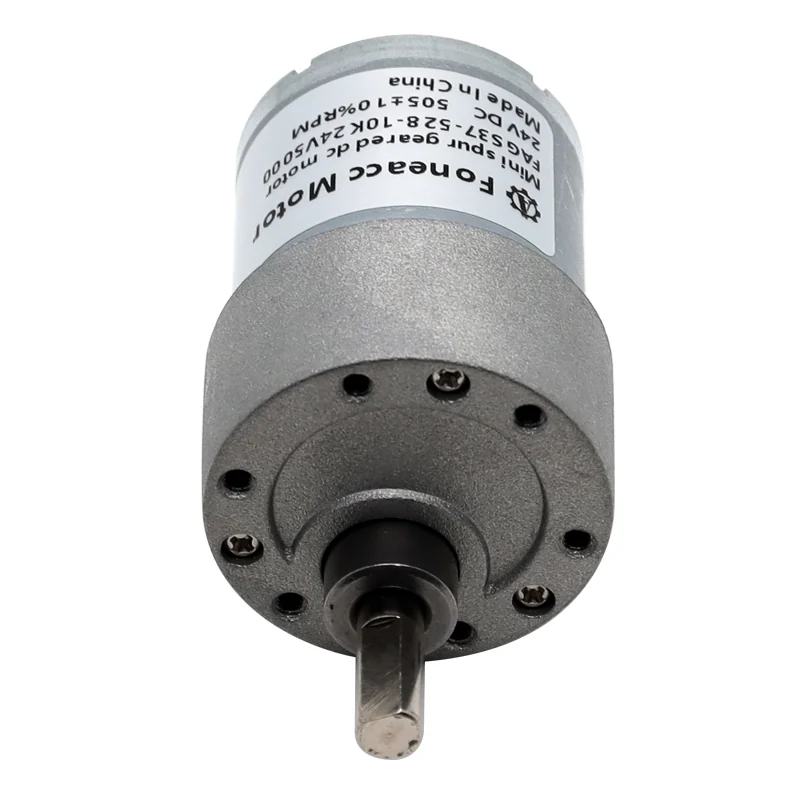

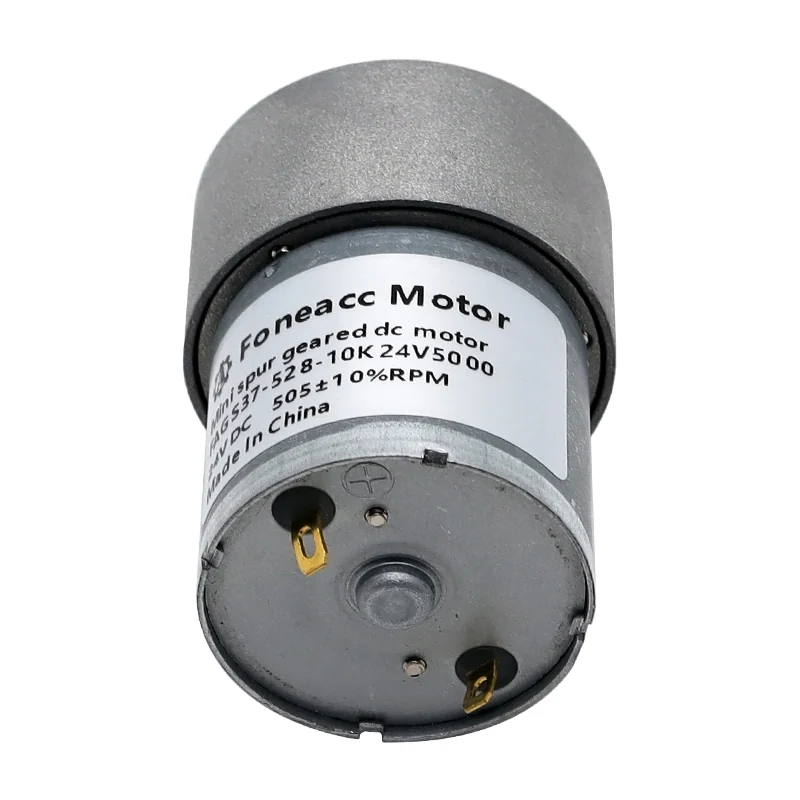

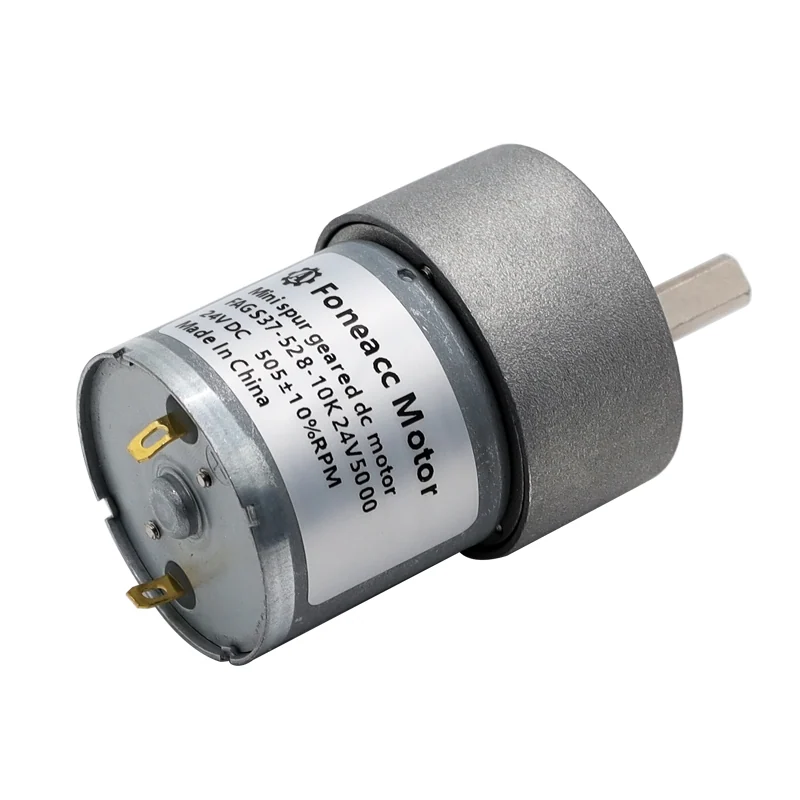

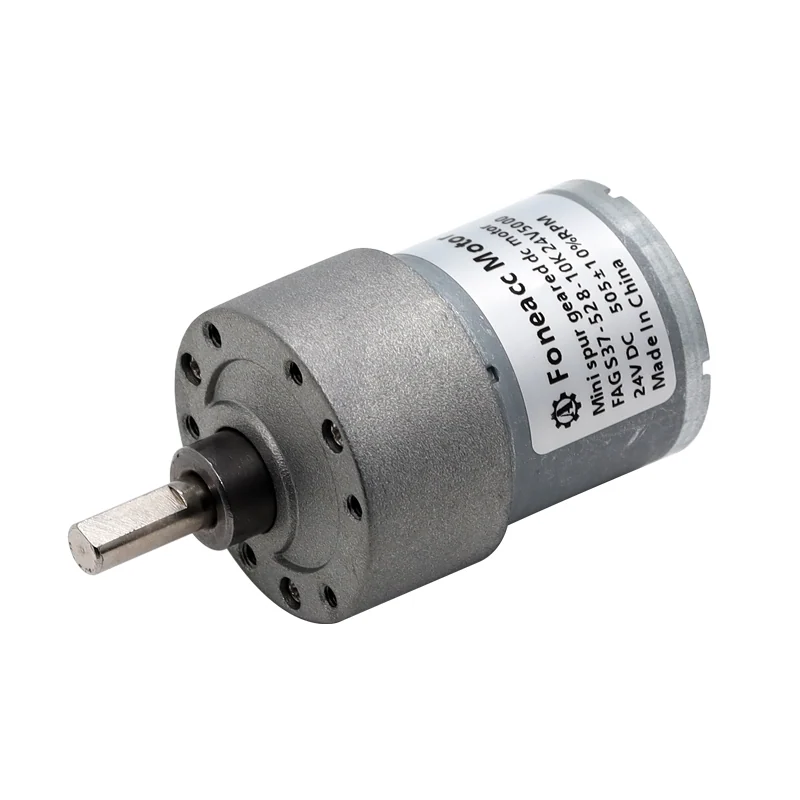

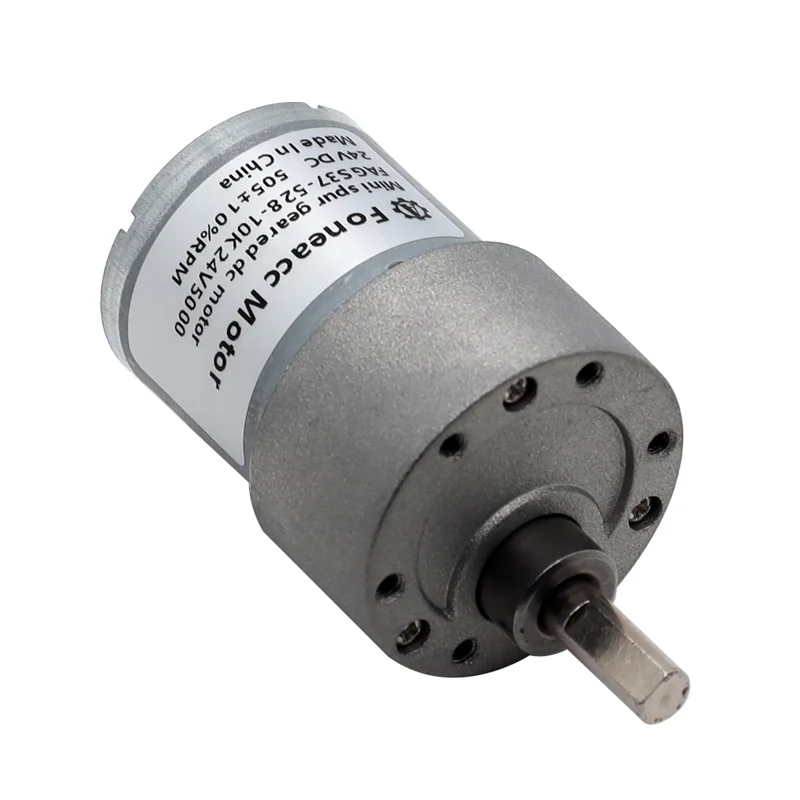

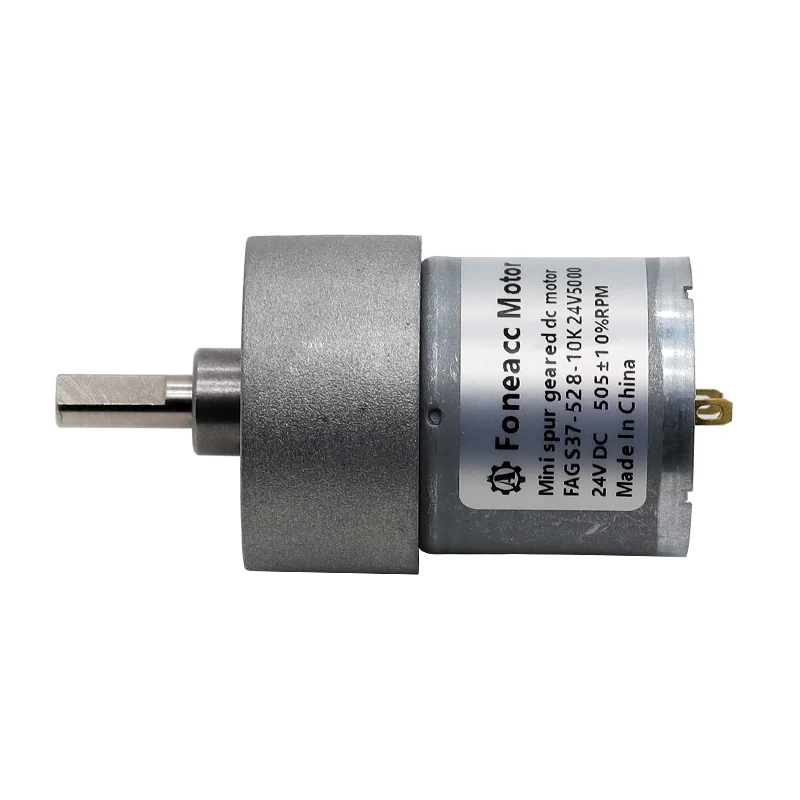

GS37-528 Micro DC spur geared motor | Foneacc Motor

|- Model: GS37-528 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 20Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

GS37-528 Micro DC spur geared motor


Main features:

|- Model: GS37-528 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 20Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs


GS37-528 dc geared motor data examples:

Spur Gear Box data:

Gearbox Length (mm) Stages Reduction Ratio Rated Torque Breaking Torque
kg.cm
21.5 2 (Enhanced) 8.9/1 10.3/1         5 10
21.5 3 18/1 26/1 31/1       5 10
24 4 40/1 46/1 55/1 68/1 79/1 93/1 7 13
26.5 5 102/1 120/1 165/1 202/1 238/1 278/1 10 20
29 6 306/1 359/1 420/1 495/1 516/1 606/1 12 20
31.5 7 666/1 782/1 918/1       15 25
31.5 5(Enhanced) 120/1           30 50

GS37-528 Spur Geared Motor data(for reference only, specs can be customized accordingly):

MODEL

Gear

Ratio

VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL

Range

Rated Speed Current Speed Current Torque P.out Torque Current
V rpm A rpm A kg.cm W kg.cm A
GS37-528-V1 8.9/1 5.0~13.0 12 730 0.09 639 0.64 0.5 3.08 3.8 4.5
GS37-528-V2 31/1 5.0~13.0 12 209 0.09 183 0.65 1.5 2.82 11.8 4.5
GS37-528-V3 93/1 5.0~13.0 12 70 0.1 60 0.7 4.5 2.77 32.5 4.5
GS37-528-V4 165/1 8.0~15.0 12 40 0.1 35 0.67 6.6 2.37 51.6 4.5
GS37-528-V5 495/1 8.0~15.0 12 13 0.11 11.3 0.7 18 2.09 139 4.5

Dimensions and configurations of GS37-528 dc gear motor for reference:

gs37-528 small spur geared brush dc electric motor datasheet


Download GS37-528 DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
