|- Model: FF-N30VA,
|- Motor type: brushed dc motor,
|- Voltage: 1.5V-24VDC,
|- Speed: 7500rpm-35000rpm,
|- Torque: 0.5g.cm-6g.cm,
|- Shaft OD: Φ1.0mm,
|- Rotation Direction: CW/ CCW,
|- Bearing: Bushing,
|- Typical application: smart lock, electric lock, smart home electronics, actuator sensors
Main features:
|- Model: FF-N30VA,
|- Motor type: brushed dc motor,
|- Voltage: 1.5V-24VDC,
|- Speed: 7500rpm-35000rpm,
|- Torque: 0.5g.cm-6g.cm,
|- Shaft OD: Φ1.0mm,
|- Rotation Direction: CW/ CCW,
|- Bearing: Bushing,
|- Typical application: smart lock, electric lock, smart home electronics, actuator sensors
FF-N30VA DC motor data examples:
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |||
| V | R/min | A | R/min | A | mN-m | gf-cm | W | % | mN-m | gf-cm | A | ||
| FF-N30VA-1755 | 1.0-3.0 | 1.5 | 10,500 | 0.09 | 9,200 | 0.28 | 0.20 | 2 | 0.189 | 45.0 | 1.6 | 16.0 | 1.31 |
| FF-N30VA-10140 | 2.0-4.0 | 3 | 8,000 | 0.02 | 6,600 | 0.1 | 0.25 | 2.5 | 0.169 | 56.5 | 1.4 | 14.6 | 0.45 |
| FF-N30VA-12115 | 2.0-5.0 | 4 | 13,000 | 0.03 | 11,000 | 0.17 | 0.36 | 3.7 | 0.418 | 61.4 | 2.4 | 24.2 | 0.95 |
| FF-N30VA-07260 | 1.5-6.0 | 5 | 7,600 | 0.01 | 6,150 | 0.04 | 0.20 | 2 | 0.126 | 63.1 | 1.0 | 10.0 | 0.18 |
| FF-N30VA-07240 | 3.0-8.0 | 6 | 9,560 | 0.019 | 7,451 | 0.067 | 0.26 | 2.63 | 0.201 | 50.0 | 1.2 | 11.9 | 0.237 |
| FF-N30VA-1485 | 2.0-8.0 | 7.2 | 30,500 | 0.11 | 25,600 | 0.57 | 0.88 | 9 | 2.365 | 57.6 | 5.5 | 56.0 | 3.01 |
| FF-N30VA-08225 | 6.0-14.0 | 12 | 21,000 | 0.04 | 16,800 | 0.17 | 0.59 | 6 | 1.035 | 50.7 | 2.9 | 30.0 | 0.67 |

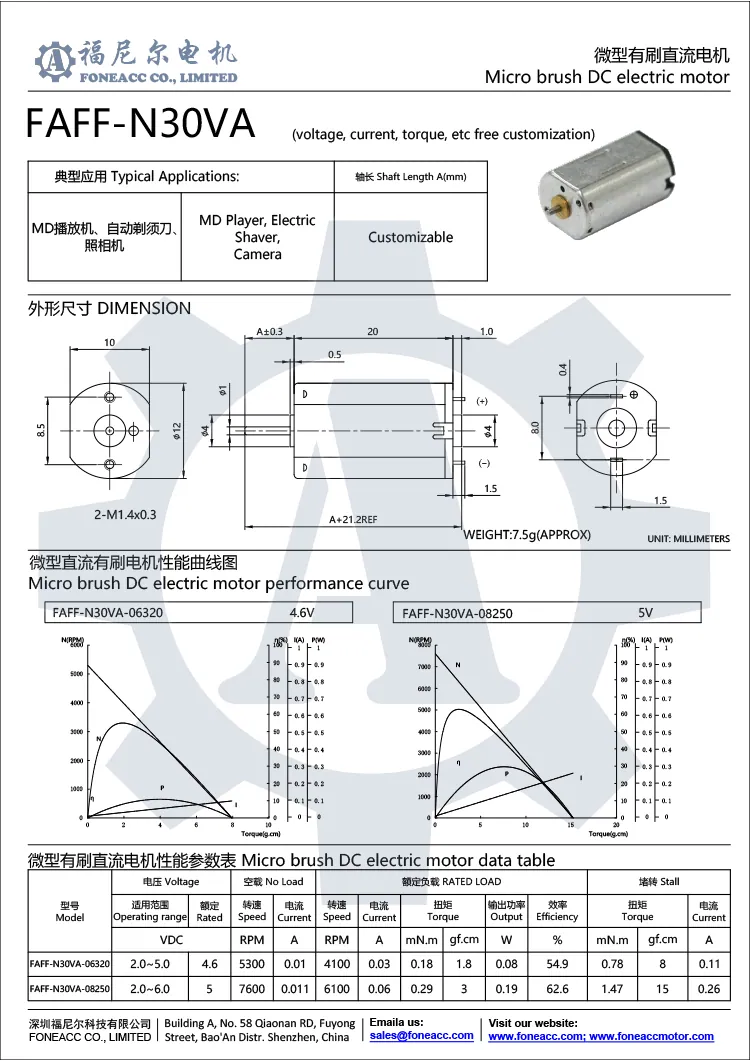

Dimensions and performance curves of FF-N30VA micro dc motor for reference:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
