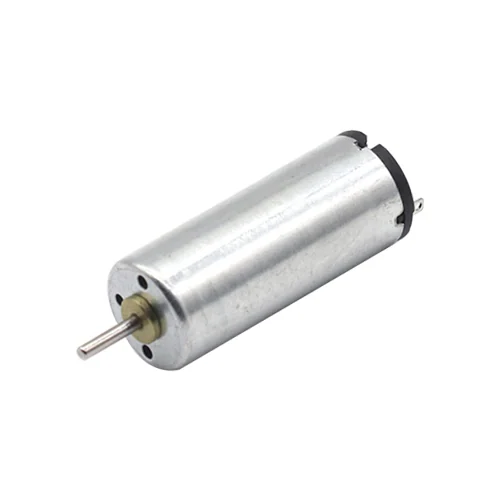

|- Model Number: RF-1230CA
|- Shell Stator Size : Φ12* L 30 mm(Φ 0.472 inch * 1.181 inch)
|- Shaft : Φ1.5mm(0.059inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 5gf·cm(0.49 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: RF-1230
|- Shell Stator Size : Φ12* L 30 mm(Φ 0.472 inch * 1.181 inch)
|- Shaft : Φ1.5mm(0.059inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 5gf-cm(0.49 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

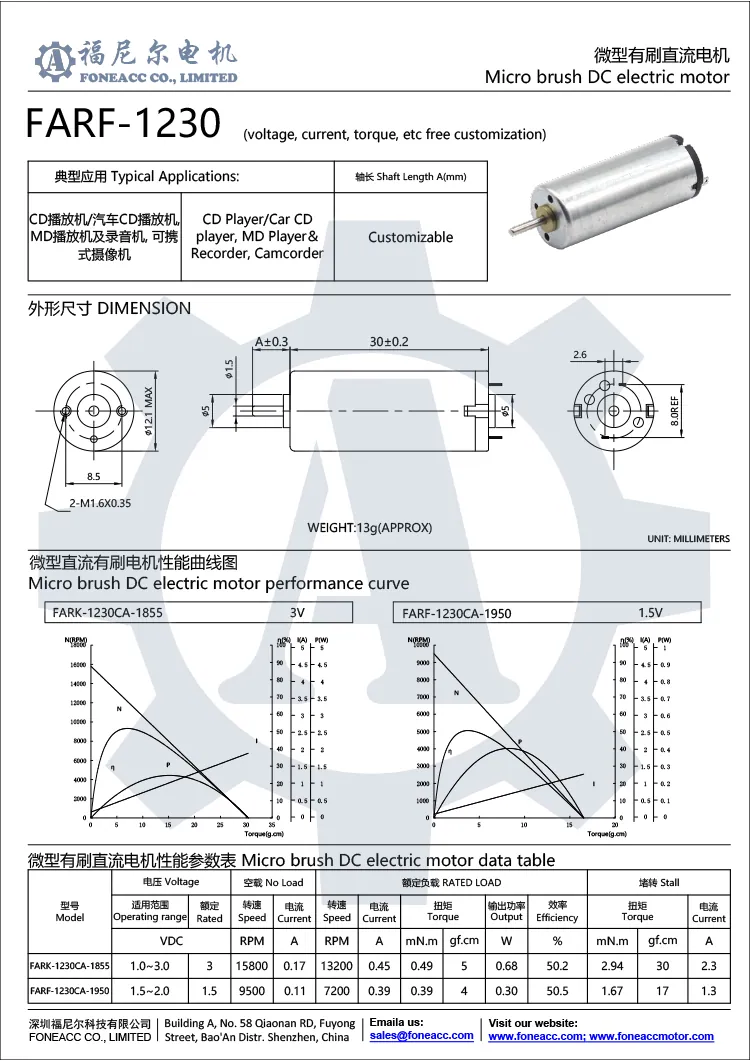

| Model | Voltage | No Load | At Max. Efficiency | Stall | |||||||
| Operating range | Rated | Speed | Current | Speed | Current | Torque | Output | Efficiency | Torque | Current | |
| VDC | RPM | A | RPM | A | gf.cm | W | % | gf.cm | A | ||
| RK-1230CA-1855 | 1.0~3.0 | 3 | 15800 | 0.17 | 13200 | 0.45 | 5 | 0.68 | 50.2 | 30 | 2.3 |
| RF-1230CA-1950 | 1.5~2.0 | 1.5 | 9500 | 0.11 | 7200 | 0.39 | 4 | 0.30 | 50.5 | 17 | 1.3 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
