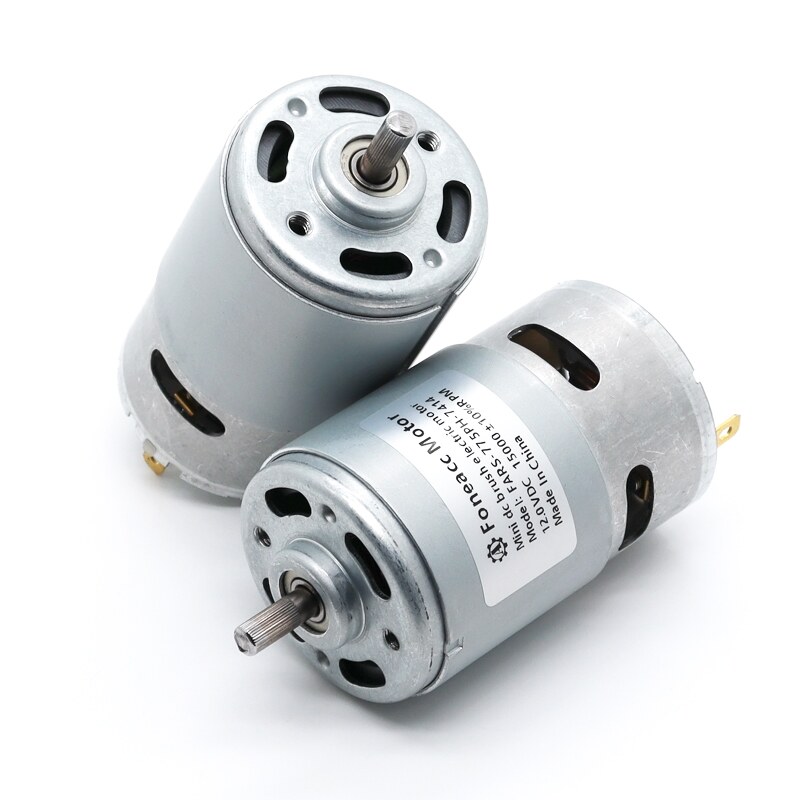

|- Model Number: RS-775
|- Shell Stator Size : Φ42* L 67 mm(Φ 2.637 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 80W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.2 Kgf·cm(1.47 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

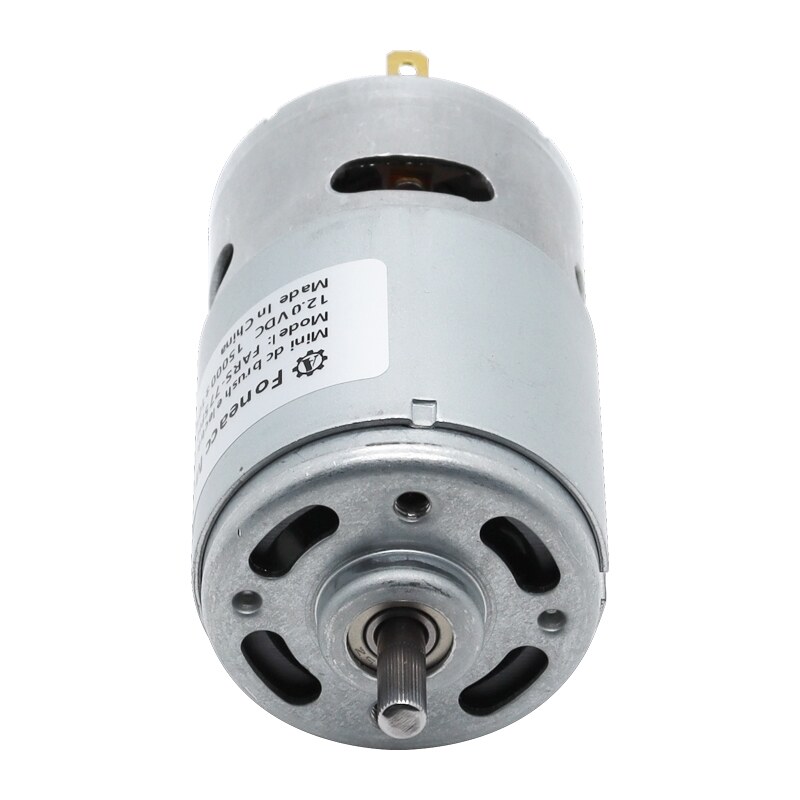

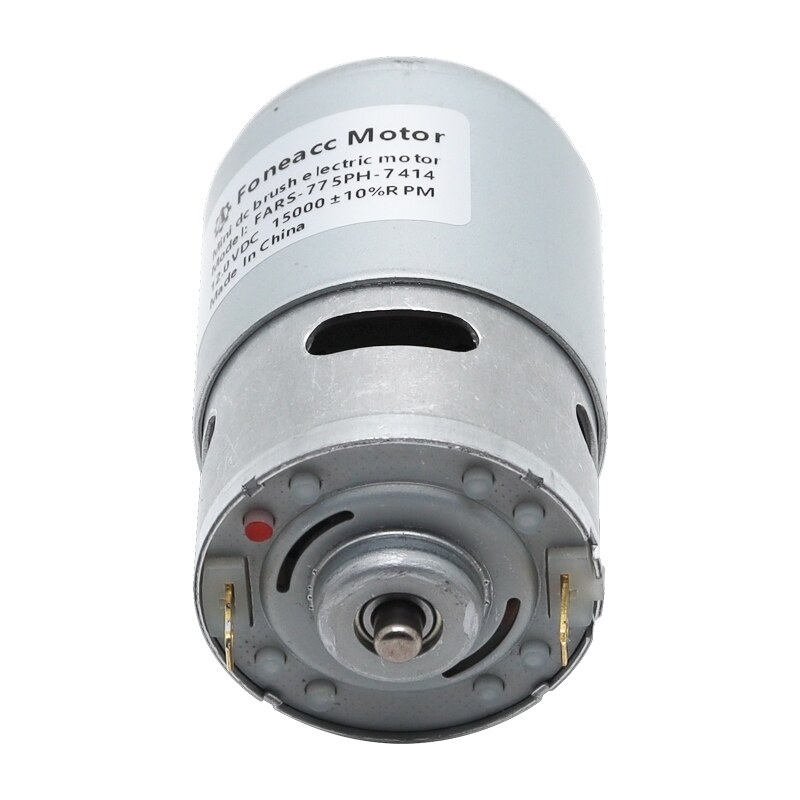

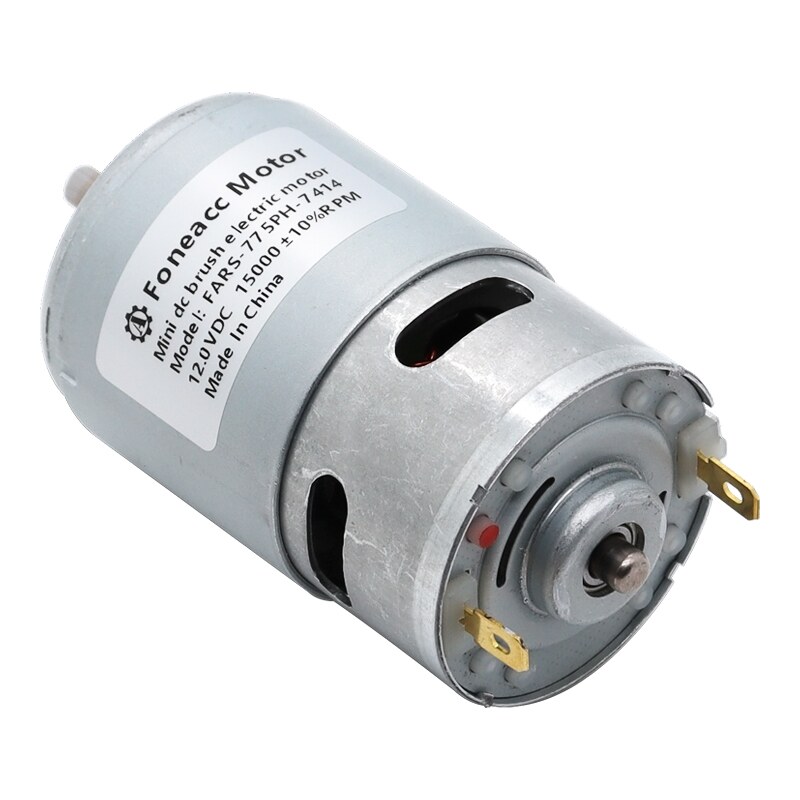

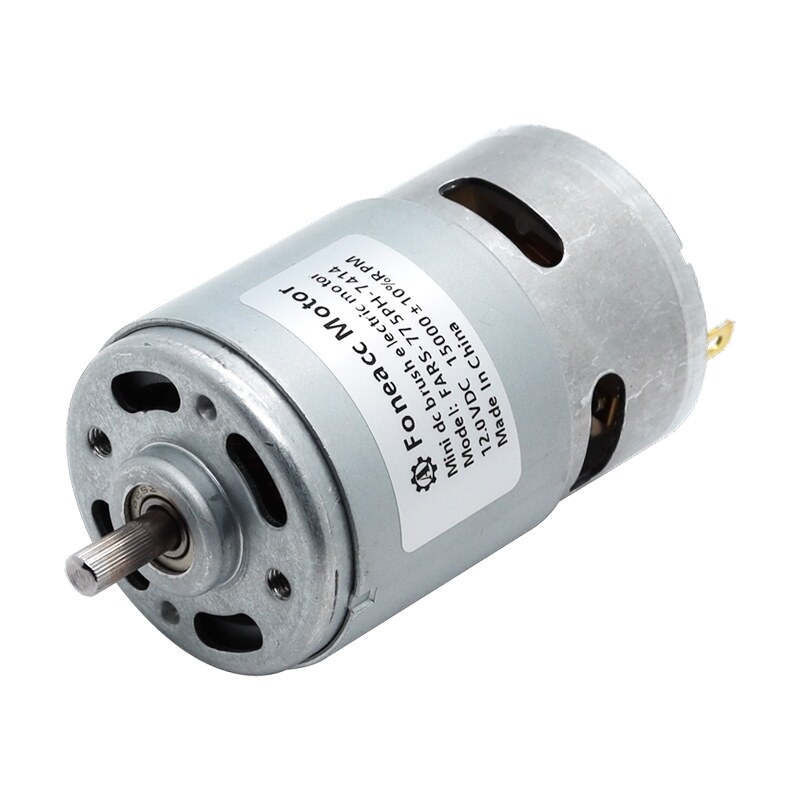

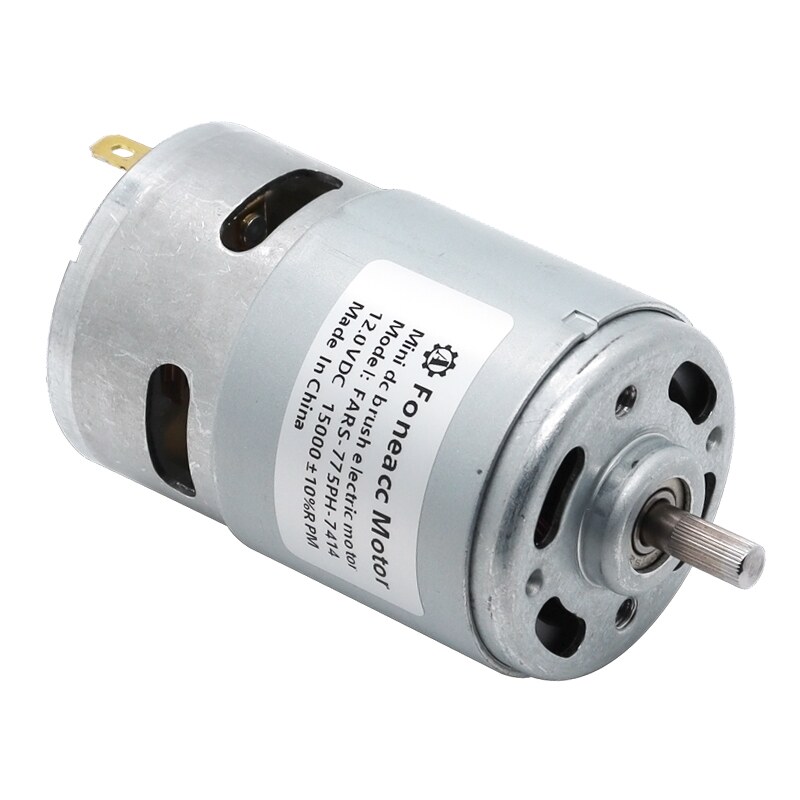

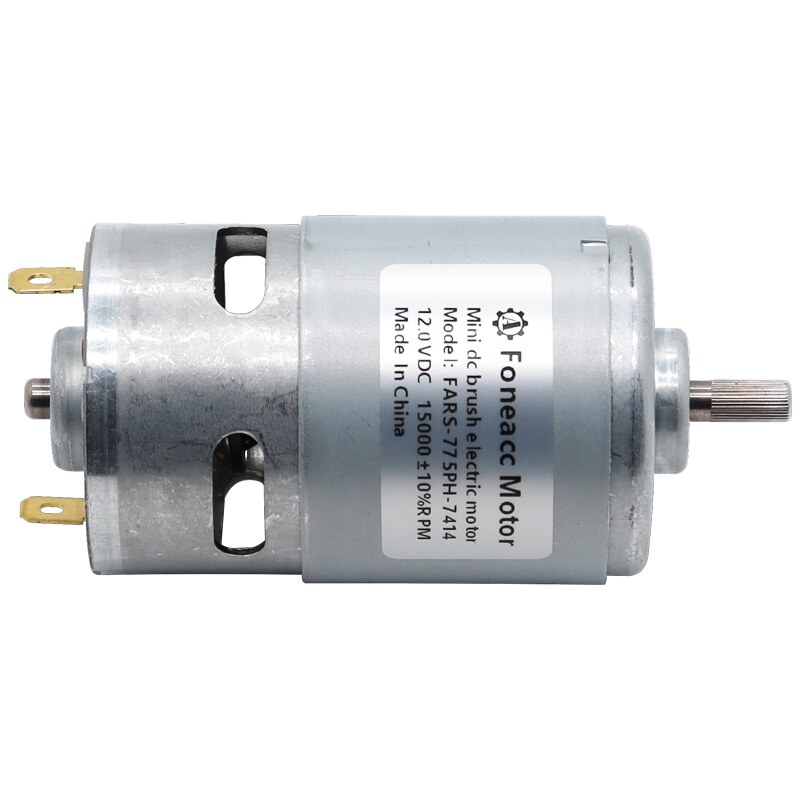

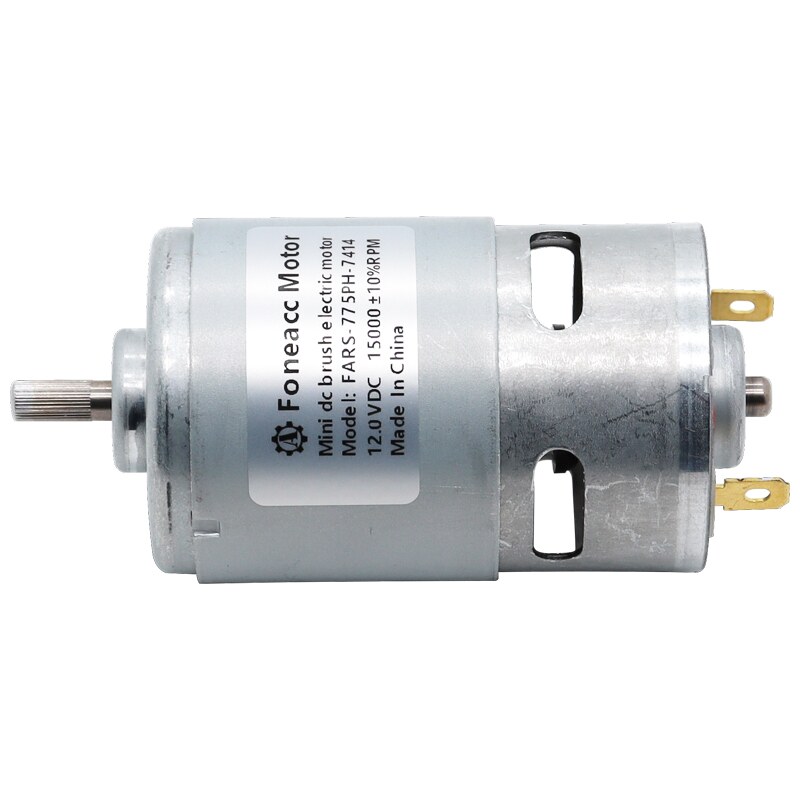

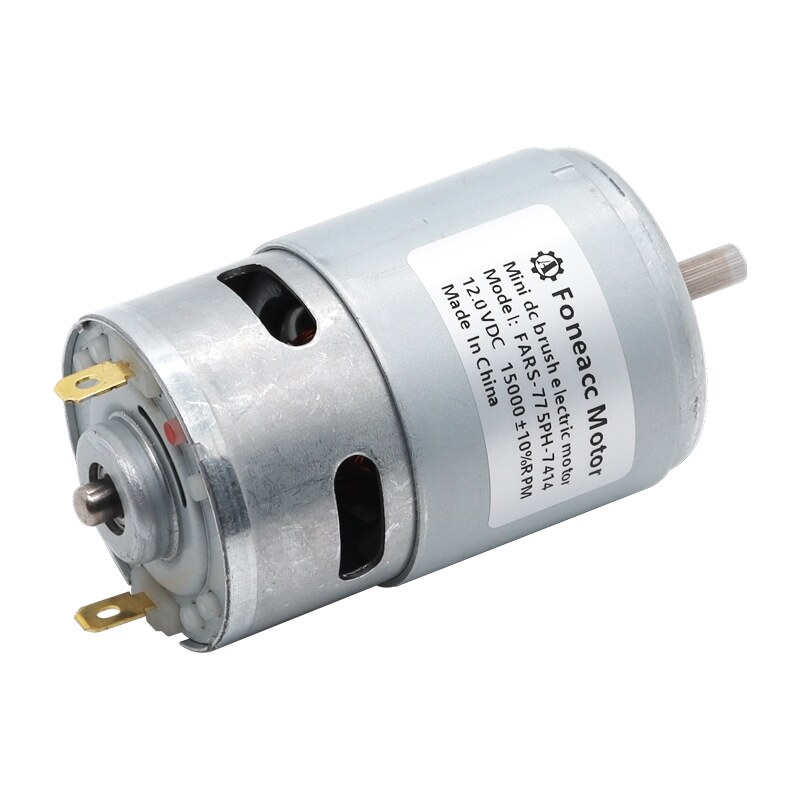

RS-775 High speed high torque 12V 24v micro dc motors | Foneacc Motor
|- Model Number: RS-775
|- Shell Stator Size : Φ42* L 67 mm(Φ 2.637 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 80W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.2 Kgf-cm(1.47 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
Model | Voltage | No load | At Maximum Efficiency | Stall | |||||||
Range | Rated | Speed | Current | Speed | Current | Torque | P.out | EFF. | Torque | Current | |
V | R/min | A | R/min | A | g-cm | W | % | g-cm | A | ||
RS-775PH-5028 | 6.0-14.0 | 12 | 6,800 | 0.53 | 5,844 | 3.24 | 449.9 | 26.99 | 69.4 | 3,200 | 19.8 |
RS-775SH-2511 | 18.0-28.0 | 24 | 3,478 | 0.15 | 2,925 | 0.75 | 452.9 | 13.60 | 75.6 | 2,506 | 4.07 |
RS-775PH-2996 | 18.0-28.0 | 24 | 5,000 | 0.23 | 4,246 | 1.3 | 482.46 | 21.03 | 67.0 | 3,201 | 7.29 |
RS-775PH-25125 | 18.0-28.0 | 24 | 3,000 | 0.15 | 2500 | 0.75 | 413 | 10.6 | 58.9 | 2605 | 4.0 |
RS-775VH-5533 | 6~20 | 18 | 11,000 | 1.3 | 9,327 | 7.25 | 912.9 | 87.42 | 67.0 | 6,002 | 40.41 |
RS-770SH-5559 | 5~12 | 7.5 | 5,100 | 0.76 | 4,316 | 4.18 | 469.2 | 20.79 | 68.7 | 3,051 | 23.01 |
RS-770PH-8021 | 6~12 | 9.6 | 17,800 | 2.9 | 14,810 | 14.36 | 578.34 | 87.94 | 63.8 | 3,441 | 71.13 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
