RF-528 Brushed Micro DC motor

|- Model Number: RF-528
|- Shell Stator Size : Φ33* L 29 mm(Φ 1.3 inch * 1.14 inch)
|- Shaft : Φ2.0mm(0.079 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 5W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 100 gf·cm(9.8 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

RF-528 Brushed micro dc motor


Main features:

|- Model Number: RF-528
|- Shell Stator Size : Φ33* L 29 mm(Φ 1.3 inch * 1.14 inch)
|- Shaft : Φ2.0mm(0.079 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 5W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 100 gf-cm(9.8 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


RF-528 RK-528 dc motor data examples:

Model Voltage No- load At Maximum Efficiency Stall
Range Rated Speed Current Speed Current Torque P.out Torque Current
V R/min A R/min A g-cm W g-cm A
RF-528-085032 1.5~6 3V 3200 0.07 2400 0.689 70 0.19 308 0.38
RF-528-091030 1.5~6 3V 3000 0.06 2300 0.66 70 0.18 334 0.33
RF-528-150024 1.5~6 3V 2300 0.04 1700 0.31 40 0.11 184 0.14
RF-528-175022 1.5~6 3V 2000 0.03 1500 0.26 40 0.09 177 0.11
RK-528-080033 1.5~6 3V 3500 0.11 2700 0.83 70 0.32 340 0.39
RK-528-205020 12~24 12V 5250 0.05 4300 0.46 100 0.58 576 0.85
RK-528-235019 12~24 12V 6000 0.04 4700 0.37 70 0.48 334 0.9
RK-528-315016 12~24 12V 3500 0.03 2600 0.31 100 0.33 418 0.4
RK-528-14420 12~24 24V 8000 0.05 7300 0.14 20 1.49 228.5 1.3
RK-528-2495 1.5~6 4.5V 6300 0.17 5500 0.45 20 1.12 157.5 0.38

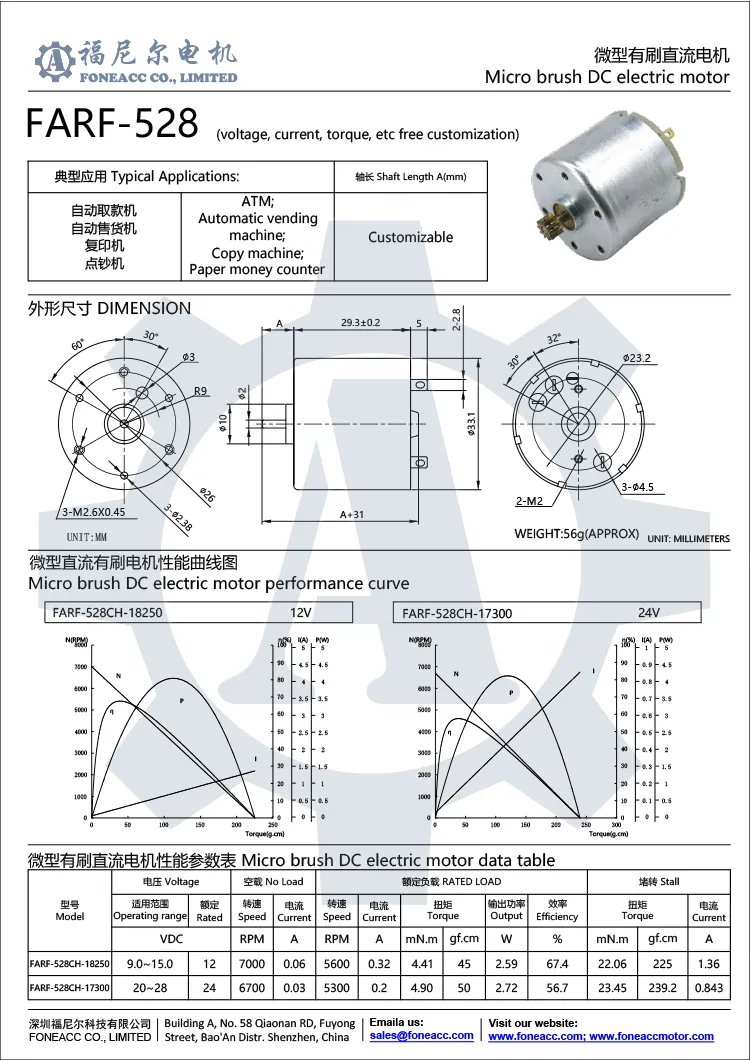

Dimensions and performance curves of RF-528 dc motor for reference:

rf-528 micro brush dc electric motor


Download RF-528 DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
