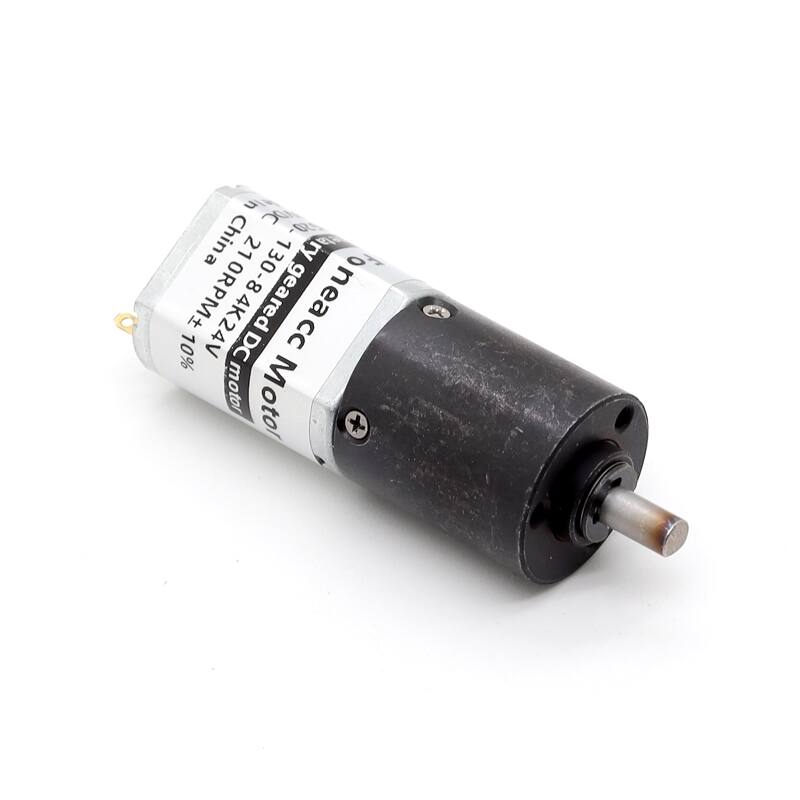

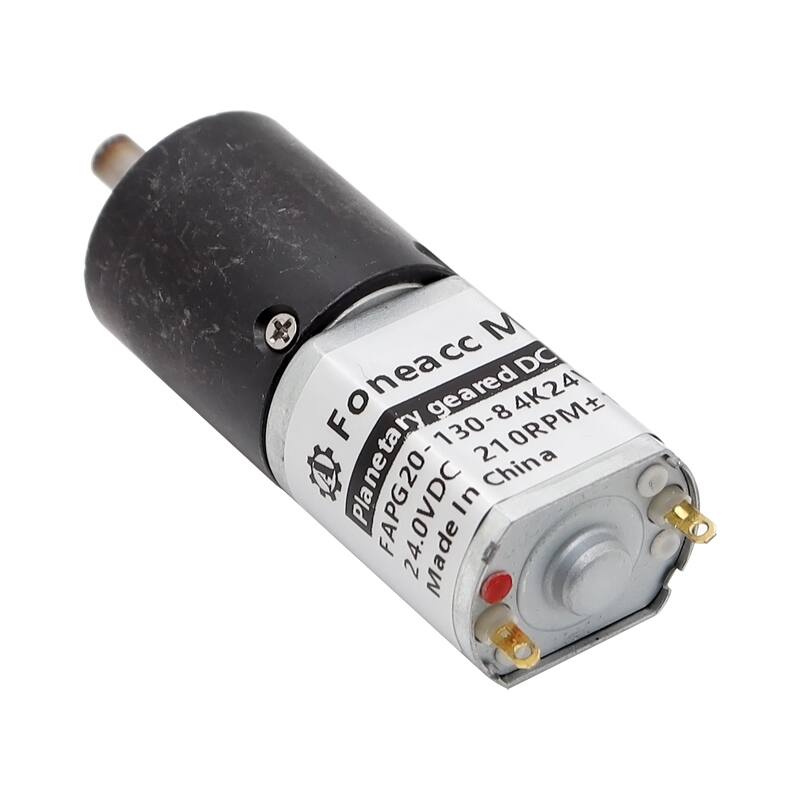

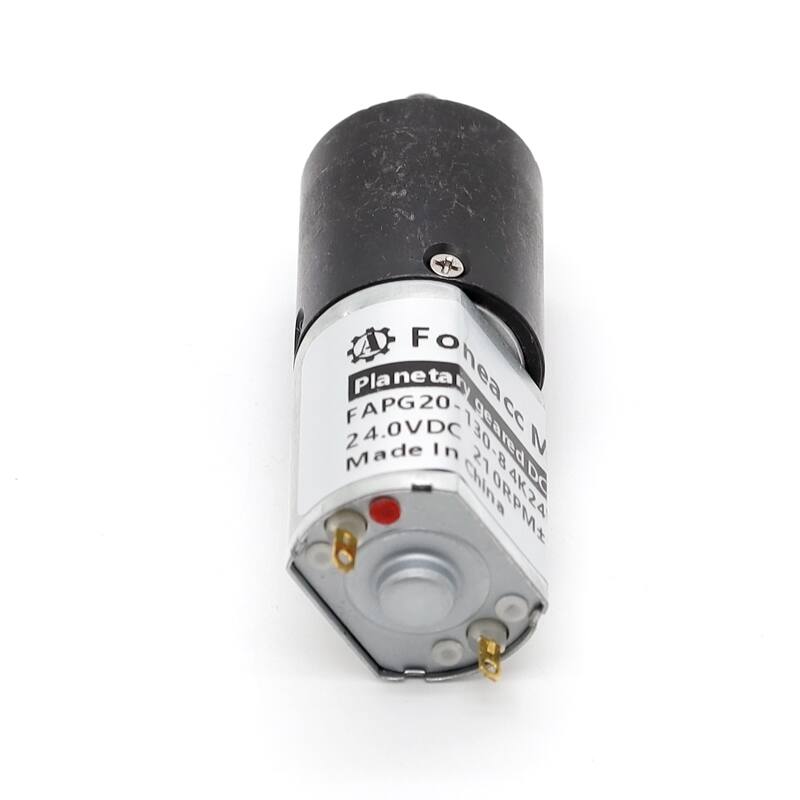

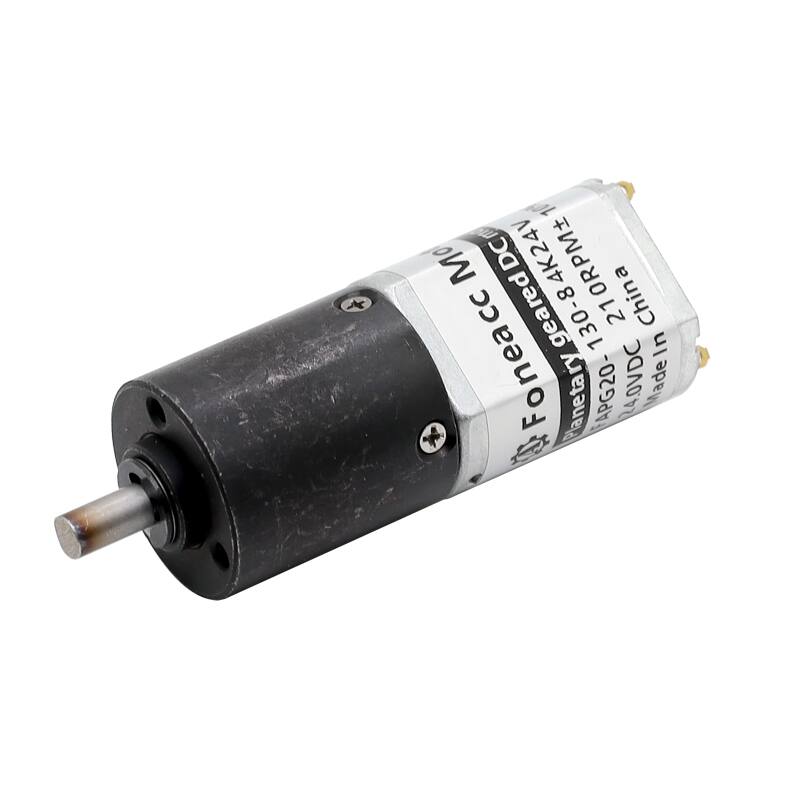

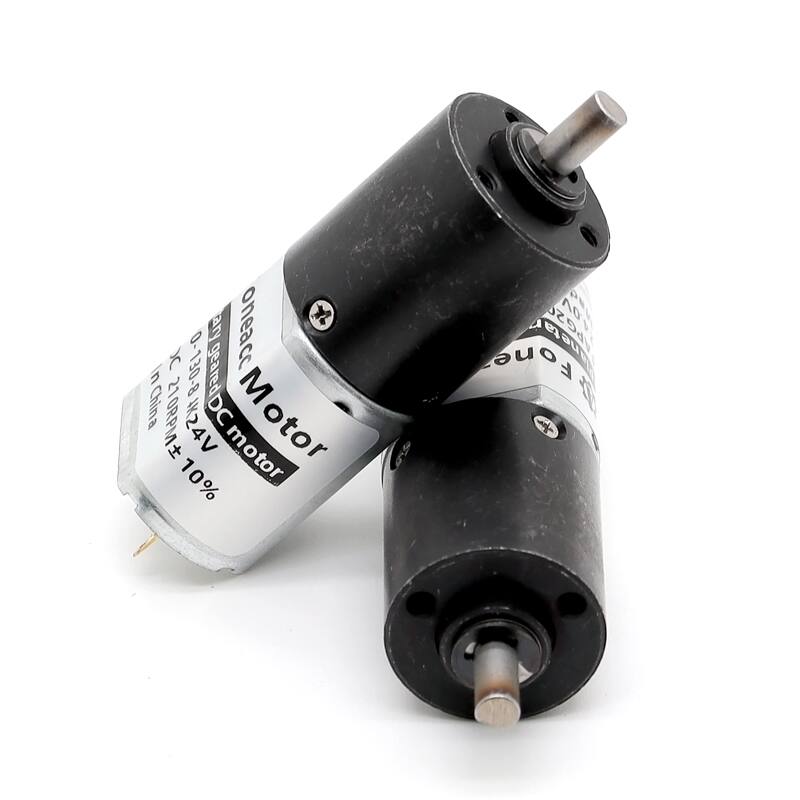

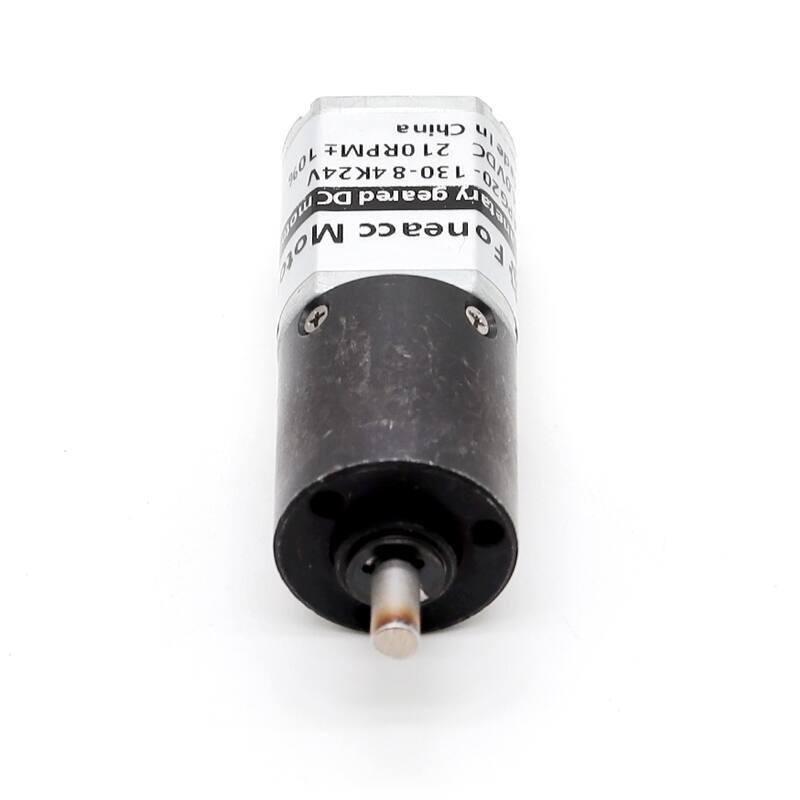

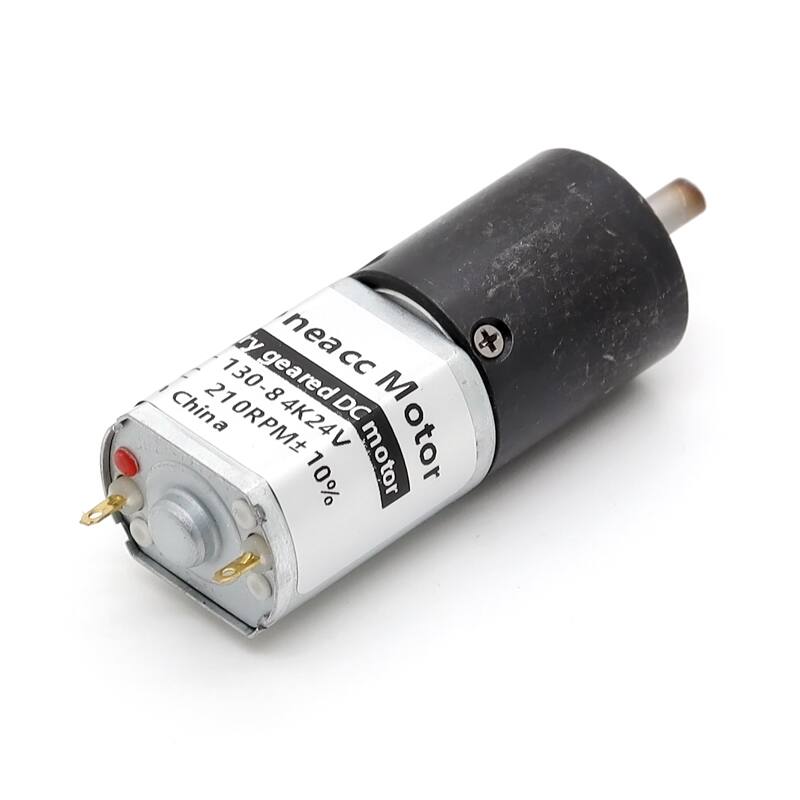

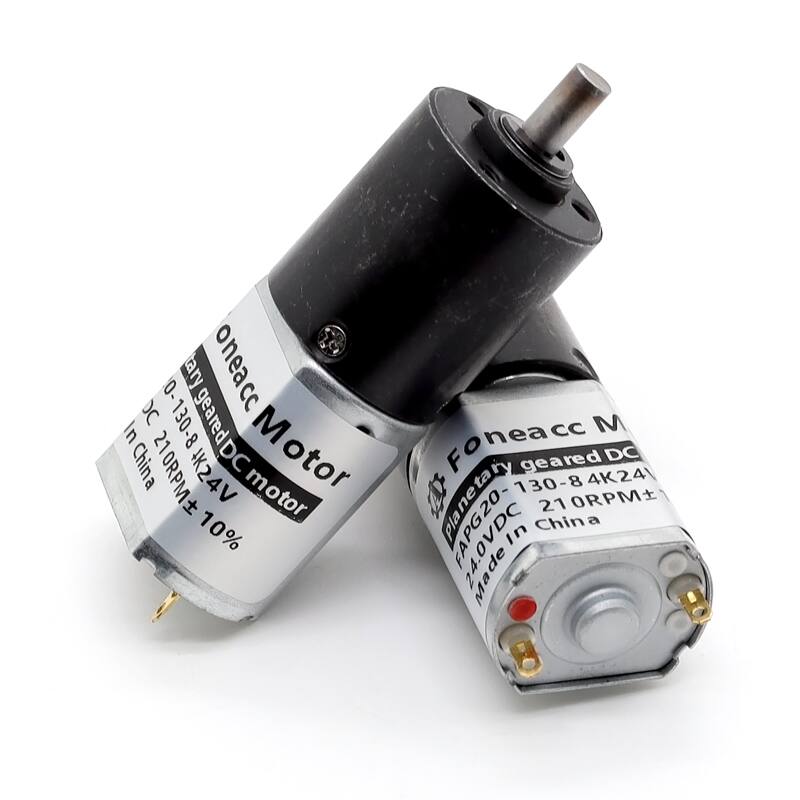

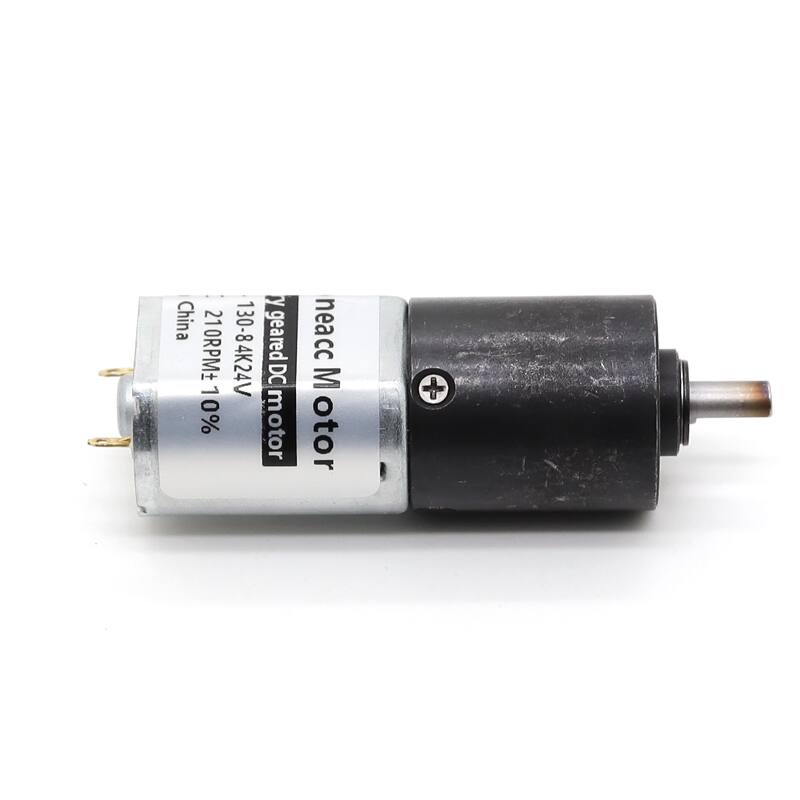

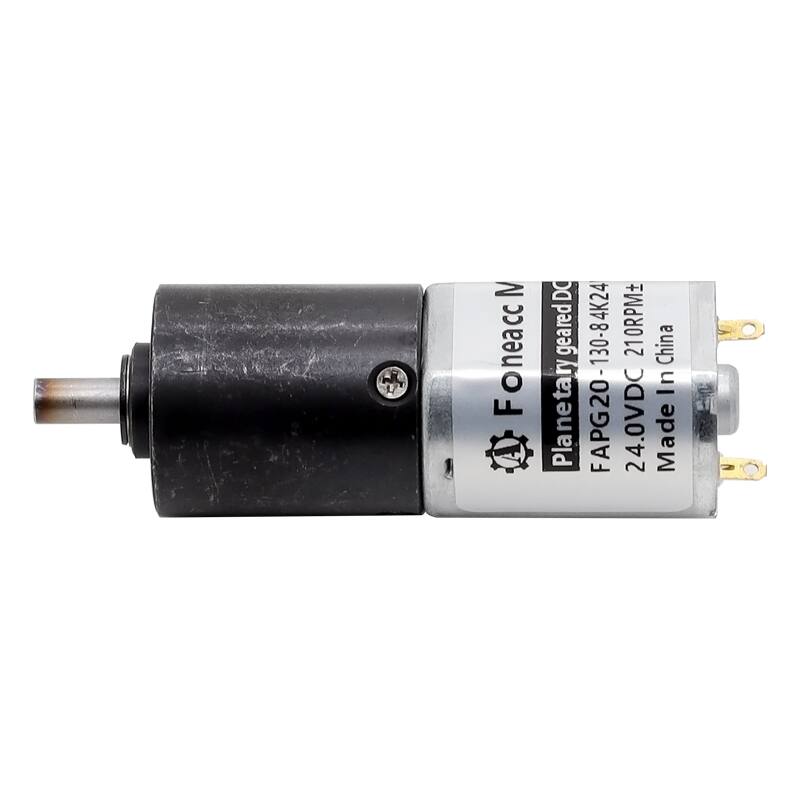

|- Model: PG20-130; 130 motor with planetary gear reducer.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 10 Kgf-cm ;
|- Size : Φ20* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
|- Model: PG20-130; 130 motor with planetary gear reducer.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 10 Kgf-cm ;
|- Size : Φ20* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

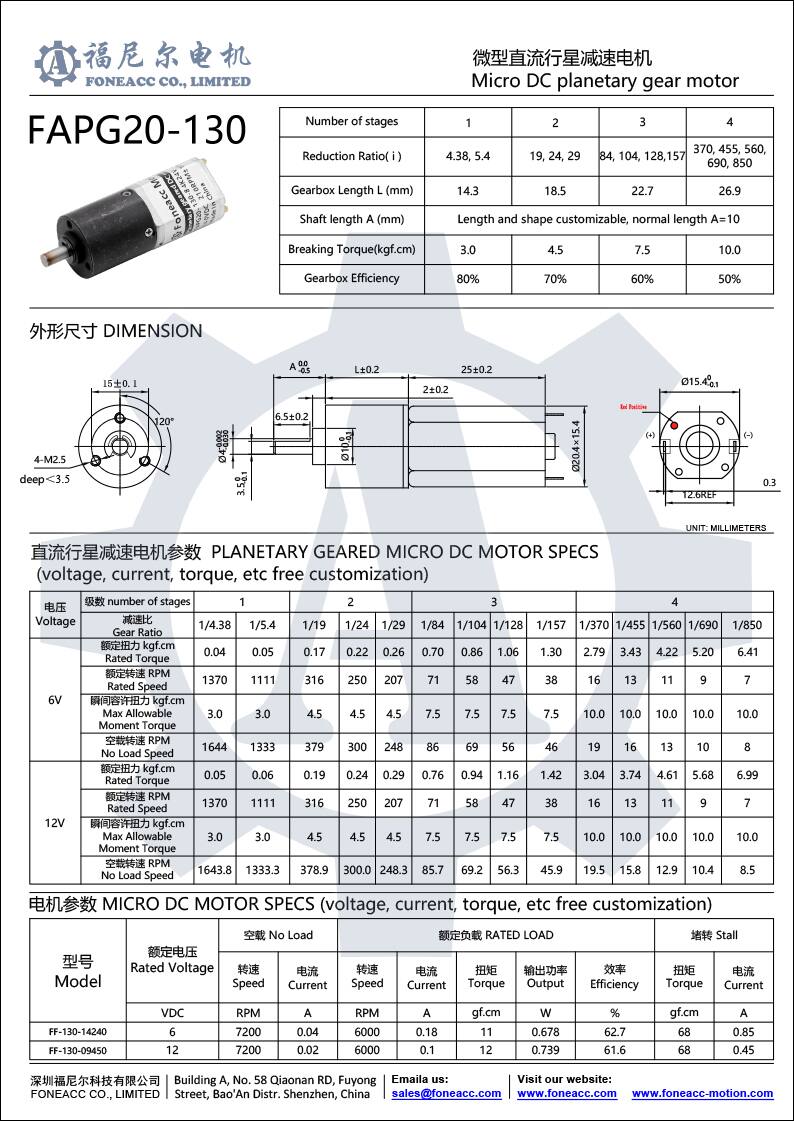

| Model | No Load | Rated Load | Breaking Torque | |
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG20-130-6V4.4K | 1643.8 | 0.04 | 1369.9 | 3 |
| PG20-130-6V5.4K | 1333.3 | 0.05 | 1111.1 | 3 |
| PG20-130-6V19K | 378.9 | 0.17 | 315.8 | 4.5 |
| PG20-130-6V24K | 300.0 | 0.22 | 250.0 | 4.5 |
| PG20-130-6V29K | 248.3 | 0.26 | 206.9 | 4.5 |
| PG20-130-6V84K | 85.7 | 0.70 | 71.4 | 7.5 |
| PG20-130-6V104K | 69.2 | 0.86 | 57.7 | 7.5 |
| PG20-130-6V128K | 56.3 | 1.06 | 46.9 | 7.5 |
| PG20-130-6V157K | 45.9 | 1.30 | 38.2 | 7.5 |
| PG20-130-6V370K | 19.5 | 2.79 | 16.2 | 10 |
| PG20-130-6V455K | 15.8 | 3.43 | 13.2 | 10 |
| PG20-130-6V560K | 12.9 | 4.22 | 10.7 | 10 |
| PG20-130-6V690K | 10.4 | 5.20 | 8.7 | 10 |
| PG20-130-6V850K | 8.5 | 6.41 | 7.1 | 10 |
| PG20-130-12V4.4K | 1643.8 | 0.05 | 1369.9 | 3 |
| PG20-130-12V5.4K | 1333.3 | 0.06 | 1111.1 | 3 |
| PG20-130-12V19K | 378.9 | 0.19 | 315.8 | 4.5 |
| PG20-130-12V24K | 300.0 | 0.24 | 250.0 | 4.5 |
| PG20-130-12V29K | 248.3 | 0.29 | 206.9 | 4.5 |
| PG20-130-12V84K | 85.7 | 0.76 | 71.4 | 7.5 |
| PG20-130-12V104K | 69.2 | 0.94 | 57.7 | 7.5 |
| PG20-130-12V128K | 56.3 | 1.16 | 46.9 | 7.5 |
| PG20-130-12V157K | 45.9 | 1.42 | 38.2 | 7.5 |
| PG20-130-12V370K | 19.5 | 3.04 | 16.2 | 10 |
| PG20-130-12V455K | 15.8 | 3.74 | 13.2 | 10 |
| PG20-130-12V560K | 12.9 | 4.61 | 10.7 | 10 |
| PG20-130-12V690K | 10.4 | 5.68 | 8.7 | 10 |
| PG20-130-12V850K | 8.5 | 6.99 | 7.1 | 10 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
