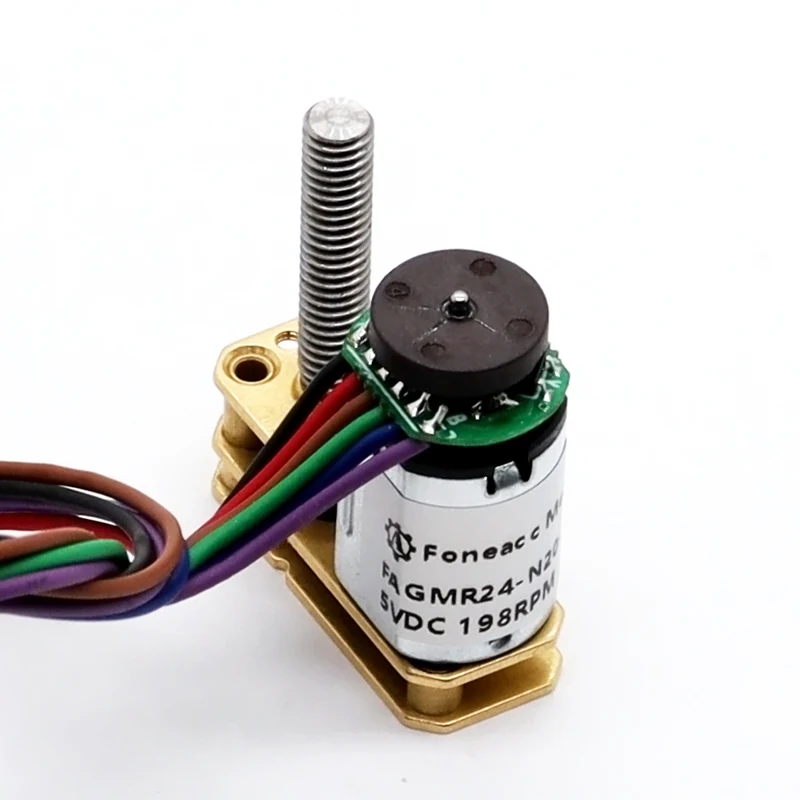

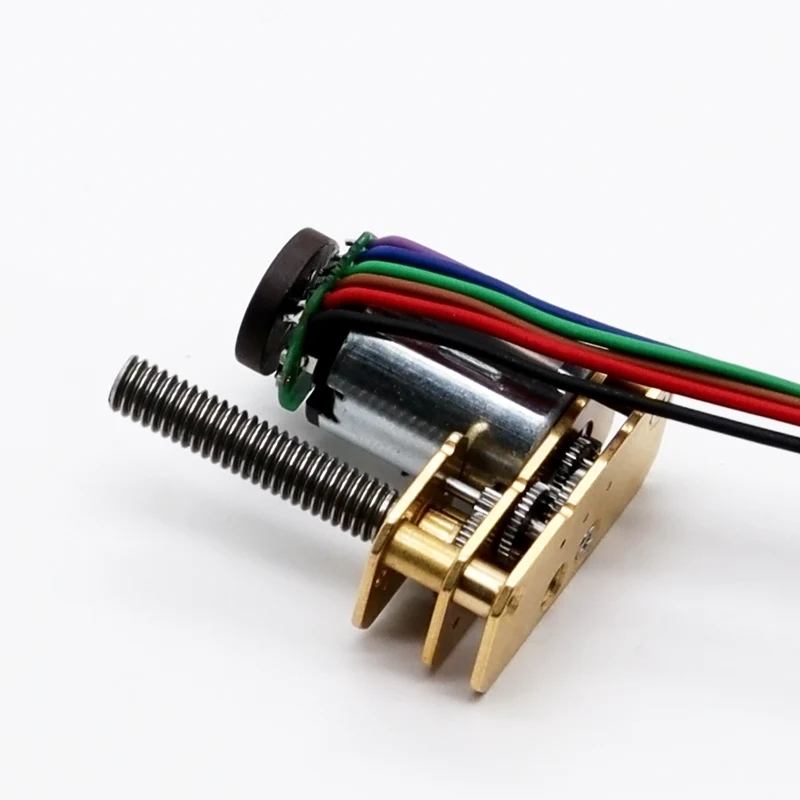

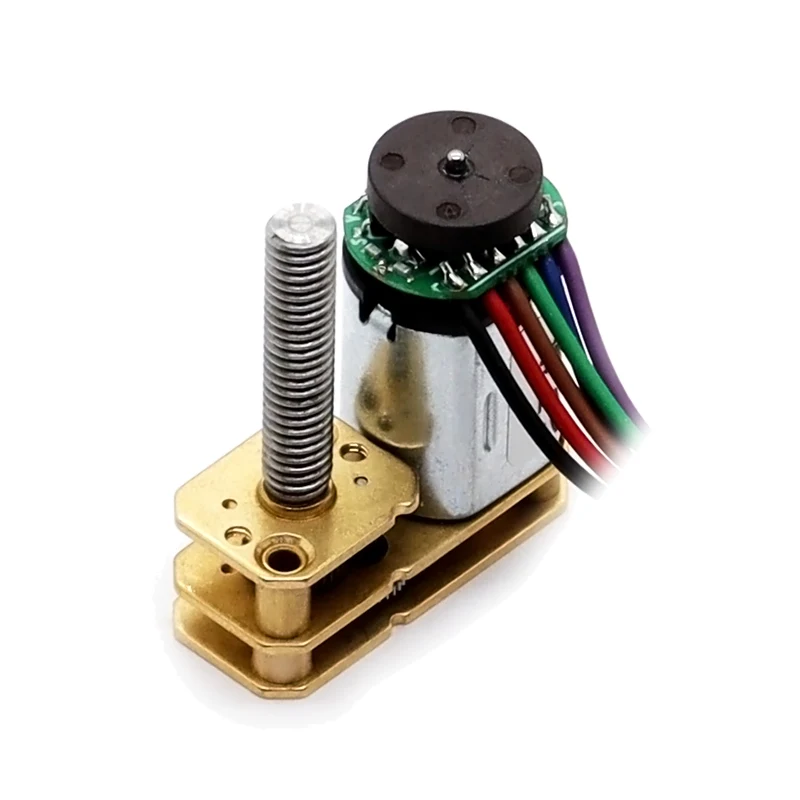

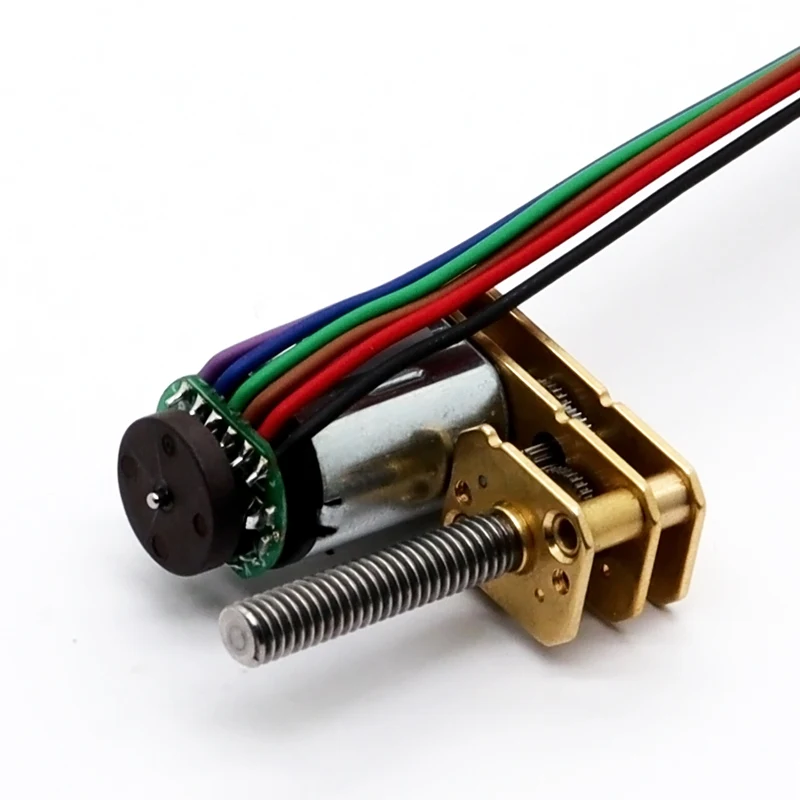

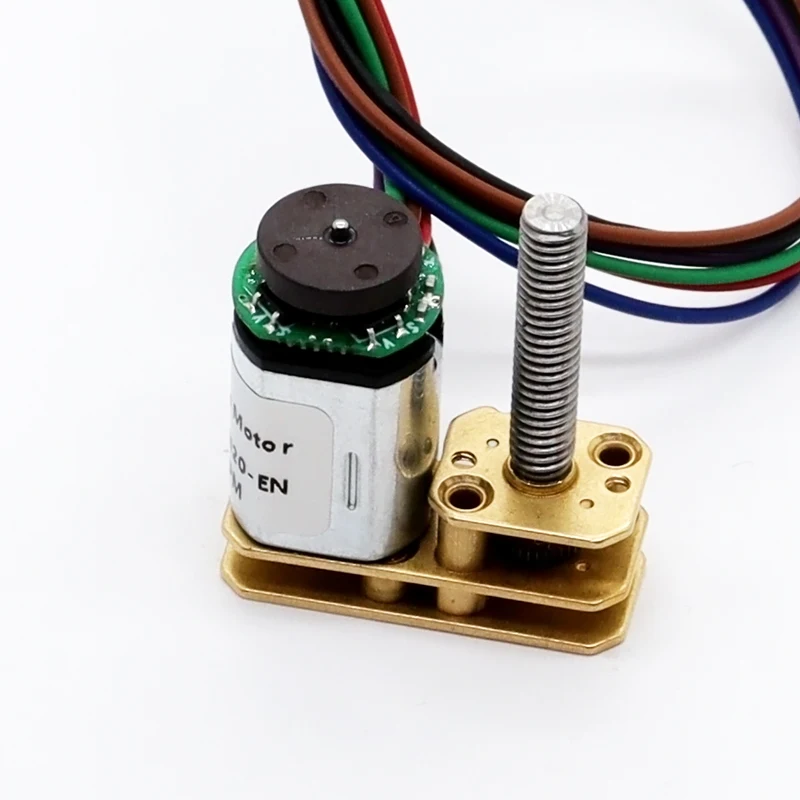

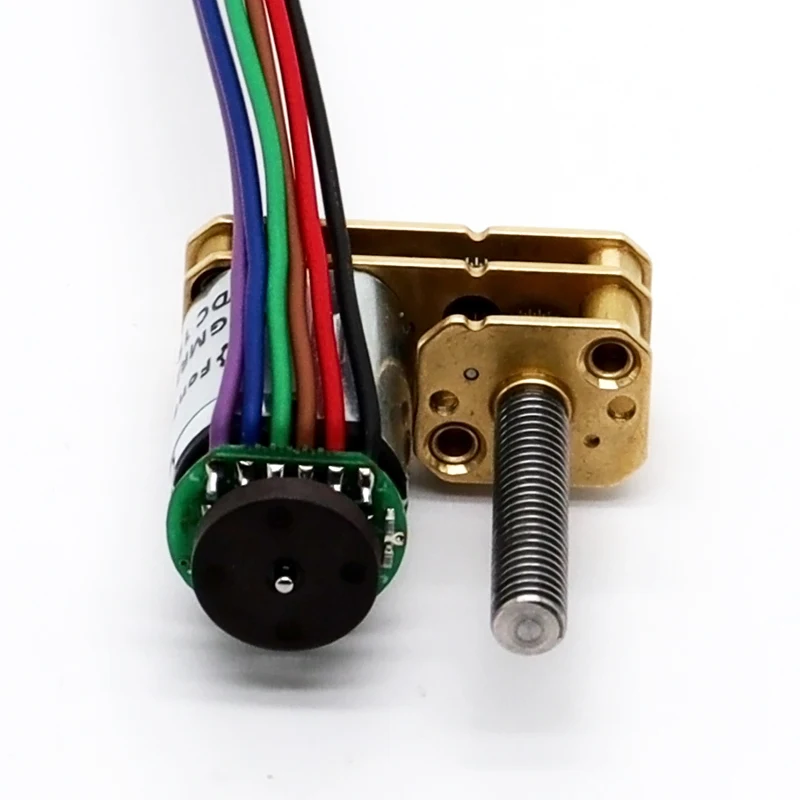

GMR24-N20-EN small spur gear reduced N20 dc motor with reversed drive shaft with 3 ppr magnetic encoder

GMR24-N20-EN small spur gear reduced N20 dc motor with reversed drive shaft with 3 ppr magnetic encoder

---

Main features:

|- micro dc motor FF-N20VA assembled with 24mm metal spur gearbox;
|- Model: GMR24-N20-EN micro metal gearmotor;
|- Gearbox: 24 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 1.8Kgf-cm ;
|- Size : Φ24 * L TBD ;
|- Square Gearbox size:12mm*10mm;
|- Shaft : Φ3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

---

GMR24-N20VA-EN dc geared motor data examples:

Gearbox Data:

Number of stages	2	4	5	7
Reduction ratio	3,5,10	17,20,30,36 50,63,100	110,150,210 250,298,380	372,625,1000
Gearbox length “L”mm	9	9	9	12
Breaking torque(kgf.cm)	0.6	0.9	1.2	2
Gearbox efficiency	81%	65%	59%	48%

The Φ12 mm single small dc electric motor without gearbox data（For reference only, not corresponding data）:

Motor model	Rated Volt.	No load		At Max Eff Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
FF-N20VA-V1	3	≤50	10000	≤185	8000	2	0.2	≥8	≥350
FF-N20VA-V2	3	≤80	15000	≤280	12400	3	0.4	≥12	≥520
FF-N20VA-V3	3	≤110	20000	≤370	15500	4	0.6	≥16	≥700
FF-N20VA-V4	6	≤25	10000	≤95	8000	2	0.2	≥8	≥160
FF-N20VA-V5	6	≤40	15000	≤145	12400	3	0.4	≥12	≥250
FF-N20VA-V6	6	≤60	20000	≤190	15500	4	0.6	≥16	≥320

The Φ12 mm spur geared dc electric motor with gearbox data（For reference only, not corresponding data）:

Geared Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
		Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
GMR24-N20-EN-V1	3	0.07	110.7	0.27	87.3	0.28	0.25	1.30	1.01
GMR24-N20-EN-V2	3	0.03	10.7	0.15	7.30	1.20	0.10	3.90	0.33
GMR24-N20-EN-V3	5	0.04	135.5	0.13	104.1	0.17	0.19	0.75	0.44
GMR24-N20-EN-V4	5	0.04	61.5	0.15	47.3	0.50	0.24	2.00	0.53
GMR24-N20-EN-V5	5	0.03	48.8	0.12	38.6	0.50	0.20	2.40	0.46
GMR24-N20-EN-V6	6	0.128	86	0.33	62	0.92	0.59	3.32	0.86

---

Dimensions and configurations of GMR24-N20-EN dc gear motor for reference:

---

Download GMR24-N20-EN DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage, speed, as well as shaft length and shape...

Welcome OEM or ODMprojects

--------------

Magnetic encoder specs:

Some examples of small gear motors with magnetic encoder, all of our brush dc gear motors are compatible with encoders.

Send us your detailed requirements:sales@foneacc.com
