|- Model: PG57-997;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 9V,12V,24V,36V;
|- Rated Torque: Max. 360Kgf-cm ;
|- Size : Φ57* L TBD ;
|- Shaft : concentric driveshaft, Φ12mm D-cut 4mm, custom;
|- Commutation: Carbon Brush/Graphite Brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic Encoder 12 PPR;
|- MOQ: 500 pcs;

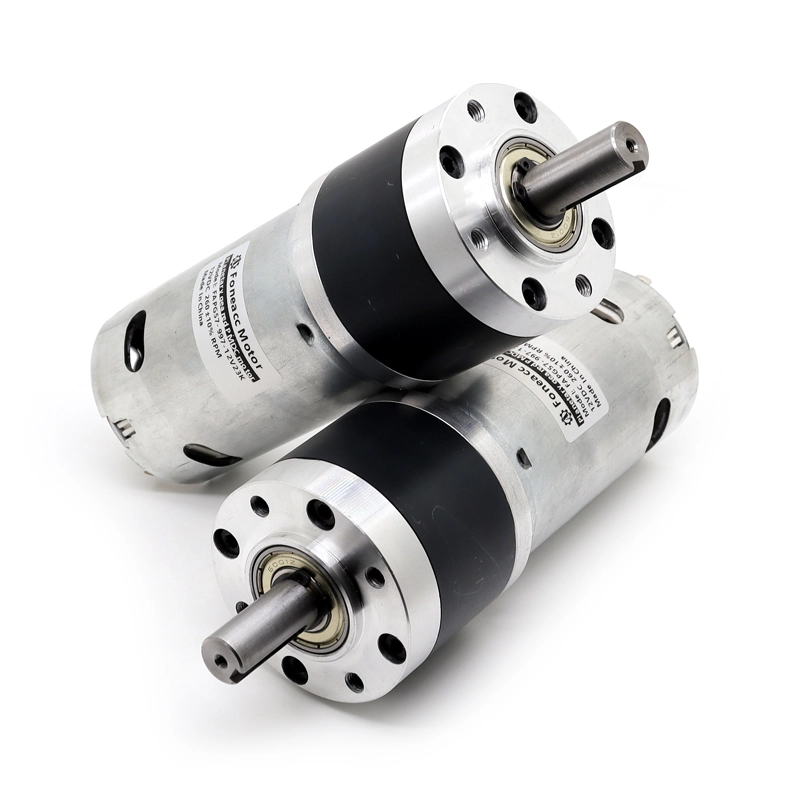

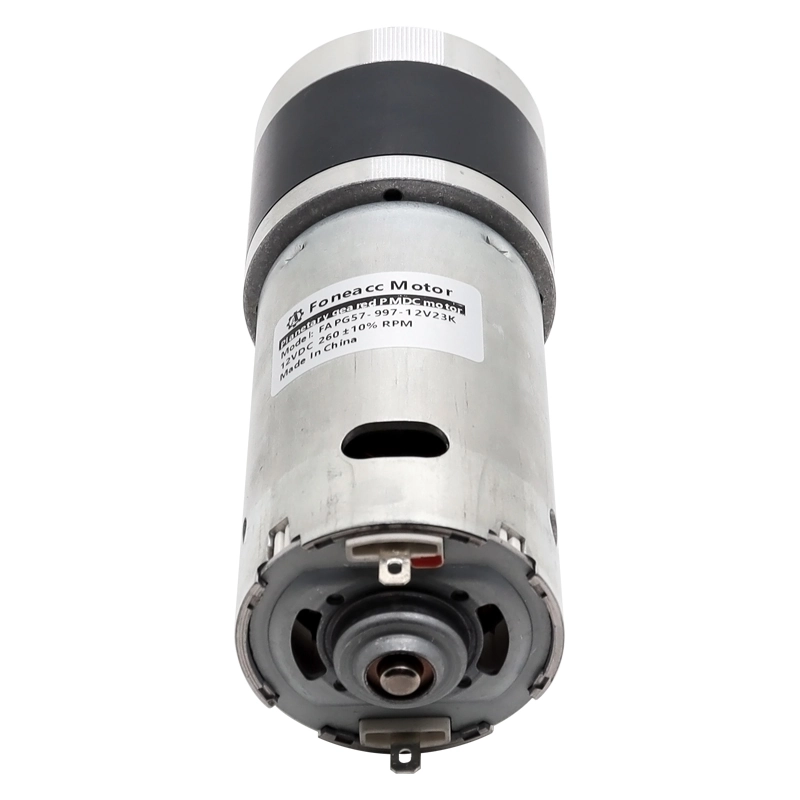

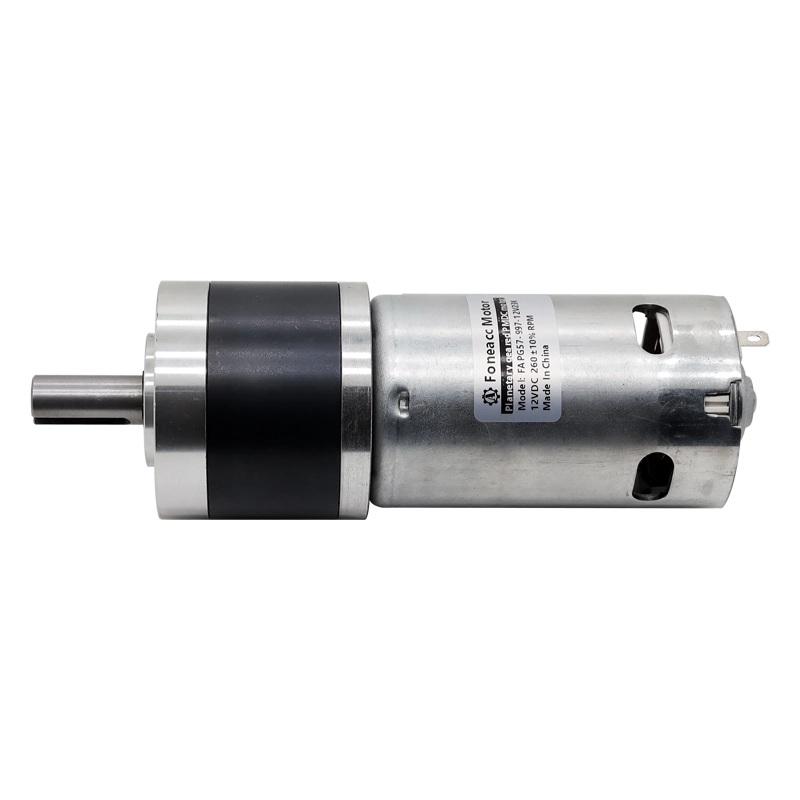

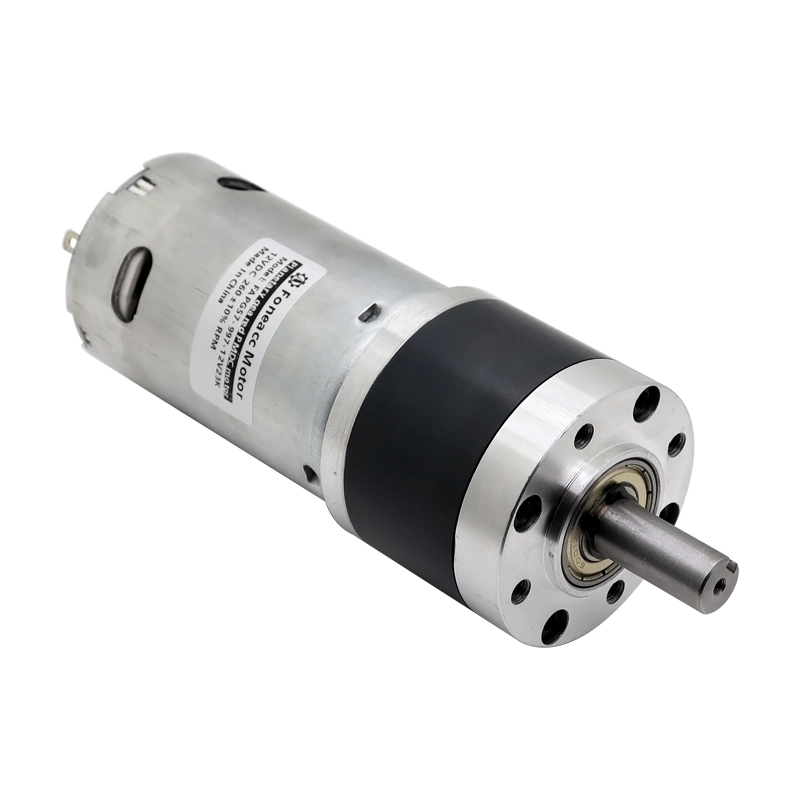

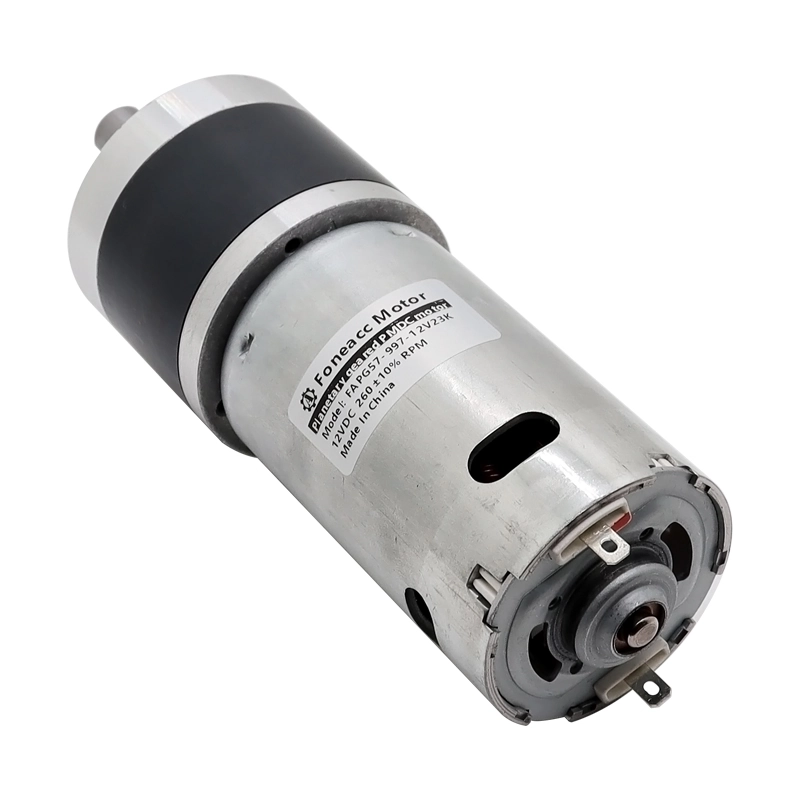

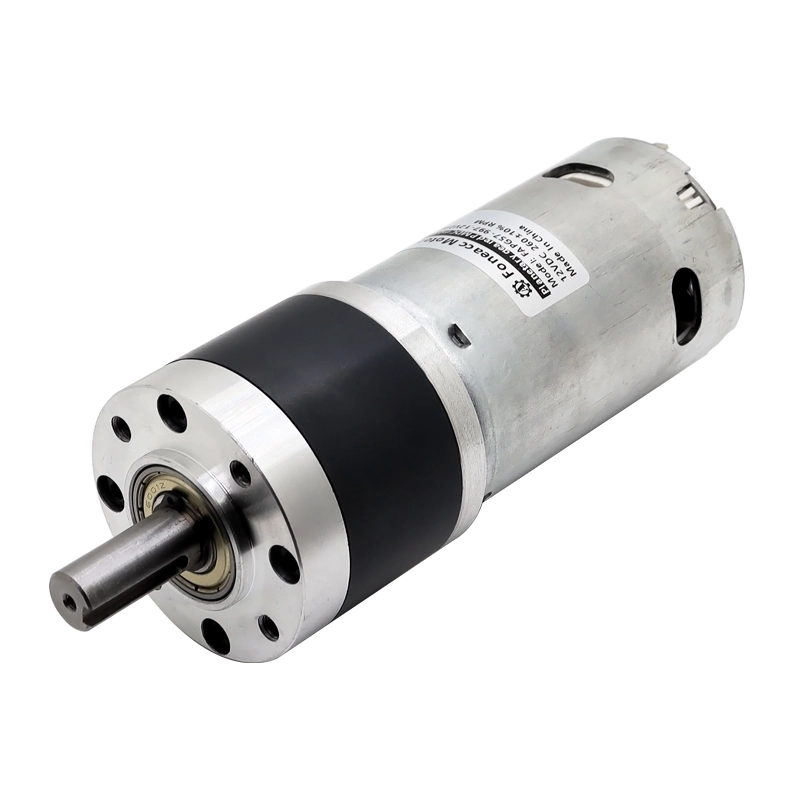

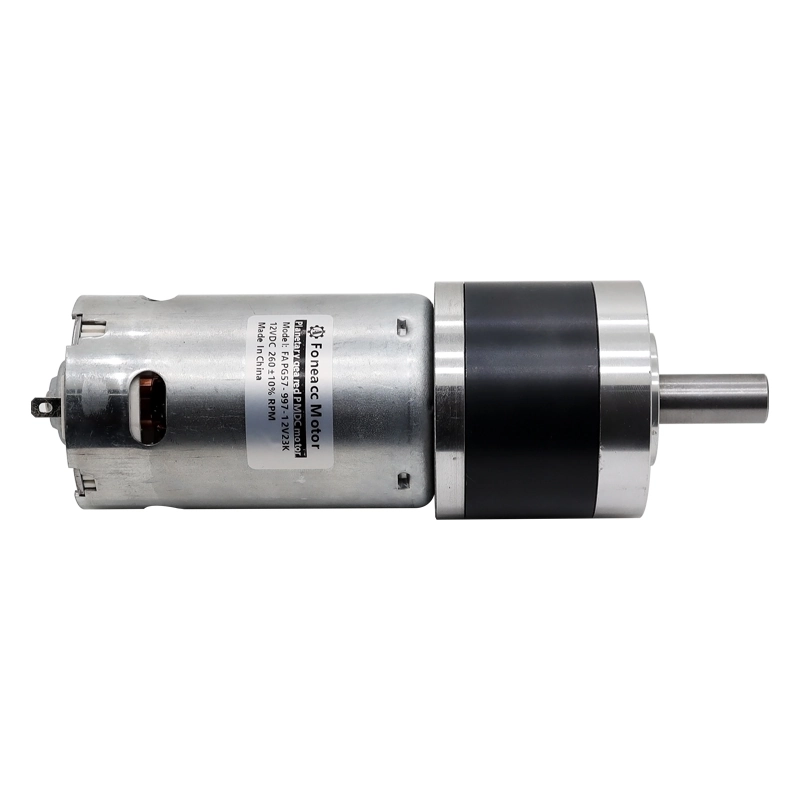

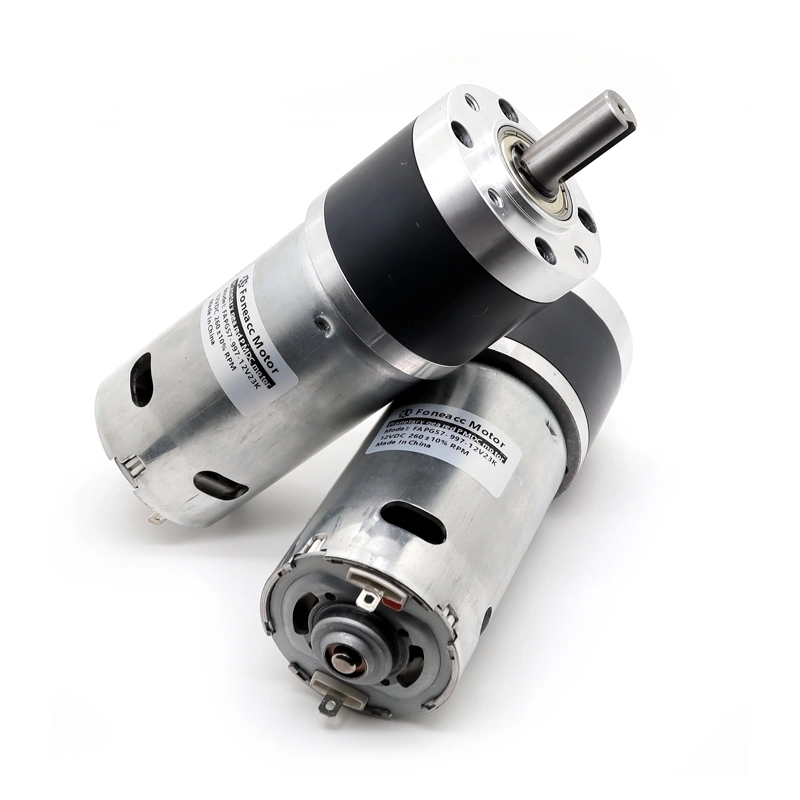

|- Model: PG57-997; RS-997 DC motor with gearbox reducer.
|- Rated Voltage: DC 9V,12V,24V,36V;
|- Rated Torque: Max. 360Kgf-cm ;
|- Size : Φ57* L TBD ;
|- Shaft : concentric driveshaft, Φ12mm D-cut 4mm, custom;
|- Commutation: Carbon Brush/Graphite Brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder 12 PPR;
|- MOQ: 500 pcs;
| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG57-997-12V4K | 1500 | 5.1 | 1300 | 35 |
| PG57-997-12V5K | 1200 | 6.38 | 1040 | 35 |
| PG57-997-12V12K | 500 | 13.4 | 433 | 125 |
| PG57-997-12V16K | 375 | 17.86 | 325 | 125 |
| PG57-997-12V23K | 260.9 | 25.68 | 226 | 125 |
| PG57-997-12V43K | 139.5 | 41.15 | 121 | 450 |
| PG57-997-12V58K | 103.4 | 55.51 | 90 | 450 |
| PG57-997-12V76K | 78.9 | 72.73 | 68 | 450 |
| PG57-997-12V107K | 56.1 | 102.4 | 49 | 450 |
| PG57-997-12V150K | 40 | 119.63 | 35 | 450 |
| PG57-997-12V207K | 29.4 | 162.69 | 25 | 450 |
| PG57-997-12V276K | 21.7 | 220.11 | 19 | 450 |
| PG57-997-12V429K | 14 | 342.13 | 12 | 450 |
| PG57-997-24V4K | 1500 | 4.56 | 1350 | 35 |
| PG57-997-24V5K | 1200 | 5.7 | 1080 | 35 |
| PG57-997-24V12K | 500 | 11.98 | 450 | 125 |
| PG57-997-24V16K | 375 | 15.97 | 338 | 125 |
| PG57-997-24V23K | 260.9 | 22.96 | 235 | 125 |
| PG57-997-24V43K | 139.5 | 36.79 | 126 | 450 |
| PG57-997-24V58K | 103.4 | 49.62 | 93 | 450 |
| PG57-997-24V76K | 78.9 | 65.03 | 71 | 450 |
| PG57-997-24V107K | 56.1 | 91.55 | 50 | 450 |
| PG57-997-24V150K | 40 | 106.95 | 36 | 450 |
| PG57-997-24V207K | 29.4 | 145.45 | 26 | 450 |
| PG57-997-24V276K | 21.7 | 196.79 | 20 | 450 |
| PG57-997-24V429K | 14 | 305.88 | 13 | 450 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
