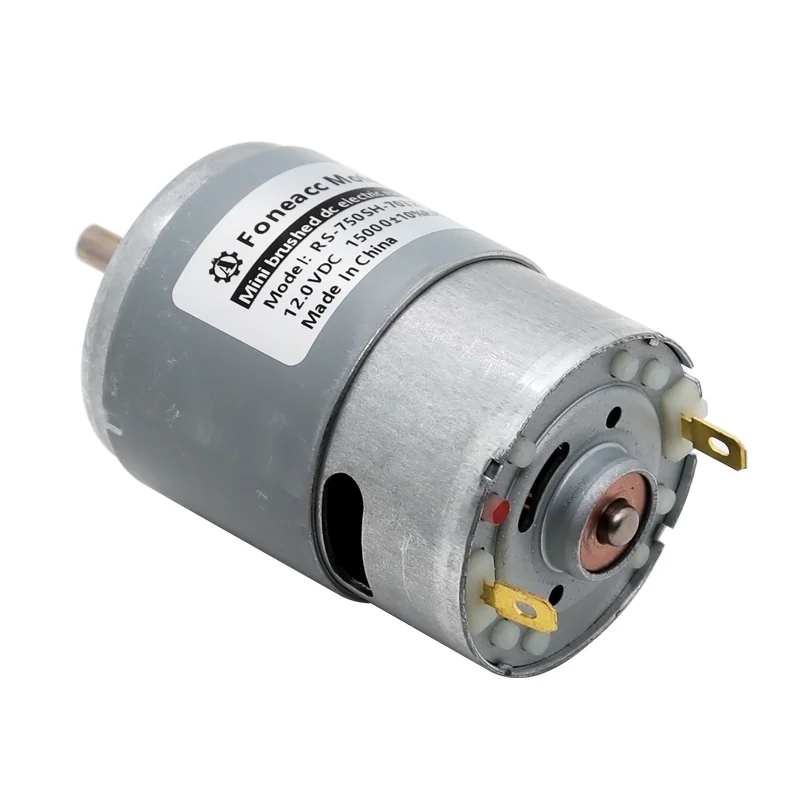

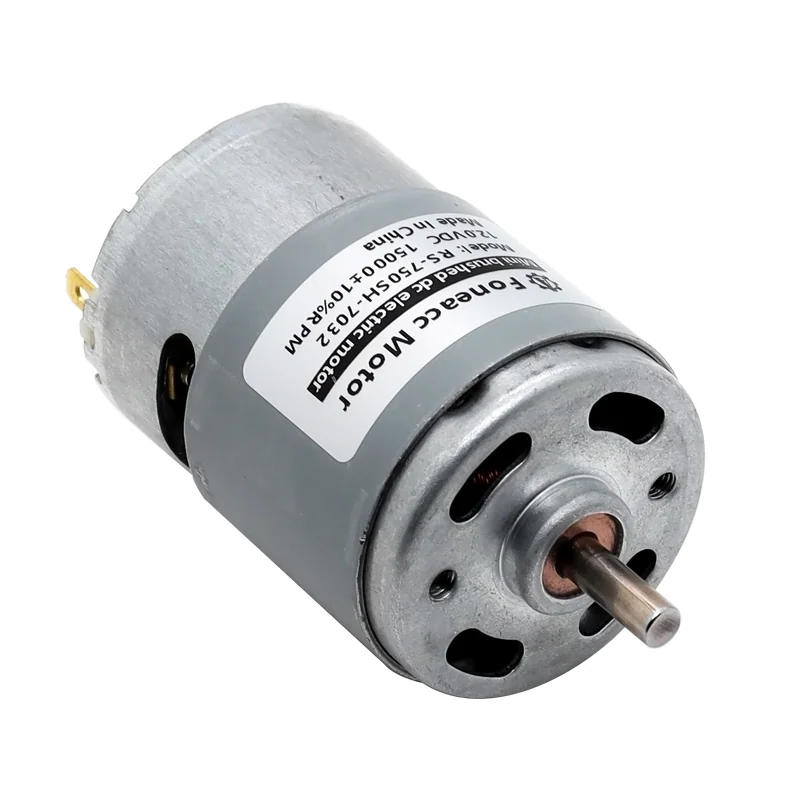

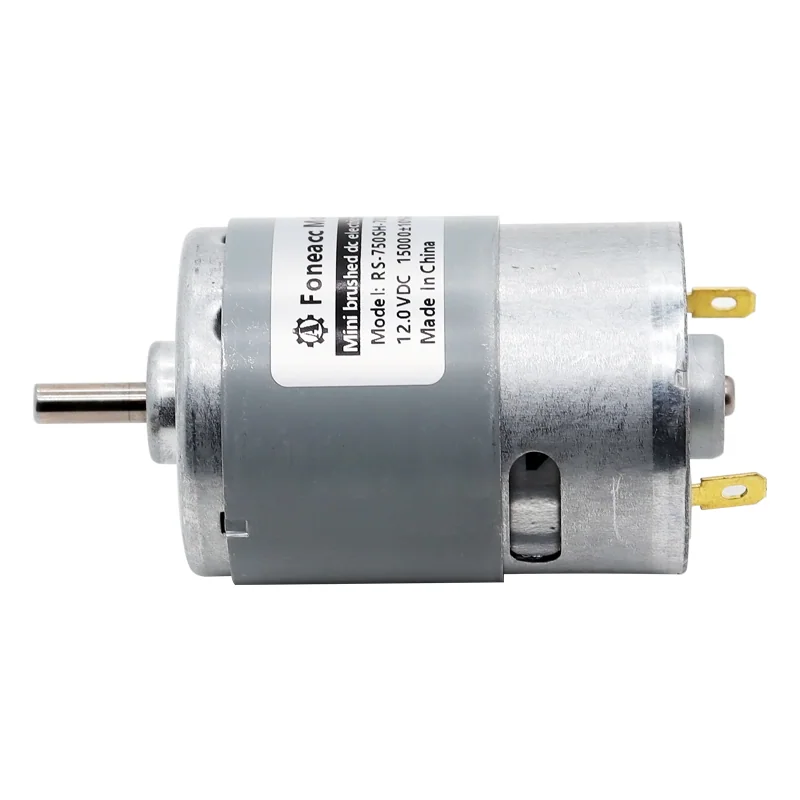

|- Model Number: RS-750
|- Shell Stator Size : Φ42* L 60 mm(Φ 2.637 inch * 2.362 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 80W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.9 Kgf·cm(0.88 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: RS-750
|- Shell Stator Size : Φ42* L 60 mm(Φ 2.637 inch * 2.362 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 80W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.9 Kgf-cm(0.88 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

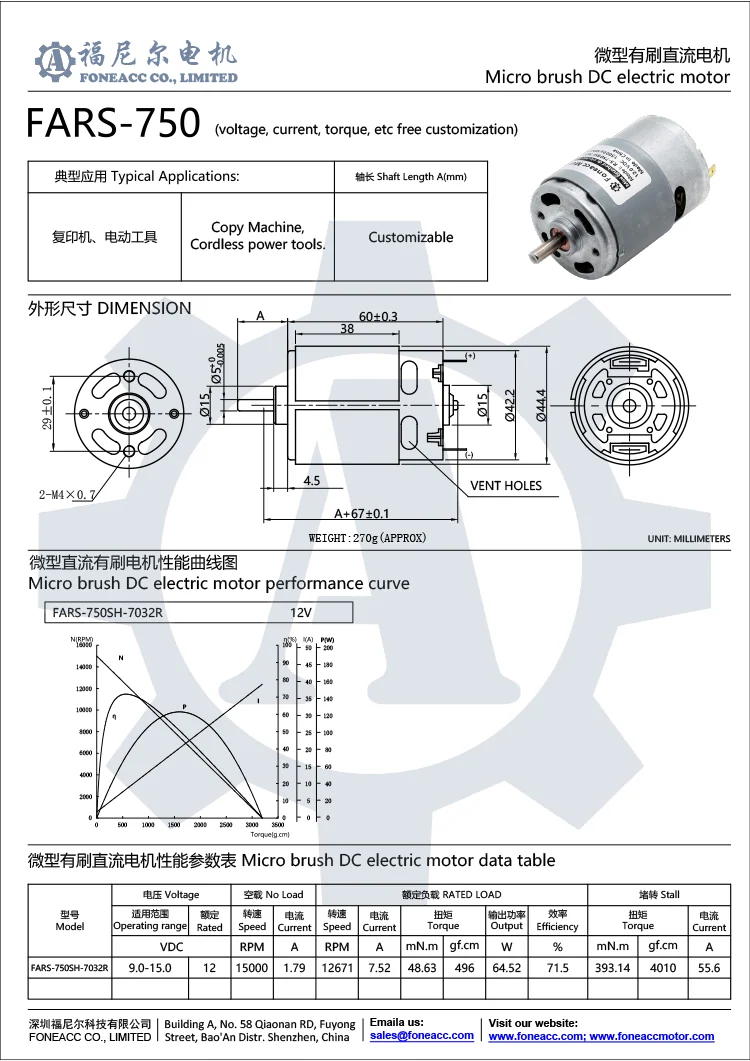

Model | Voltage | No load | At Maximum Efficiency | Stall | |||||||
Range | Rated | Speed | Current | Speed | Current | Torque | P.out | EFF. | Torque | Current | |
V | R/min | A | R/min | A | g-cm | W | % | g-cm | A | ||
RS-750SH-7032R | 9.0-15.0 | 12 | 15000 | 1.79 | 12671 | 7.52 | 496 | 64.52 | 71.5 | 4010 | 55.6 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
