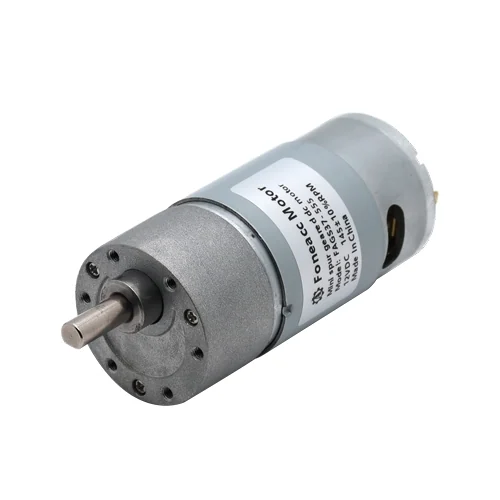

GS37-555 Small DC geared motor

|- Model: GS37-555 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 35Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

GS37-555 Small DC geared motor


Main features:

|- Model: GS37-555 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 35Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs


GS37-555 dc geared motor data examples:

Voltage
Stages 2 3 4 5 6
Gear Ratio 10 16.7 23.3 36 50 70 90 110 121 180 270 350 490 540 630 810
6V
(kgf.cm)
Rated
Torque
1.38 2.10 2.93 4.53 5.73 8.02 10.31 11.46 12.61 18.76 28.14 33.19 46.47 51.21 59.75 76.82
(RPM)
Rated
Speed
270 162 116 75 54 39 30 25 22 15 10 8 6 5 4 3
(kgf.cm)
Breaking
Torque
40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0
(RPM)
No Load
Speed
330 198 142 92 66 47 37 30 27 18 12 9 7 6 5 4
12V
(kgf.cm)
Rated
Torque
1.74 2.64 3.69 5.70 7.20 10.08 12.96 14.42 15.86 23.59 35.38 41.74 58.43 64.40 75.13 96.59
(RPM)
Rated
Speed
390 234 167 108 78 56 43 35 32 22 14 11 8 7 6 5
(kgf.cm)
Breaking
Torque
40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0
(RPM)
No Load
Speed
460.0 275.4 197.4 127.8 92.0 65.7 51.1 41.8 38.0 25.6 17.0 13.1 9.4 8.5 7.3 5.7
Single motor RS-555 dc electric motor specs
Model Rated Voltage No Load RATED LOAD Stall
Speed Current Speed Current Torque Output Efficiency Torque Current
VDC RPM A RPM A gf.cm W % gf.cm A
RS-555-3730 6 3300 0.25 2700 1.3 167 4.629 59.3 1000 6.7
RS-555-3156 12 4600 0.23 3900 1.3 210 8.408 53.9 1300 5.5

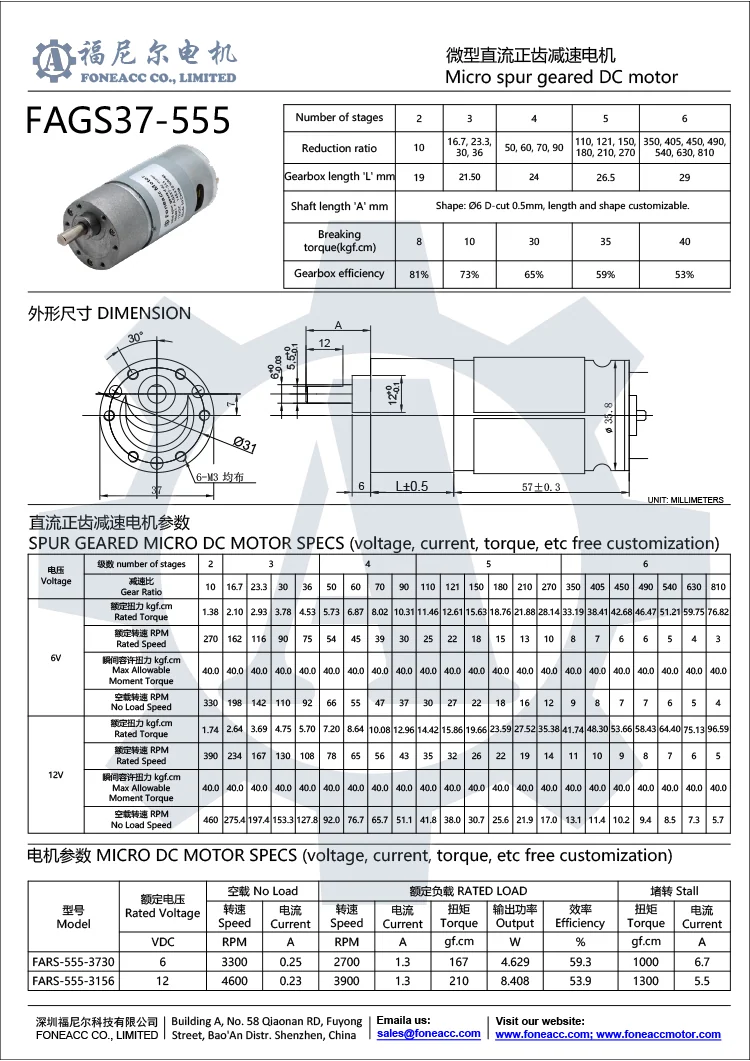

Dimensions and configurations of GS37-555 dc gear motor for reference:

gs37-555 small spur geared brush dc electric motor datasheet


Download GS37-555 DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
