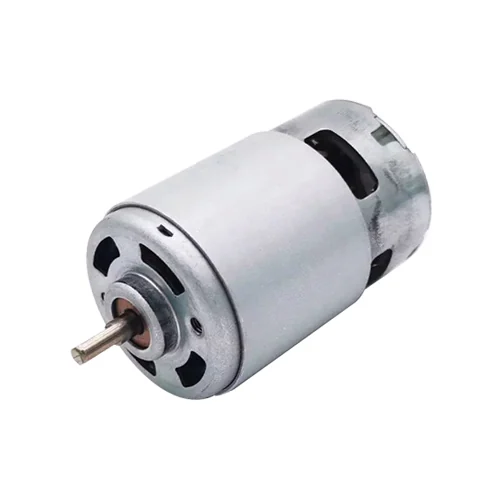

RS-997 52 mm diameter small DC electric motor

|- Model Number: RS-997
|- Shell Stator Size : Φ52* L 85 mm(Φ 2.047 inch * 3.346 inch)
|- Shaft : Φ6.35mm(0.25 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: 50W - 180W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 2 Kgf·cm(196 mNm)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

RS-997 mini dc electric motor


Main features:

|- Model Number: RS-997
|- Shell Stator Size : Φ52* L 85 mm(Φ 2.047 inch * 3.346 inch)
|- Shaft : Φ6.35mm(0.25 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: 50W - 180W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 2 Kgf-cm(196 mNm)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


RS-997 dc motor data examples:

Model Voltage No load At Maximum Efficiency Stall
Range Rated Speed Current Speed current torque P.out Torque Current
V R/min A R/min A g-cm W Kg-cm A
RS-997SH-7009 6.0-12.0 12 9800 1.95 8808 17.32 1713 154.9 16.9 153.8
RS-997SH-8508 6.0-14.0 14 13000 2.5 11160 15.17 1274 145.9 9.00 92
RS-997SH-5527 6.0-24.0 24 6500 0.7 5639 4.58 1366 79.05 10.3 30

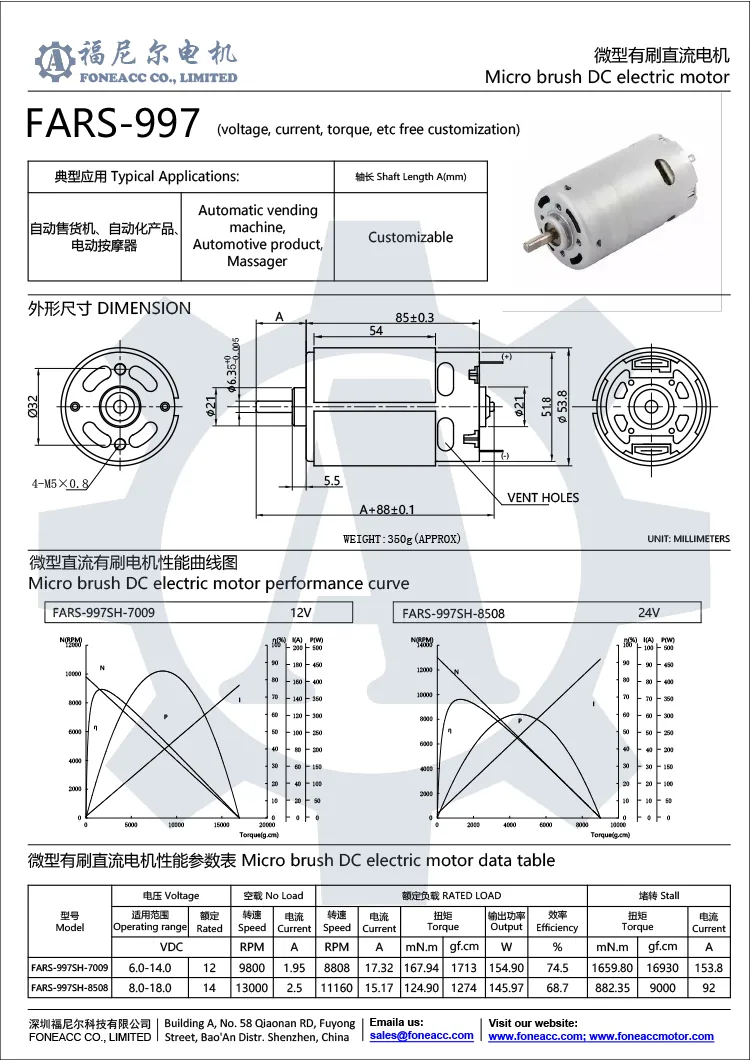

Dimensions and performance curves of RS-997 dc motor for reference:

rs-997 micro brush dc electric motor


Download RS-997 DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
