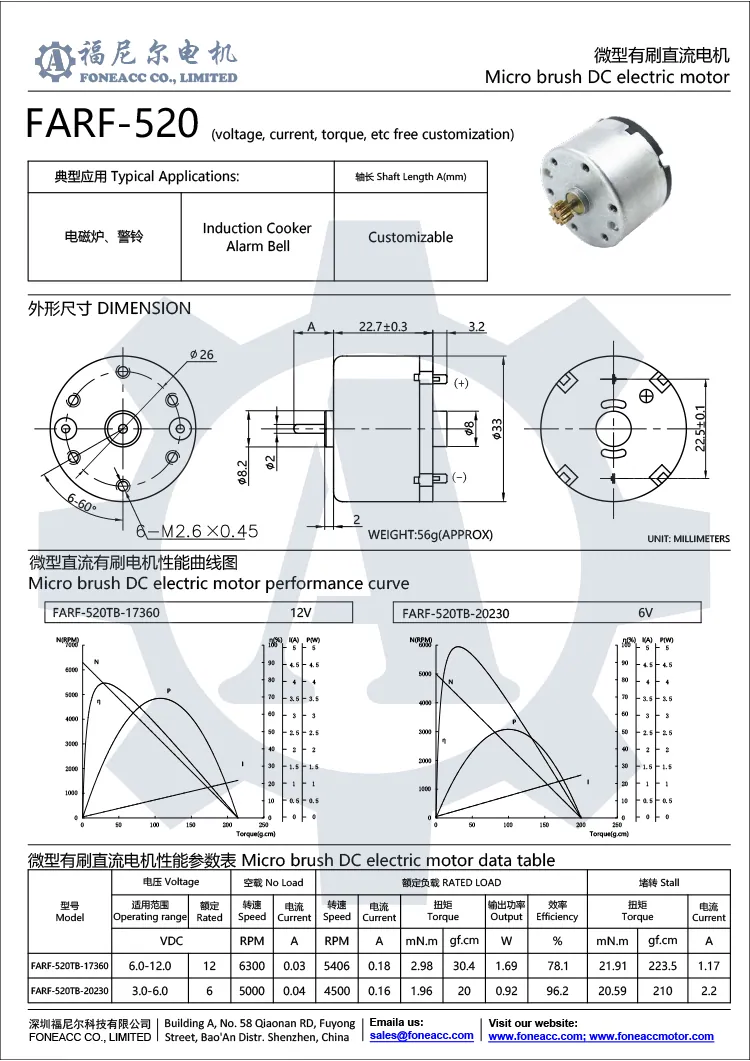

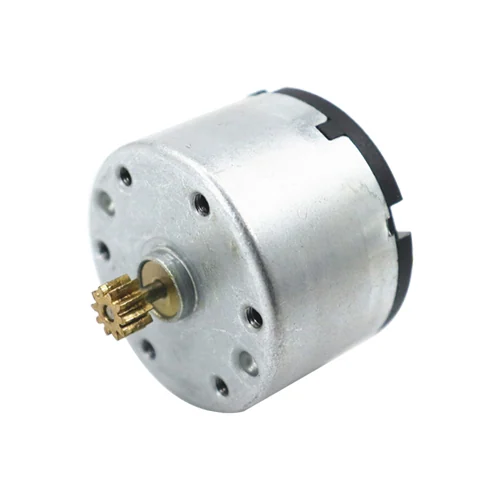

|- Model Number: RF-520
|- Shell Stator Size : Φ33* L 22.7 mm(Φ 1.3 inch * 0.8937 inch)
|- Shaft : Φ2.0mm(0.079 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 3W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 70 gf·cm(6.86 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: RF-520
|- Shell Stator Size : Φ33* L 22.7 mm(Φ 1.3 inch * 0.8937 inch)
|- Shaft : Φ2.0mm(0.079 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 3W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 70 gf-cm(6.86 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Voltage | No- load | At Maximum Efficiency | Stall | ||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Torque | Current | |
| V | R/min | A | R/min | A | g-cm | W | g-cm | A | ||
| RF-520-21019 | 3~9 | 6V | 4900 | 0.03 | 3900 | 0.32 | 35 | 0.19 | 165 | 1.81 |
| RF-520-32516 | 3~9 | 6V | 3200 | 0.02 | 2300 | 0.22 | 40 | 0.14 | 147 | 0.87 |
| RK-520-17222 | 12~24 | 12V | 12000 | 0.11 | 9000 | 0.8 | 70 | 1.3 | 305 | 4.1 |
| RK-520-21020 | 12~24 | 12V | 10000 | 0.06 | 7700 | 0.57 | 60 | 0.73 | 276 | 3.83 |
| RK-520-22718 | 12~24 | 12V | 9000 | 0.08 | 7200 | 0.47 | 50 | 0.86 | 252 | 2.85 |
| RK-520-25518 | 12~24 | 12V | 8000 | 0.07 | 5800 | 0.51 | 70 | 0.8 | 275 | 2.44 |
| RK-520-32016 | 12~24 | 12V | 6500 | 0.04 | 5000 | 0.31 | 50 | 0.46 | 220 | 1.68 |
| RK-520-35015 | 12~24 | 12V | 6000 | 0.03 | 4700 | 0.22 | 40 | 0.33 | 195 | 1.28 |
| RF-520-45513 | 12~24 | 12V | 4700 | 0.02 | 3700 | 0.14 | 35 | 0.18 | 169 | 0.82 |
| RK-520-10700 | 12~24 | 12V | 2650 | 0.02 | 1950 | 0.05 | 20 | 0.4 | 75.7 | 0.17 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
