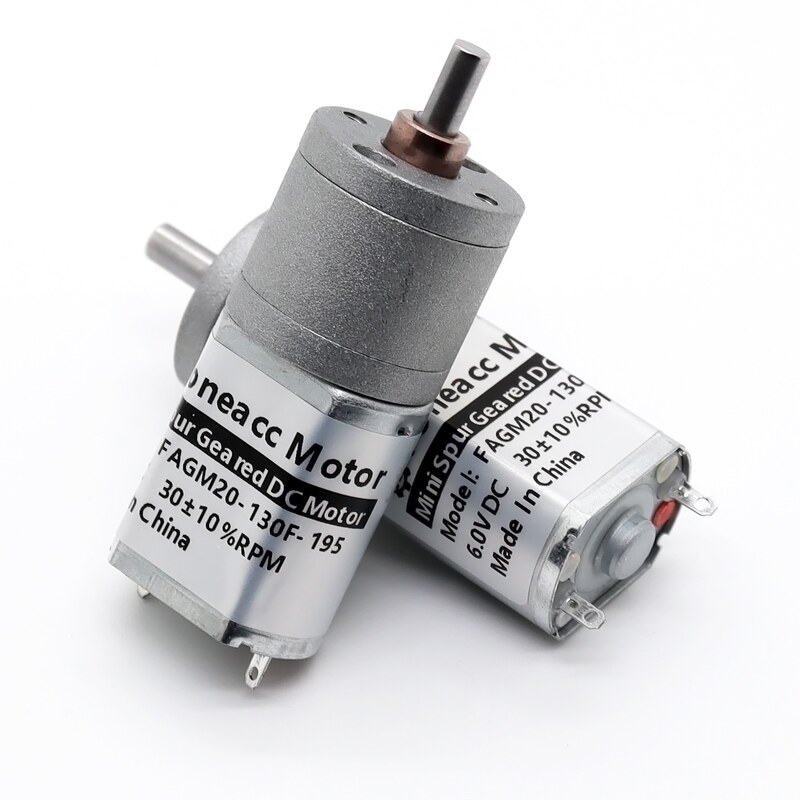

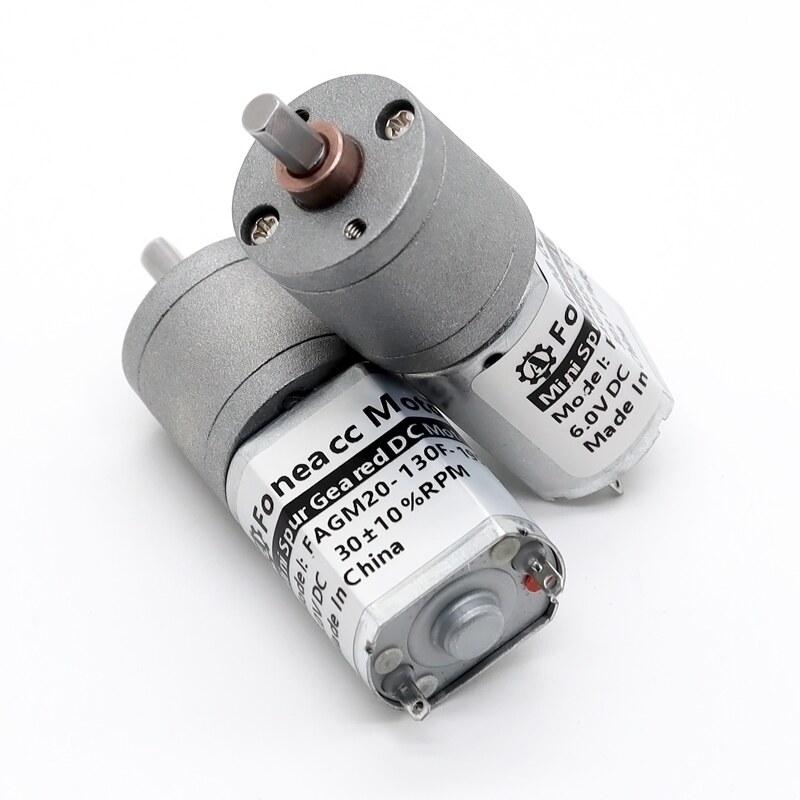

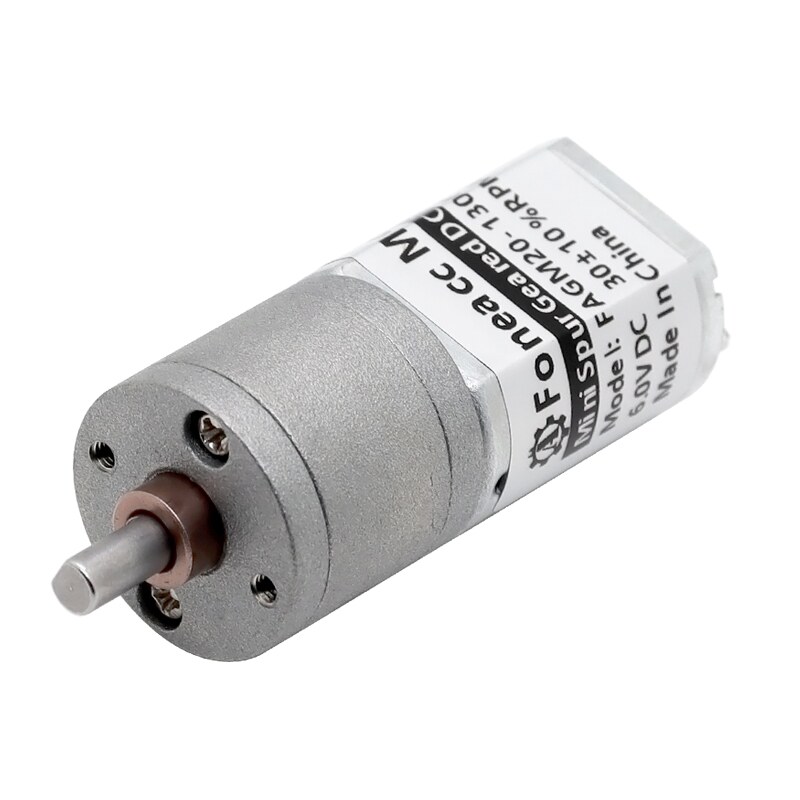

|- Model: GM20-130 micro metal gearmotor;
|- Gearbox: 20 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 3.2Kgf-cm ;
|- Size : Φ20 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, M4, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
|- Model: GM20-130 micro metal gearmotor;
|- Gearbox: 20 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 3.2Kgf-cm ;
|- Size : Φ20 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, M4, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

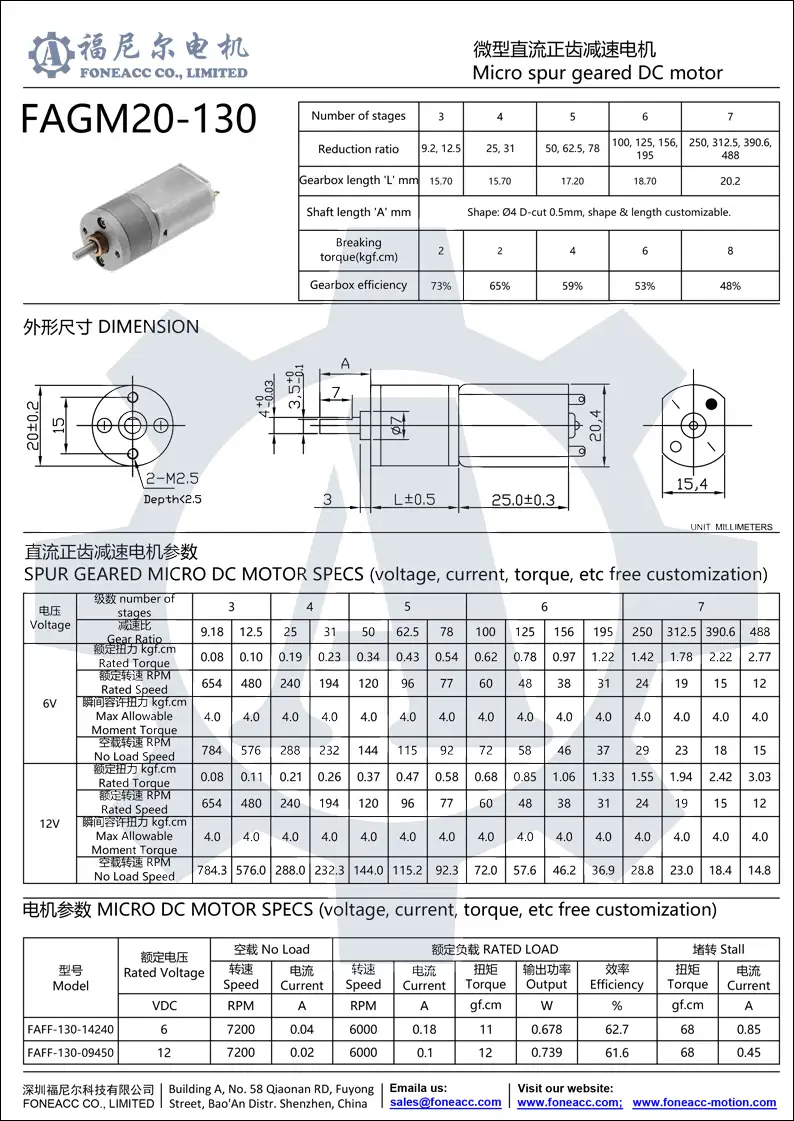

Gear Box Data:
Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Breaking Torque | ||||
kg.cm | ||||||||
14.7 | 3 | 8.2/1 | 12/1 | 0.6 | 1.5 | |||
16.2 | 4 | 20.4/1 | 25/1 | 28/1 | 31/1 | 35/1 | 1.0 | 2.5 |
17.7 | 5 | 50/1 | 67/1 | 70/1 | 75/1 | 87/1 | 1.5 | 3.0 |
19.2 | 6 | 128/1 | 173/1 | 187/1 | 217/1 | 2.0 | 5.0 | |
20.7 | 7 | 266/1 | 319/1 | 438/1 | 467/1 | 542/1 | 2.5 | 6.0 |
22.2 | 8 | 798/1 | 898/1 | 1085/1 | 1220/1 | 2.5 | 6.0 |
Spur Geared Motor Data:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Torque | Current | |
V | rpm | A | rpm | A | kg.cm | W | kg.cm | A | ||
GM20-130-S01 | 3.0~7.0 | 6 | 590 | 0.07 | 467 | 0.26 | 0.2 | 0.96 | 0.6 | 1 |
GM20-130-S02 | 3.0~7.0 | 6 | 1150 | 0.43 | 800 | 3.3 | 0.8 | 6.56 | 1.9 | 7.66 |
GM20-130-S03 | 2.0~4.0 | 3 | 85 | 0.075 | 67 | 0.29 | 0.6 | 0.41 | 2.9 | 1.1 |
GM20-130-S04 | 5.0~13.0 | 12 | 15 | 0.05 | 11.7 | 0.15 | 3 | 0.36 | 14.1 | 0.47 |
GM20-130-S05 | 5.0~13.0 | 12 | 6 | 0.05 | 5.4 | 0.09 | 3 | 0.17 | 28.3 | 0.47 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
