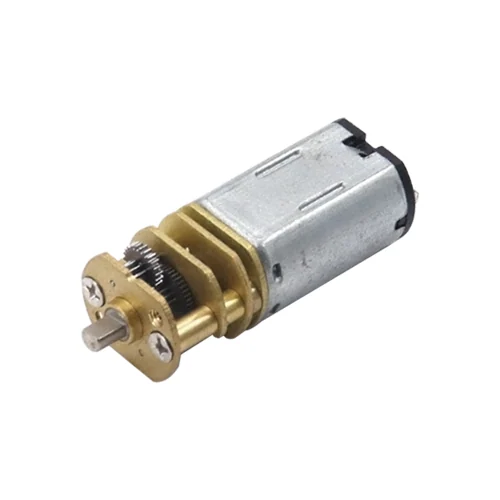

GM10-M20 10mm metal spur gear dc motor

GM10-M20 10mm metal spur gear dc motor

---

Main features:

|- Model: GM10-M20VA micro metal gearmotor;
|- Gearbox: 10 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v;
|- Rated Torque: Max. 0.6Kgf-cm ;
|- Size : Φ10 * L 24.2mm ;
|- Shaft : Φ2.5mm D-cut 0.5mm;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

---

GM10-M20 dc motor data examples:

---

Tables for clear view:

Data table of GM10-M20VA spur gearhead dc electric motor

Voltage	Gear Ratio	100	150	200	250
GM10-M20 3V	kgf.cm Rated Torque	0.08	0.11	0.15	0.19
	RPM Rated Speed	135	90	68	54
	kgf.cm Max Allowable Moment Torque	1.0	1.0	1.0	1.0
	RPM No Load Speed	157	105	79	63
GM10-M20 4.5V	kgf.cm Rated Torque	0.10	0.15	0.20	0.24
	RPM Rated Speed	140	93	70	56
	kgf.cm Max Allowable Moment Torque	1.0	1.0	1.0	1.0
	RPM No Load Speed	162.5	108.3	81.3	65.0

Single motor m20 dc electric motor specs

Model	Rated Voltage	No Load		RATED LOAD					Stall
		Speed	Current	Speed	Current	Torque	Output	Efficiency	Torque	Current
	VDC	RPM	A	RPM	A	gf.cm	W	%	gf.cm	A
FF-M20VA-V1	3	15700	0.04	13500	0.1	1	0.139	46.2	7	0.5
FF-M20VA-V2	4.5	16250	0.05	14000	0.12	1.3	0.187	34.6	6	0.45

---

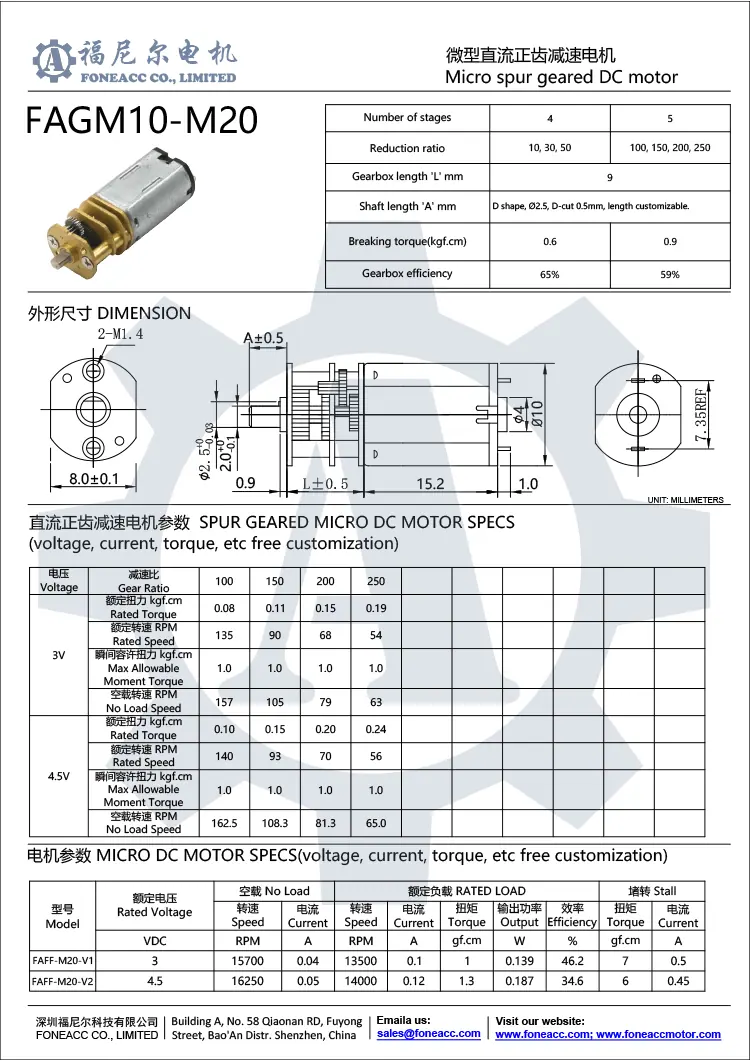

Download GM10-M20 DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

---

Small spur gear dc motor applications

Sweeping robot, CCTV camera, electric lock, electrical curtain, printer, atm, copiers and scanners, vending machines, hand blenders, mixers, coffee machines, fryers, projectors, grinders, polishers, trimmers, amusement machine, financial machine, peristaltic pump, medical apparatus and instruments, automotive, communications equipment, smart home, intelligent security, household appliances, electric kitchen equipment, machinery and electronics, and other high-end transmission structures

Why choose us:

***  Experienced manufacturer  ***
We have more than 15 years of experience in producing and exporting dc gear motor industry all over the world.

***  Motor custom  ***
We accept OEM or ODM orders.

***  Samples processing  ***
We have a sample workshop specialized in processing samples.
The lead time of samples is usually about 7days, some hot-selling models are about 15 days.

***  Capability  ***
Our monthly capacity is more than 200000pcs.
We have many R&D engineers for professional advice and solutions.

***  Fast delivery  ***
According to different quantities and DC motor/gear motor models, 15 to 40 days fast delivery time,
even during the COVID19 pandemic, we have a 99% on-time delivery rate.

***  Worry-free quality  ***
Our products are widely satisfied among customers all over the world with reasonable price and good quality.
Our warranty period is one year. And our comprehensive non-performing rate is less than 1‰. For these defective dc motors, we will provide replenishment in the next batch of orders.
