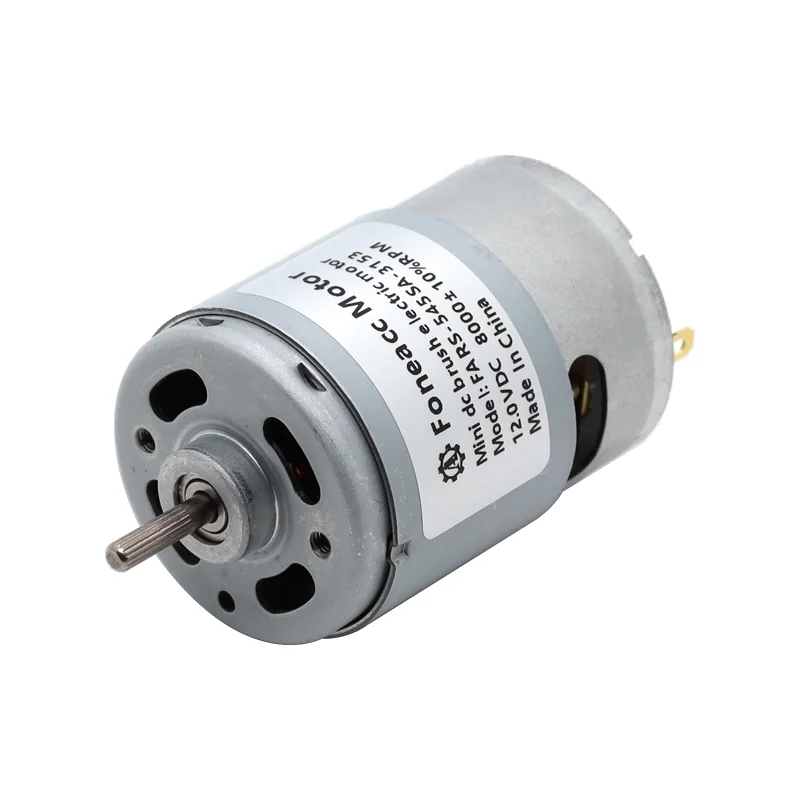

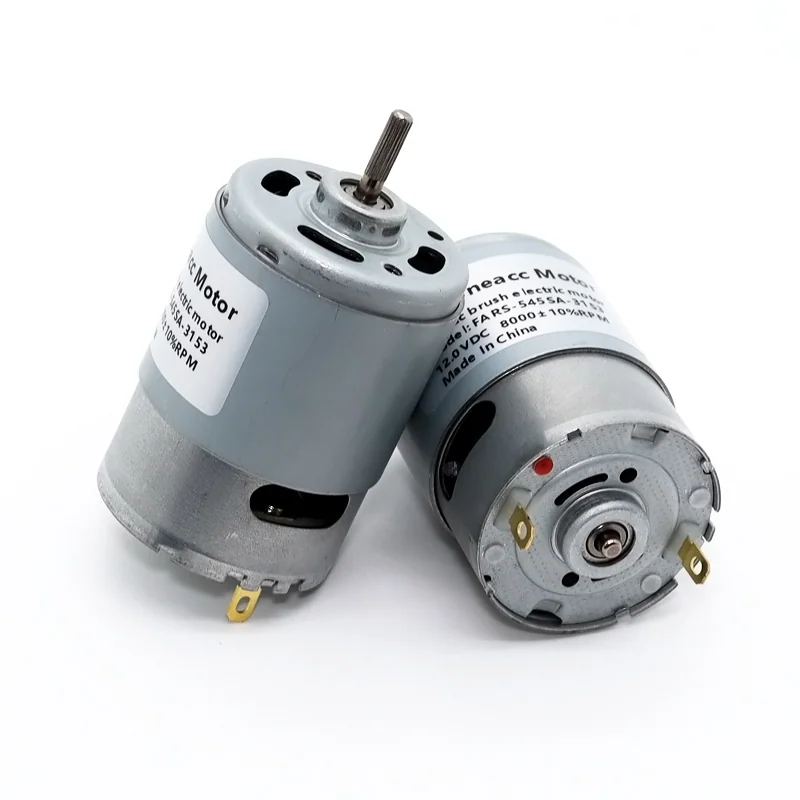

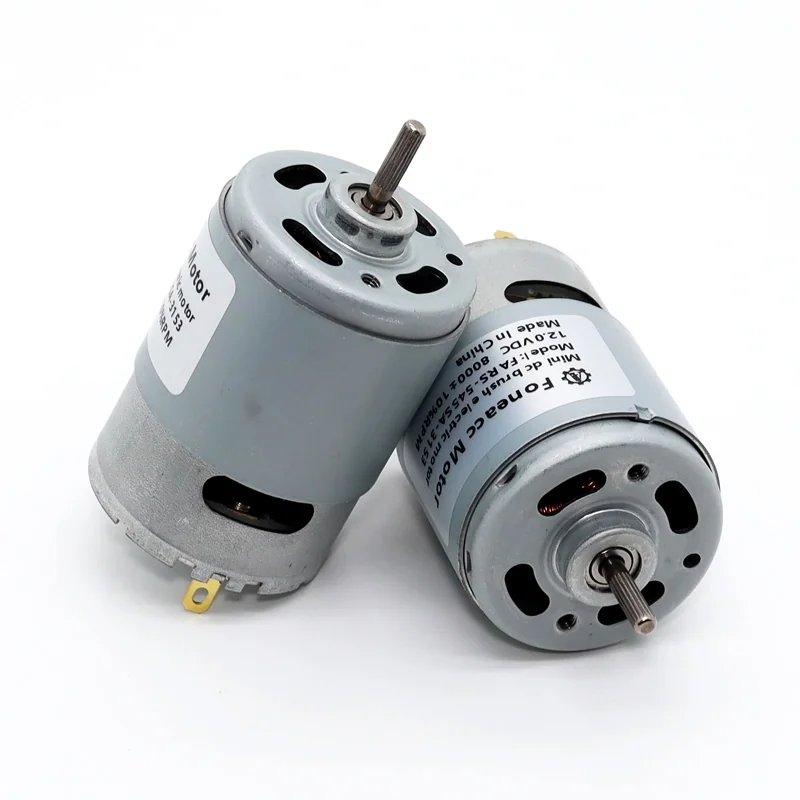

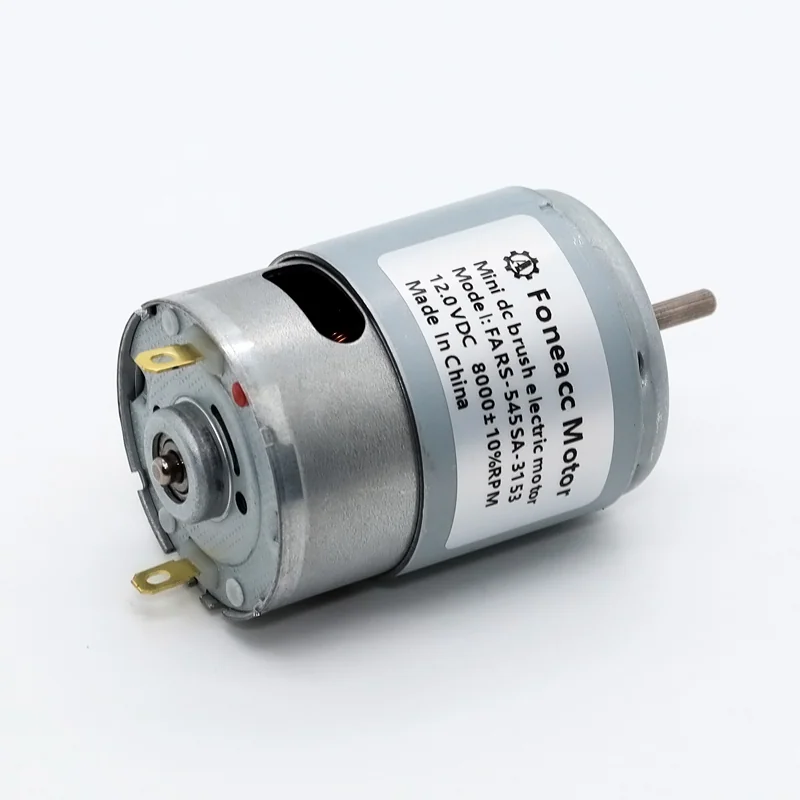

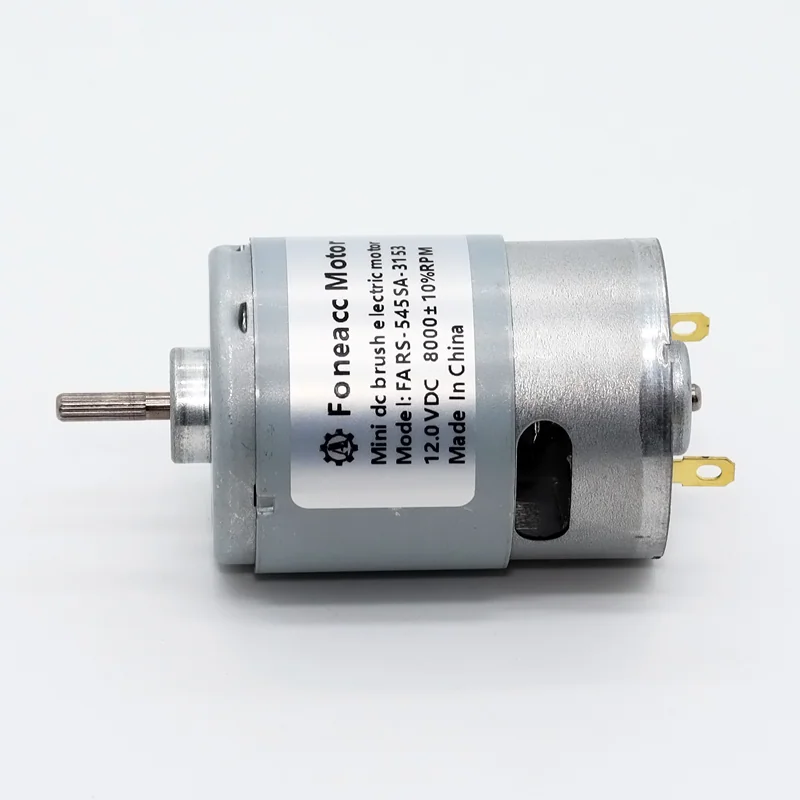

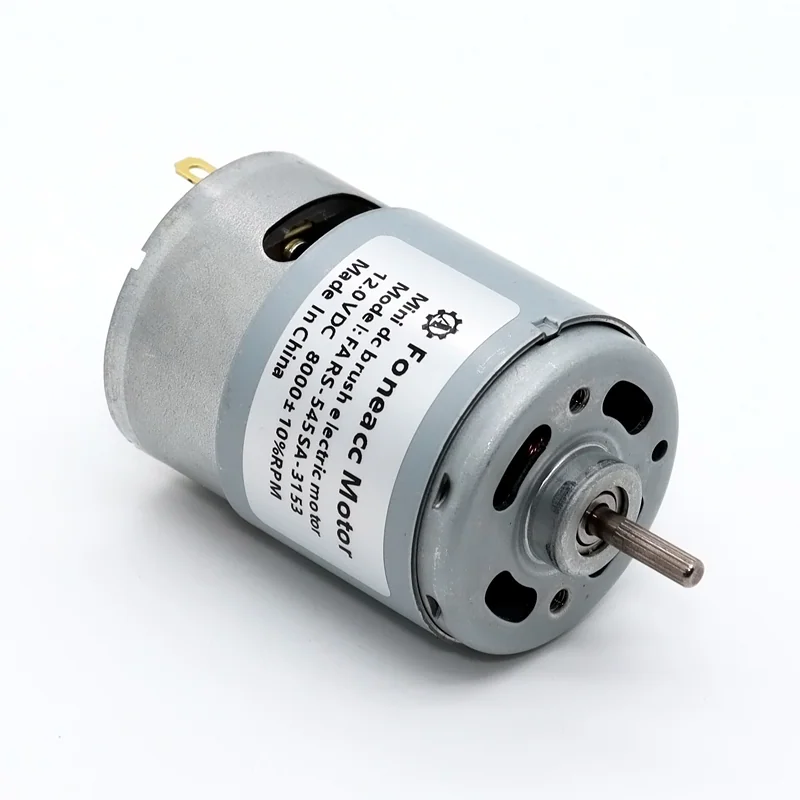

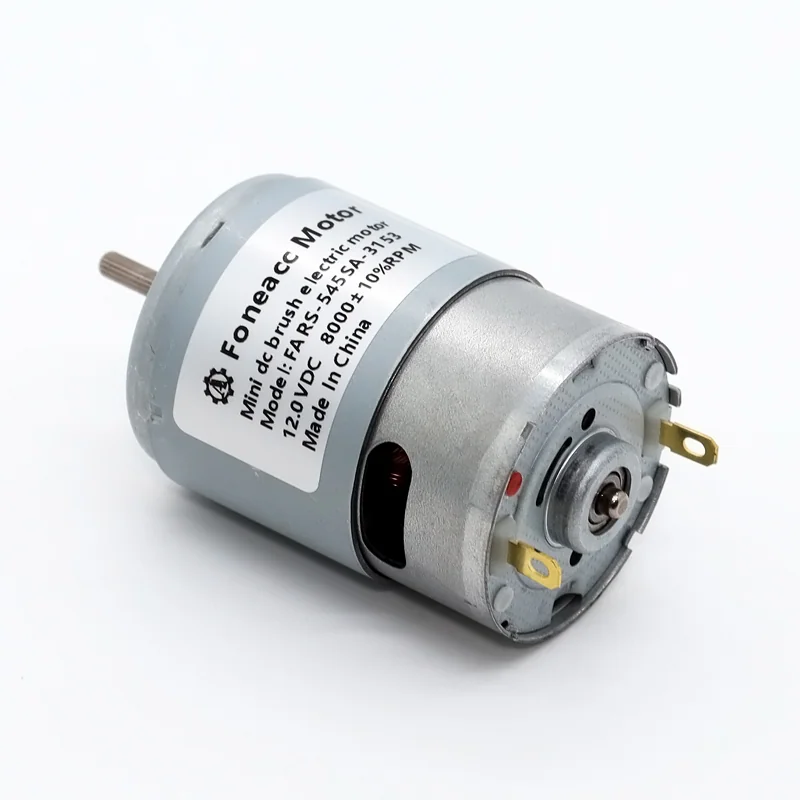

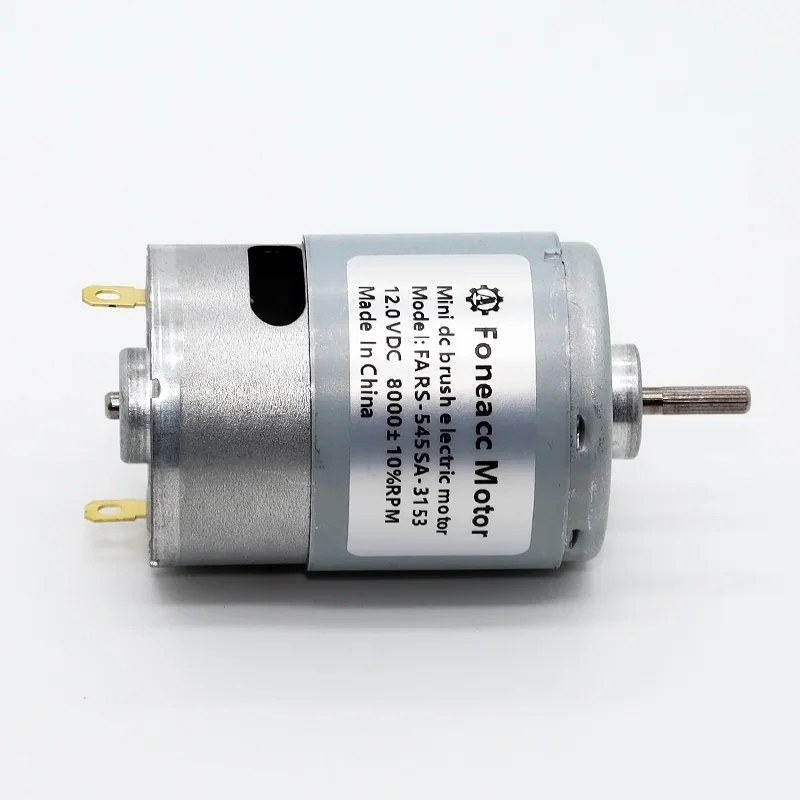

RS-545 Carbon Brushed Micro DC motor

Model: RS-545
Type: Carbon Brushed
OD:35.8mm
Body Length: 50mm
Product description:RS-545 Carbon Brushed Micro DC motor

1.MECHANICAL CHARACTERISTICS

1.1.Size: Dia35.8*L50mm

1.2.End Play:0.05~0.55mm
1.3.Operating Temperature: -10°C ~ +60°C.

1.4.Dimension drawing: See.


2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
2.1.At No load
2.1.1.Speed: 2450 ±10% rpm
2.1.2.Current: 0.0.065A(max 4.0 A)

2.2.At Max Efficiency
2.2.1.Torque: 84.86 g.cm
2.2.2.Speed: 1974 ±10% rpm
2.2.3.Current: 0.257 A(max 21.6A)

2.3.At Stall
2.3.1.Torque: 447 g.cm
2.3.2.Current: 1.08 A(max 108A)

2.4.Direction of Rotation: CCW (Counter-Clockwise when viewing from the output shaft end
with positive voltage applied to positive terminal.


3.MEASURING CONDITIONS
3.1.Rated voltage: 12V DC
3.2.Motor Position: To be measured with motor horizontally held.
3.3.Environmental temperature:25±10°C.
3.4.Environmental humidity:65%±20%RH.

Model Voltage No Load At Max. Efficiency Stall Torque
Operating Range(V) Nominal Speed Current Speed Current Torque Output Eff
V r.p.m A r.p.m A g.cm W % g.cm
RS-540S-5045 4.5 ~ 12.0 12 17,800 0.98 15,300 6.15 320 50.26 68.1 2,278
RS-540S-4565 4.5 ~ 18.0 12 11,000 0.52 9,450 3.18 260 25.22 66.1 1,845
RS-540S-33110 6.0 ~ 24.0 12 6,750 0.3 5,700 1.6 220 12.87 67 1,414
RS-540S-18270 12.0 ~ 30.0 12 2,780 0.13 2,150 0.42 126 2.78 55.2 556
RS-545S-5016 3.0 ~ 9.0 9 22,500 1.5 19,000 8.12 262 51.1 69.9 1,684
RS-545S-2870 6.0 ~ 30.0 9 2,270 0.23 1,840 1 150 2.83 68.7 792
RS-545S-2486 9.0 ~ 30.0 12 4,800 0.25 3,800 0.99 175 6.83 57.5 840
RS-545-17145 12.0~45.0 40 9,250 0.12 8,065 0.64 200 16.56 64.7 1,561


RS-540 micro brush dc electric motor

RS-545 micro brush dc electric motor

Click here to view HD clear specification of rs-545 micro dc motor

Remark:The above technical data are only for reference,we can customerize them according to different requirements after evaluation.
