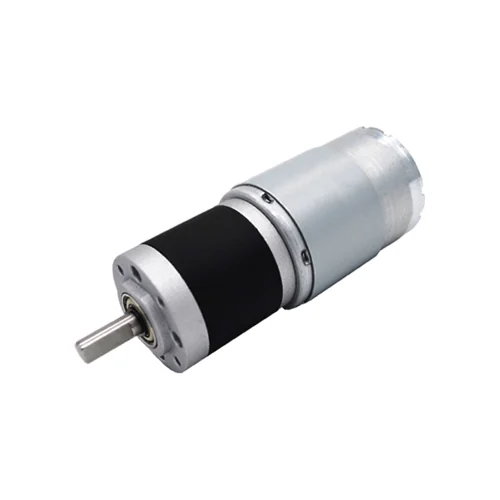

PG32-545 32mm mini epicyclic(planetary) gear motor

|- Model: PG32-545;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 65 Kgf-cm ;
|- Size : Φ32* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/Optical encoder.
|- MOQ: 500 pcs;

PG32-545 32mm mini epicyclic(planetary) gear motor


Main features:

|- Model: PG32-545; RS-545 dc motor with planetary gearbox reducer.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 65 Kgf-cm ;
|- Size : Φ32* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder:  Magnetic/optical encoder.
|- MOQ: 500 pcs;


PG32-545 mini dc geared motor data examples:

Model No Load Rated Load
Breaking
Torque
Speed Torque Speed
r/min kgf-cm r/min kgf-cm
PG32-545-12V3K 2000 0.66 1700 6.5
PG32-545-12V5K 1200 1.11 1020 6.5
PG32-545-12V11K 545.5 2.13 464 15.5
PG32-545-12V16K 375 3.1 319 15.5
PG32-545-12V21K 285.7 4.07 243 15.5
PG32-545-12V38K 157.9 6.32 134 50
PG32-545-12V52K 115.4 8.64 98 50
PG32-545-12V72K 83.3 11.97 71 50
PG32-545-12V100K 60 16.62 51 50
PG32-545-12V126K 47.6 17.45 40 75
PG32-545-12V175K 34.3 24.24 29 75
PG32-545-12V334K 18 46.26 15 75
PG32-545-12V462K 13 63.99 11 75
PG32-545-24V3K 2000 0.68 1700 6.5
PG32-545-24V5K 1200 1.14 1020 6.5
PG32-545-24V11K 545.5 2.19 464 15.5
PG32-545-24V16K 375 3.18 319 15.5
PG32-545-24V21K 285.7 4.17 243 15.5
PG32-545-24V38K 157.9 6.48 134 50
PG32-545-24V52K 115.4 8.86 98 50
PG32-545-24V72K 83.3 12.27 71 50
PG32-545-24V100K 60 17.04 51 50
PG32-545-24V126K 47.6 17.89 40 75
PG32-545-24V175K 34.3 24.85 29 75
PG32-545-24V334K 18 47.43 15 75
PG32-545-24V462K 13 65.6 11 75

Dimensions and configurations of PG32-545 mini dc planetary gear motor for reference:

PG32-545 planetary gearbox dc electric motor


Download PG32-545 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
